The Complete Guide to the Dana 80 Axle: Strength, Identification, Common Failures & How to Upgrade It

When it comes to heavy-duty axles, few names carry the respect and reputation of the Dana 80. Found under everything from 1-ton work trucks to high-horsepower off-road rigs, the Dana 80 has earned its place as one of the strongest and most reliable axles available. Whether you’re towing, rock crawling, racing, or converting it into a steering axle for an extreme buggy build, the Dana 80 offers unmatched strength and room for upgrades.

In this guide, we’ll break down how to identify a Dana 80, its weight capacity, common failure points, how to upgrade it, and how to properly maintain it to avoid costly issues like bearing wear and race pitting.

What Makes the Dana 80 Special?

The Dana 80 is a full-float, heavy-duty rear axle designed for the most demanding applications. While the Dana 60 is legendary, the Dana 80 steps into a different league entirely.

Key Strength Features

Massive 11.25" ring gear
Thick, high-strength housing designed for extreme towing and off-road abuse
Large-diameter axle tubes (typically 3.5"–4")
Full-float design for maximum load capacity
Factory shaft sizes ranging from 35 to 37 spline
Support for aftermarket 40–47 spline conversions (like Crane Axle components)

The combination of large gears, strong bearings, a full-float design, and heavy-duty construction makes the Dana 80 one of the highest-capacity axles ever fitted to a pickup truck.

Dana 80 Weight Capacity

Depending on OE configuration, the Dana 80 typically offers:

Factory Weight Ratings

10,000–11,000 lb Gross Axle Weight Rating (GAWR)
Found in 1-ton and 4500/5500 class platforms
Designed for high towing loads and heavy payload trucks

These numbers aren’t just for towing—they give the Dana 80 enough strength for:

High-horsepower bouncers
Ultra4 builds
Heavy Toy Haulers
Diesel drag trucks
High-torque crawler setups

Because of its massive ring gear, huge carrier bearings, and robust heat treatment, the Dana 80 tolerates shock loads that would destroy smaller axles.

How to Identify a Dana 80 Axle

Since Dana 80s are highly sought after for heavy-duty builds, identification is essential. Compared to the Dana 60 or 70, the Dana 80 has multiple unmistakable features.

1. Massive Differential Cover (The Easiest Indicator)

The Dana 80 cover is large, nearly round at the bottom, and distinctly taller than a Dana 60 or 70.

Dana 80 Cover Specs

10 bolt cover
Roughly 11.5" wide & 12–13" tall
Large flat top section
Bottom curvature more pronounced than a Dana 60

You can often identify a Dana 80 by eye immediately just from the size of the diff cover.

2. Ring Gear Size

If the cover is off, this is a dead giveaway:

11.25” ring gear, compared to:
- Dana 60: 9.75”
- Dana 70: 10.5”

The gear size alone confirms a Dana 80.

3. Axle Shaft Spline Count

Factory shafts typically come in:

35 spline (common)
37 spline (less common, heavier-duty OE apps)

Aftermarket Crane 35 spline conversions and Crane 37 spline conversions confirm Dana 80 compatibility.

4. Axle Tube Diameter

Most Dana 80s use:

3.5" tubes with thick wall
Some heavy-duty units approach 4" OD

This is noticeably larger than a Dana 60 or 70.

5. Full-Float Hub Design

All Dana 80s are full-float, meaning:

Axle shafts do not carry vehicle weight
Hubs carry the load
Shafts only transmit torque

This is a hallmark of their strength and towing capacity.

Common Failure Points on a Dana 80

Even though the Dana 80 is extremely strong, no axle is indestructible. Here are the issues we see most often—and how to prevent them.

1. Differential Bearing Wear

This is the #1 most common Dana 80 problem and typically shows up as:

Gear whine
Excessive backlash
Metallic glitter in the oil
Heat discoloration on the carrier
Bearing race pitting or spalling

Due to the heavy loads these axles endure, bearings can wear faster than expected—especially in diesel tow rigs or abusive off-road builds.

Root Causes

Overloading the axle
Dirty or contaminated gear oil
Infrequent maintenance
Incorrect gear setup
Water intrusion

If not caught early, bearing wear can destroy gears and carrier journals.

2. Pinion Bearing Failure

The Dana 80 uses large pinion bearings, but with heavy towing, shock loads, or improper setup, they can:

Overheat
Pit
Spall
Create pinion wobble

This leads to gear misalignment and premature ring/pinion wear.

3. Carrier Journal Wear

On extremely high-mileage or high-load units, the carrier caps or journals can wear and oval-out.
Once the carrier cannot hold preload, the differential becomes noisy and sloppy.

4. Axle Shaft Twist (High Power Applications)

While 35–37 spline shafts are tough, high-horsepower diesel or buggy builds can twist them.
This is why Crane Axle and other extreme-duty suppliers offer:

40 spline chromoly
47 spline 2" shaft systems
Matching spools and seals

A properly set up 47-spline Dana 80 is nearly indestructible.

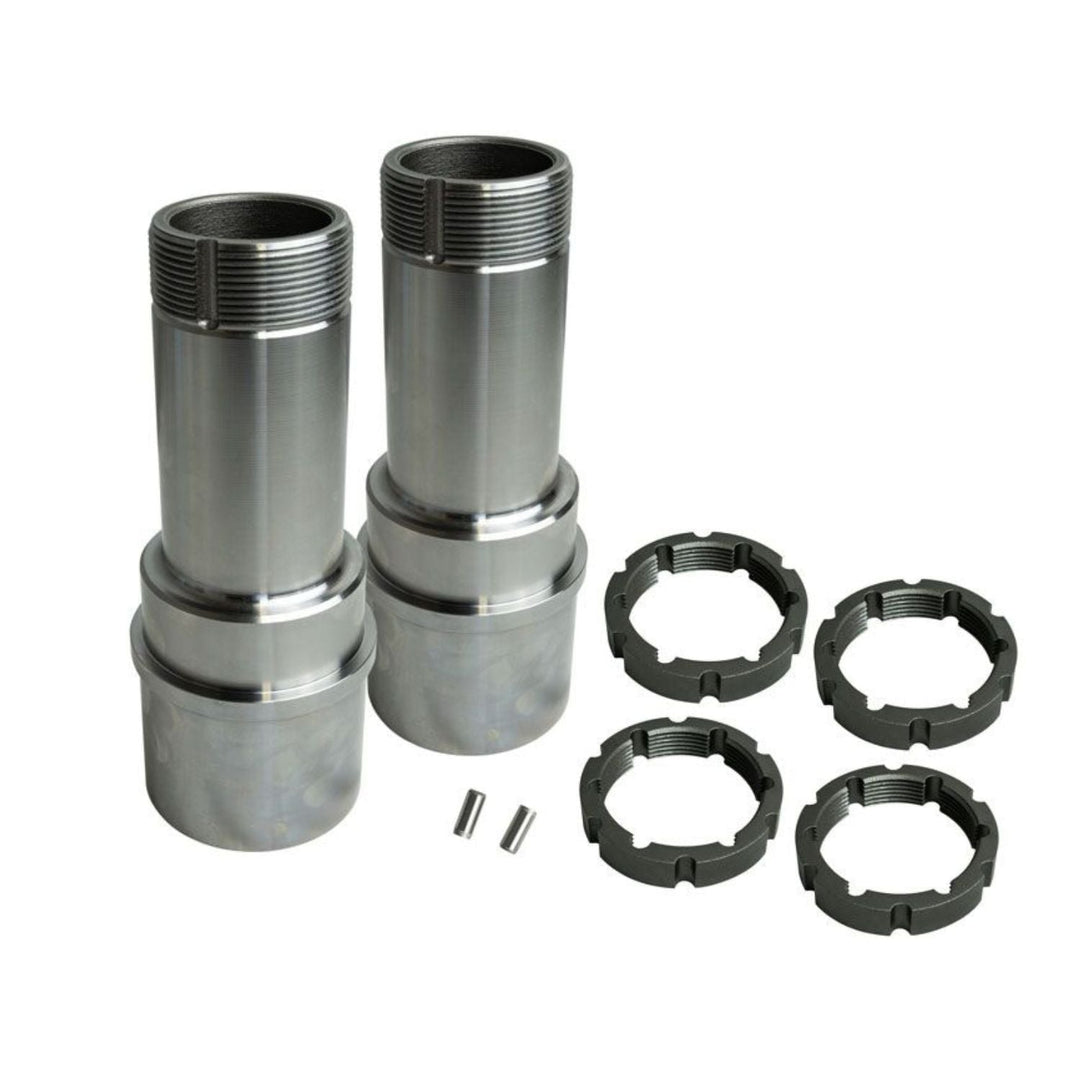

5. Spindle & Hub Wear

Heavy towing and braking load can wear:

Wheel bearings
Spindle seal surfaces
Hub bores

Regular inspection is required for safety and long-term reliability.

How to Upgrade a Dana 80

One of the best things about the Dana 80 is how well it accepts upgrades. Whether you're trying to tow more safely, run bigger tires, or convert it into a front-steer axle, here are the top enhancements.

1. Convert to 40–47 Spline Shafts

Upgrading from stock shafts to:

40 spline 4340 or 300M shafts
47 spline 2” shafts (Crane Axle conversion)

…dramatically increases torque capacity.

This is a MUST for:

Big-block or LS-powered buggies
1,000+ hp diesel builds
Rock bouncers
Ultra4 racing

A proper conversion includes:

35/37 spline spool
2” seal kits
Upgraded bearings
Stronger hubs & spindles (or custom outers)

2. High-Quality Spool

A spool eliminates:

Spider gears
Clutch packs
Weak links inside the diff

Crane’s Dana 80 spool is designed for 2” shafts and extreme abuse.

3. Better Hubs & Bearings

Fresh bearings reduce heat and friction dramatically.
Upgrading to:

Chromoly hubs
Upgraded locking hubs or drive flanges
Heavy-duty bearings

…extends life and reliability.

4. Brake Upgrades

Larger rotors and multi-piston calipers:

Improve stopping power
Reduce brake fade
Increase safety under heavy load

This is especially important for tow rigs or big-tire off-road builds.

5. Trusses & Reinforcement

Adding a truss prevents housing flex, which is common under:

Diesel torque
Hard launches
Landing jumps
Harsh off-road abuse

Truss kits maintain alignment of:

Gears
Bearings
Axle tubes

Misalignment destroys bearings quickly, so reinforcement is a smart long-term investment.

How to Maintain a Dana 80 to Prevent Bearing and Race Pitting

Proper maintenance is the difference between a Dana 80 that lasts 300,000 miles and one that fails prematurely.

1. Regular Gear Oil Changes

Change gear oil every:

30,000–50,000 miles for normal use
10,000–15,000 miles for towing or off-road use
After every deep-water event

Contaminated oil accelerates bearing pitting more than anything else.

2. Use High-Quality Gear Oil

Always run:

75W-90 or 75W-140 full synthetic
GL-5 rated

Thicker oils are better for towing, heat, and heavy shock load.

3. Set Proper Bearing Preload

Incorrect bearing preload is the leading cause of:

Race pitting
Heat buildup
Gear tooth wear

A Dana 80 must be set up by someone who understands big axle preload specs—not Dana 44 or 60 numbers.

4. Keep Water Out of the Housing

Water contamination leads to:

Rust
Pitting
Gear oil breakdown/li>

Use proper vent routing and avoid pressure-washing seals.

5. Inspect for Metal in the Oil

Any glitter is a sign that:

A bearing is failing
A gear tooth is wearing
A race has started pitting

Catching it early saves the gears.

6. Keep Hubs & Spindles Greased

Full-float hubs rely heavily on:

Proper torque
Clean grease
Correct bearing preload

These prevent spindle wear and bearing heat failure.

Final Thoughts: The Dana 80 Is the Ultimate Heavy-Duty Axle

With its massive ring gear, thick housing, strong bearings, and huge aftermarket support, the Dana 80 is one of the best axles ever produced for both work trucks and off-road monsters. Whether you’re identifying one for your next build, trying to prevent failure, or planning big upgrades like 40–47 spline conversions, the Dana 80 provides a foundation that can handle just about anything.

At Crane Axle, we build components specifically engineered to take the Dana 80 to its absolute limits—spools, seals, shafts, housings, and more. If you’re ready to upgrade your Dana 80 or convert it into a steering axle, we have the parts and expertise to guide the build.
