F021060

$7.99
/
Shipping calculated at checkout.

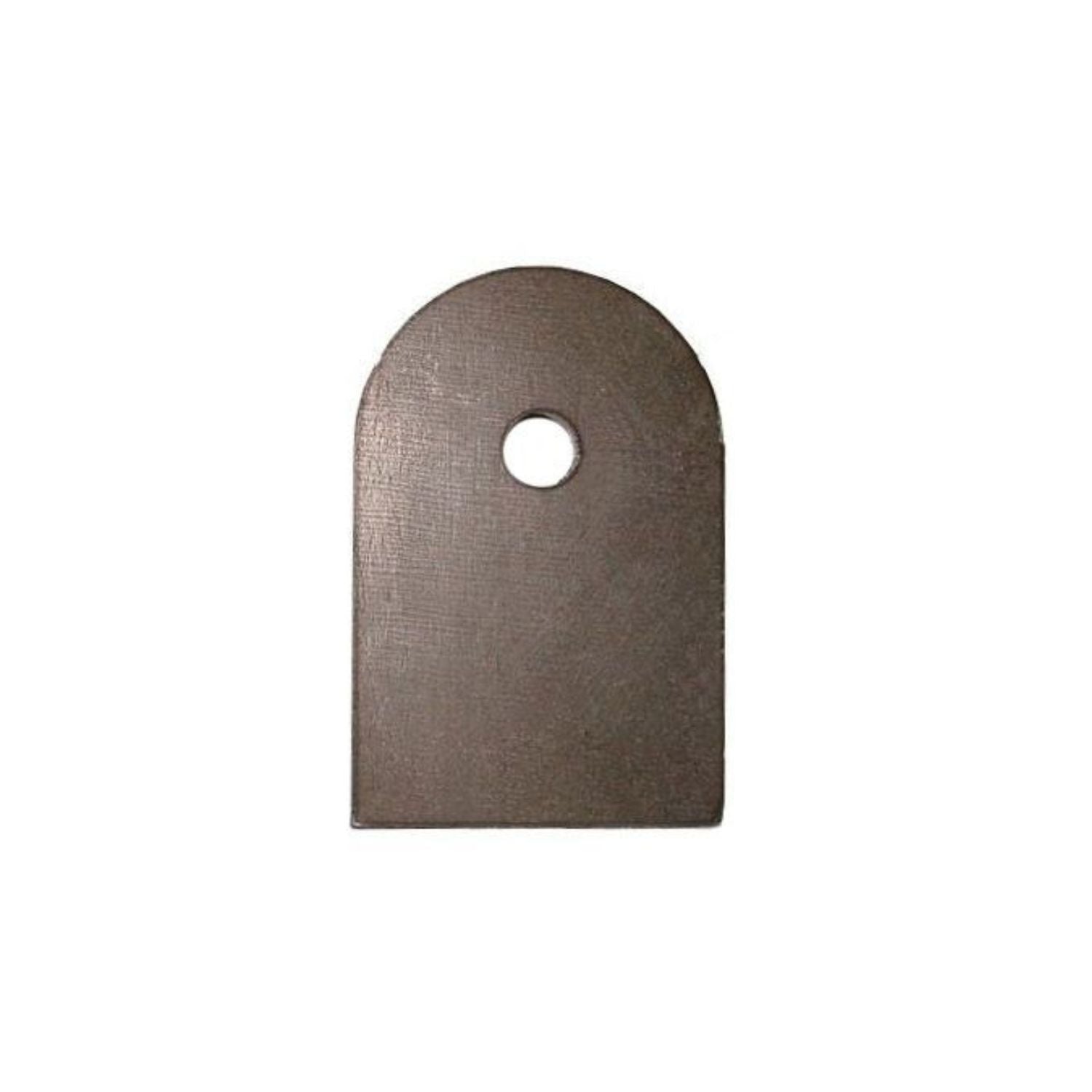

These Long Rear Truss Link Tabs make it simple to mount your suspension links by creating a strong and accurate mounting point on your truss. Designed to pair with a short or long matching tab, you can dial in the exact link angle needed for your suspension setup.

Built from 1/4" high-strength plate steel and precision laser cut for consistent accuracy, these tabs save DIY builders from the hassle of cutting their own.

Includes:

  • (1) Long Rear Truss Link Tab (Note: You need 2 tabs to mount a single link arm.)

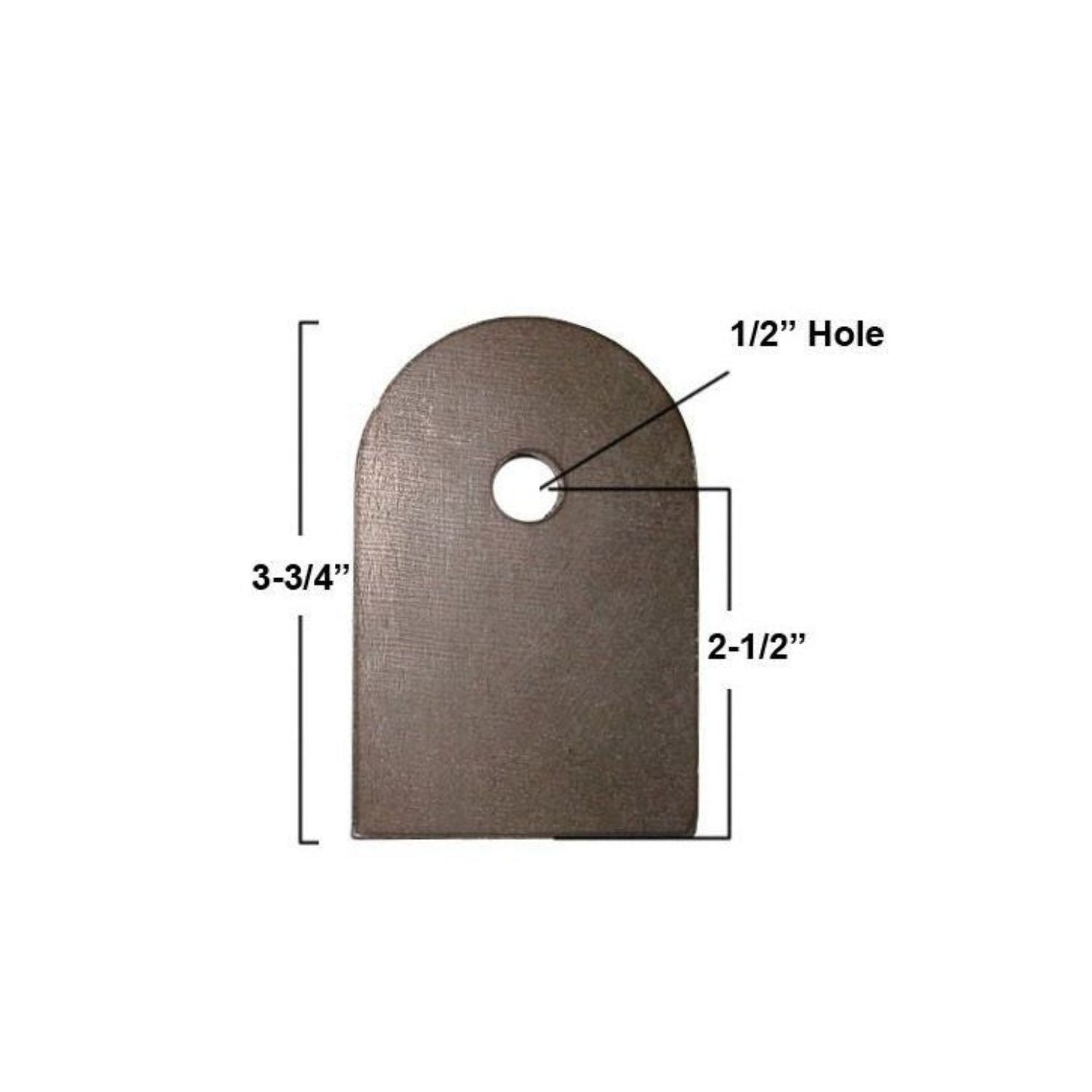

Specifications
  • Material: 1/4" High Strength Plate Steel
  • Overall Length: 3.75"
  • Base-to-Hole Center: 2.50"
  • Hole Diameter: 1/2"
  • Laser cut for precision
  • Weld-ready fabrication tab
  • Can pair with another long or short tab to set link angle
  • Made in the USA
Fitment
  • Universal weld-on fitment for trusses on custom off-road builds, rock bouncers, trail rigs, and fabricated suspension systems.

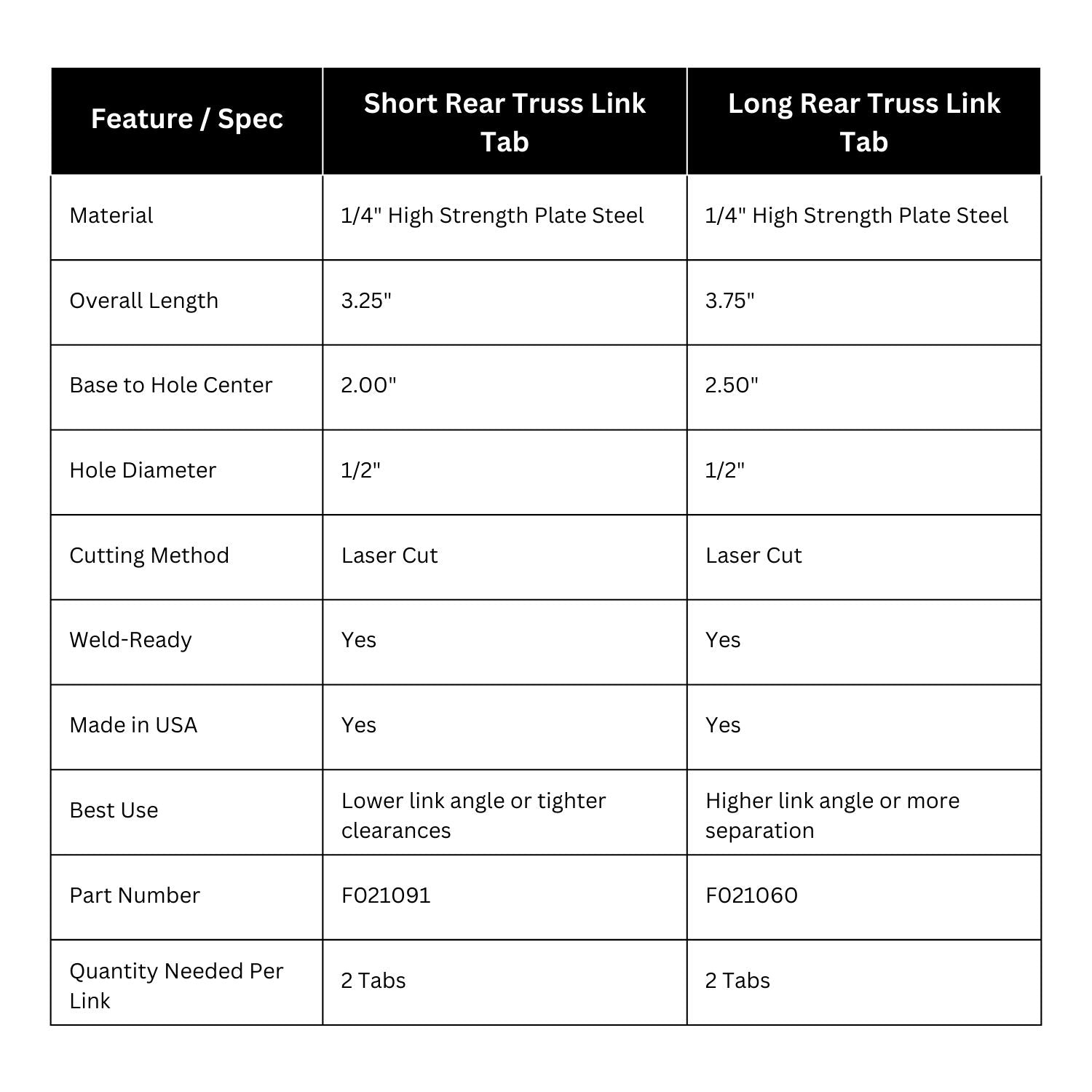

Feature / Spec Short Rear Truss Link Tab Long Rear Truss Link Tab
Material 1/4 High Strength Plate Steel 1/4 High Strength Plate Steel
Overall Length 3.25 3.75
Base to Hole Center 2.00 2.50
Hole Diameter 1/2 1/2
Cutting Method Laser Cut Laser Cut
Weld-Ready Yes Yes
Made in USA Yes Yes
Best Use Lower link angle or tighter clearances Higher link angle or more separation
Part Number F021091 F021060
Quantity Needed Per Link 2 Tabs 2 Tabs
Tech Insight

Truss tabs allow you to fine-tune suspension geometry by setting your exact link angle. Pairing a Long Rear Truss Link Tab with another long or short tab gives you control over anti-squat, link separation, and overall suspension feel. Laser-cut tabs ensure consistency from one build to the next, reducing setup time and improving welding accuracy.
