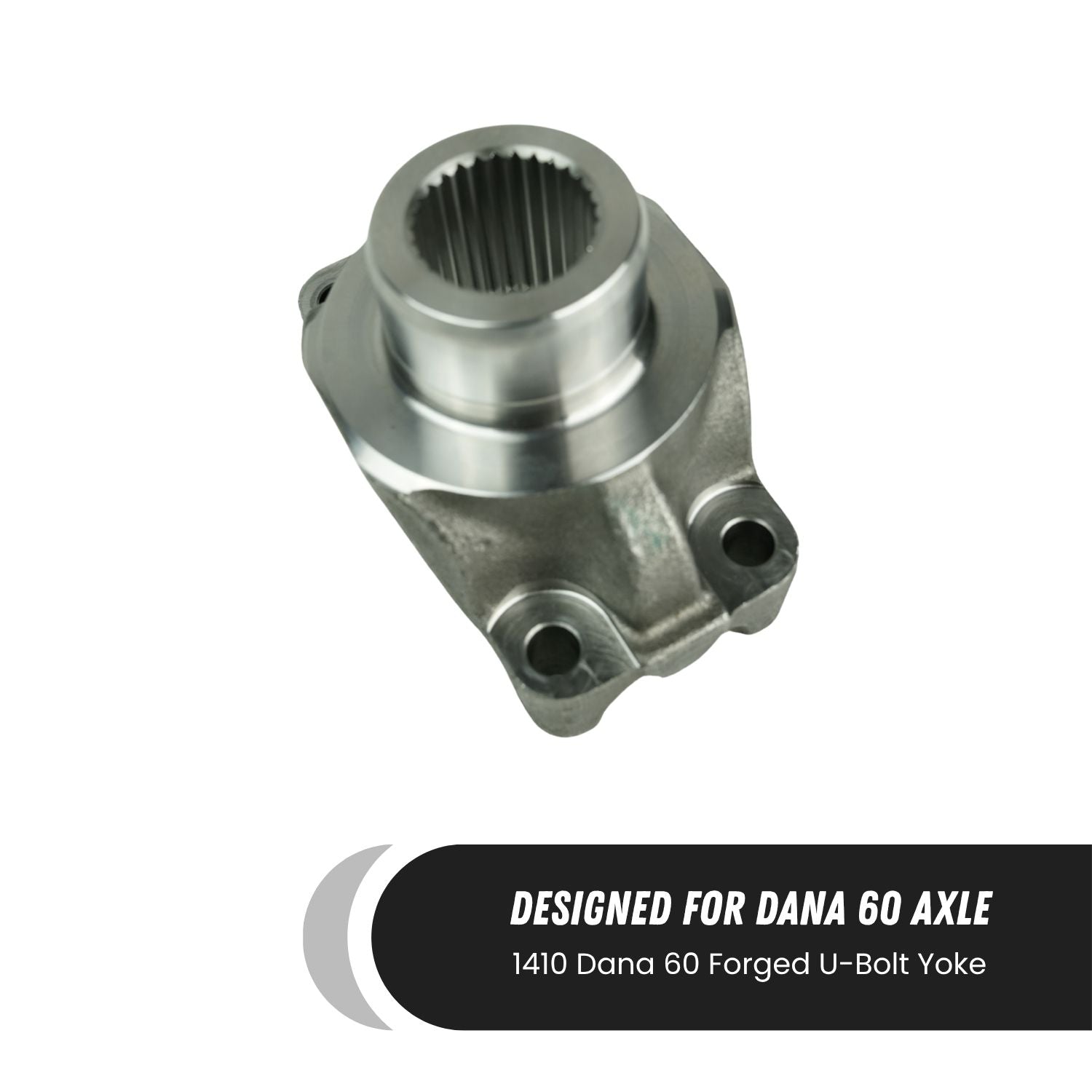

1410 Forged U-Bolt Pinion Yoke for Dana 60 - 29 Spline
3-4-8731
The 1410 Forged U-Bolt Pinion Yoke for Dana 60 is a heavy-duty driveline upgrade for Dana 60 axles using a 29-spline pinion and 1410 series U-joint. The forged construction is built to handle the torque and driveline shock found in rock crawlers, rock bouncers, trail rigs, high-horsepower builds, and other demanding off-road applications.
The U-bolt retention design also makes the driveline easier to service when something goes wrong. Instead of the small retaining bolts used with traditional strap-style yokes, the U-bolts can be removed and replaced without dealing with broken or seized strap bolts—giving Dana 60 builders a strong, straightforward driveline connection that is easier to repair on the trail.

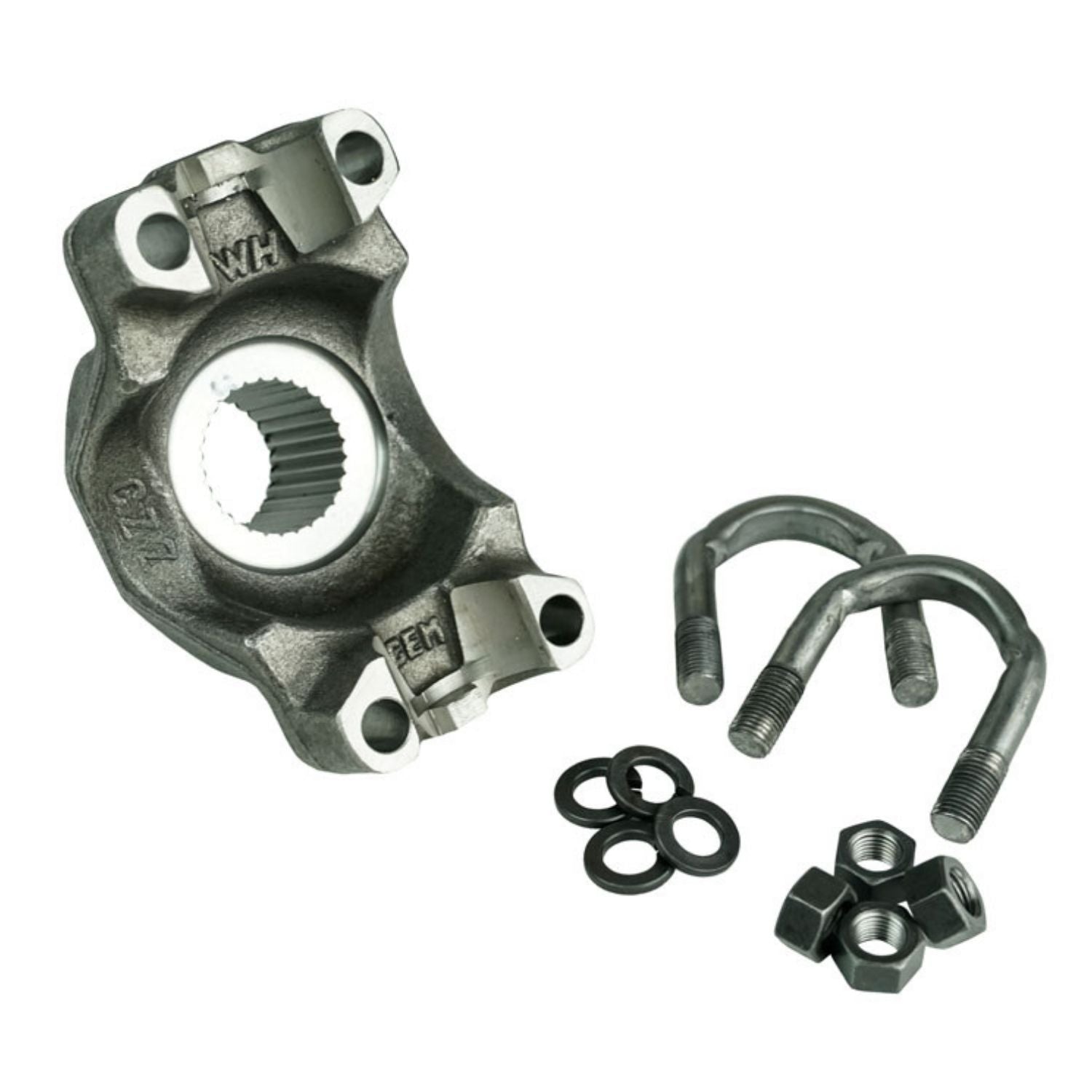

Includes:
- (1) 1410 Forged U-Bolt Pinion Yoke
- (2) U-Bolts
- U-Bolt Nuts & Lock Washers

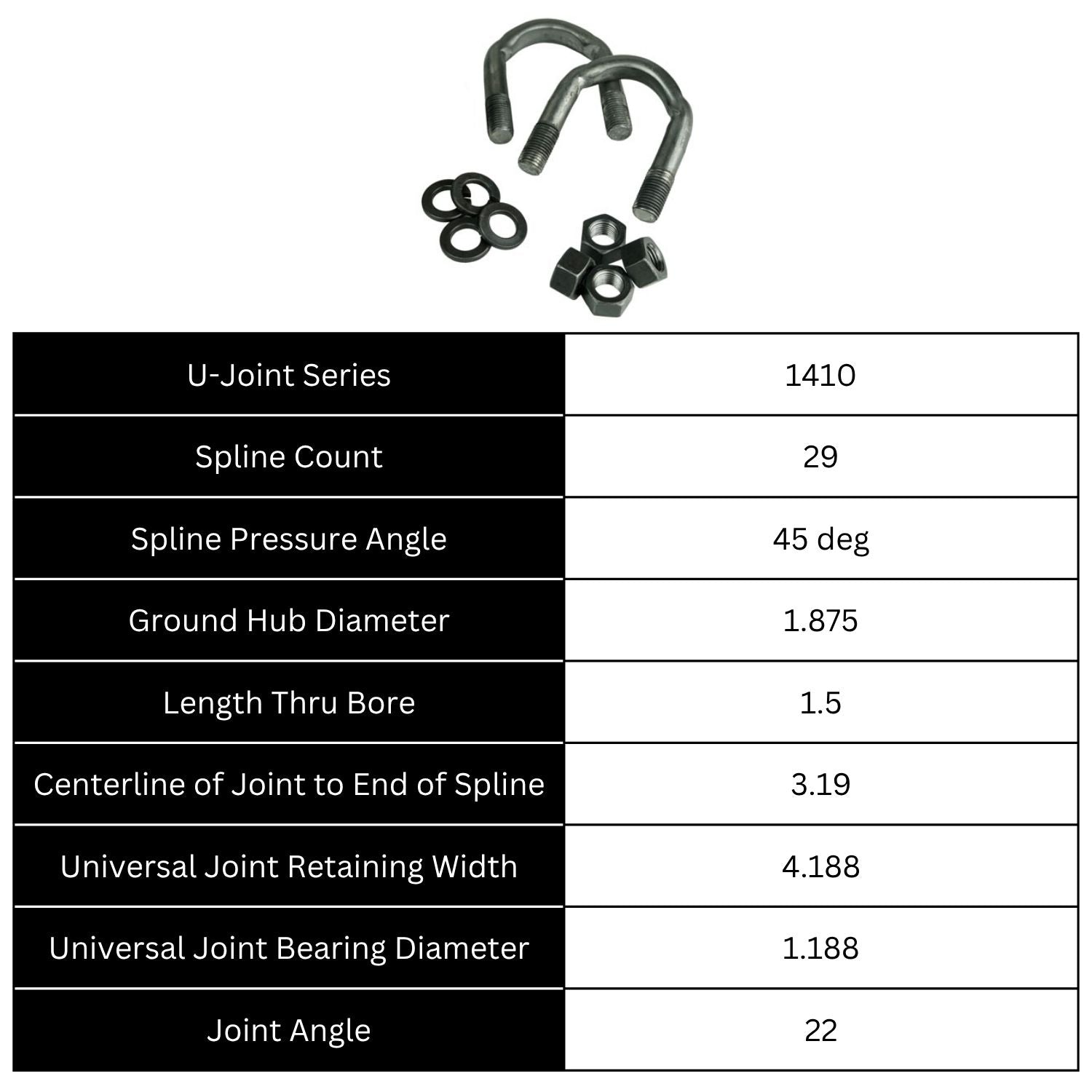

Specifications
| Specification | Details |
|---|---|
| Brand | Wide Open Design |
| Product Type | Pinion Yoke |
| Axle Platform | Dana 60 |
| U-Joint Series | 1410 |
| U-Joint Retention | U-Bolt |
| Pinion Spline Count | 29 |
| Spline Pressure Angle | 45° |
| Ground Hub Diameter | 1.875" |
| Length Through Bore | 1.500" |
| Centerline of Joint to End of Spline | 3.190" |
| U-Joint Retaining Width | 4.188" |
| U-Joint Bearing Diameter | 1.188" |
| Maximum Joint Angle | 22° |
| Construction | Forged |
Fitment
Designed For:
- Dana 60 axle applications
- 29-spline pinion shafts
- 1410 series driveshaft U-joints
- Heavy-duty off-road driveline builds
- Custom Dana 60 axle assemblies
Fitment Notes:
- Requires a compatible Dana 60 29-spline pinion shaft.
- Designed for a 1410 series U-joint with a 4.188" retaining width and 1.188" bearing cap diameter.
- Uses U-bolt retention rather than conventional U-joint straps.
- Verify axle model, pinion spline count, and driveshaft U-joint series before ordering.
- Maximum joint angle is listed at 22°; actual operating angle depends on the complete driveshaft, suspension, and axle configuration.
FAQ
What Dana 60 does this pinion yoke fit?
This yoke is designed for compatible Dana 60 axle applications using a 29-spline pinion shaft. Verify your axle and pinion spline count before ordering.
What size U-joint does this Dana 60 yoke use?
This yoke is designed for a 1410 series U-joint with a 4.188" retaining width and 1.188" bearing cap diameter.
Why use a 1410 U-joint on a Dana 60?
A 1410 series U-joint provides a heavy-duty driveline connection for Dana 60 builds running large tires, low gearing, increased engine power, and other combinations that place higher loads on the driveline.
Why use a U-bolt yoke instead of a strap-style yoke?
A U-bolt yoke captures the U-joint bearing caps with two U-bolts instead of small straps and retaining bolts. This eliminates the small strap bolts that can become damaged, seized, or broken and makes U-joint service more straightforward in an off-road application.
Will this yoke work with my existing driveshaft?
It will work when the driveshaft uses a compatible 1410 series U-joint and the Dana 60 uses the correct 29-spline pinion. If your driveshaft uses a different U-joint series, the driveshaft or U-joint configuration may need to be changed.
