Crane Axle GM/Dodge Dana 60 Interlocking Knuckle Kit
CA01013

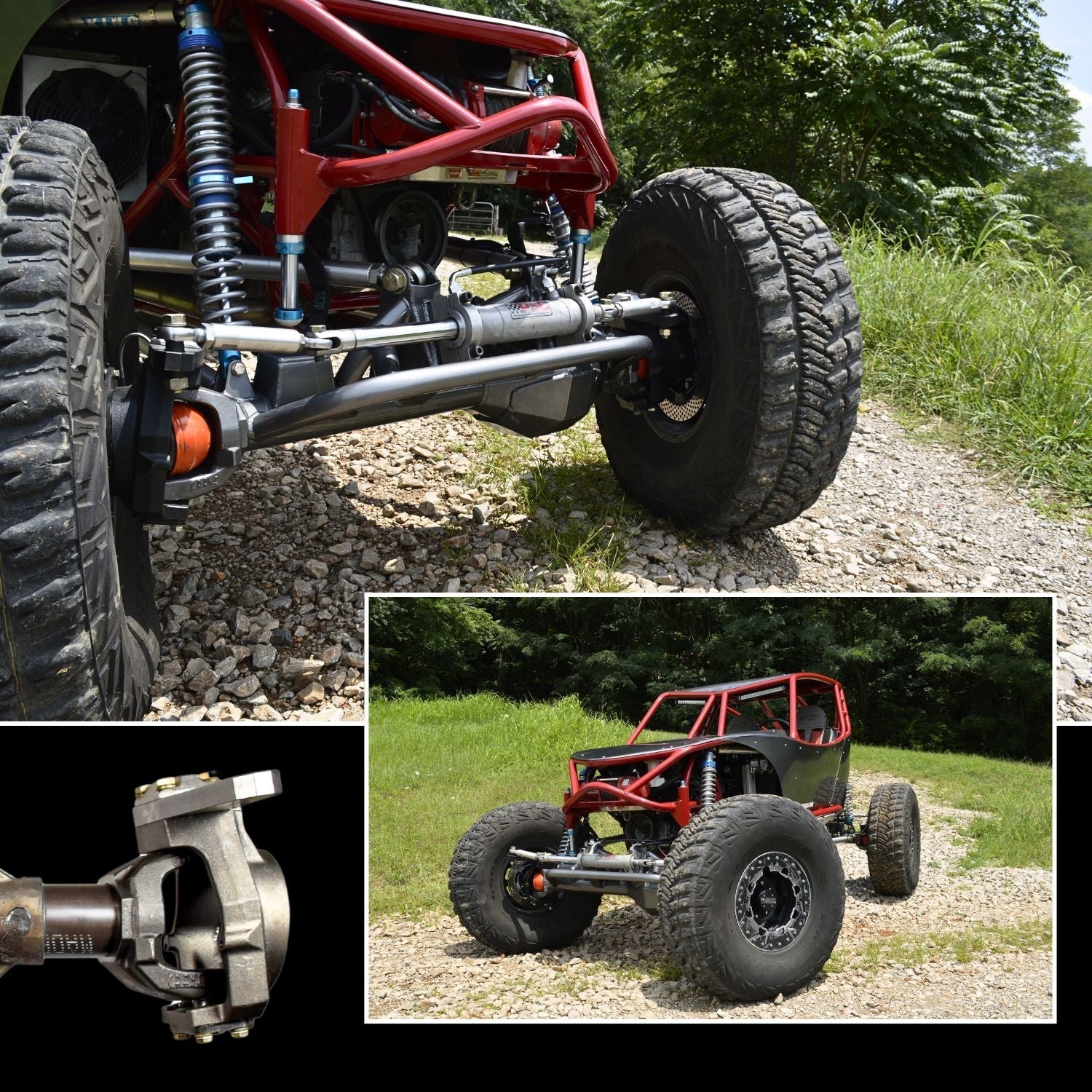

The Crane Axle GM/Dodge Dana 60 Interlocking Knuckle Kit is engineered for kingpin Dana 60 front axles in rock crawlers, Ultra4 cars, competition buggies, and heavy-duty trail rigs. Cast and machined in the USA from 8620 chromoly steel, this kit combines high-strength outer knuckles with Crane’s keyed interlocking high steer arm system to dramatically increase steering rigidity and long-term durability under extreme off-road use.
Unlike traditional steering arm setups that rely entirely on fastener clamping force, Crane's interlocking system mechanically transfers steering loads directly into the knuckle body through precision-machined keyed engagement surfaces. This design eliminates steering arm movement and fastener shear, providing zero-slop steering response even under severe shock loads, large tire diameters, and full hydraulic steering systems.

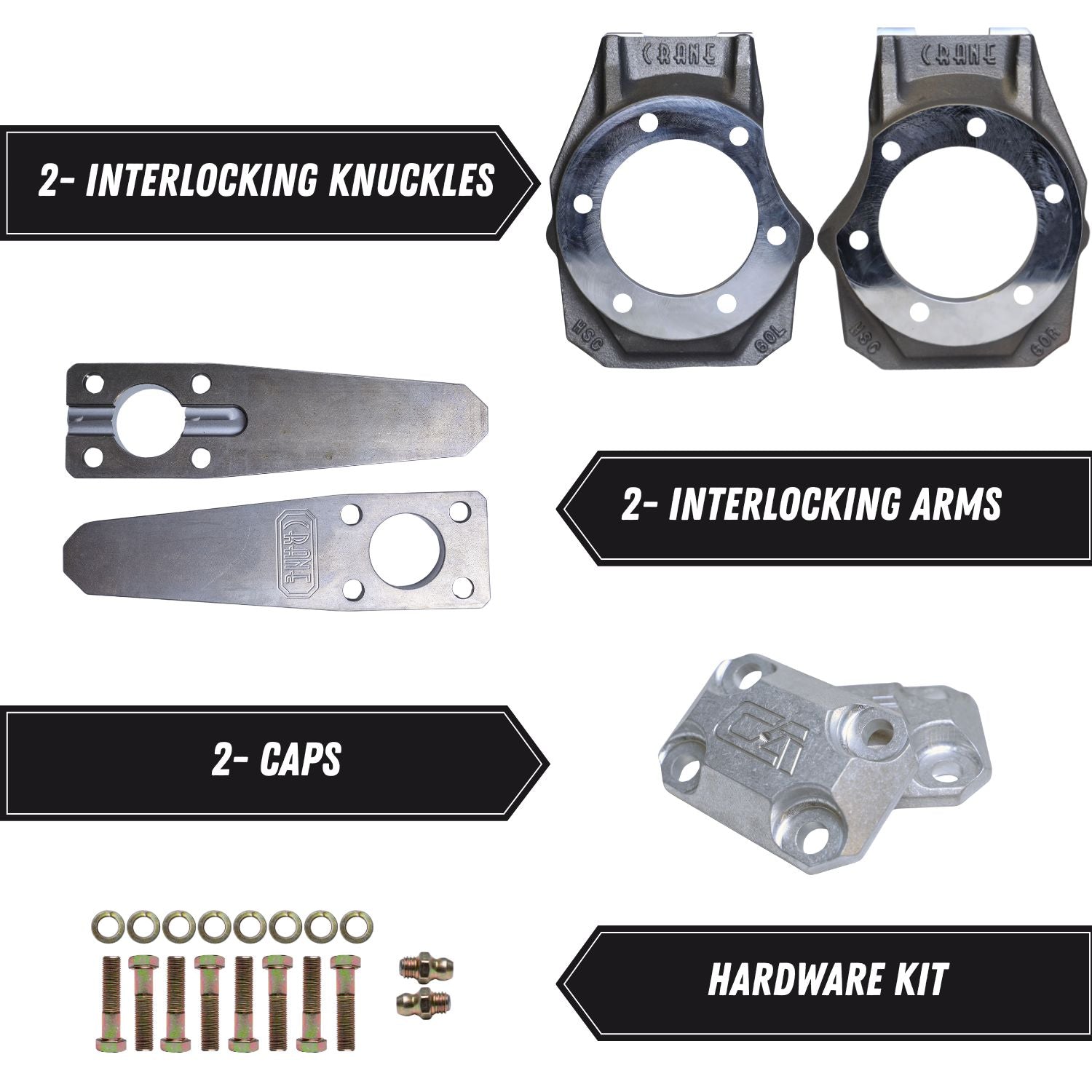

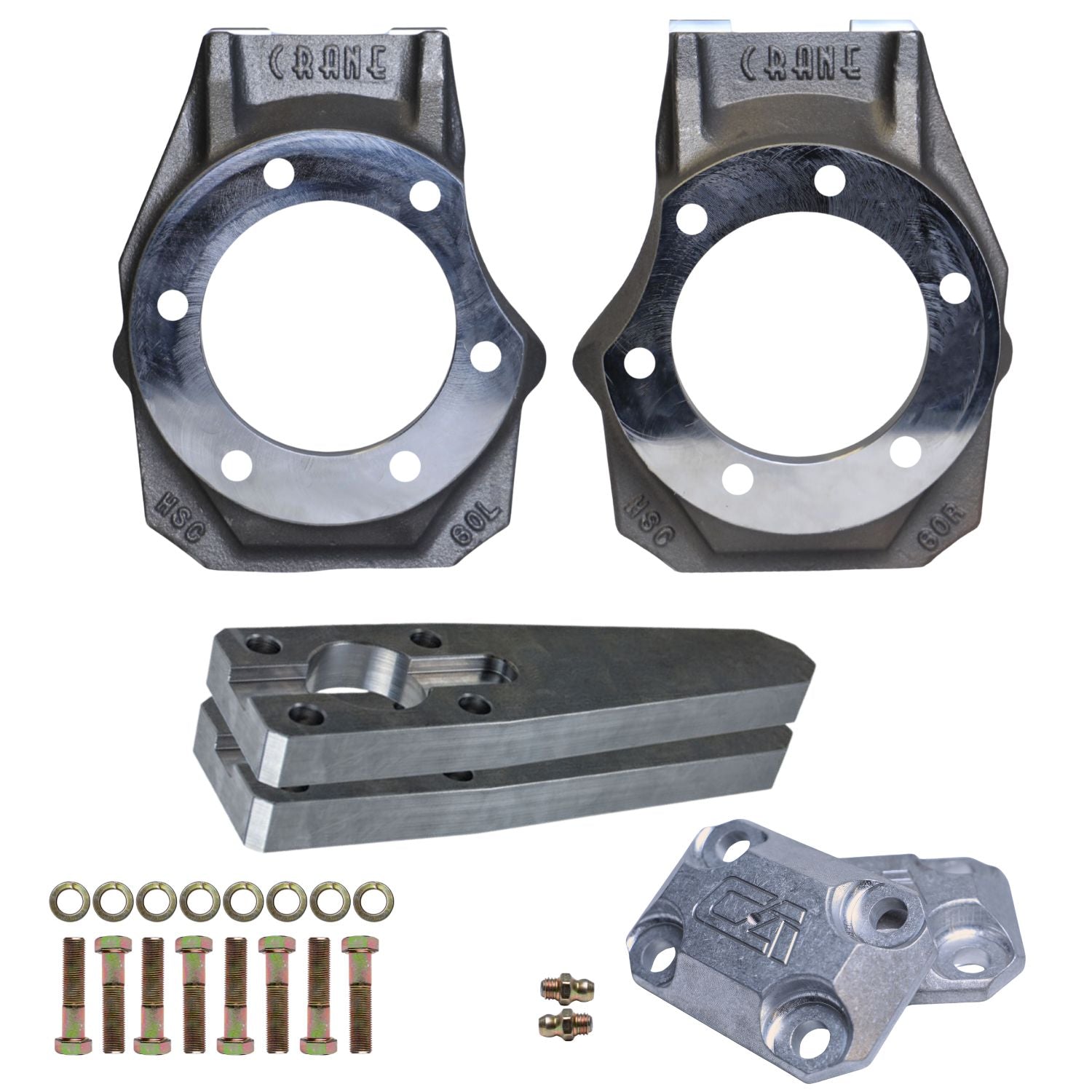

Includes:
- (2) Crane GM/Dodge Kingpin Dana 60 Interlocking Outer Knuckles
- (2) Crane Interlocking High Steer Arms
- (2) Crane Kingpin Caps
- All Necessary Mounting Hardware
- Ships as Unfinished Steel
Specifications
| Specification | Detail |
|---|---|
| Axle Compatibility | GM and Dodge Dana 60 Kingpin Front Axles |
| Material | 8620 Chromoly Steel (Cast & Machined) |
| Steering Arm Interface | Precision Keyed Interlocking System |
| Hardware Size | 9/16" Steering Arm and Kingpin Hardware |
| Steering Compatibility | Crossover, High Steer, and Full Hydraulic Systems |
| Finish | Unfinished Bare Steel (Requires Paint or Coating) |
| Country of Origin | Manufactured in the USA |
Fitment
| Make | Model | Year Range | Axle Application |
|---|---|---|---|
| Chevrolet / GMC | 1 Ton (K30 / V30 / K3500) | 1977–1991 | Dana 60 Front Kingpin |
| Dodge | D700 / W300 / W350 | 1975–1993 | Dana 60 Front Kingpin |
| Universal | Custom Fabrication Applications | Universal | Dana 60 Front Kingpin |
Fitment Notes:
- Fits factory GM and Dodge kingpin Dana 60 inner C's as well as aftermarket Crane Axle kingpin inner C's.
- Not compatible with Ford Dana 60 kingpin knuckles due to differing brake and spindle bolt patterns.
- Designed for crossover steering, high steer, or full hydraulic ram setups on custom off-road and fabricated axle builds.
Tech Insight
Large tires, hydraulic steering systems, and aggressive off-road use place extreme stress on traditional steering arm mounting systems. Standard Dana 60 steering arms rely heavily on fastener clamping force, which can allow movement, fastener fatigue, or steering slop under repeated shock loading.

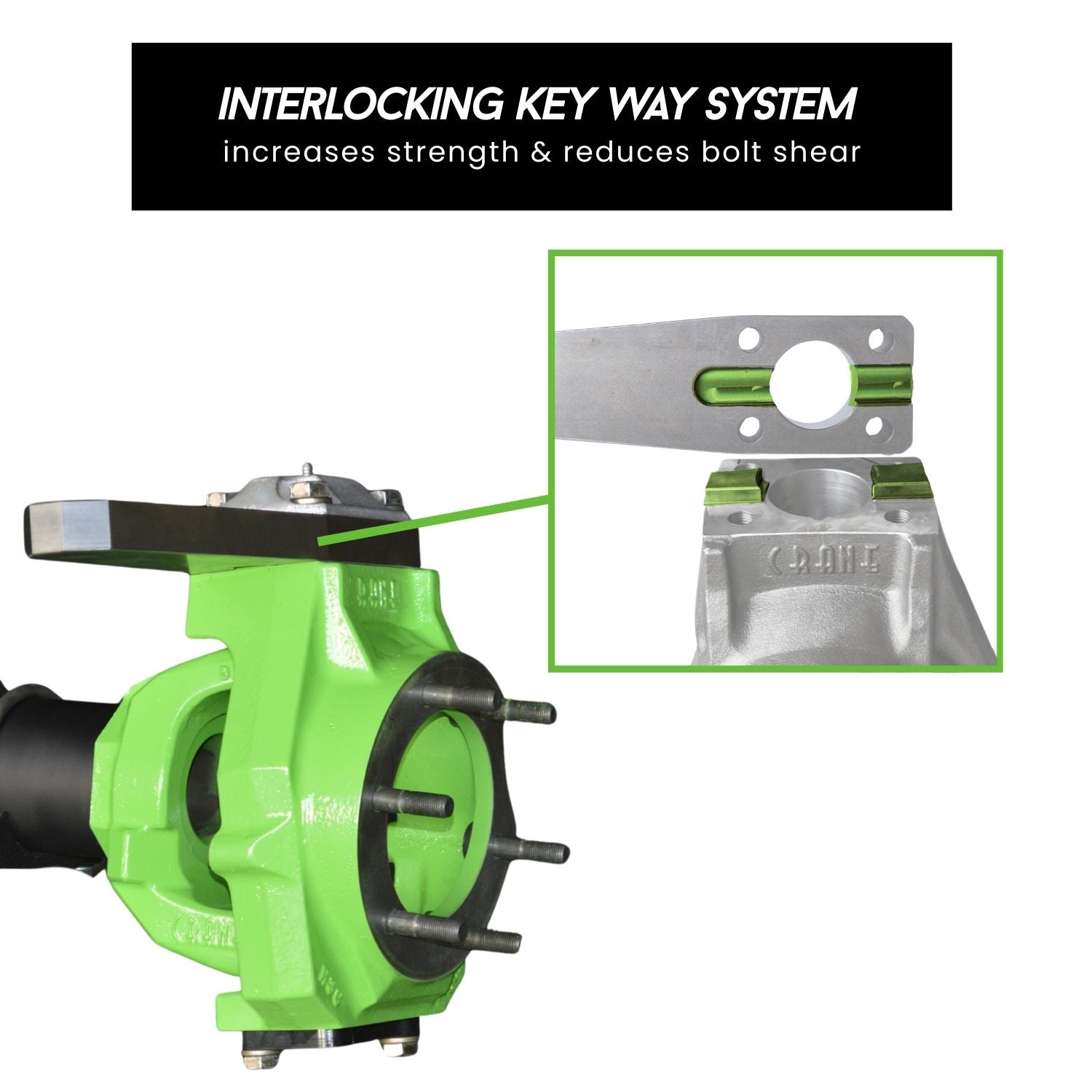

The Crane interlocking system uses precision-machined keyed engagement surfaces between the steering arm and knuckle body to transfer steering loads mechanically instead of depending solely on bolt strength. Combined with 8620 chromoly construction, this creates a more rigid steering assembly capable of handling the severe impact loads and steering forces commonly seen in rock bouncing and Ultra4 competition environments.
Frequently Asked Questions (FAQ)
1. Will these knuckles fit a Ford Dana 60 kingpin axle?
No. GM/Dodge Dana 60 kingpin knuckles use a 6-bolt spindle pattern and different brake caliper mounting dimensions compared to Ford Dana 60 axles, which use a 5-bolt spindle pattern. Ensure you have a GM or Dodge inner C and spindle setup before ordering.
2. What is the benefit of 8620 chromoly steel over factory cast iron knuckles?
Factory cast iron knuckles are brittle and prone to cracking or breaking under impact loads from large tires and hydraulic steering. 8620 chromoly steel offers significantly higher tensile strength and impact resistance, making it nearly impossible to break on the trail.
3. Can I use my factory steering arms or standard aftermarket arms with these knuckles?
No. Because of the precision-machined keyed interlocking top surface on the knuckles, you must use the included Crane Interlocking High Steer Arms to ensure proper mating and load transfer.
4. Do these knuckles retain factory camber and kingpin inclination angles?
Yes. The knuckles are machined to factory GM/Dodge kingpin inclination angles, allowing you to use standard kingpin rebuild kits, bushings, bearings, and seals.
5. What surface prep is required before painting or coating?
Because these components ship as bare unfinished steel, wipe them down thoroughly with a degreaser or solvent (like acetone or brake cleaner) to remove protective machining oils before applying primer, paint, or powder coat.
