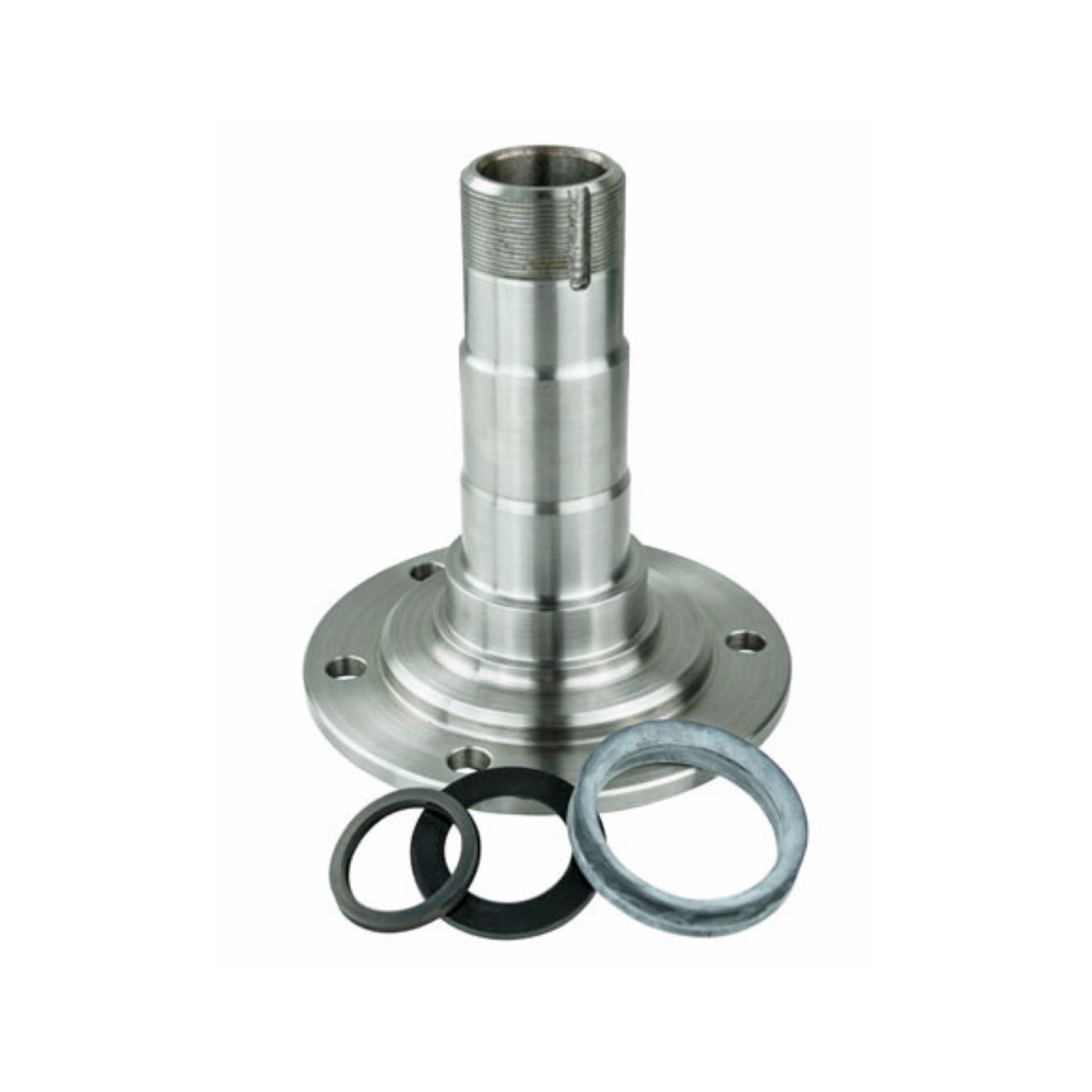

gm dana 60 front axle replacement spindle on a white background
heavy duty gm dana 60 spindle on a white background, labeled for GM Dana 60 6-bolt spindle replacement.

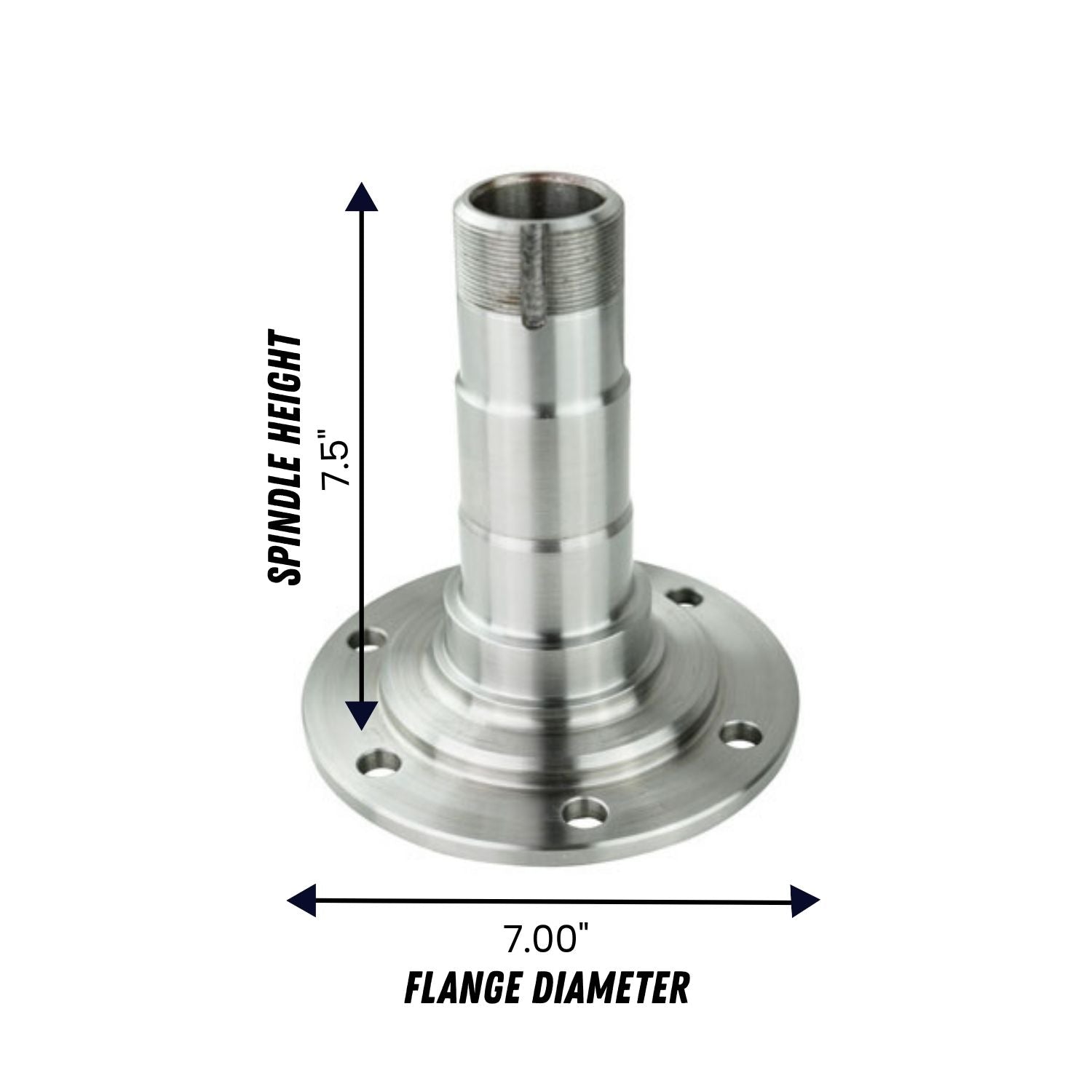

off road dana 60 6 bolt spindle upgrade with dimensions labeled on a white background
gm dana 60 front axle replacement spindle on a white background
heavy duty gm dana 60 spindle on a white background, labeled for GM Dana 60 6-bolt spindle replacement.
off road dana 60 6 bolt spindle upgrade with dimensions labeled on a white background

GM Dana 60 6-Bolt Front Spindle

SKU: YPSP700013

$199.99
/
Shipping calculated at checkout.

This GM Dana 60 6-Bolt Heavy Duty Replacement Spindle is built for strength and long term durability. Each spindle is precision machined from high quality steel, manufactured to tight tolerances, and features a deeper heat treat at the bearing journals than OEM spindles for added strength under heavy load.

Whether you're rebuilding a worn front axle or assembling a new GM Dana 60, this spindle provides the reliability and quality your build demands.

Includes:

  • (1) GM Dana 60 6-Bolt Spindle
  • (1) Seal Kit
Specifications
  • Precision machined high quality steel construction
  • Tight manufacturing tolerances
  • Deeper heat-treat at bearing journals for added strength
  • Spindle Height: 7.5"
  • Spindle Flange Diameter: 7.00
  • Bolt Pattern: 6-Bolt
  • Bearing Journals: 2.255 & 2.020
  • Sold Individually
  • Includes Seal Kit
Fitment
  • GM Dana 60 Front Axles:
Year Make Model
1979–1986 Chevrolet K30
1987–1988 Chevrolet V30
1979–1986 GMC K3500
1987 GMC V3500
Tech Insight

Dana 60 front axles are known for their strength, but worn or OEM spindles can become a weak link, especially in off-road, high load, or high horsepower applications. This upgraded spindle uses a deeper heat treat at the bearing journals, helping prevent premature wear and increasing reliability under extreme off-road abuse. Tight machining tolerances ensure proper bearing fitment and smooth rotation, critical for long service life and consistent steering performance.
