RCV Dana Big Bell 40-Spline CV Axle Set for Ford F-250/350
SKU: CVJ60-FORD4-40

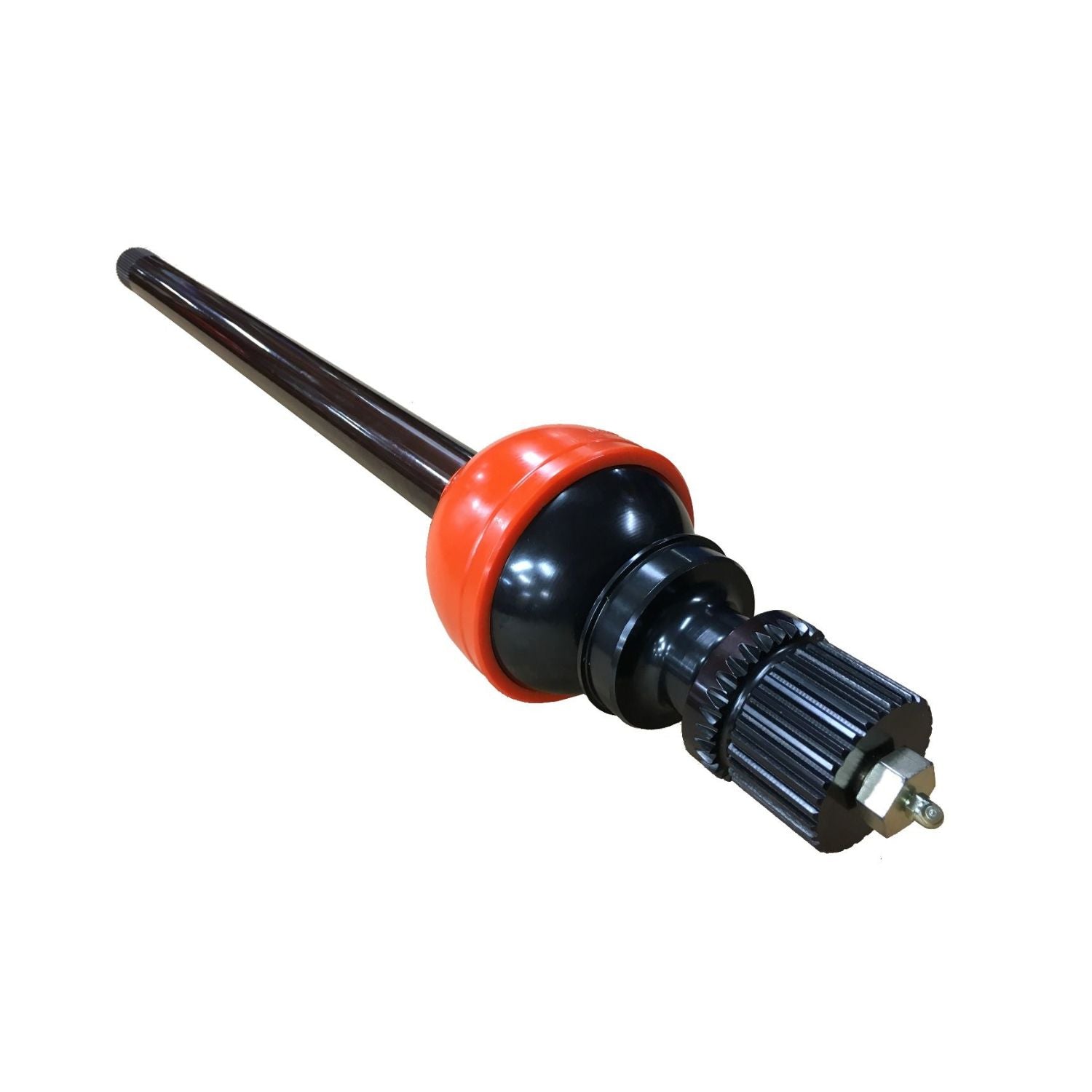

The RCV Ultimate Dana Big Bell 40 Spline CV Axle Set is the strongest front axle solution available for 2005+ Ford F-250 and F-350 Super Duty Dana 60 applications running a 40-spline aftermarket differential. This system replaces weak OEM U-joint axle shafts with RCV’s Big Bell constant velocity (CV) architecture, derived directly from RCV’s 2.5-ton Rockwell CV platform.
Unlike traditional Dana 60 upgrades, the Big Bell CV outer stub is engineered to interface directly with the large 32-spline Ford Super Duty unit bearing, eliminating lockouts or drive flanges entirely. Fewer components mean greater strength, improved reliability, and smoother power delivery under extreme load.
RCV Big Bell CVs maintain full strength at extreme steering angles, eliminate U-joint binding, and dramatically reduce drivetrain shock. This makes them ideal for heavy trail rigs, competition crawlers, and high horsepower diesel builds. Like all RCV Ultimate axles, this system is low maintenance and backed by a No Questions Asked Limited Lifetime Warranty.
Included in this kit:
- (1) Left Big Bell CV axle
- (1) Right Big Bell CV axle
- SST Spherical Sealing Technology seals
- Installation tool
- Installation instructions
- Synthetic moly grease
- Installation hardware
- Black oxide coating (standard)
Optional nickel plating available for high-corrosion environments.
IMPORTANT INSTALLATION NOTICE
Knuckle Modification Required This axle set requires modification to OEM 2005+ Ford Super Duty knuckles to clear the Big Bell CV. Installation guide PDF available.
Required:
- Ball Joint Eliminator Kit
- Minor internal knuckle clearancing / machining
Specifications
- Axle Model: Dana 60
- Vehicle Type: Ford Super Duty
- Hub Type: Unit Bearing
- OEM Inner Spline: 35
- OEM Outer Spline: 35
- RCV Inner Spline: 40
- RCV Outer Spline: Large 32 (Ford Super Duty unit bearing)
- Long Inner Axle Length: 39.01
- Short Inner Axle Length: 16.78
- Outer Stub Length: 7.03
- Boot / Seal Technology: SST Spherical Sealing Technology
- Coating: Black oxide (standard)
- Warranty: Limited Lifetime (No Questions Asked)

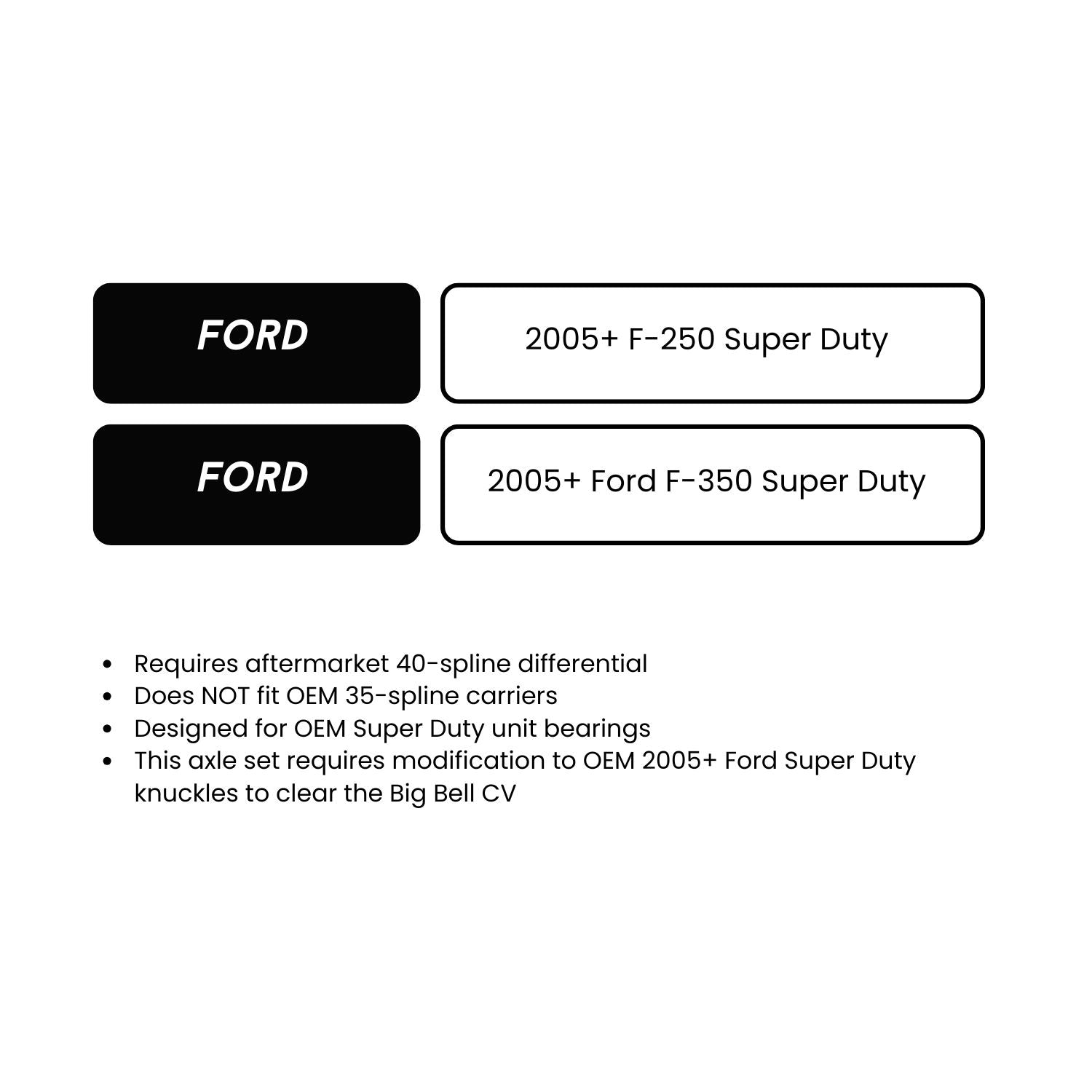

Fitment
- 2005+ Ford F-250 Super Duty
- 2005+ Ford F-350 Super Duty
Requirements
- Requires aftermarket 40-spline differential
- Does NOT fit OEM 35-spline carriers
- Designed for OEM Super Duty unit bearings
Tech Insight
The Big Bell CV system removes the inherent weakness of U-joints by maintaining constant rotational velocity through the joint, eliminating binding, reducing shock loads, and preserving steering control under extreme torque. By pairing Rockwell derived CV strength with Ford’s large unit bearing interface, this setup delivers massive strength with fewer failure points.
