RCV Dana 60 Super-60 Big Bell Axle Set for Ford F450 & F550
SKU: CVJ60-SUPER

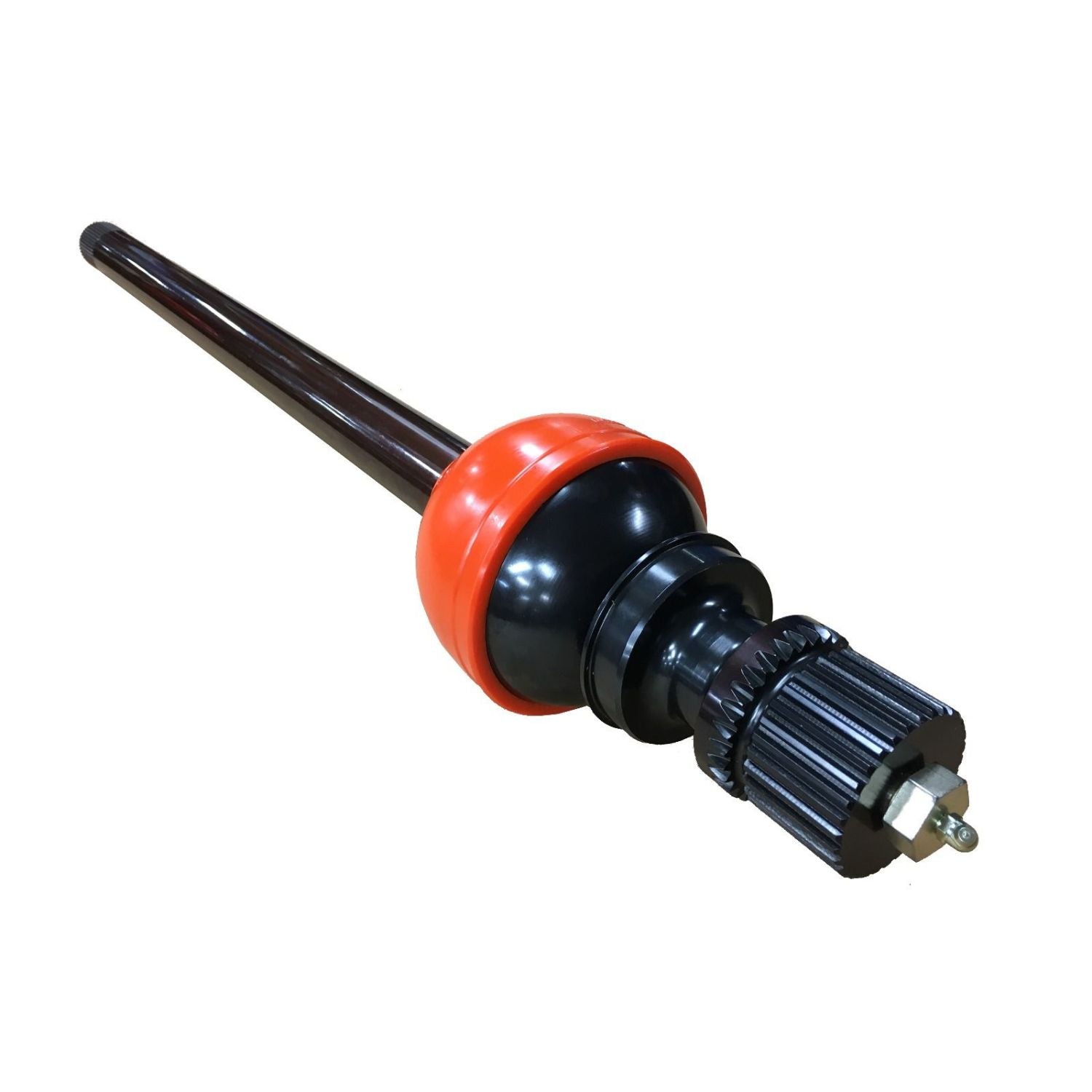

The RCV Big Bell Axle Set is the ultimate front axle solution for 2005+ Ford F-450 and F-550 Super Duty trucks running the factory Dana 60 Super-60 unit bearings. This system uses RCV’s proven 2.5-ton Rockwell Big Bell CV design, adapted with a custom outer stub that fits directly into the large 32-spline Super-60 unit bearing.
By eliminating traditional lockouts or drive flanges, the Big Bell setup removes multiple failure points while significantly increasing strength, reliability, and smooth power delivery under extreme load.
This kit is designed for custom inner axle configurations and supports 40-spline or 47-spline inner shafts, making it ideal for ultra-heavy builds, high-horsepower applications, and extreme off-road or work-truck abuse.
Important Ordering Notes
Custom measurements are required. Please call to order.
Incorrect measurements may result in delays or fitment issues
Specifications
- Axle Type: Big Bell CV (2.5-Ton Rockwell Architecture)
- Vehicle Platform: Ford F-450 / F-550 Super Duty
- Axle Housing: Dana 60 Super-60
- Outer Stub: 32-Spline (direct fit to Super-60 unit bearing)
- Inner Axle Options: 40-Spline or 47-Spline
- Eliminates: Lockout hubs and drive flanges
- Designed For: Extreme duty, high load, and custom axle builds
- What’s Included
- (2) RCV Big Bell CV Assemblies
- (2) Custom-Length Inner Axles (40-spline or 47-spline)
- Built to customer-supplied measurements

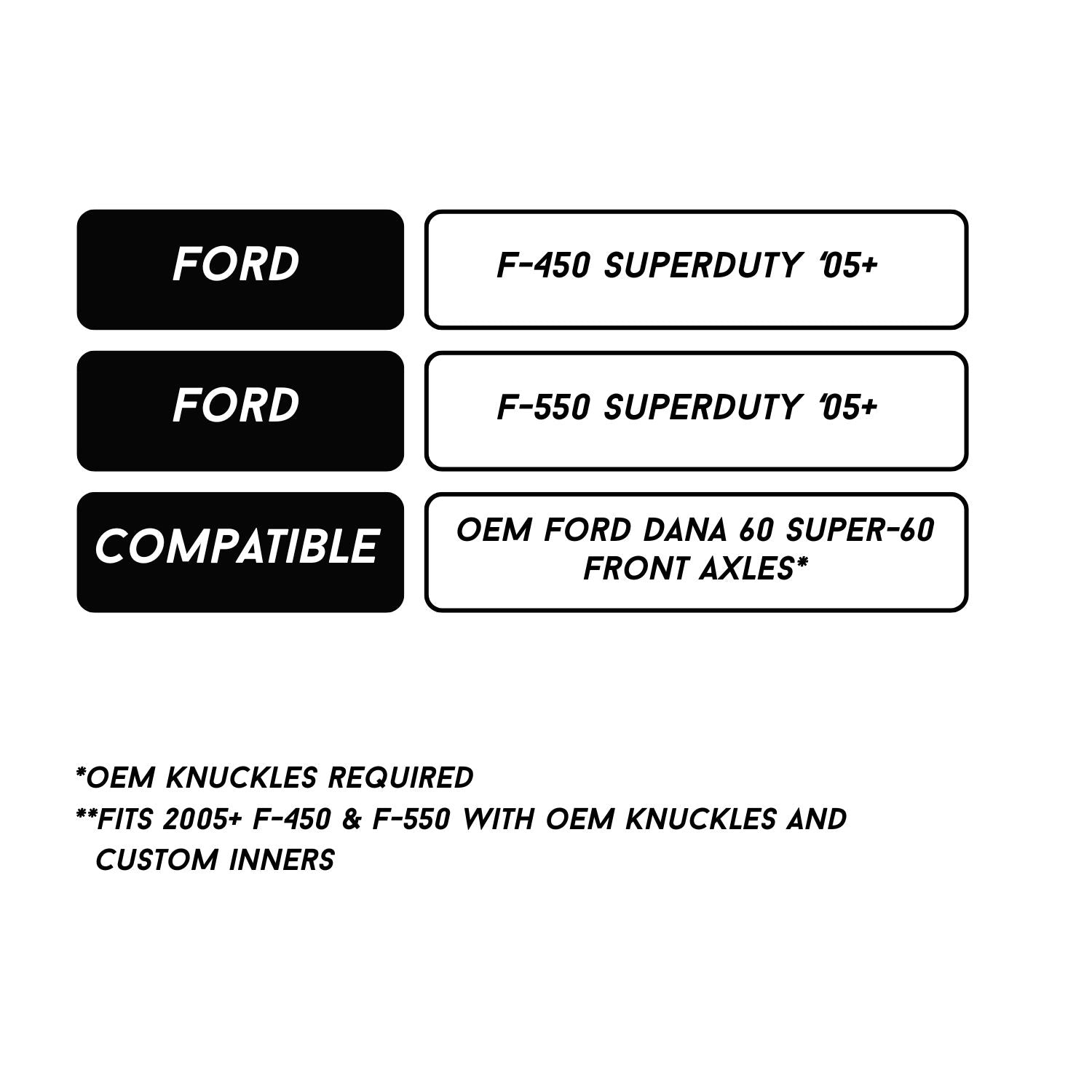

Fitment
- Ford F-450 Super Duty (2005+)
- Ford F-550 Super Duty (2005+)
- OEM Ford Dana 60 Super-60 front axles
- OEM knuckles required
- Notes:
- Designed for custom inner axle lengths
- CVJ60-FORD4-40 is configured for Ford-length inner shafts
- CVJ60-SUPER fits 2005+ F-450 & F-550 with OEM knuckles and custom inners
Tech Insight
RCV Big Bell CVs were originally developed for 2.5-ton Rockwell military axles, making them one of the strongest CV systems available. By adapting this architecture to the Ford Super-60 platform, RCV delivers smooth, bind-free torque transfer with unmatched strength—without the compromises of hubs or flanges.
This design is ideal for trucks that see massive tire loads, diesel torque, towing stress, and extreme off-road conditions, where traditional Dana 60 components simply aren’t enough.
