RCV Dana 44 CV Axle Set for Jeep JK Rubicon ('07-'18) w/ Non-OEM Carrier
SKU: CVJ44-JK-NSC
If your Jeep JK Rubicon is running a non-stock carrier or an aftermarket heavy-duty housing such as the TeraFlex JK Tera44, your factory length axle shafts will no longer fit. The RCV Ultimate Dana 44 CV Axle Set is designed specifically for Rubicon builds using aftermarket 30 spline carriers and updated carrier offsets.
These RCV axle shafts replace the OEM U-joint design with a high strength constant velocity joint that remains just as strong at full steering lock as it is when straight. The result is smoother engagement, increased traction, and dramatically reduced binding compared to standard U-joints.
Engineered for big tire setups, higher horsepower builds, and aggressive wheeling, these axles deliver twice the strength of OEM and require minimal maintenance—all backed by RCV’s No Questions Asked Limited Lifetime Warranty.
Includes:

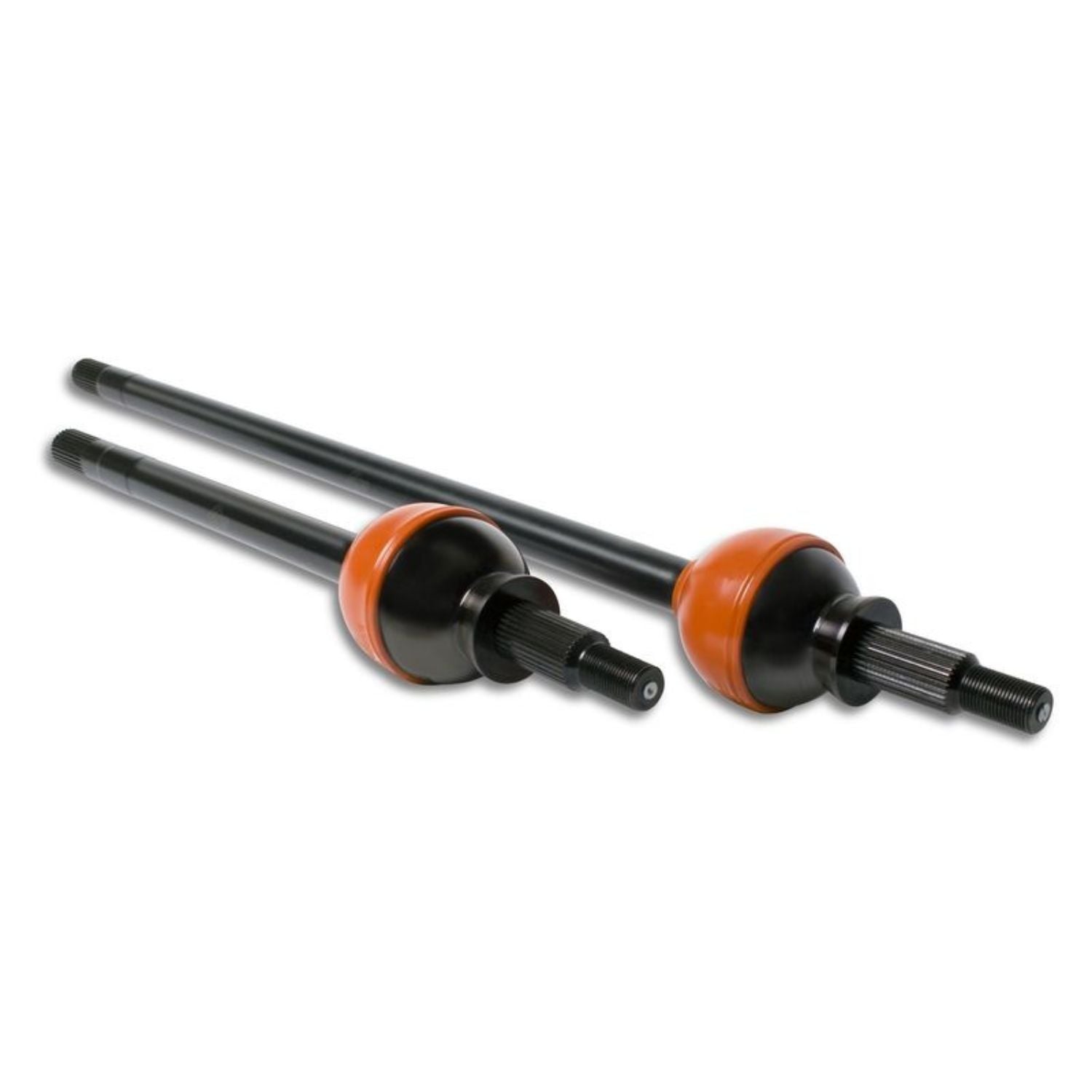

- Left & right non-stock carrier length CV axle shafts
- 32 spline outer stubs
- SST seals & installation tool
- Installation hardware
- Synthetic moly grease
- Installation instructions
- Black oxide coating (standard)
- Optional nickel plating available (contact us)
Specifications
- Axle Model: Dana 44
- Unit Bearing: Yes
- Inner Spline (Non-Stock Carrier): 30
- OEM Outer Spline: 32
- RCV Inner Spline: 30
- RCV Outer Spline: 32
- Left Inner Axle Length: 19.125 (for non-stock carrier offset)
- Right Inner Axle Length: 34.125 (for non-stock carrier offset)
- Outer Stub Axle Length: 6.25
- Boot Technology: RCV bootless, sealed joint design
- Warranty: Limited Lifetime (No Questions Asked)
- Warranty Note: Warranty is void over 40" tires
Fitment
Designed specifically for Jeep JK Rubicon Dana 44 front axles running a non-OEM carrier, including:
- Aftermarket heavy-duty housings (e.g., TeraFlex JK Tera44)
- Aftermarket 30 spline carriers/lockers
- Custom-built Dana 44 front ends requiring non-stock shaft lengths
Compatible with:
- Jeep Wrangler JK Rubicon — 2007–2018
- Jeep Wrangler Unlimited JK Rubicon — 2007–2018
Not compatible with factory JK Rubicon carrier lengths.
Tech Insight
Aftermarket housings and non-stock carriers often shift the carrier’s position inside the housing, requiring custom length inner axle shafts. OEM shafts or standard RCV JK Rubicon shafts will not fit correctly in these setups.
This RCV kit corrects those lengths while upgrading the entire shaft assembly to a constant velocity design that eliminates binding and delivers full strength at all steering angles. Perfect for high load rock crawling, 37–40 tires, and high-performance Rubicon builds running non-stock geometry.
