RCV 30-Spline 300M CV Axle Set for Land Cruiser 80 Series ('91-'97)
SKU: CVJ2474-30T-300M
The RCV Performance Ultimate CV Axle Set upgrades your 80 Series Land Cruiser with unmatched strength, precision, and durability. Factory Toyota CV axles use 30 splines at the differential, but neck down to a weak 24-spline interface at the CV—a well-known failure point on lifted or locked 80 Series rigs. RCV eliminates this failure by upgrading the CV race to a full 30-spline 4340 chromoly design, keeping the shaft at maximum diameter and strength from end to end.
For even greater durability, RCV steps the performance up again by building the inner axles from 300M alloy steel, offering far greater shock load tolerance for big tires, lockers, and heavy off-road use.
Tests show RCV Ultimate CV Axles are twice as strong as OEM Toyota shafts, with the same strength at full steering lock as they have at a straight angle. No crow-hop, no binding—just smooth, consistent torque delivery on the street, in the rocks, or deep in the backcountry.

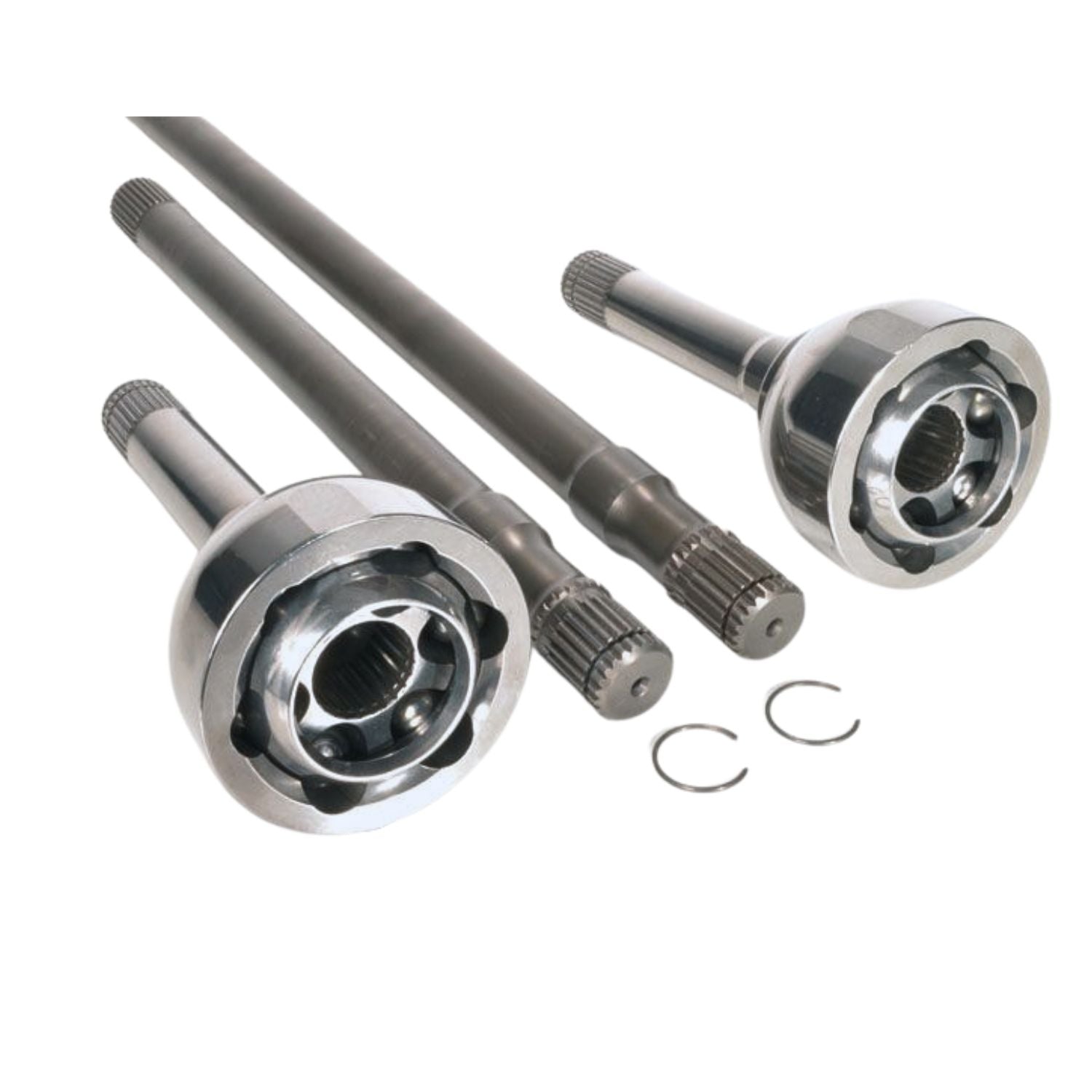

Includes:
- Right & left 300M inner axle shafts
- Two pre-greased, high-strength RCV CV joints
- CV boots & hardware
- Black oxide coating
- Optional nickel plating available
- Compatible snap-ring grooves for both drive flanges & manual hubs
Specifications
- Axle Model: Toyota Land Cruiser 80 Series CV
- Material – Inner Shaft: 300M alloy steel
- Material – CV Race: 4340 chromoly
- OEM Inner Spline: 30
- OEM Outer Spline: 24 (weak point eliminated)
- RCV CV Spline: 30 (upgraded)
- Boot Technology: RCV bootless, sealed-joint design
- Plating Option: Nickel plating available
- Custom Lengths: Available on request

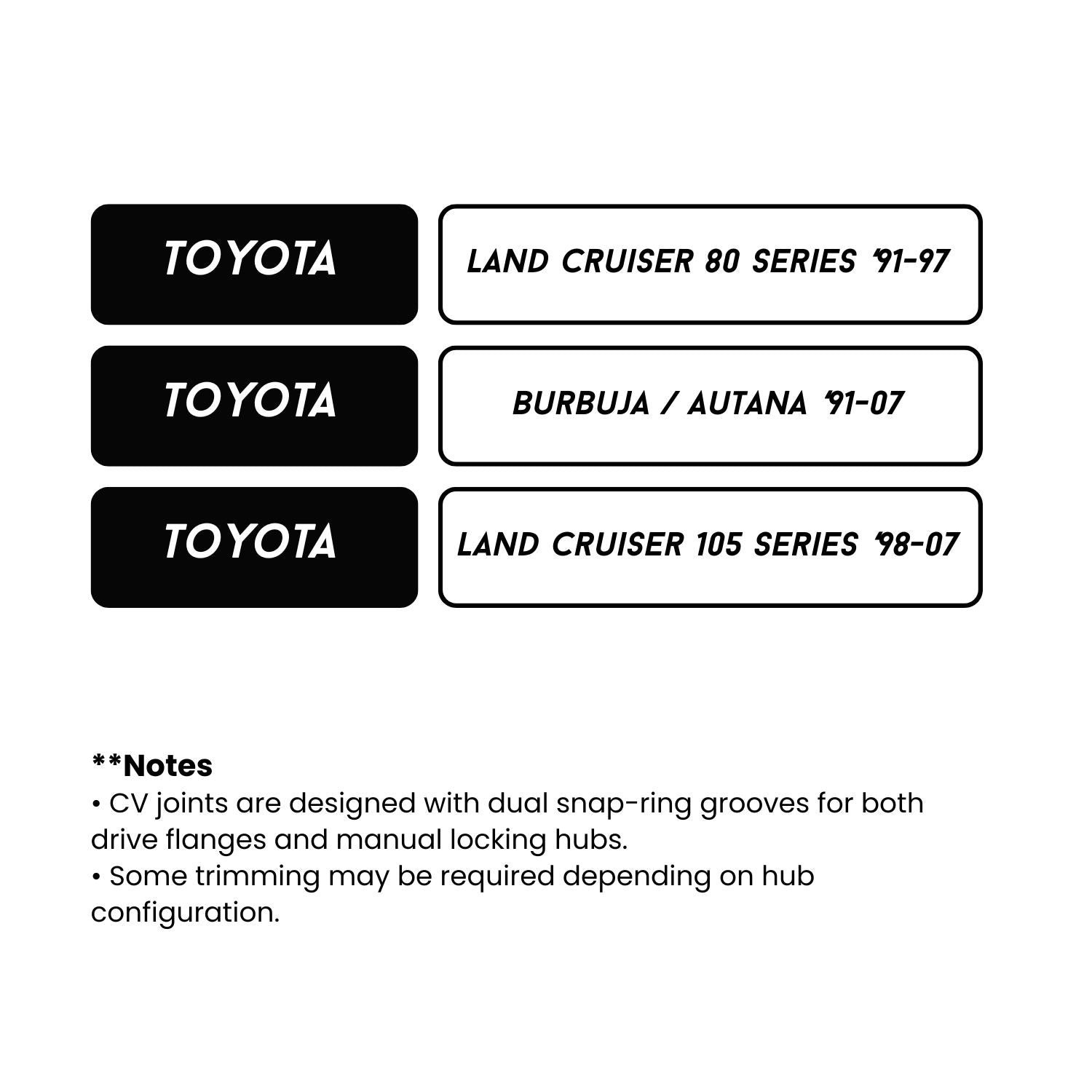

Fitment
Direct Fit Applications
- 1991–1997 Toyota Land Cruiser 80 Series
- FZJ80
- HDJ80
- HDJ81
- HZJ80
Additional Global Applications
- 1991–2007 Toyota Burbuja / Autana (Latin American models)
- 1998–2007 Toyota Land Cruiser 105 Series
- FZJ105
- HZJ105
Notes
- CV joints are designed with dual snap-ring grooves for both drive flanges and manual locking hubs.
- Some trimming may be required depending on hub configuration.
Tech Insight
Toyota’s 80 Series is legendary—but its front axle spline neck-down has always been a weak link.
RCV fixes the problem the right way:
✔ 24-spline CV replaced with full-diameter 30-spline chromoly race
✔ 300M inner shafts = maximum torsional strength for heavy rigs
✔ Strength at full lock equals strength at straight-ahead
✔ No binding, smoother steering, quieter operation
✔ Ideal for locked axles, 35–40 tires, heavy overland rigs, and high-output engines
RCV transforms the 80/105 platform into a true modern front-end capable of handling the punishment of today’s off-road setups.
