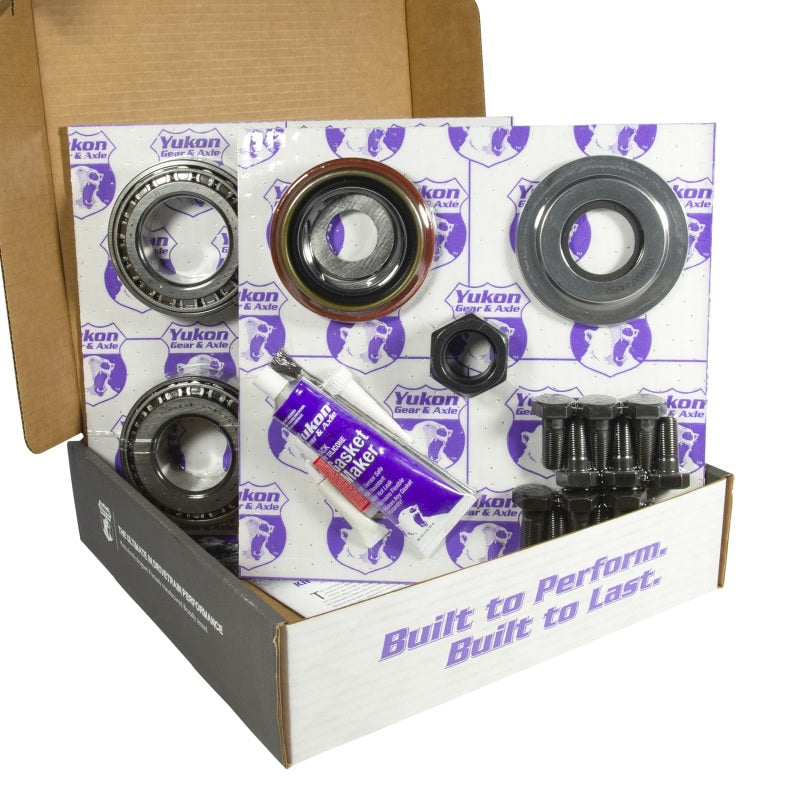

Yukon Dana 80 Master Overhaul Kit- For 4.125" OD Bearing
YUKYK D80-A
This Dana 80 master overhaul kit is designed for complete rear differential rebuilds using Dana 80 axle assemblies equipped with a 4.125" outer diameter inner pinion bearing race. This overhaul kit includes Timken bearings and races along with the installation hardware necessary to establish proper pinion preload, carrier preload, backlash, and ring and pinion tooth contact during differential setup.
Dana 80 rear axles are commonly used in one-ton trucks, cab-and-chassis applications, heavy vans, and commercial platforms because of their exceptional load capacity and large ring gear design. Proper rebuild procedures are critical for maintaining long-term reliability under towing loads, oversized tires, commercial use, and off-road abuse.

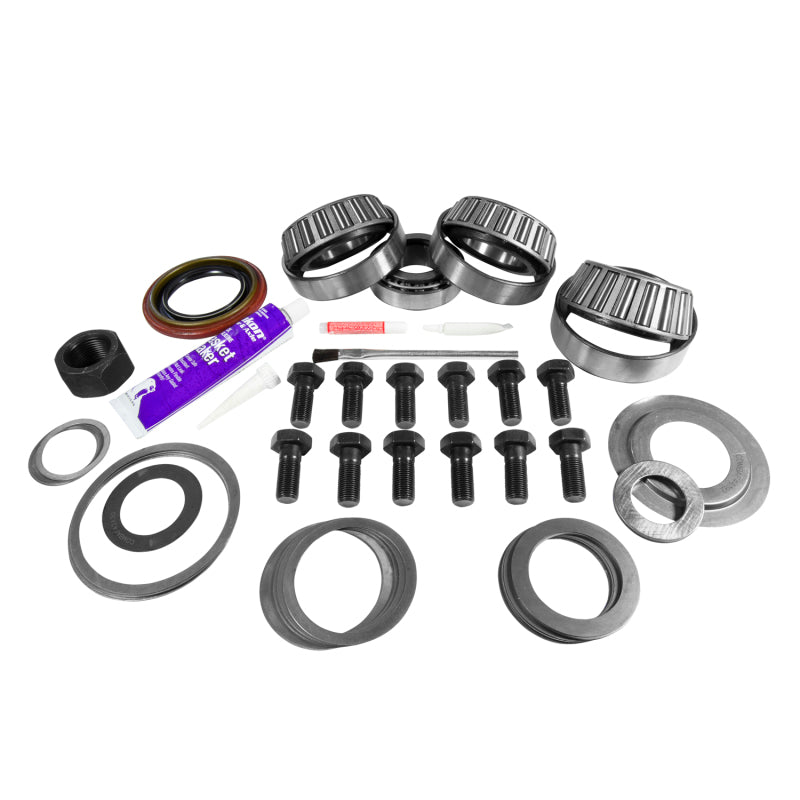

Includes:
- Carrier bearings and races
- Pinion bearings and races
- Pinion seal
- Complete shim kit
- Ring gear bolts
- Pinion nut
- Oil baffles and slingers
- Thread locker
- Gear marking compound with brush
- Silicone sealant
Specifications
- Fits Dana Spicer 80 rear differentials
- Designed for 4.125" OD inner pinion bearing applications
- Uses HM807046 / HM807010 inner pinion bearing set

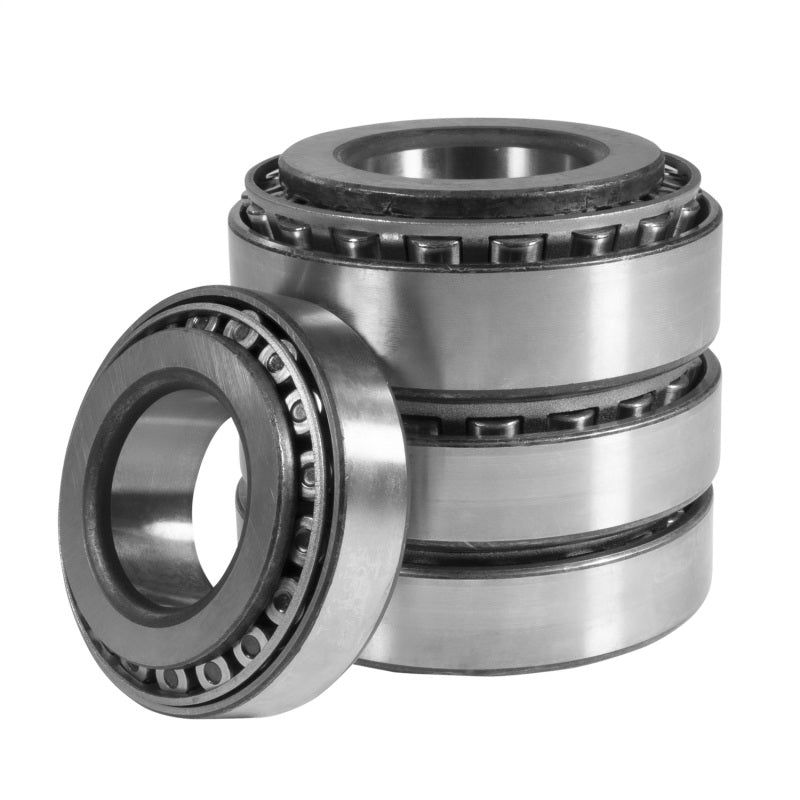

- Timken bearings and races included
- Includes preload and shim setup components
- Includes ring gear bolts and installation hardware
- Compatible with 35 spline and 37 spline axle applications
- Rear axle applications only
Fitment
|
Make |
Model |
Year Range |
|
Chevrolet |
C3500 |
1992–2000 |
|
Chevrolet |
C3500HD |
1991–2002 |
|
Chevrolet |
G30 |
1992–1995 |
|
Chevrolet |
K3500 |
1990–1998 |
|
Chevrolet |
P30 |
1997–1999 |
|
Dodge |
B3500 |
1995–1998 |
|
Dodge |
Ram 2500 |
1994–2002 |
|
Dodge |
Ram 2500 Van |
1999–2003 |
|
Dodge |
Ram 3500 |
1994–2002 |
|
Ford |
E-350 Econoline |
1988–1998 |
|
Ford |
F-350 |
1988–1997 |
|
Ford |
F-Super Duty |
1990–1997 |
|
GMC |
C3500 |
1992–2000 |
|
GMC |
C3500HD |
2001–2002 |
|
GMC |
K3500 |
1992–2000 |
|
GMC |
P3500 |
1997–1999 |
Fitment Notes:
- Fits Dana 80 rear differential applications only
- Designed specifically for housings using a 4.125" OD inner pinion bearing race
- Compatible with 35 spline and 37 spline axle configurations depending on application
- Verify axle model, bearing size, spline count, and differential configuration before ordering
Tech Insight
Dana 80 differentials use multiple pinion bearing variations depending on housing generation and axle application. Confirming the correct inner pinion bearing outer diameter is critical before ordering rebuild components because bearing race dimensions directly affect pinion support and housing compatibility.
The Dana 80 platform is widely used in heavy-duty towing and commercial applications because of its large pinion shaft diameter, oversized carrier bearings, and massive ring gear strength. During rebuilds, replacing bearings, seals, preload hardware, and setup components helps maintain correct gear mesh and reduces the risk of gear noise, excessive heat, or premature bearing failure under sustained load conditions.
