Wilwood balance bar assembly
SKU: WIL340-4745

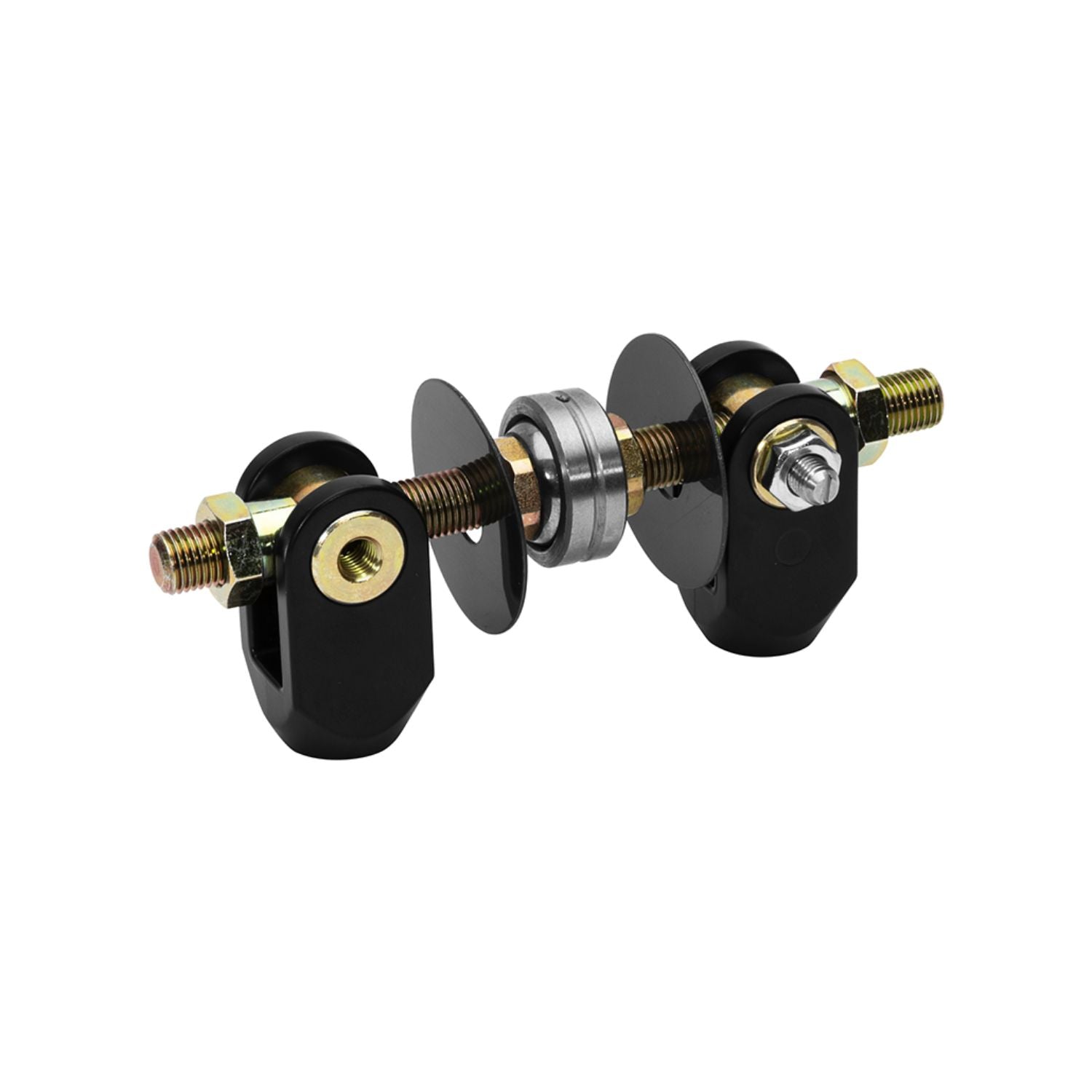

The Wilwood Replacement Balance Bar Assembly is designed for use with all current Wilwood standard balance bar pedal assemblies and remote pedal 60-degree master cylinder mounts. This assembly is ideal for replacing a damaged or worn balance bar or upgrading older Wilwood balance bars that did not include the detent-style adjustment.
Featuring positive detent stops at every full turn, this balance bar provides clear tactile feedback to maintain adjustment position and improve driver awareness during tuning. The pin-and-clevis pushrod attachment system allows for a high degree of misalignment, ensuring smooth, bind-free operation throughout the entire pedal travel range.
The balance bar can be locked in place with the included jam nut for fixed bias settings or paired with an optional remote cable or adjustment knob for quick, on-track brake bias changes.
Includes:
- (1) Wilwood Replacement Balance Bar Assembly
- Integrated detent mechanism
- Pin and clevis pushrod attachment hardware
- Jam nut for locking adjustment

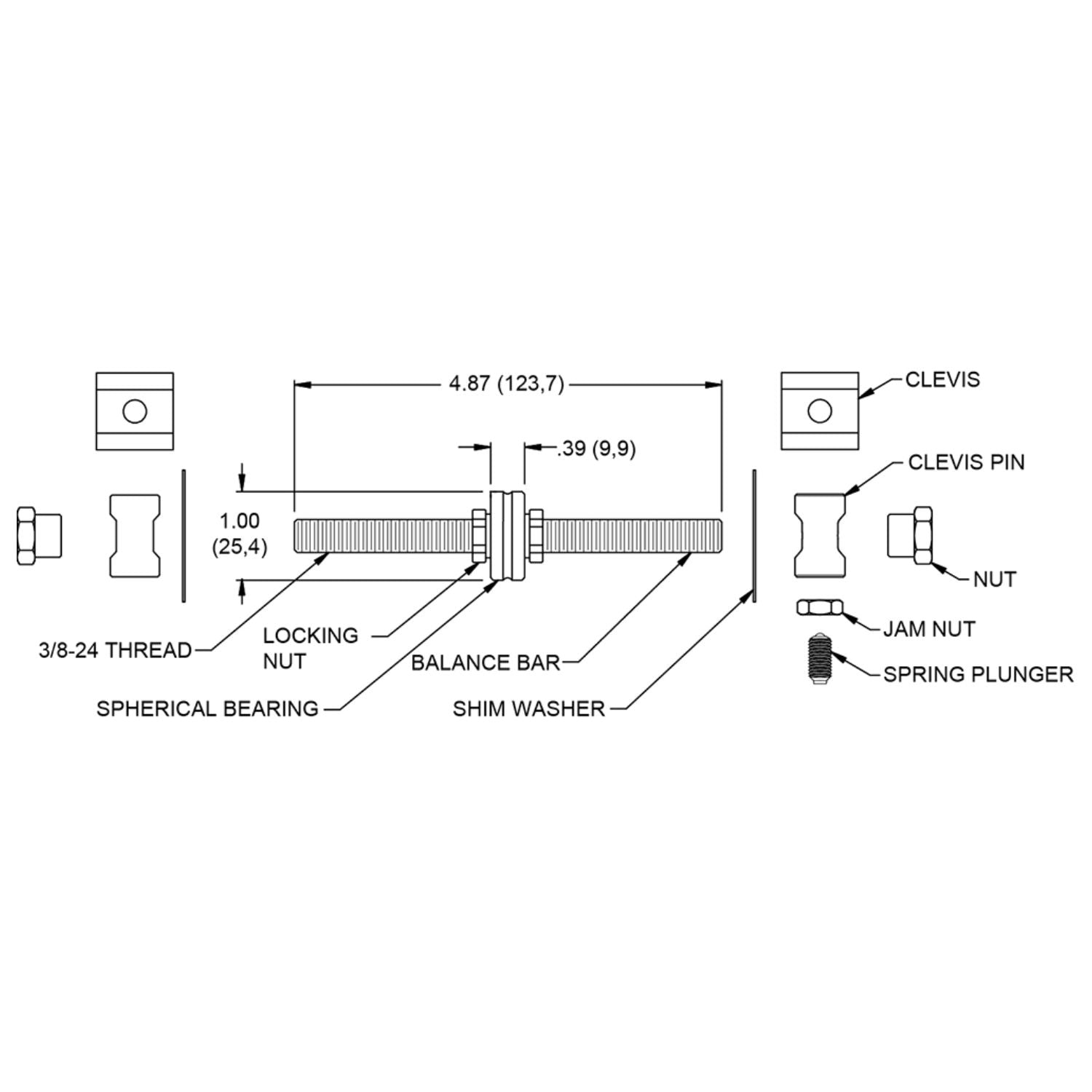

Specifications
- Manufacturer: Wilwood
- Component Type: Brake Balance Bar Assembly
- Adjustment Style: Detent (one stop per full turn)
- Locking Method: Jam Nut (included)
- Pushrod Attachment: Pin and Clevis
- Compatibility: Standard Wilwood balance bar pedals and 60° remote pedal mounts
Fitment
- Fits all current Wilwood standard balance bar pedal assemblies
- Compatible with Wilwood remote pedal 60-degree master cylinder mounts
- Suitable for brake pedal systems using dual master cylinders
- Verify pedal assembly compatibility before ordering.
Tech Insight
A properly functioning balance bar is critical for accurate front-to-rear brake bias control. Wilwood’s detent-style balance bar improves consistency by preventing unintended movement under vibration while still allowing precise tuning. Upgrading older non-detent balance bars enhances driver confidence and repeatability—especially in racing and off-road environments where conditions change rapidly.
