GT 36 Straight Vane Rotor
GT 36 Straight Vane Rotor
GT 36 Straight Vane Rotor
GT 36 Straight Vane Rotor
GT 36 Straight Vane Rotor
GT 36 Straight Vane Rotor

GT 36 Straight Vane Rotor

SKU: WIL160-12884

$330.77
/
Shipping calculated at checkout.

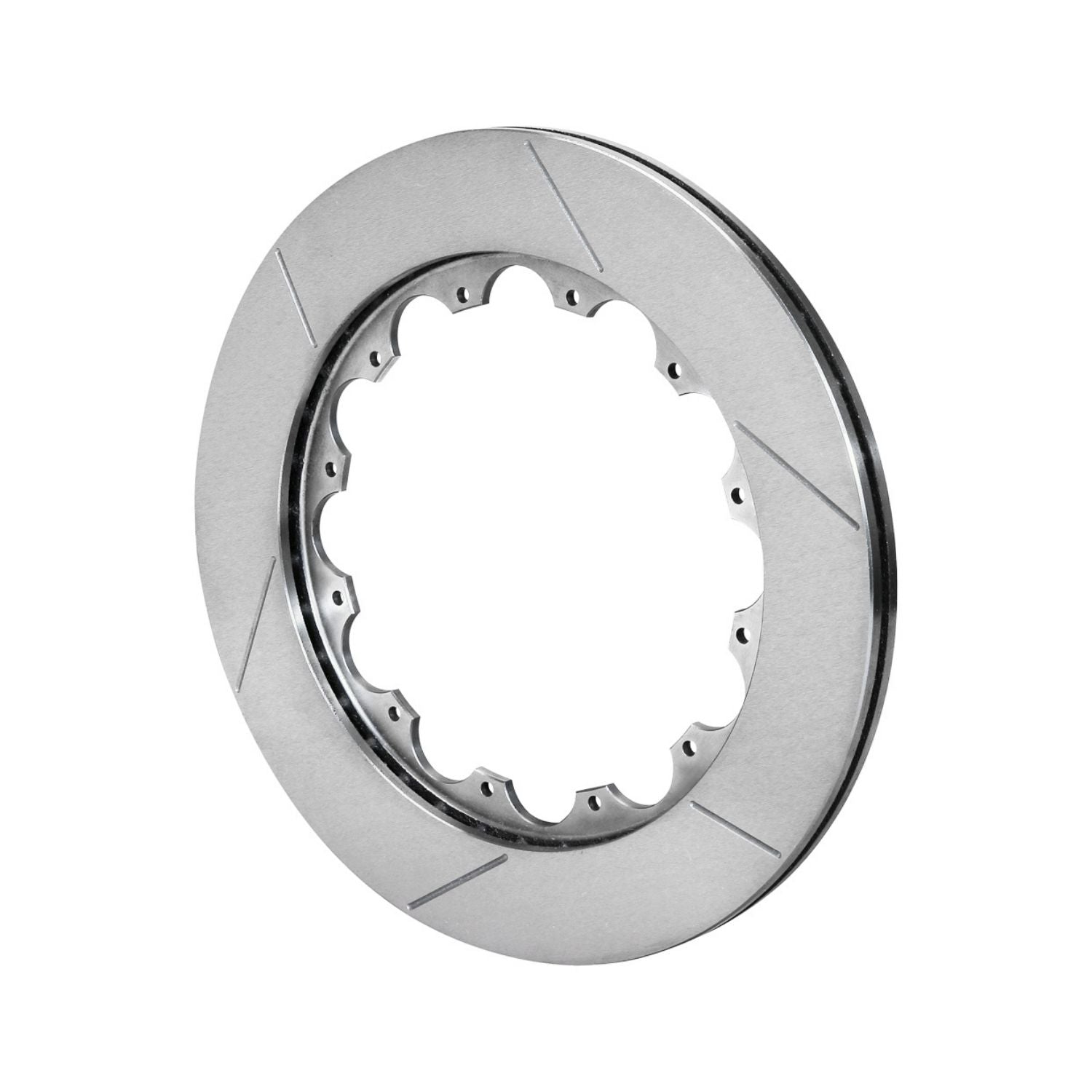

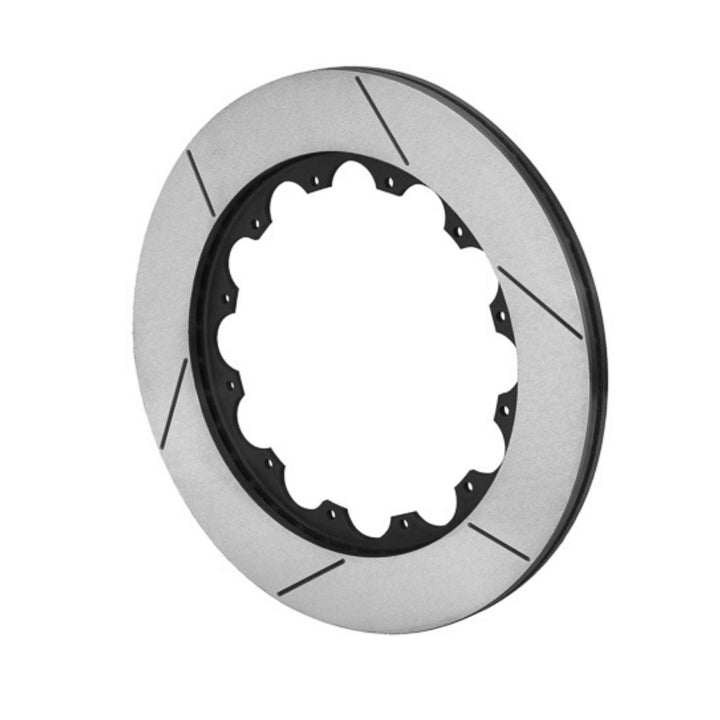

The Wilwood GT-36 Straight Vane Rotor is engineered for the extreme heat and load conditions of professional motorsports, where consistent braking and long service life are non-negotiable. Built from premium long-grain carbon iron, the GT-36 delivers exceptional thermal stability, resistance to distortion, and superior wear characteristics for both rotors and pads.

This heavy-wall rotor features 36 straight internal vanes for maximum heat absorption and efficient dissipation, helping prevent brake fade during sustained high-temperature use. Each rotor is fully detail-machined to remove stress points and unnecessary weight outside the pad sweep area, while the asymmetrical GT slot pattern improves initial engagement, reduces harmonics, and maintains balanced heat distribution from the I.D. to the O.D.

Every GT-36 rotor is precision turned to less than 0.001 for flatness, parallelism, and runout, then individually dynamic balanced to ensure smooth, vibration-free performance at any speed.

Includes:

  • (1) Wilwood GT-36 Straight Vane Slotted Brake Rotor
  • Precision machined and dynamically balanced
Specifications
  • Manufacturer: Wilwood
  • Rotor Series: GT-36
  • Rotor Style: GT Slotted
  • Material: Premium carbon iron
  • Surface Finish: Plain
  • Vane Count: 36 (Straight Vane)
  • Diameter: 14.00 in
  • Rotor Width: 0.81 in
  • Weight: 13.40 lbs
  • Balanced: Yes
  • Burnished: No

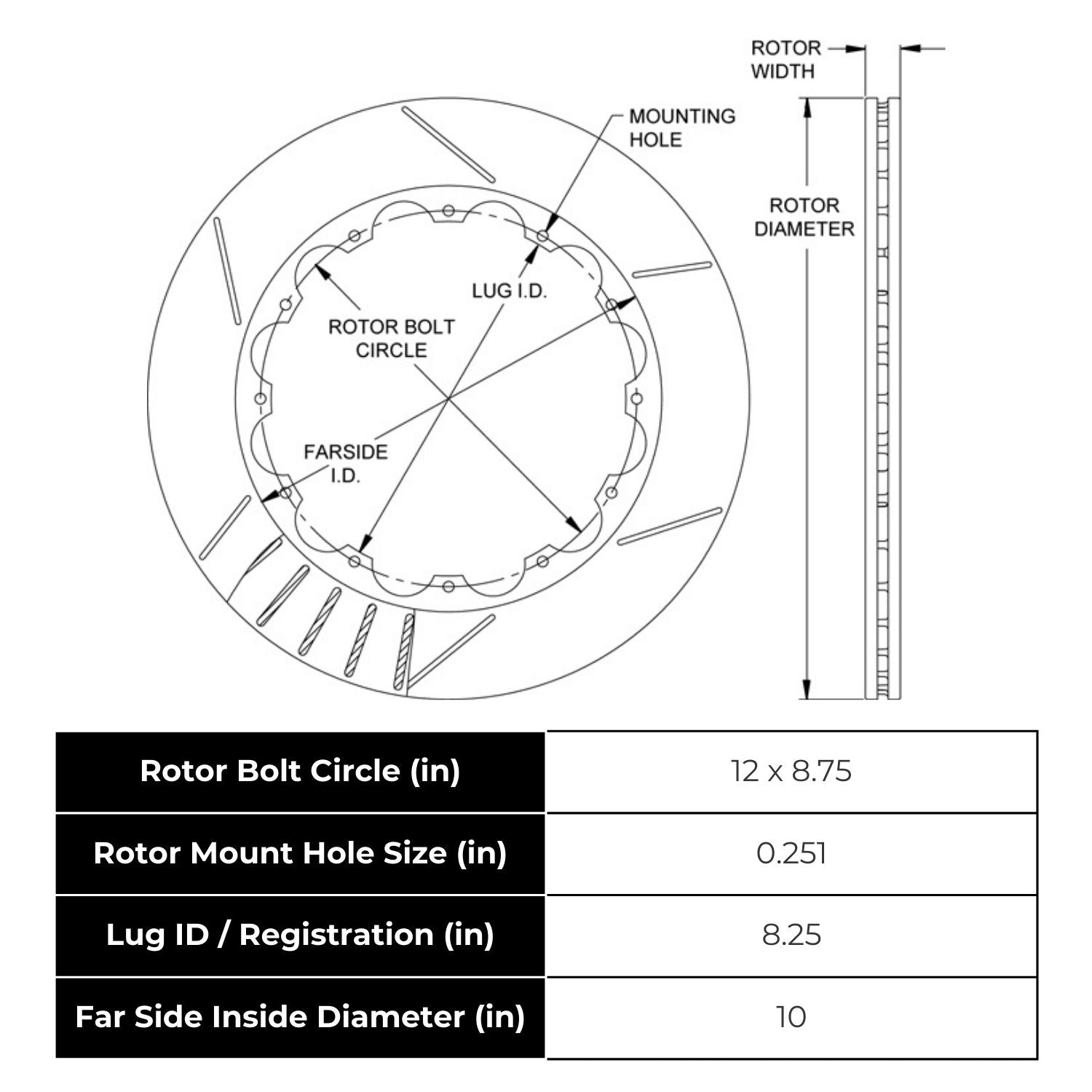

Fitment
  • Mount Side: Non-Direct
  • Rotor Bolt Circle: 12 x 8.75 in
  • Rotor Mount Hole Size: 0.251 in
  • Lug ID / Registration: 8.25 in
  • Far Side Inside Diameter: 10.00 in
  • Rotor hats and mounting hardware sold separately. Verify bolt pattern, hat compatibility, and caliper clearance before ordering.
Tech Insight

The GT-36 rotor is designed for short track and road course competition where heat management determines braking consistency. Its heavy-wall construction and straight vane design maximize cooling capacity while maintaining structural integrity under extreme thermal cycling. Combined with Wilwood’s asymmetrical slot pattern and tight machining tolerances, the GT-36 offers one of the longest service lives and most stable braking platforms available for high-end racing applications.
