Brake Plumbing Kit for Single Steer with GM Master Cylinder
WA01014
The Wide Open Design Universal Brake Plumbing Kit takes the guesswork out of plumbing a custom brake system. Designed around the same premium Fragola components used on every Wide Open Design turnkey buggy, this kit is configured specifically for single-steer brake systems using GM master cylinders with 9/16"-18 and 1/2"-20 inverted flare ports. It provides the essential fittings, flex lines, adapters, and hardware needed to build a clean, reliable brake system for serious off-road use.
Whether you're building a rock bouncer, Ultra4 car, rock crawler, or custom tube chassis, this kit saves time by supplying matched components that work together. The included stainless braided -3 AN flex lines, adapters, tees, unions, and mounting clamps create a professional installation while delivering the durability and pedal feel expected from a high-performance braking system.

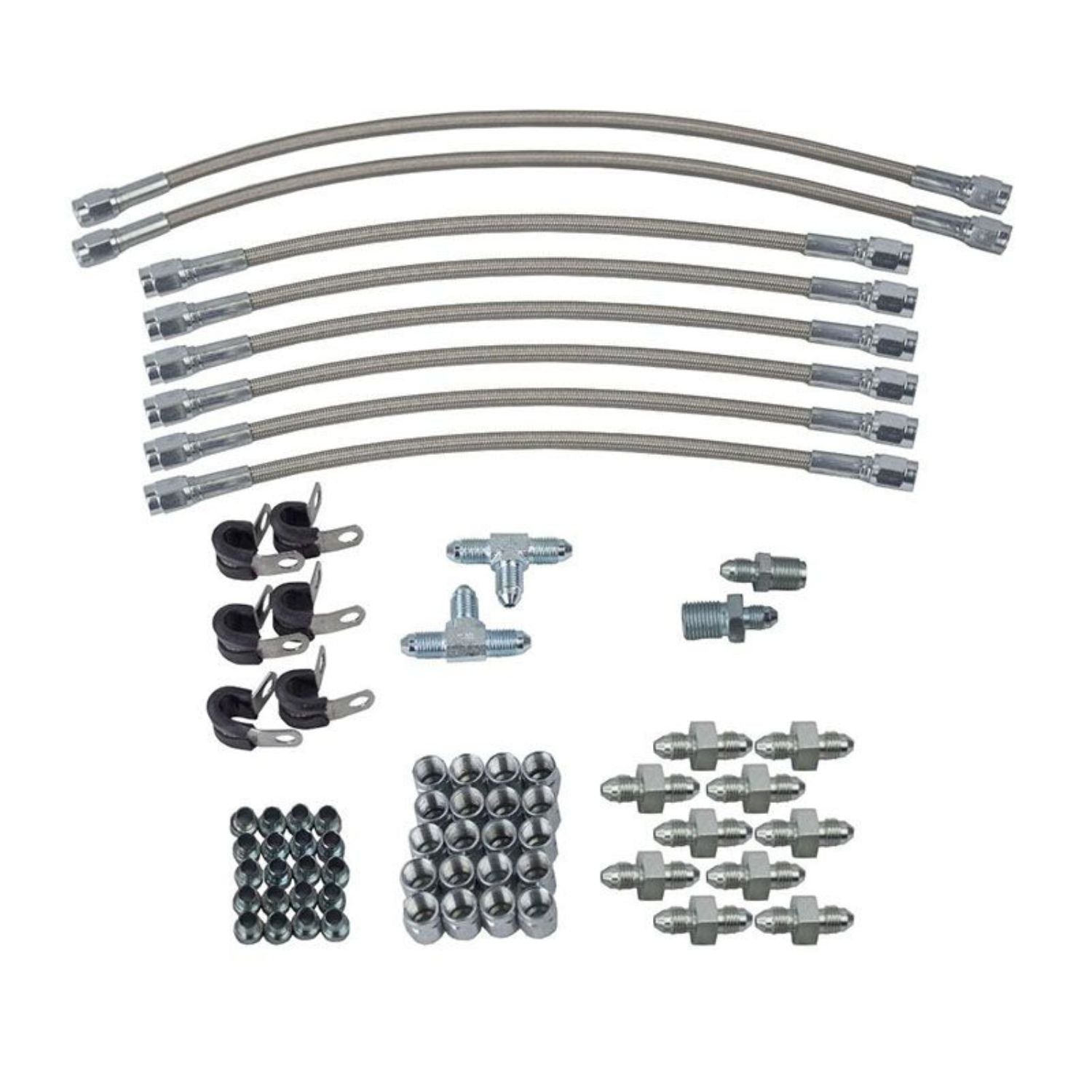

Includes:
- (6) 10" -3 AN Stainless Braided Flex Lines
- (2) 14" -3 AN Stainless Braided Flex Lines
- (2) -3 AN Tee Fittings
- (1) 9/16"-18 Inverted Flare to -3 AN Adapter
- (1) 1/2"-20 Inverted Flare to -3 AN Adapter
- (10) -3 AN Unions
- (20) -3 AN Tube Nuts
- (20) -3 AN Tube Sleeves
- (6) 1/4" Stainless Steel Cushion Clamps
Specifications
| Specification | Details |
|---|---|
| Kit Type | Brake Plumbing Kit |
| System Configuration | Single-Steer |
| Brake Line Size | -3 AN |
| Master Cylinder Compatibility | GM Master Cylinder (9/16"-18 & 1/2"-20 Inverted Flare Ports) |
| Brake Line Brand | Fragola Performance |
| Brake Line Material | Stainless Braided Flex Lines |
| Installation Type | Custom Brake Plumbing |
| Application | Off-Road, Rock Crawlers, Rock Bouncers, Ultra4, Custom Chassis |
Fitment
| Application | Fitment |
|---|---|
| Brake System | Single-Steer Hydraulic Brake Systems |
| Master Cylinder | GM Master Cylinders with 9/16"-18 & 1/2"-20 Ports |
| Vehicle Type | Universal Custom Off-Road Applications |
Fitment Notes:
- Designed for custom brake plumbing on fabricated chassis and off-road vehicles.
- Compatible with GM master cylinders utilizing 9/16"-18 and 1/2"-20 inverted flare outlet ports.
- Ideal for rock bouncers, Ultra4 cars, rock crawlers, trail rigs, and custom tube chassis.
- Brake hard line tubing, brake fluid, and caliper fittings are sold separately.
- Verify component placement and brake line lengths before final installation.
FAQ
Does this kit include everything needed to plumb my brake system?
This kit includes the essential AN fittings, adapters, flex lines, unions, tees, tube nuts, tube sleeves, and mounting clamps. You'll still need hard brake line tubing, brake fluid, caliper fittings (if required), and any vehicle-specific components.
Will this fit any GM master cylinder?
It is designed for GM master cylinders that use 9/16"-18 and 1/2"-20 inverted flare outlet ports. Always verify your master cylinder port sizes before ordering.
Why are -3 AN brake lines commonly used?
-3 AN stainless braided brake lines provide excellent hydraulic performance with minimal line expansion, resulting in a firmer brake pedal and improved durability compared to conventional rubber brake hoses.
Is this kit intended for production vehicles?
No. This kit is designed primarily for custom-built off-road vehicles, race buggies, rock crawlers, and fabricated chassis where custom brake plumbing is required.
Why choose a complete plumbing kit instead of buying fittings individually?
A pre-configured kit eliminates compatibility issues, reduces ordering mistakes, and provides matching components that simplify installation while creating a cleaner, more serviceable brake system.
