SKU: F021057

$8.99
/
Shipping calculated at checkout.

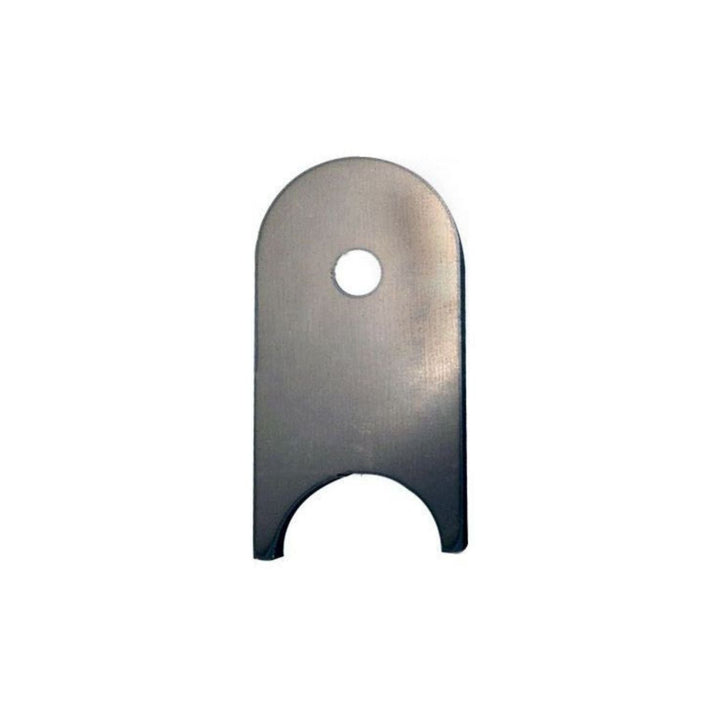

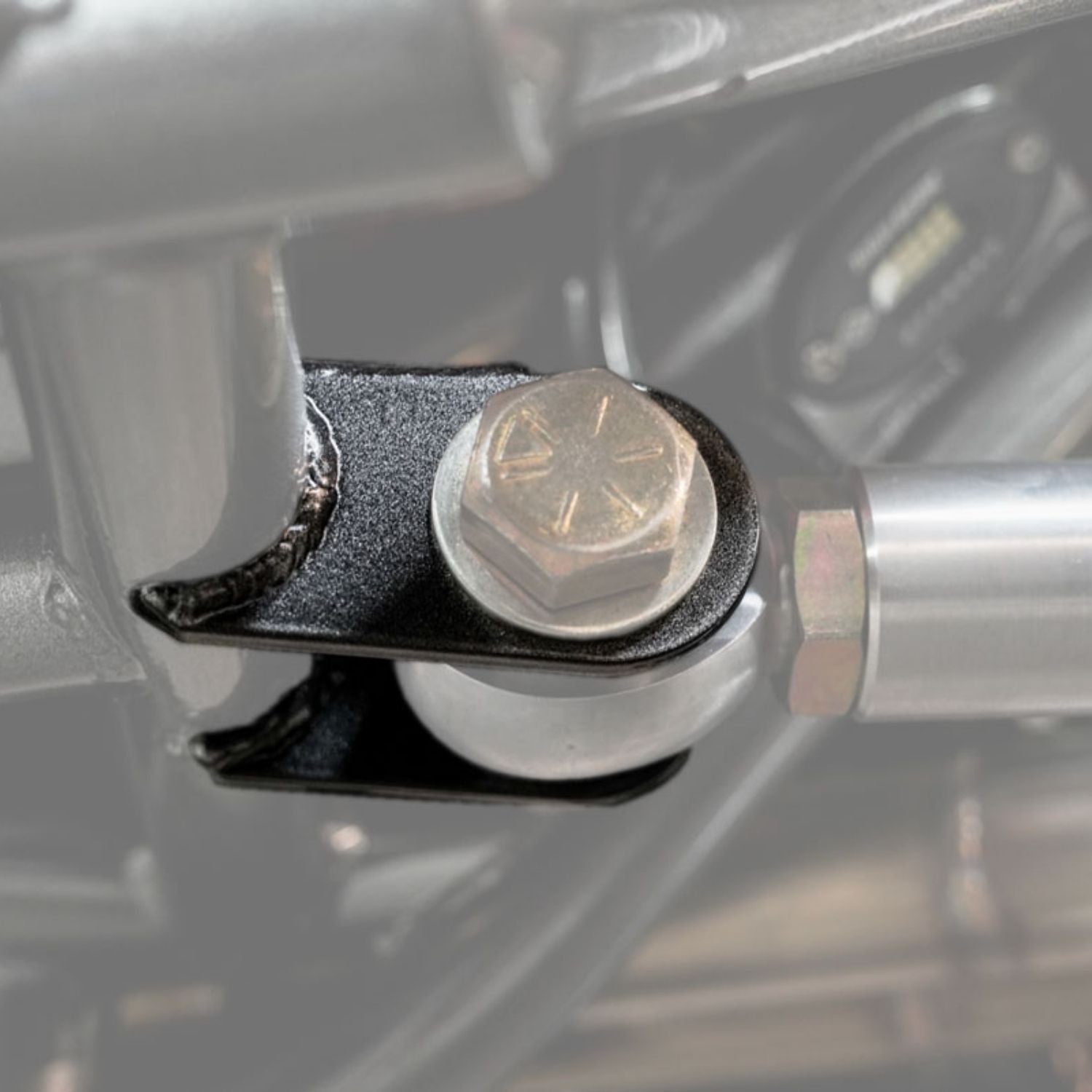

These Long Chassis Link Tabs create a strong, precise weld-on mounting point on your chassis for suspension links. Designed to work with Short, Medium, or Long Chassis Link Tabs, they give you full flexibility to fine-tune your link angles and overall suspension geometry.

Each tab is precision laser cut from 1/4 high-strength plate steel for tight tolerances, clean edges, and superior consistency. Built 100% in the USA, these tabs eliminate fabrication guesswork—no more hand-cutting or grinding to get tabs to line up.

Includes:

  • (1) Long Chassis Link Tab (Note: 2 tabs are required to mount a single link arm.)

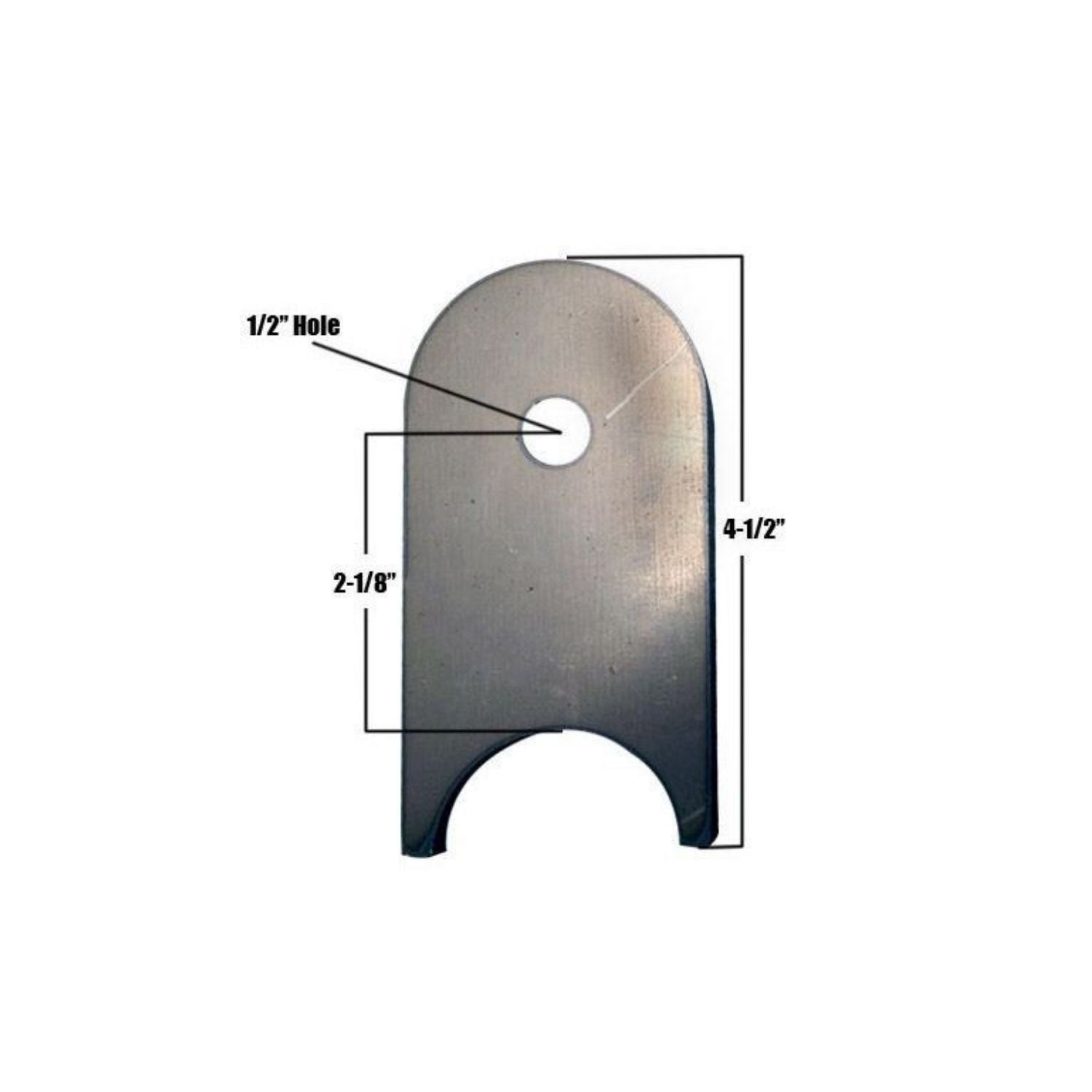

Specifications
  • Material: 1/4 High Strength Plate Steel
  • Overall Length: 4.50
  • Hole Diameter: 1/2
  • Designed For: 1.75 steel tubing
  • Cutting Method: Precision laser cut
  • Condition: Weld-ready
  • Pairing Options: Short, Medium, or Long Chassis Link Tabs
  • Country of Origin: Made in the USA
Fitment
  • Universal weld-on fitment for tube chassis builds including rock bouncers, crawlers, Ultra4-style rigs, and custom-fabricated off-road suspensions.
Feature / Spec Short Chassis Link Tab Long Chassis Link Tab
Material 1/4 High Strength Plate Steel 1/4 High Strength Plate Steel
Overall Length 4.00 4.50
Hole Diameter 1/2 1/2
Designed For Flat chassis plate 1.75 tubing
Cutting Method Laser Cut Laser Cut
Weld-Ready Yes Yes
Made in USA Yes Yes
Best Use Lower link angle / tight clearance Higher link angle / more link separation
Part Number F021080 F021057
Tech Insight

Long Chassis Link Tabs provide additional height and separation when tuning link geometry. This helps builders achieve improved anti-squat, better roll center control, and more stable link angles—critical for high-performance off-road suspension setups. Their extended length provides a larger weld footprint on 1.75 tubing for superior strength.
