SKU: F021064

Regular price$6.99
/
Shipping calculated at checkout.

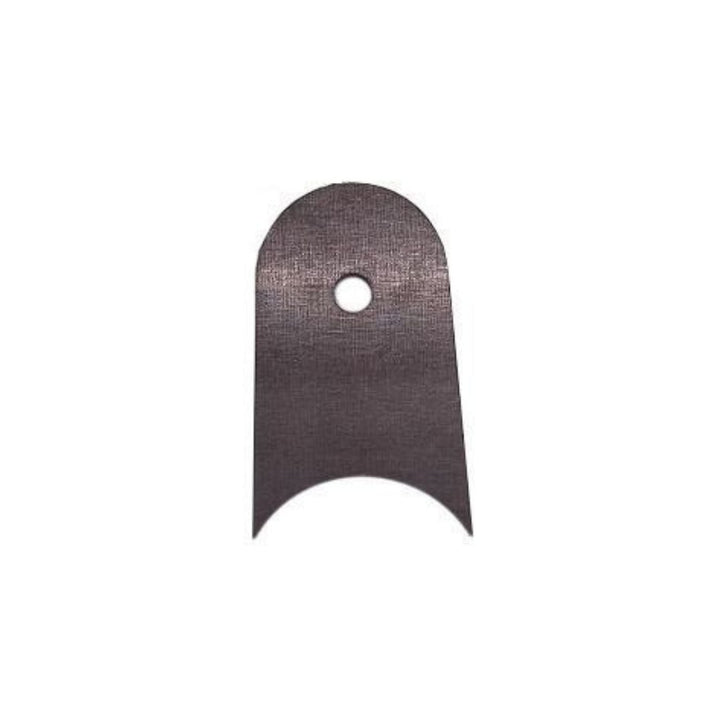

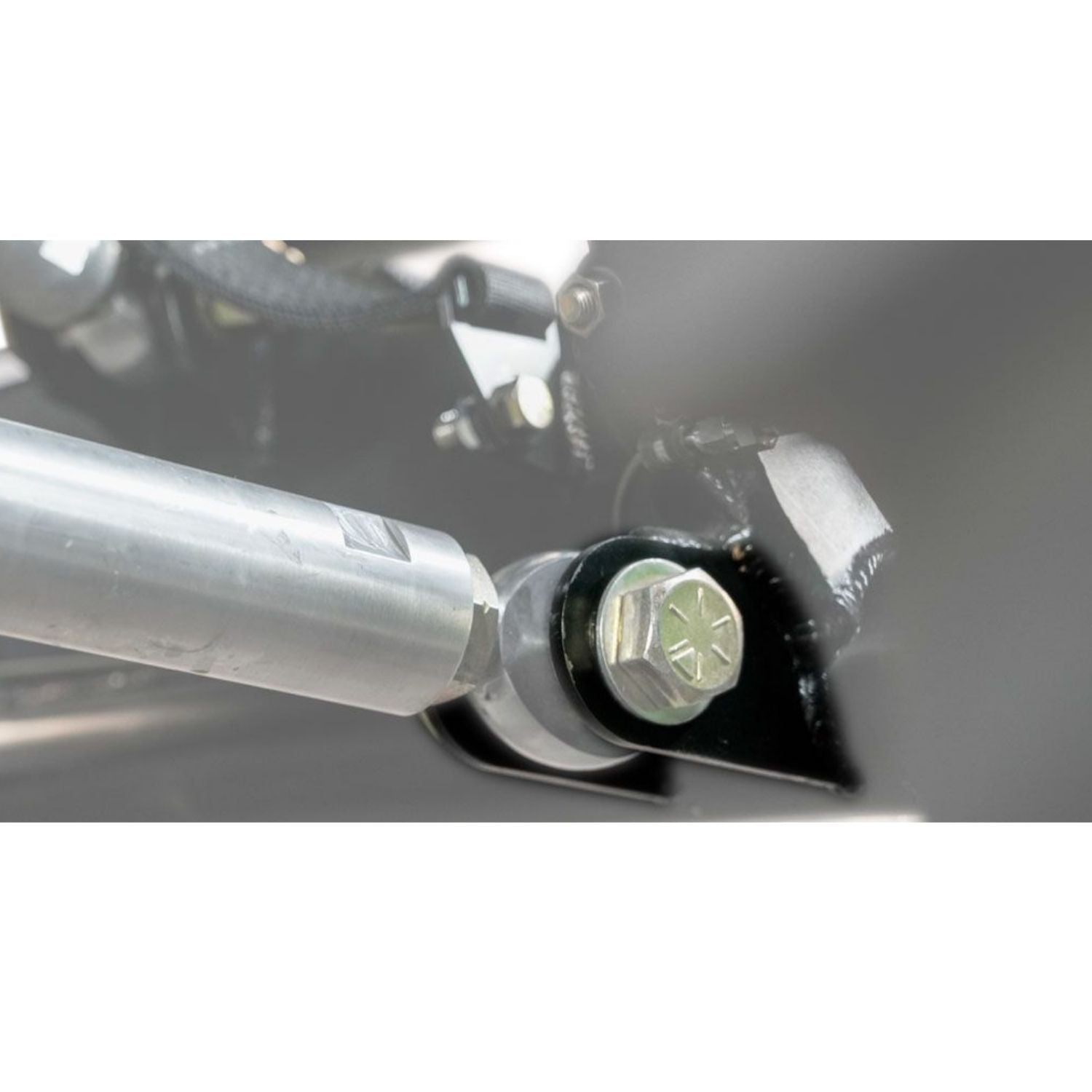

These Medium Axle Link Tabs make mounting your suspension links simple, repeatable, and strong by giving you a precise weld-on mounting point on your axle tube. Pair them with Short, Medium, or Long Axle Link Tabs to achieve the exact link angle your custom suspension geometry needs.

Each tab is precision laser cut from 1/4 high-strength plate steel, giving you clean edges, consistent shape, and a weld-ready surface. Proudly made in the USA for builders who demand reliability.

Includes:

  • (1) Medium Axle Link Tab (Note: You need 2 tabs to mount a single link arm.)

Specifications

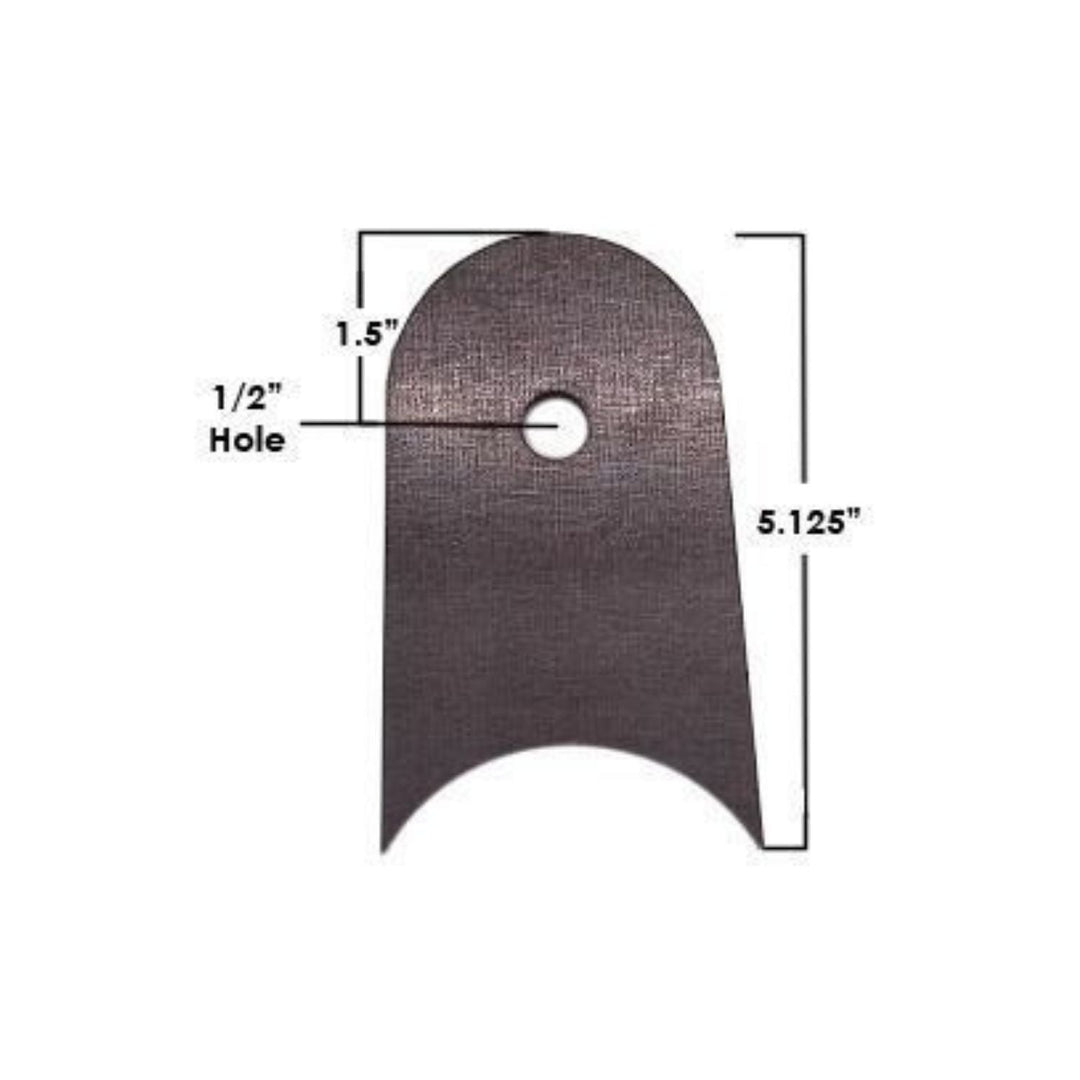

  • Material: 1/4 High Strength Plate Steel
  • Overall Length: 5.125
  • Hole Diameter: 1/2
  • Cutting Method: Precision laser cut
  • Condition: Weld-ready
  • Pairing Options: Works with Short, Medium, or Long Axle Link Tabs
  • Country of Origin: Made in the USA

Fitment
  • Universal weld-on fitment for axle tubes used in off-road build

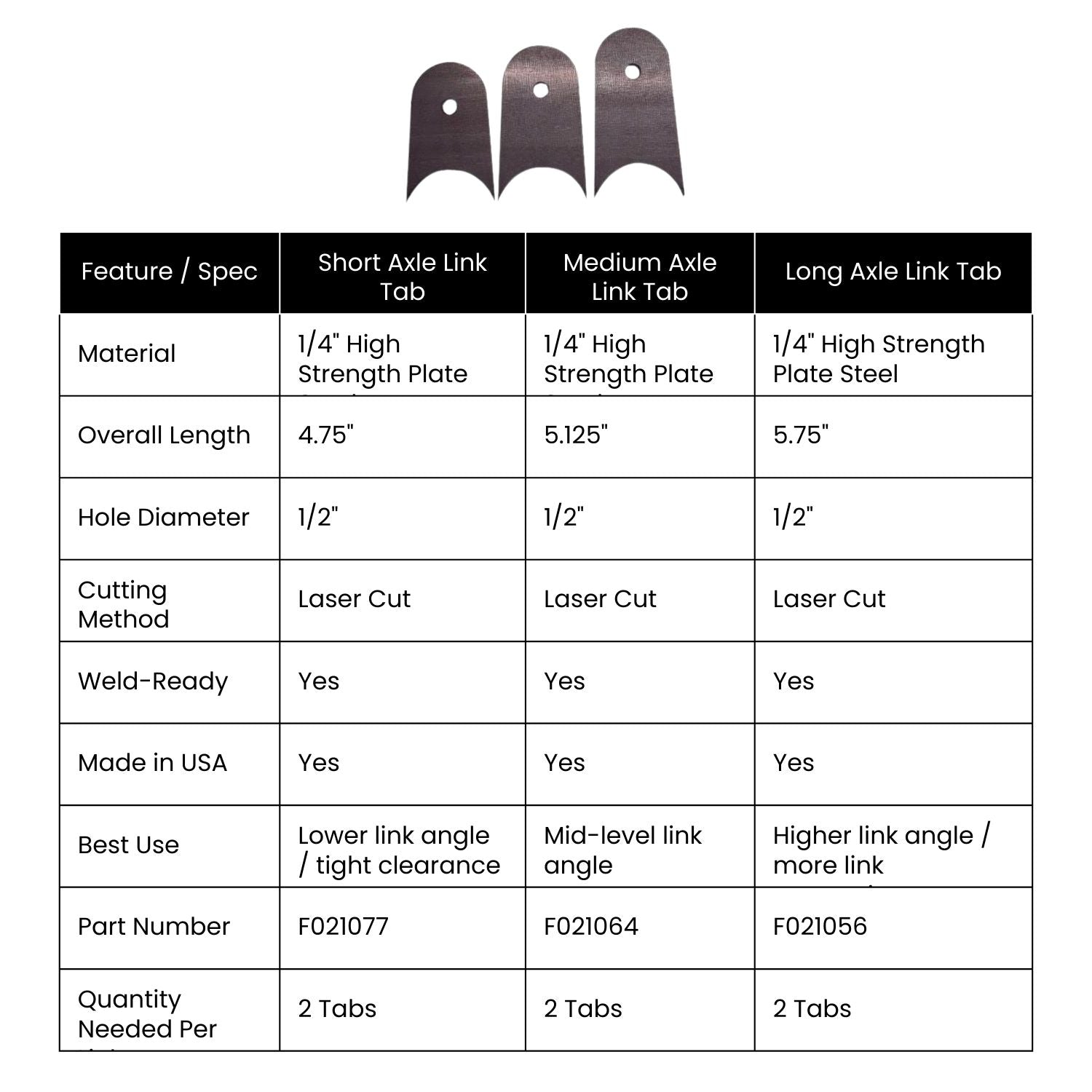

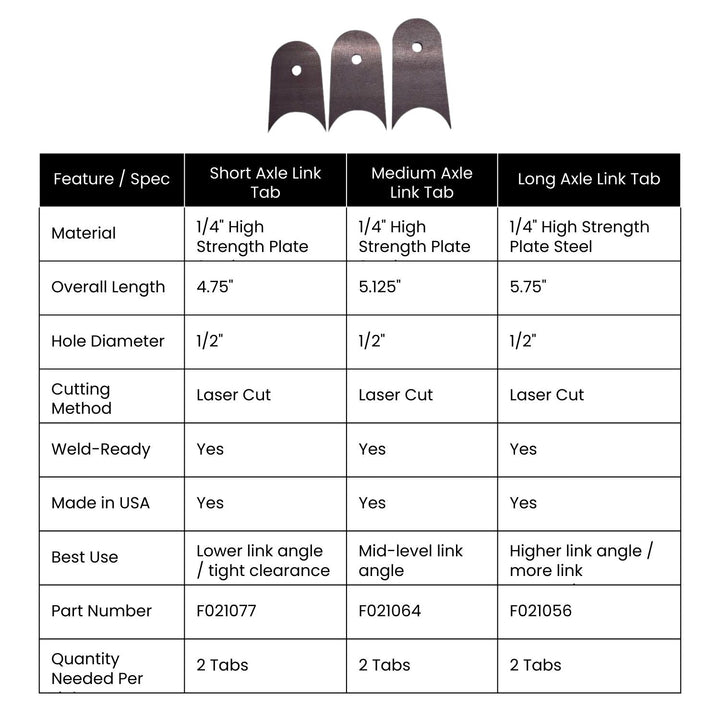

Feature / Spec Short Axle Link Tab Medium Axle Link Tab Long Axle Link Tab
Material 1/4 High Strength Plate Steel 1/4 High Strength Plate Steel 1/4 High Strength Plate Steel
Overall Length 4.75 5.125 5.75
Hole Diameter 1/2 1/2 1/2
Cutting Method Laser Cut Laser Cut Laser Cut
Weld-Ready Yes Yes Yes
Made in USA Yes Yes Yes
Best Use Lower link angle / tight clearance Mid-level link angle Higher link angle / more link separation
Part Number F021077 F021064 F021056
Quantity Needed Per Link 2 Tabs 2 Tabs 2 Tabs

Tech Insight

Medium Axle Link Tabs are a great middle-ground option for dialing in link geometry. They offer enough height to achieve solid link separation while maintaining good clearance around the axle. Ideal for tuning anti-squat, roll control, and overall suspension balance without going as tall as the Long version.
