Short Suspension Mount Tab

WA121085

$3.79
/
Shipping calculated at checkout.

The Short Lower Shock Tab makes mounting shocks and suspension components to a flat surface clean, simple, and reliable. Its compact design fits perfectly in tight areas and is also a great option for mounting limit straps on tube chassis, offering more surface area to pull against than smaller suspension mounts.

Each tab is precision laser cut from 1/4" high strength plate steel and 3.5" in length, giving you consistent accuracy and weld-ready edges right out of the box. No more time wasted trying to hand cut or plasma cut your own tabs. These mounts are 100% Made in the USA for trusted strength and craftsmanship.

Includes:

  • (1) Short Lower Shock Tab (Note: 2 tabs are needed to complete one shock mount.)
Specifications
  • Material: 1/4" High Strength Plate Steel
  • Overall Length: 3.50" (including overlap)
  • Base to Hole Center: 1.25"
  • Hole Diameter: 1/2"
  • Cutting Method: Precision laser cut
  • Condition: Weld-ready
  • Made in the USA
Fitment

Universal weld-on fitment for:

  • Coilover mount
  • Axle housings
  • Tube chassis
  • Limit strap mounting points
  • Custom off-road fabrication projects

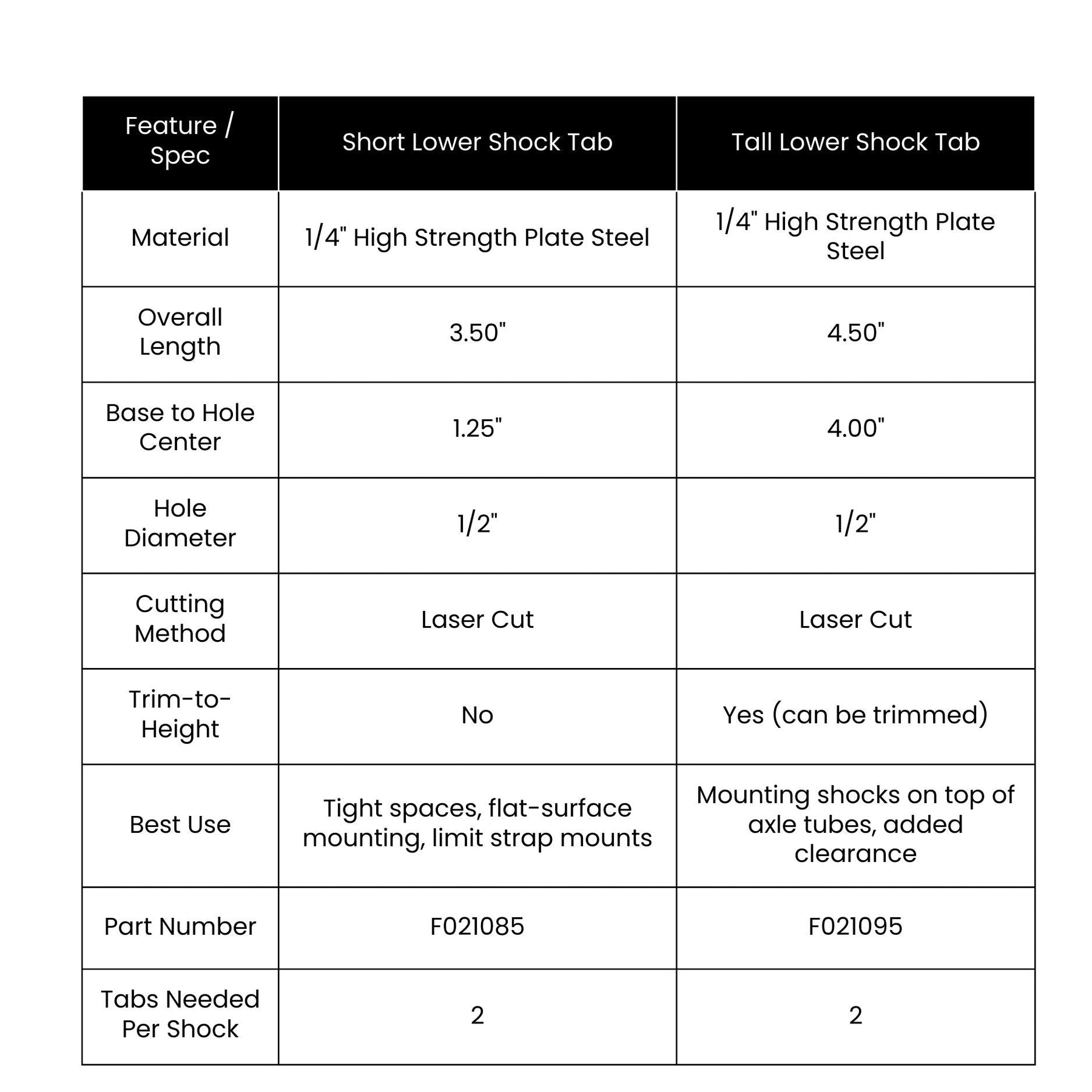

Feature / Spec Short Lower Shock Tab Tall Lower Shock Tab
Material 1/4" High Strength Plate Steel 1/4" High Strength Plate Steel
Overall Length 3.50" 4.50"
Base to Hole Center 1.25" 4.00"
Hole Diameter 1/2" 1/2"
Cutting Method Laser Cut Laser Cut
Weld-Ready Yes Yes
Trim-to-Height No Yes (can be trimmed)
Best Use Tight spaces, flat-surface mounting, limit strap mounts Mounting shocks on top of axle tubes, added clearance
Part Number F021085 F021095
Tabs Needed Per Shock 2 2
Tech Insight

Short Lower Shock Tabs are used anywhere shock eyelets or limit straps need secure, compact mounting. Their size makes them ideal for lower shock mounts on axles or chassis rails where clearance is tight. The laser-cut design ensures identical tab geometry for proper shock alignment—critical for performance and shock longevity.
