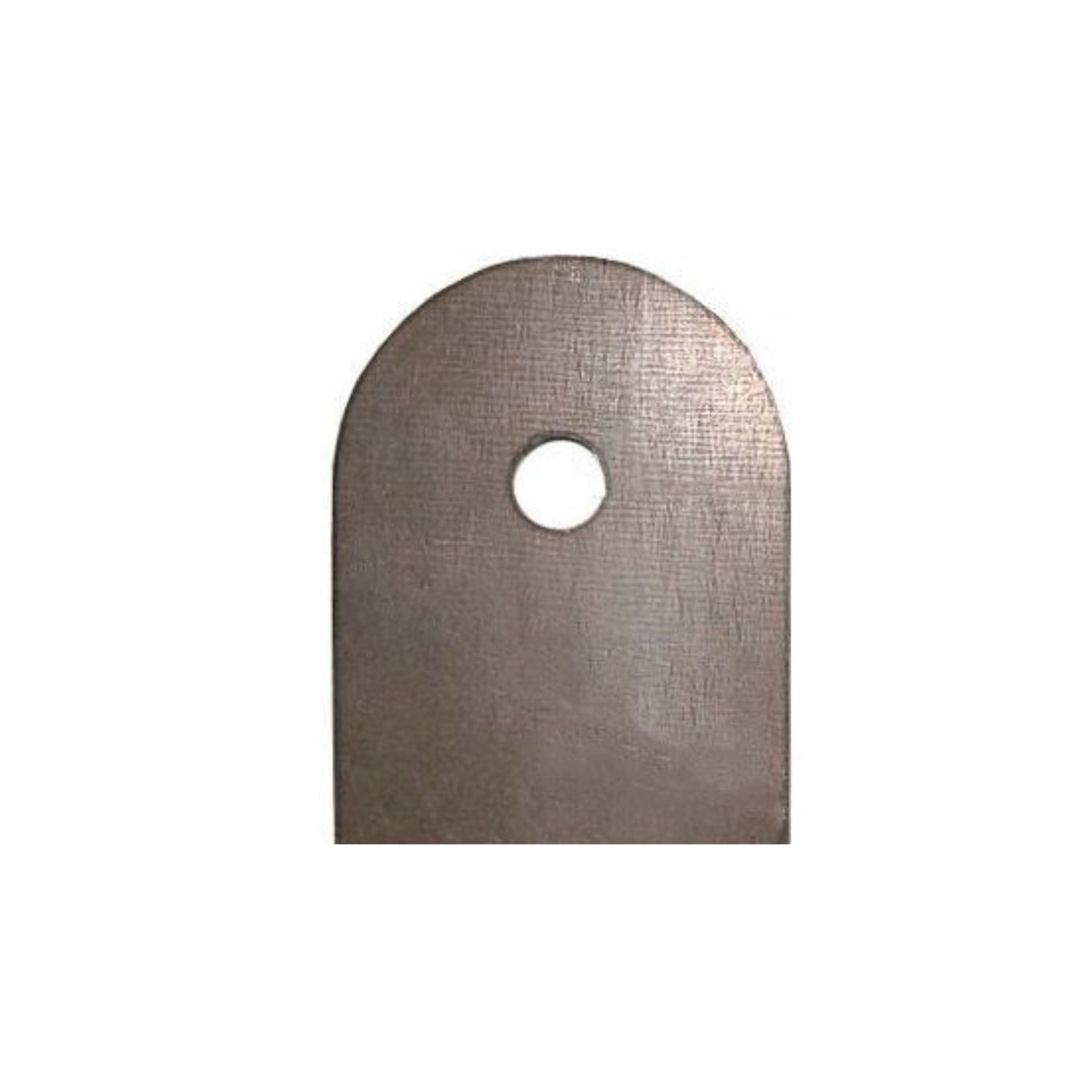

Short Rear Truss Link Tab

• Material: 1/4 High Strength Plate Steel

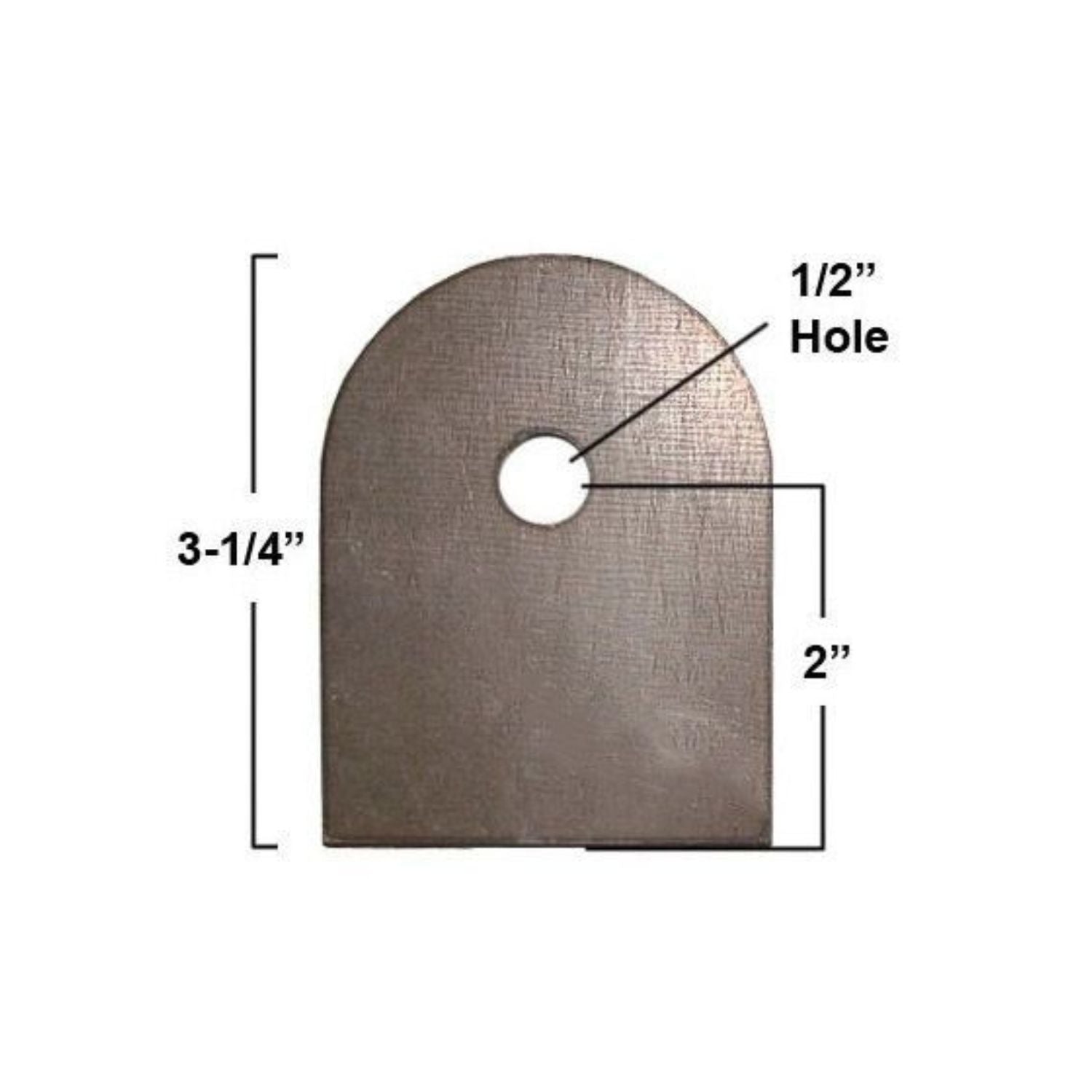

• Overall Length: 3.25
• Base-to-Hole Center: 2.00
• Hole Diameter: 1/2
• Laser cut for accuracy and consistency
• Weld-ready fabrication tab
• Can be matched with another short or long tab to set link angle
• Made in the USA

• Universal weld-on fitment for trusses used in custom off-road builds, crawlers, bouncers, and custom suspension link systems.

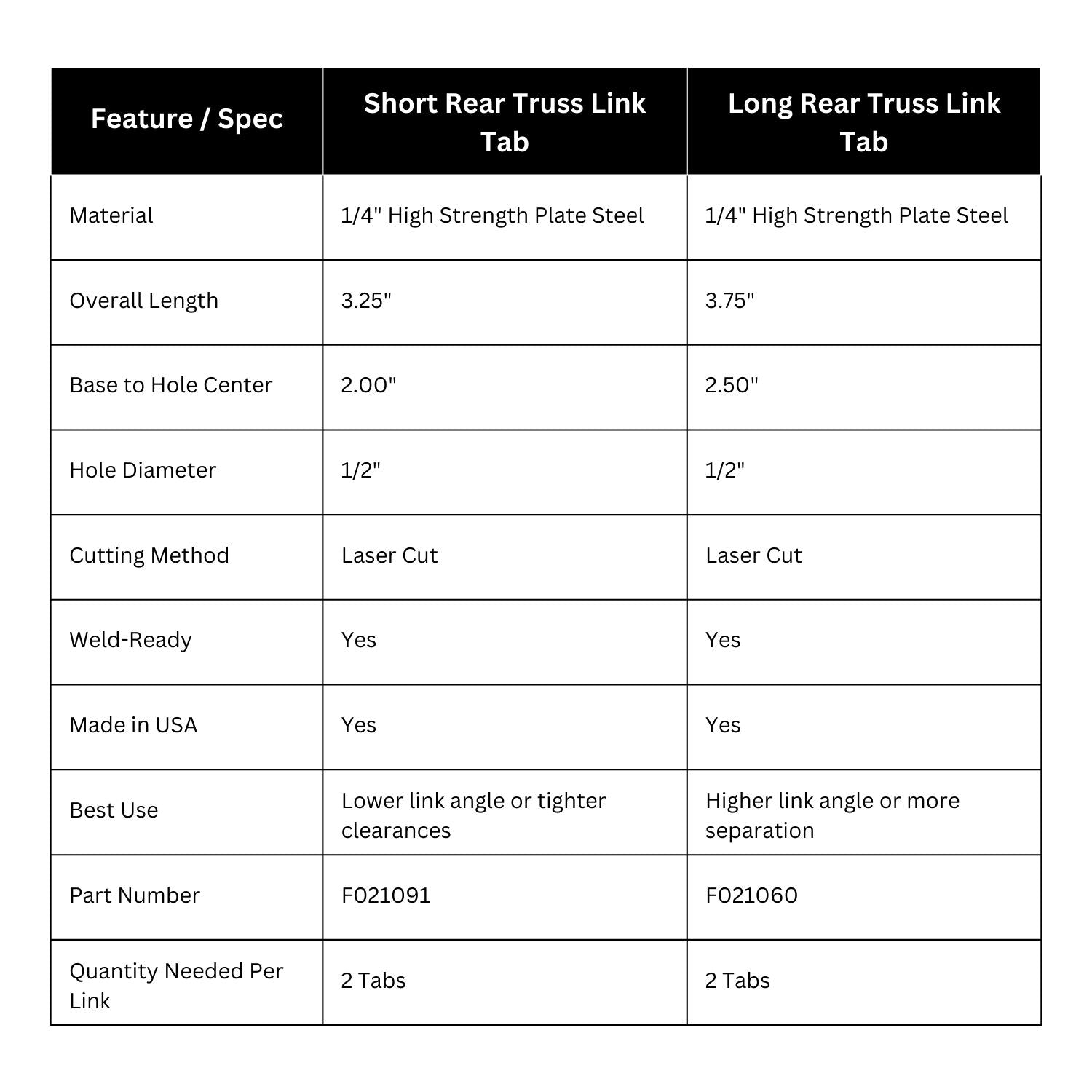

Feature / Spec	Short Rear Truss Link Tab	Long Rear Truss Link Tab
Material	1/4 High Strength Plate Steel	1/4 High Strength Plate Steel
Overall Length	3.25	3.75
Base to Hole Center	2.00	2.50
Hole Diameter	1/2	1/2
Cutting Method	Laser Cut	Laser Cut
Weld-Ready	Yes	Yes
Made in USA	Yes	Yes
Best Use	Lower link angle or tighter clearances	Higher link angle or more separation
Compatible With	Short or Long Tab	Short or Long Tab
Quantity Needed Per Link	2 Tabs	2 Tabs

Short Rear Truss Link Tabs allow builders to fine-tune suspension geometry by stacking or pairing tabs to achieve precise link angles. Whether used in a 4-link or 3-link setup, these tabs help dial in anti-squat, roll steer, and link separation—all while maintaining accuracy thanks to their laser-cut construction.
