37879

$4.18
/
Shipping calculated at checkout.

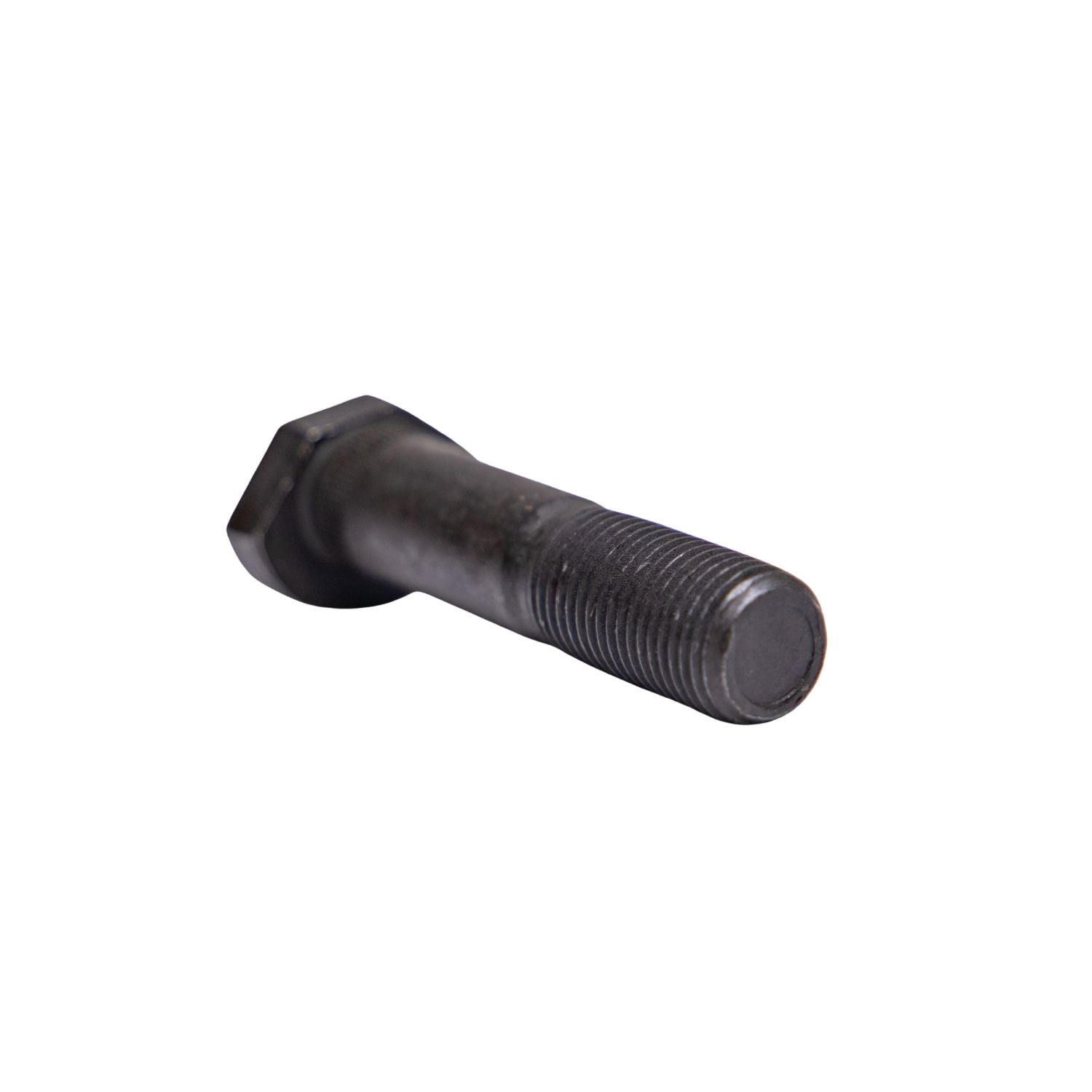

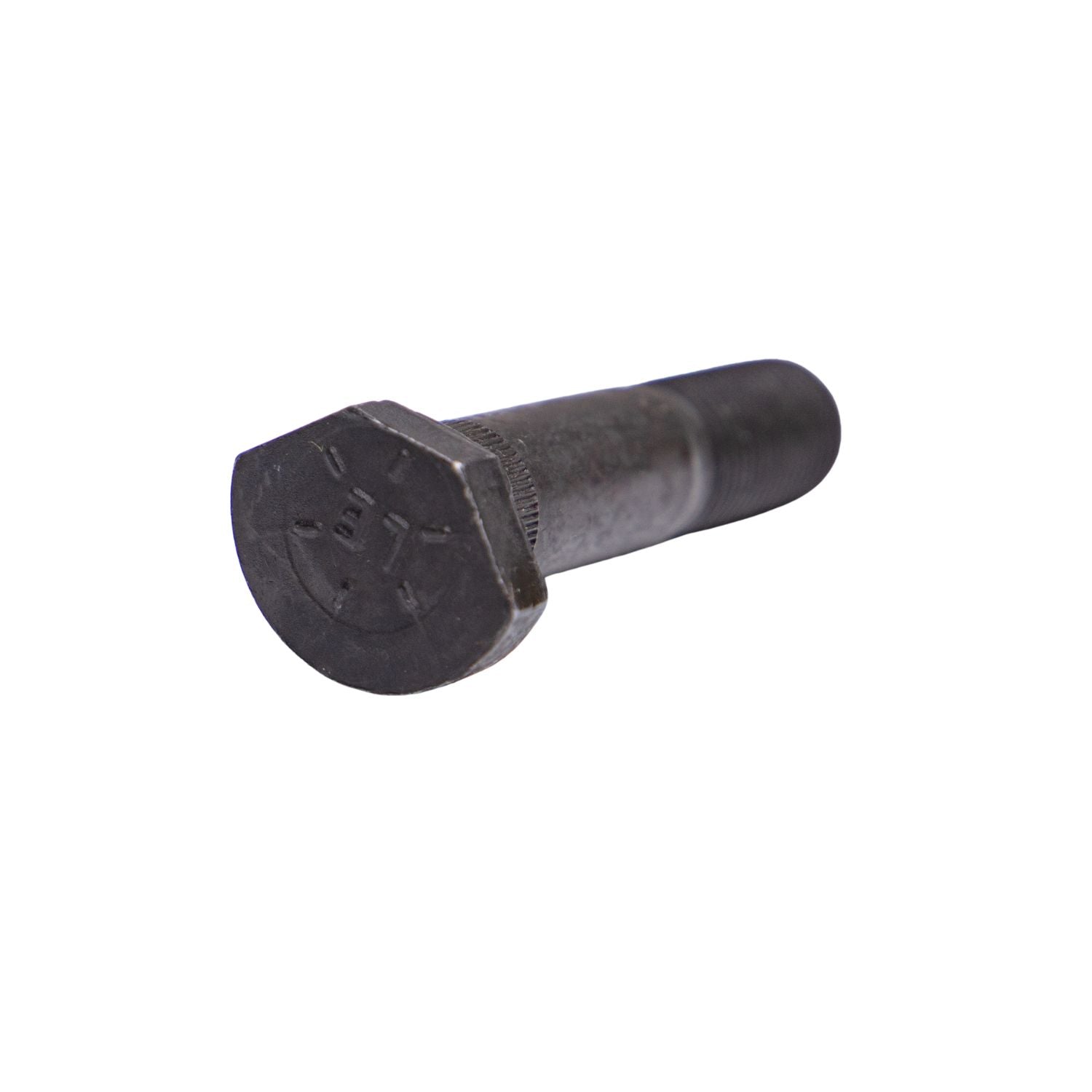

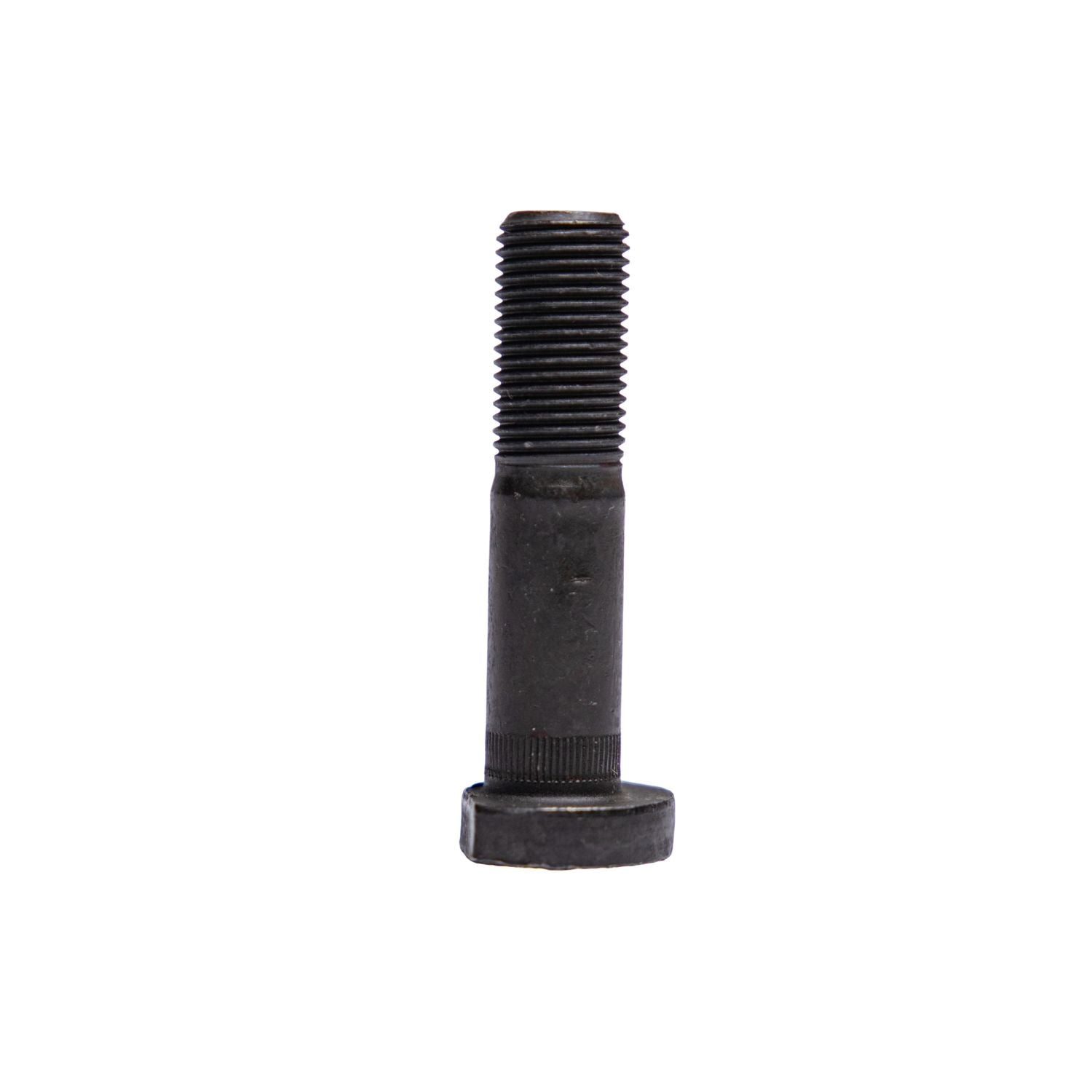

The Spicer GM Dana 60 Spindle Stud is a high-strength fastener designed to secure the spindle to the steering knuckle on kingpin-style Dana 60 and Dana 61 front axles. Manufactured from Grade 8 material, this fine-thread stud provides the clamping strength needed to handle the heavy loads and stress of off-road use. Perfect for GM, GMC, Chevrolet, and Dodge applications running Dana 60 or Dana 61 axles.

Includes:

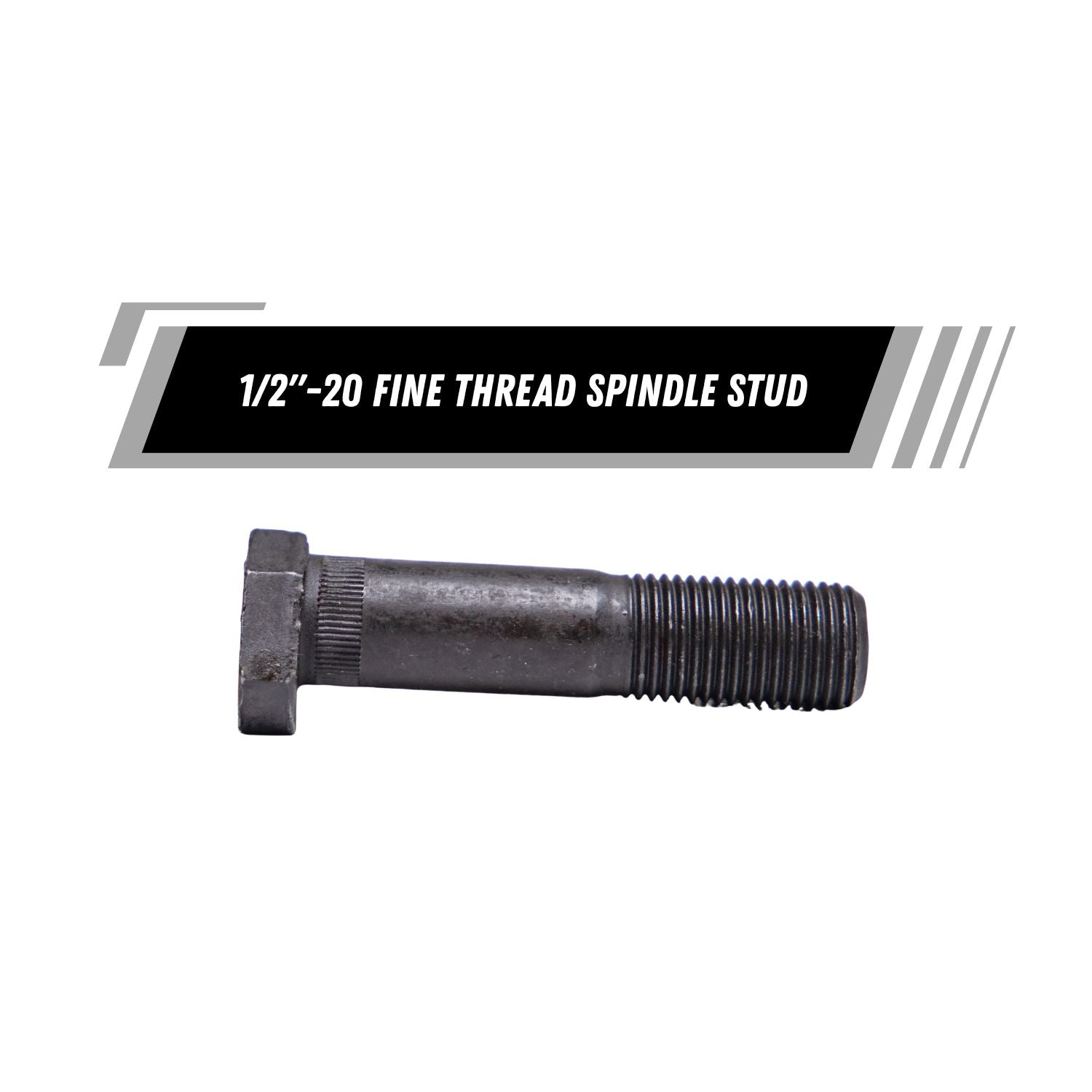

  • (1) Spicer 1/2-20 Fine Thread Spindle Stud
Specifications
  • Brand: Spicer
  • Thread Size: 1/2-20 (Fine Thread)
  • Head Style: Button
  • Head Size: 0.970
  • Self Locking: No
  • Grade: 8
  • Length Under Head: 1.125
  • Overall Length: 1.345
  • Quantity Required: 6 per knuckle/spindle

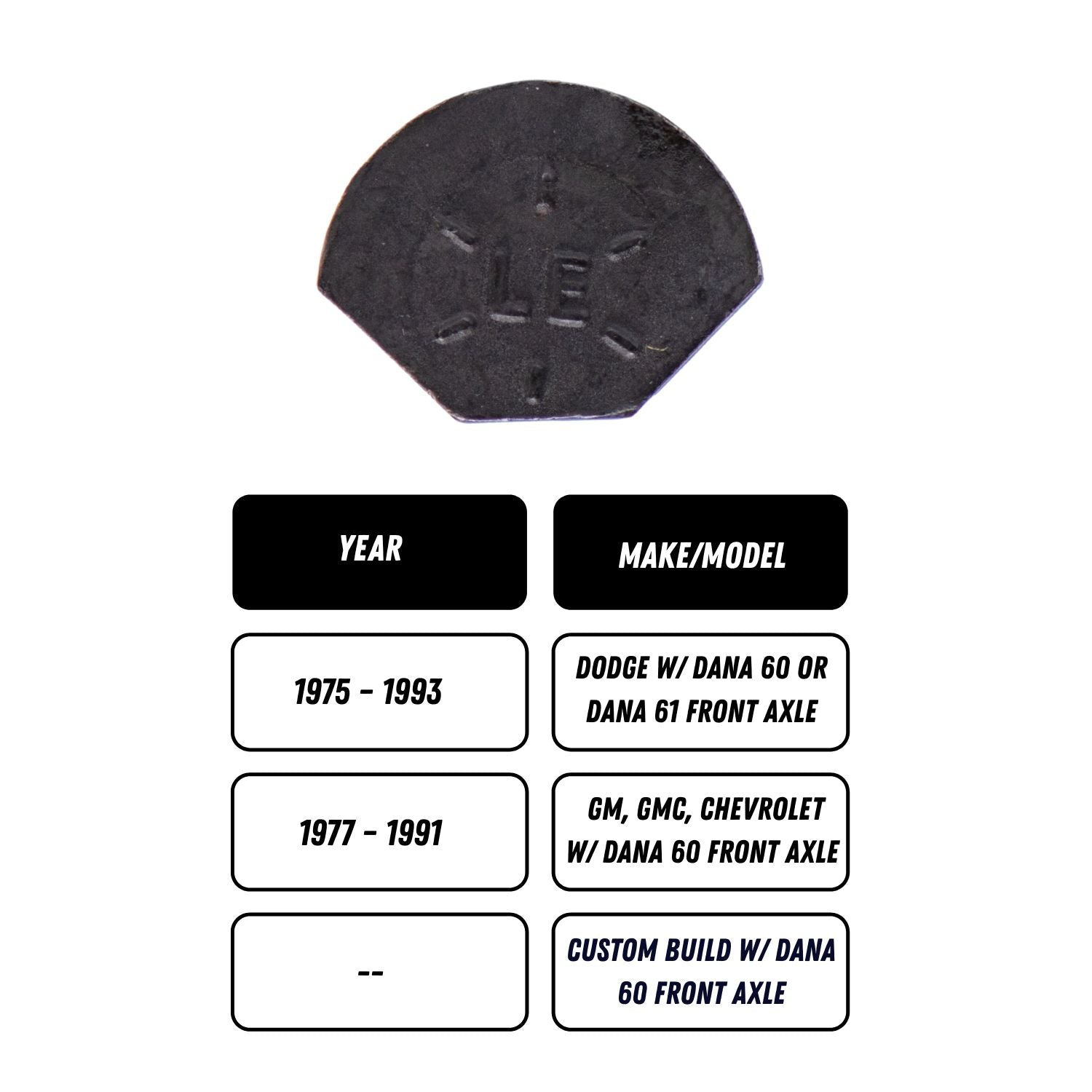

Fitment
  • 1975 – 1993 Dodge with Dana 60 / Dana 61 Front Axle
  • 1977 – 1991 GM, GMC, Chevrolet with Dana 60 Front Axle
Tech Insight

Dana 60 spindle studs are critical hardware for maintaining the integrity of the front axle assembly. These fine-thread, high-tensile studs ensure the spindle is tightly secured to the steering knuckle, preventing movement or loosening under heavy load or vibration. Replacing worn or stretched spindle studs with genuine Spicer Grade 8 hardware restores the factory clamping force, reducing the risk of wheel hub or brake rotor misalignment — a must for off-road and heavy-duty performance builds.
