ARB High Output 12V Onboard Air Compressor CKMA12
ARBCKMA12

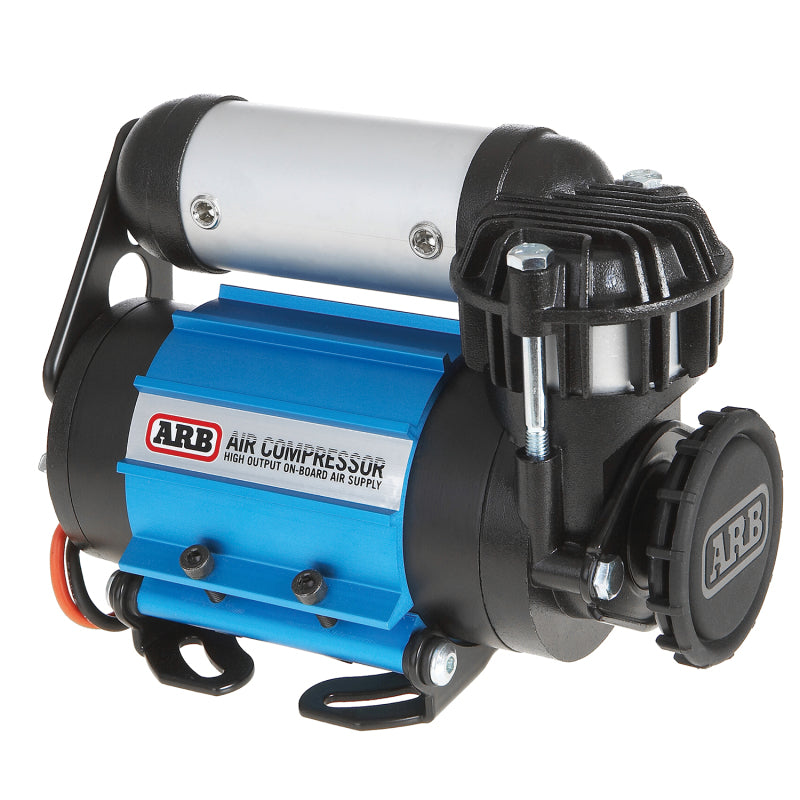

The ARB CKMA12 High Output 12V Onboard Air Compressor provides a compact onboard air source for operating ARB Air Lockers, inflating tires, and supporting air accessories on Jeeps, trucks, rock crawlers, buggies, and other off-road vehicles. Built for permanent 12V installation, the CKMA12 combines a hard-anodized cylinder bore, Teflon-impregnated carbon fiber piston seal, thermally protected motor, and sealed construction for dependable operation in demanding environments.
The CKMA12 works especially well when you need one compact compressor to handle both locker activation and general onboard air without taking up the space of a larger compressor system. Integrated manifold ports support ARB Air Locker solenoids, while the included pressure switch, wiring harness, relay, switch, mounting bracket, and safety components give builders the major pieces needed for a clean permanent installation.

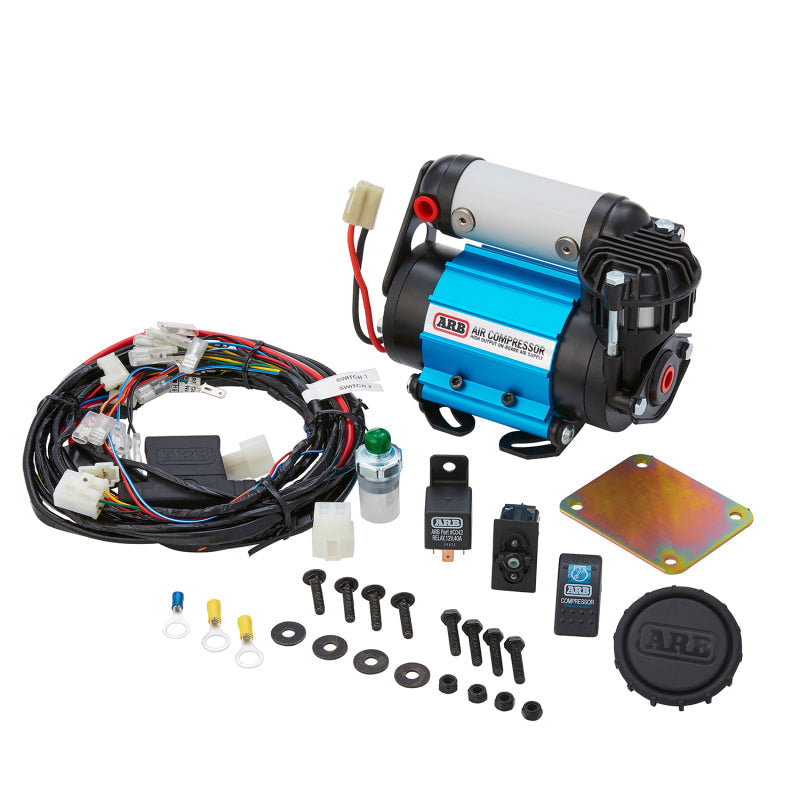

Includes:
- (1) ARB CKMA12 High Output 12V Air Compressor
- 9 ft Heavy-Duty Power Harness
- Wiring Harness with Relay and Switch
- Pressure Switch
- Anodized Mounting Bracket
- Over-Pressure Safety Valve
- Required Mounting Hardware
- Installation Instructions
Specifications
| Specification | Details |
|---|---|
| Manufacturer | ARB |
| Part Number | CKMA12 |
| Product Type | High Output Onboard Air Compressor |
| Voltage | 12V |
| Installation | Permanent Onboard Mount |
| Power Harness Length | Approximately 9 ft |
| Cylinder Bore | Hard Anodized |
| Piston Seal | Teflon-Impregnated Carbon Fiber |
| Motor Protection | Internal Thermal Protection |
| Housing | Moisture & Dust Resistant |
| Air Locker Support | Yes |
| Air Locker Solenoid Ports | (2) |
| Pressure Switch | Included |
| Over-Pressure Safety Valve | Included |
| Mounting Bracket | Anodized Heat-Dissipating Bracket |
| Primary Use | Air Lockers, Tire Inflation & Onboard Air |
Fitment
Designed For:
- 12V vehicle electrical systems
- ARB Air Locker installations
- Onboard tire inflation
- Rock crawlers and rock bouncers
- Jeeps, trucks, and SUVs
- Tube chassis buggies
- UTVs and custom off-road vehicles
Fitment Notes:
- Universal onboard compressor requiring a suitable mounting location and electrical installation.
- Manifold includes two ports for ARB Air Locker solenoids.
- Can be configured for tire inflation and other compatible onboard air accessories with the appropriate fittings and accessories.
- Mount the compressor in a location protected from excessive heat, direct water exposure, and impact damage.
- Route wiring away from exhaust components, sharp edges, suspension components, and other moving parts.
- Verify available mounting space and electrical capacity before installation.
FAQ
Can the ARB CKMA12 operate ARB Air Lockers?
Yes. The CKMA12 is designed for ARB Air Locker operation and includes two manifold ports that can be used to install Air Locker solenoids.
Can I use the ARB CKMA12 to inflate tires?
Yes. The CKMA12 can be configured for tire inflation with the appropriate ARB air hose, coupler, and inflation accessories. It is a good option when you want one onboard compressor for both locker operation and trail-side tire inflation.
Does the CKMA12 include the wiring needed for installation?
Yes. The compressor includes a heavy-duty power harness along with the relay, switch, and associated wiring needed for a permanent onboard installation.
Does the ARB CKMA12 include a pressure switch?
Yes. A pressure switch is included to control compressor operation as pressure within the system rises and falls.
Is the ARB CKMA12 vehicle-specific?
No. The CKMA12 is a universal 12V onboard compressor. Installation requires a suitable mounting location and proper wiring, making it well suited to Jeeps, trucks, rock crawlers, tube chassis buggies, and other custom off-road vehicles.
