SKU: 3-4-8001X

$122.51
/
Shipping calculated at checkout.

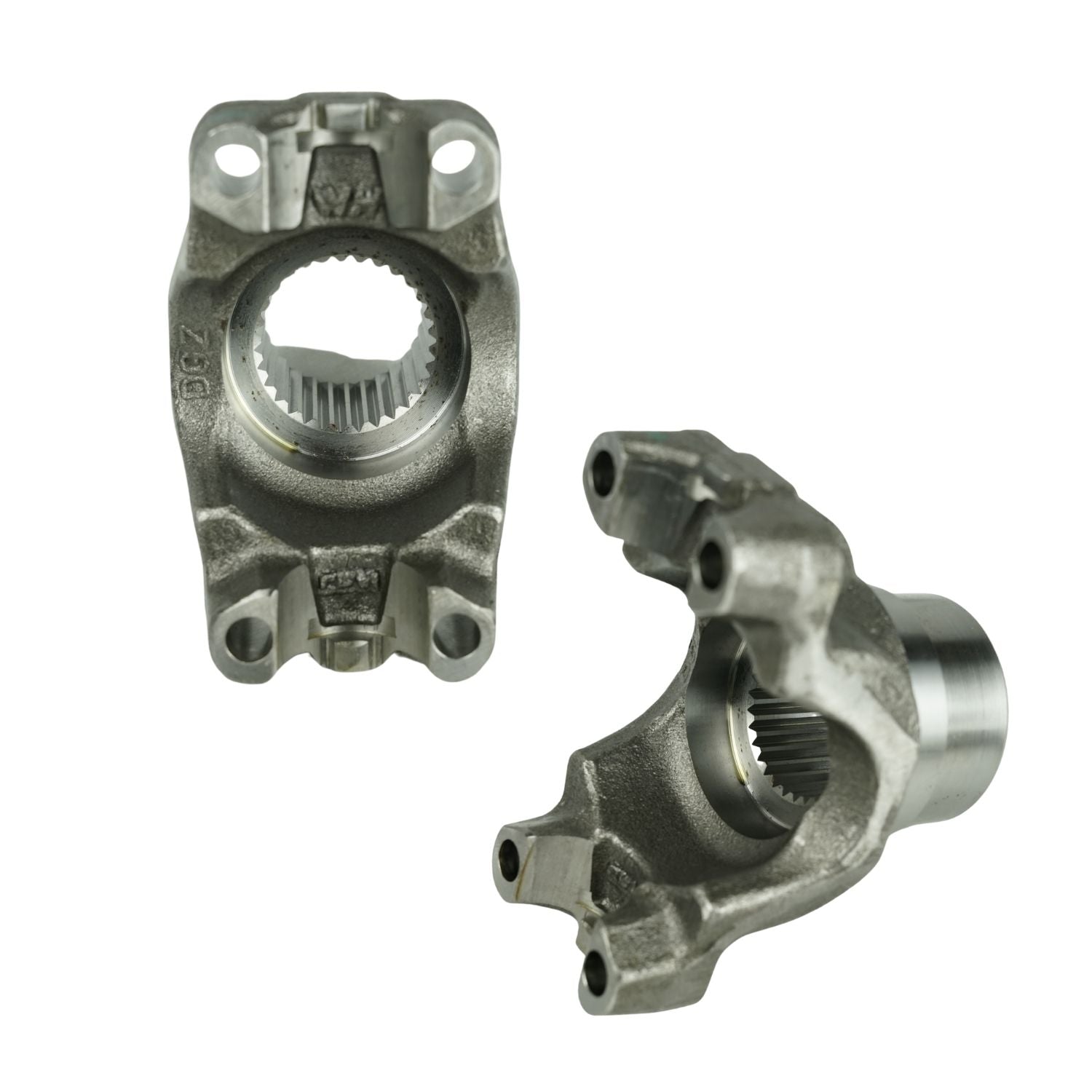

The 1410 GM 14 Bolt Forged U-Bolt Yoke is built for maximum strength and reliability in demanding off-road or towing applications. Designed for the GM 14 Bolt 10.5" ring gear axle, it also fits the newer 11.5" axles.

This yoke uses U-bolts instead of straps, allowing for faster, easier maintenance and field repairs. Forged construction ensures strength and internal integrity capable of handling high torque and heavy-duty use.

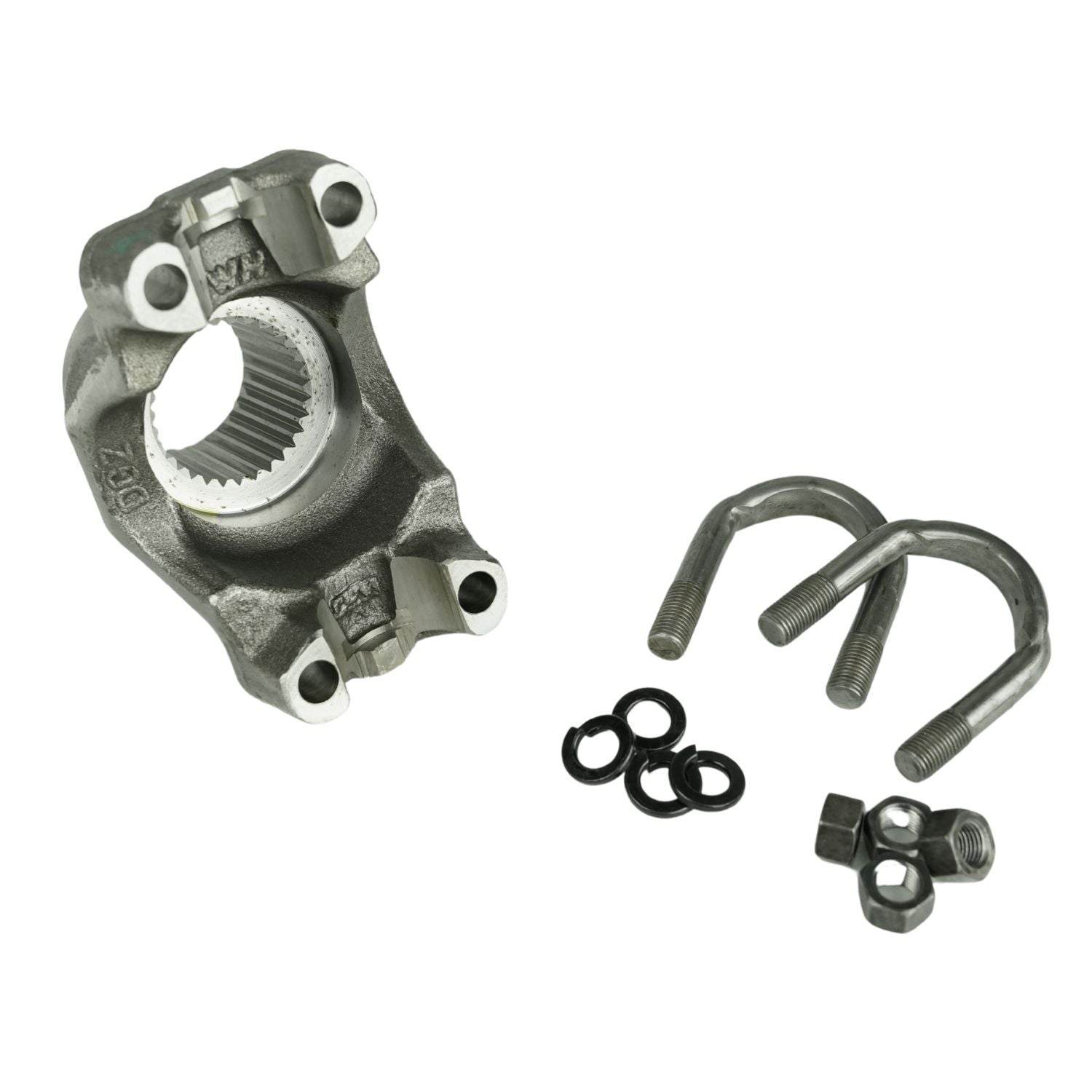

Includes:

  • (1) 1410 GM 14 Bolt Forged U-Bolt Yoke
  • (2) U-Bolts (with Nuts and Lock Washers)

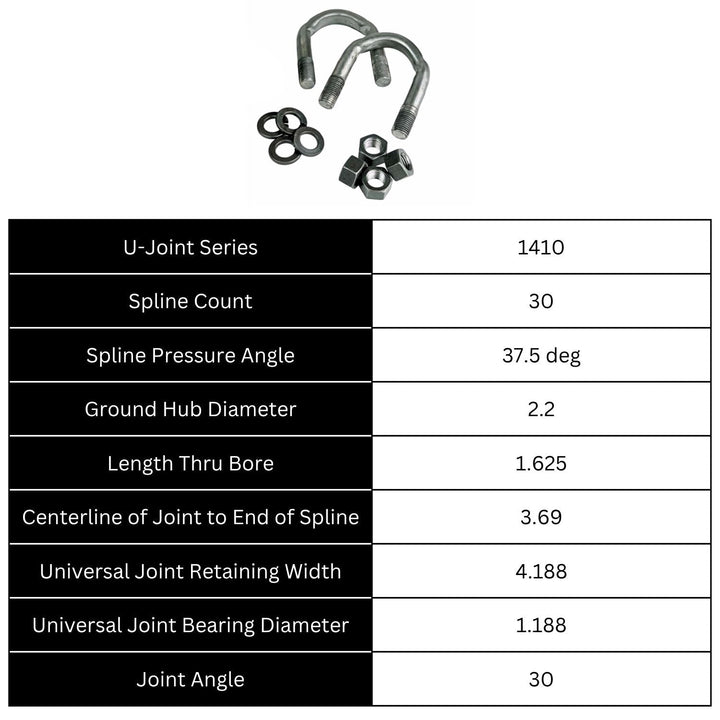

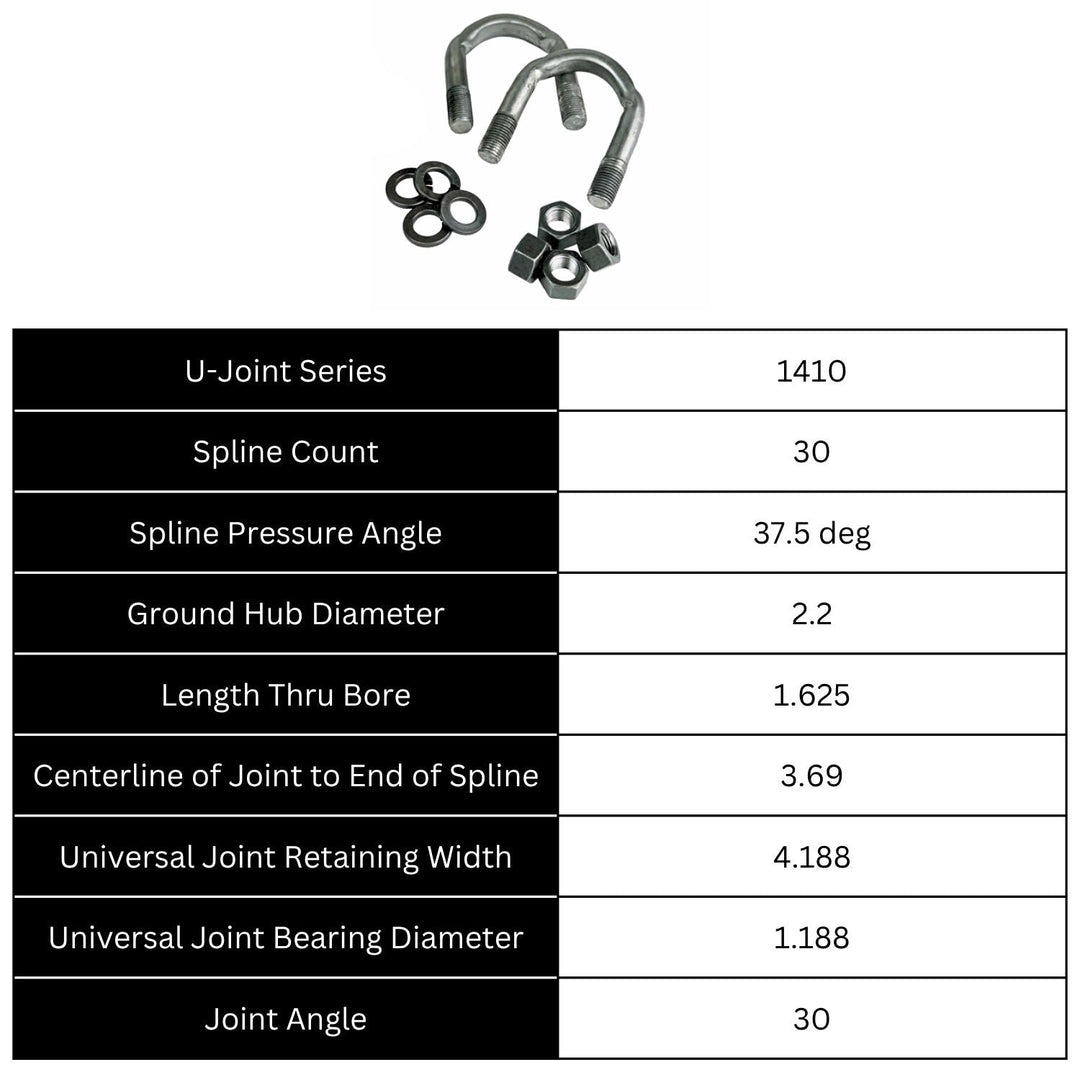

Specifications
  • U-Joint Series: 1410
  • Spline Count: 30
  • Spline Pressure Angle: 37.5°
  • Ground Hub Diameter: 2.200
  • Length Thru Bore: 1.625
  • Centerline of Joint to End of Spline: 3.690
  • Universal Joint Retaining Width: 4.188
  • Universal Joint Bearing Diameter: 1.188
  • Joint Angle: 30°
Fitment

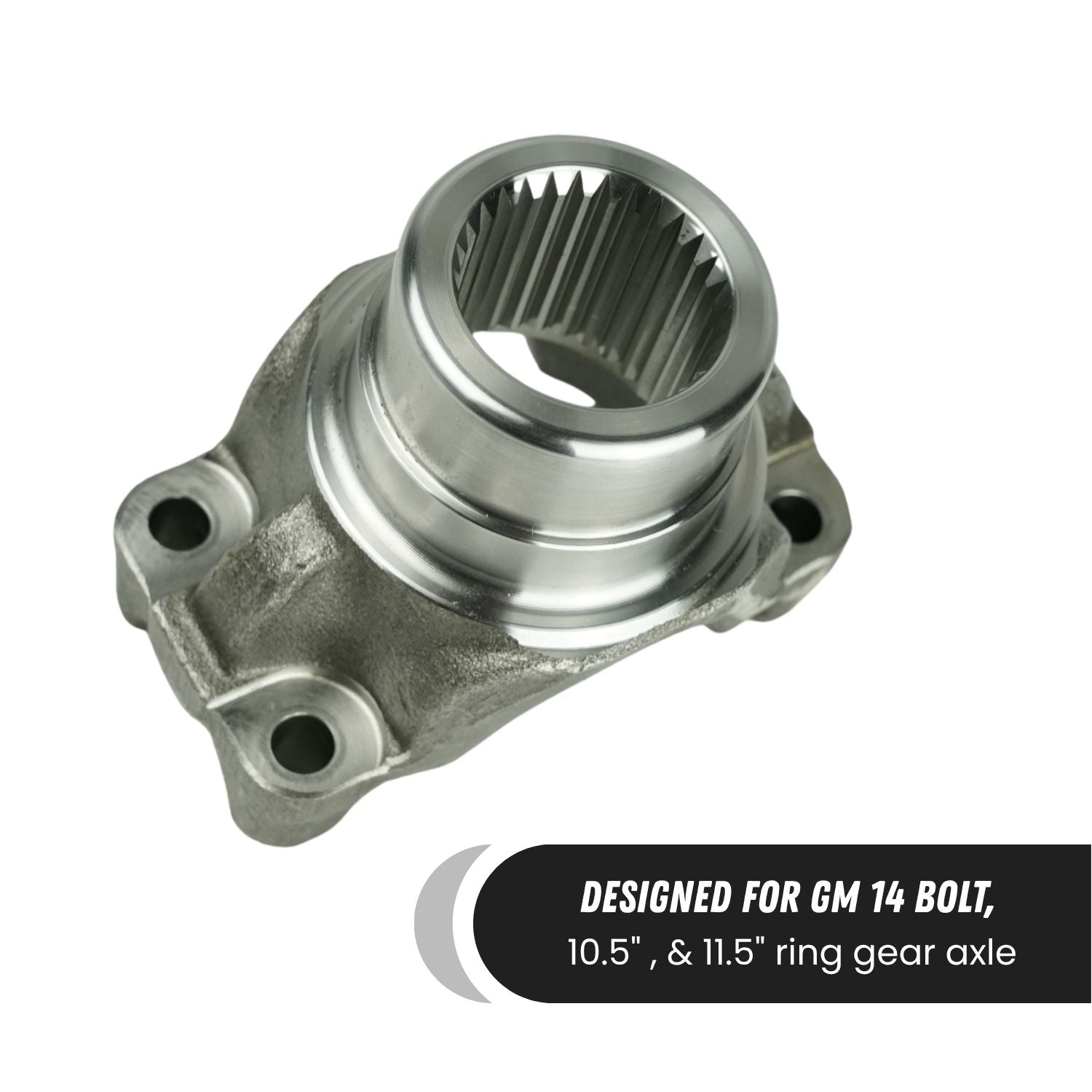

  • Fits GM 14 Bolt (10.5 ring gear) and GM 11.5 axles using a 1410 series U-joint.
Tech Insight

This yoke is designed for builders and off-roaders who value serviceability and durability. Unlike strap-style yokes that can trap broken bolts, U-bolts make replacement simple—just swap in new hardware and keep moving. The forged construction creates a denser, stronger structure than cast yokes, offering improved fatigue resistance and longer service life under high torque conditions.
