Body Panel Tabs (Set of 10)
Body Panel Tabs (Set of 10)
Body Panel Tabs (Set of 10)
Body Panel Tabs (Set of 10)
Body Panel Tabs (Set of 10)
Body Panel Tabs (Set of 10)
Body Panel Tabs (Set of 10)
Body Panel Tabs (Set of 10)
Body Panel Tabs (Set of 10)
Body Panel Tabs (Set of 10)

Body Panel Tabs (Set of 10)

SKU: BPT-10

$10.90
/
Shipping calculated at checkout.

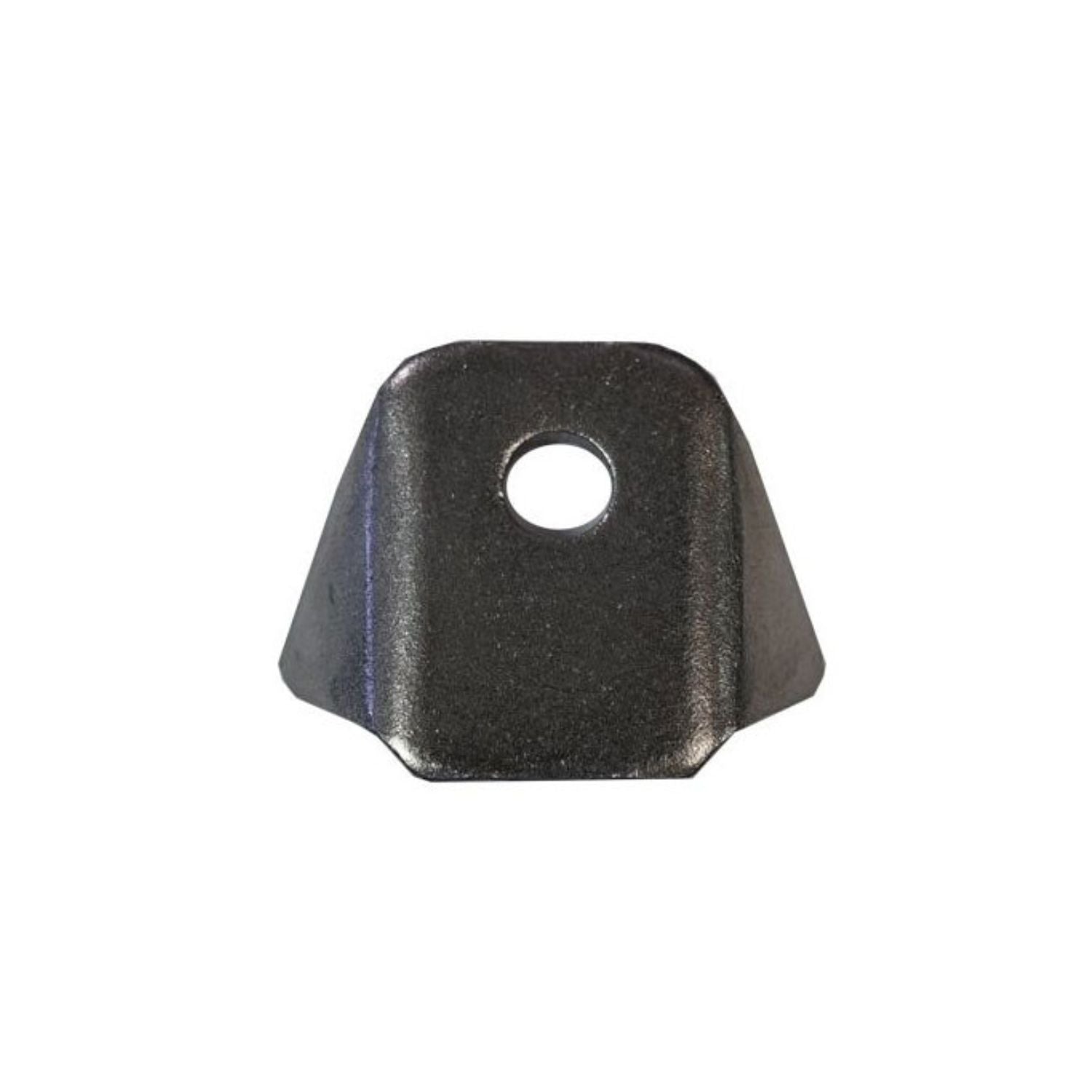

These Body Panel Tabs, commonly known as Trick Tabs, are one of the most versatile mounting solutions in fabrication. Weld-ready and compact, they can be used to mount almost anything on your chassis—body panels, dash components, small lights, fuel cells, battery boxes, linkages, switch panels, and more.

Each tab is laser cut from 1/8" high-strength plate steel, then formed in a die to create the winged mounting profile. This forming process allows the tabs to sit naturally on round or square tubing, making installation simple and secure. Whether you're building a race buggy, trail rig, or custom chassis, these tabs are a staple in any fabrication shop.

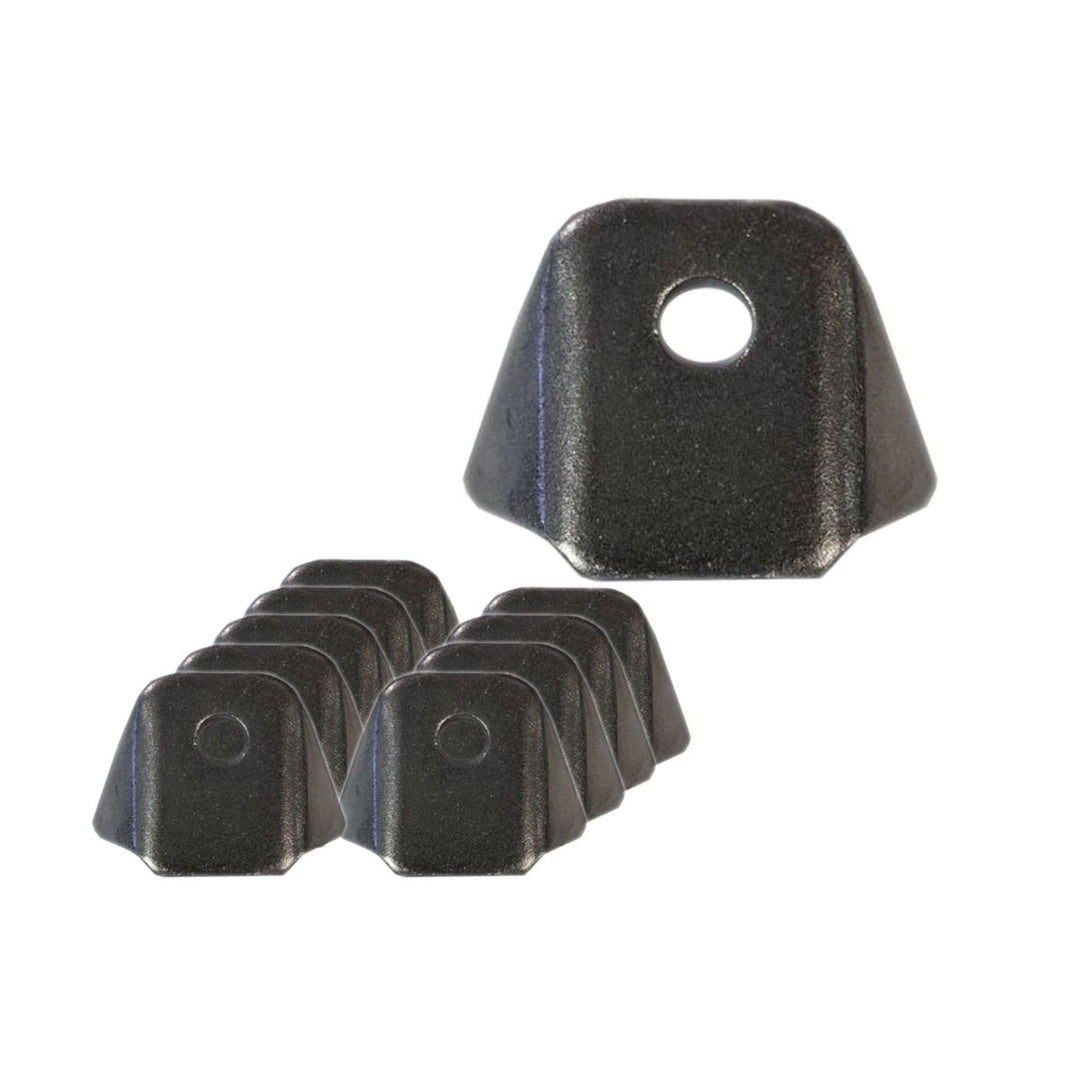

Includes:

  • (10) Body Panel Tabs

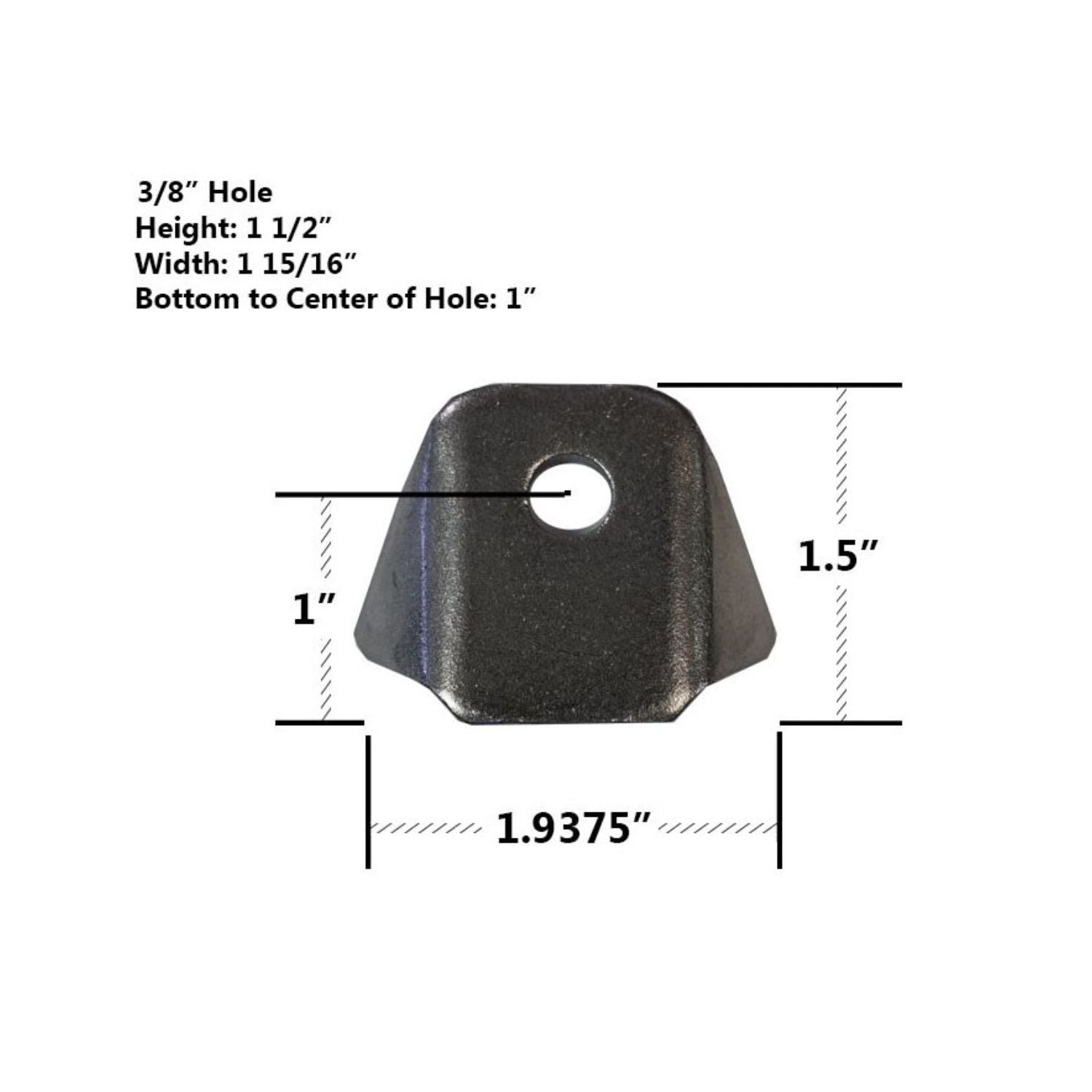

Specifications
  • Material: 1/8" High Strength Plate Steel
  • Overall Length: 1.50"
  • Base to Hole Center: 1.00"
  • Hole Diameter: 3/8"
  • Cutting Method: Precision laser cut
  • Shape: Formed winged tab
  • Condition: Weld-ready
  • Made in the USA

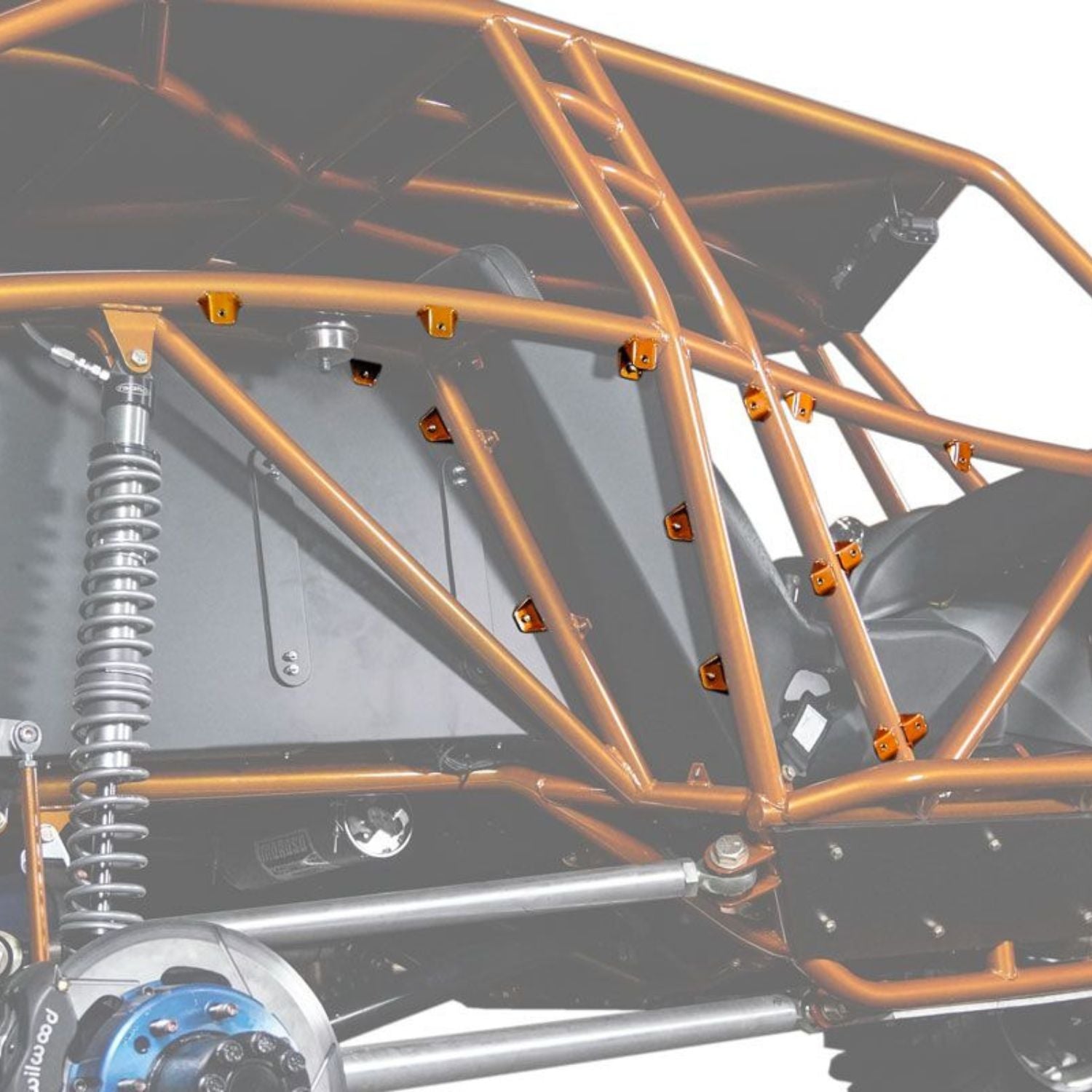

Fitment
  • Can be welded to:
  • Round tubing (any diameter)
  • Square tubing
  • Flat plate
  • Custom chassis, bodywork, interior structure, and accessory mounts
  • Common uses include:
  • Body panels
  • Dash panels
  • Light mounts
  • Fuel cell or battery box tabs
  • Cable/linkage supports
  • Interior or exterior accessory mounting
Tech Insight

Trick Tabs are a fabricator’s best friend because they drastically speed up mounting work. The formed wing shape gives welders a flat landing surface while still hugging tube curvature. Since the tabs are laser cut, every one is consistent—making it easy to line up panels or accessories straight and secure. They’re strong, lightweight, and extremely universal.

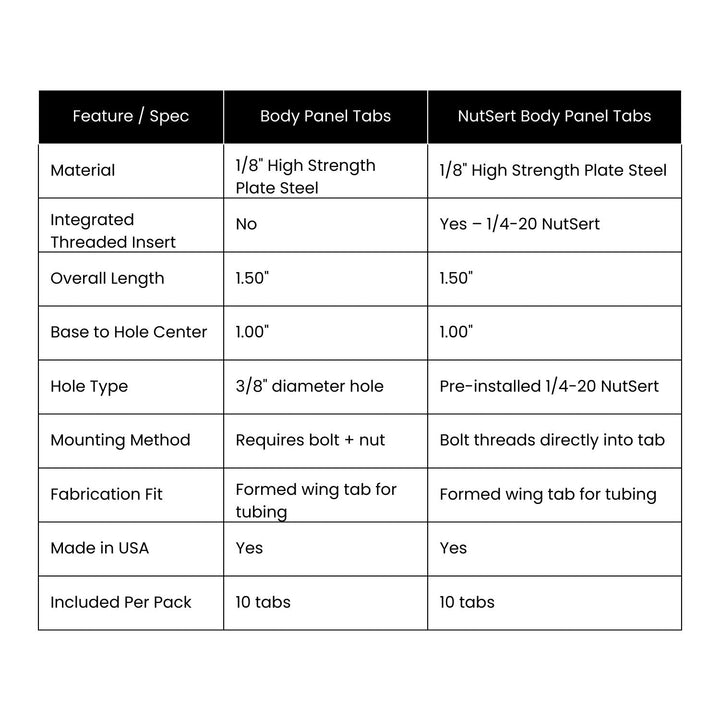

Body Panel Tabs Comparison

Feature / Spec Body Panel Tabs NutSert Body Panel Tabs
Material 1/8 High Strength Plate Steel 1/8 High Strength Plate Steel
Integrated Threaded Insert No Yes – 1/4-20 NutSert
Overall Length 1.50 1.50
Base to Hole Center 1.00 1.00
Hole Type 3/8 diameter hole Pre-installed 1/4-20 NutSert
Mounting Method Requires bolt + nut Bolt threads directly into tab
Fabrication Fit Formed wing tab for tubing Formed wing tab for tubing
Made in USA Yes Yes
Included Per Pack 10 tabs 10 tabs
