Crane Axle Premium Dana 60 King Pin Spring Eliminator Kit w/ Bearings

CASE60P-BR

$268.29
/
Shipping calculated at checkout.

Upgrade your Dana 60 Kingpin Axle with the Kingpin Spring Eliminator Kit and Bearing Rebuild Kit.

Engineered to remove the final weak link in your steering system and designed for precision performance both on and off-road, this spring eliminator kit with bearings replaces factory Kingpin springs with heavy durometer bushings, improving steering stability, durability, and control under extreme load.

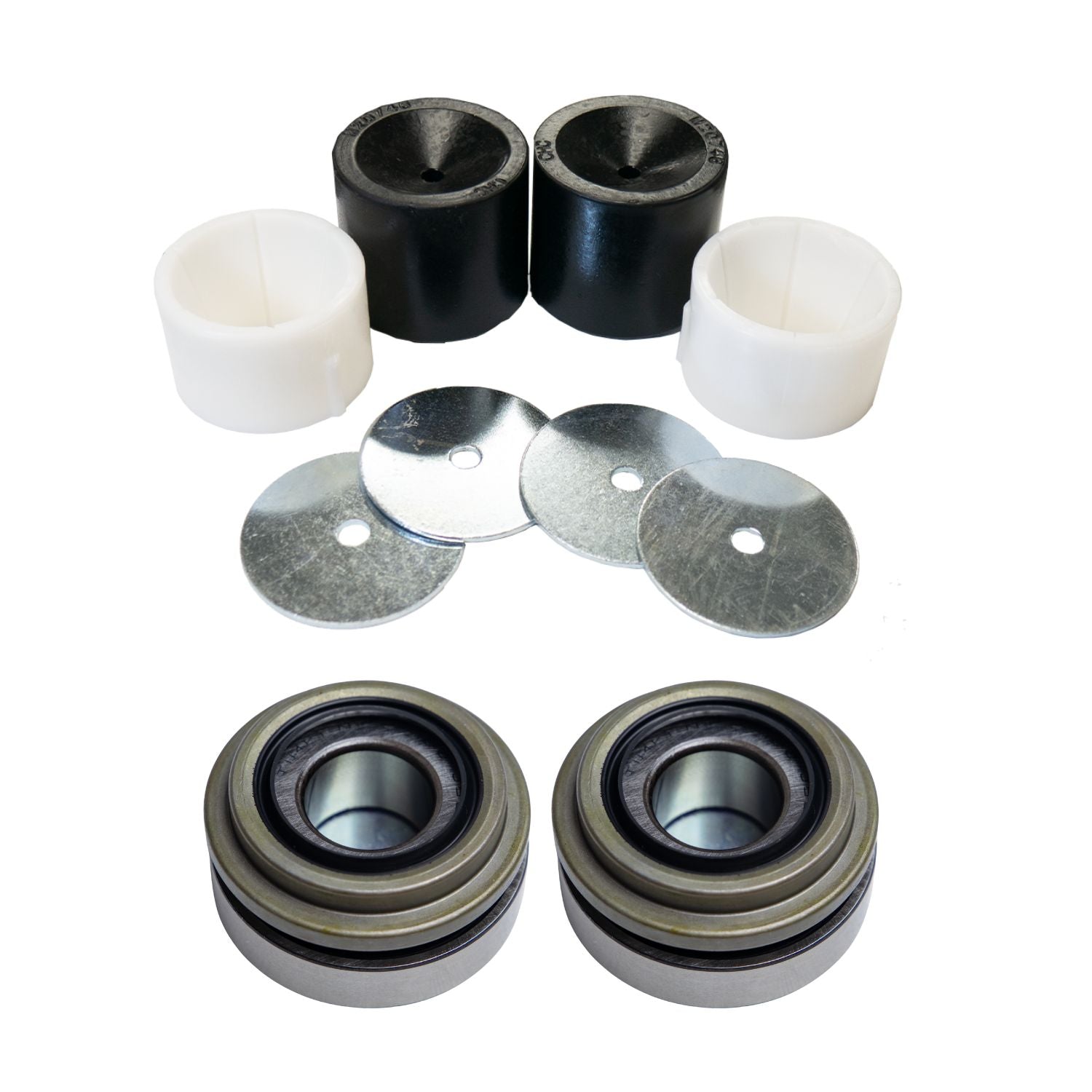

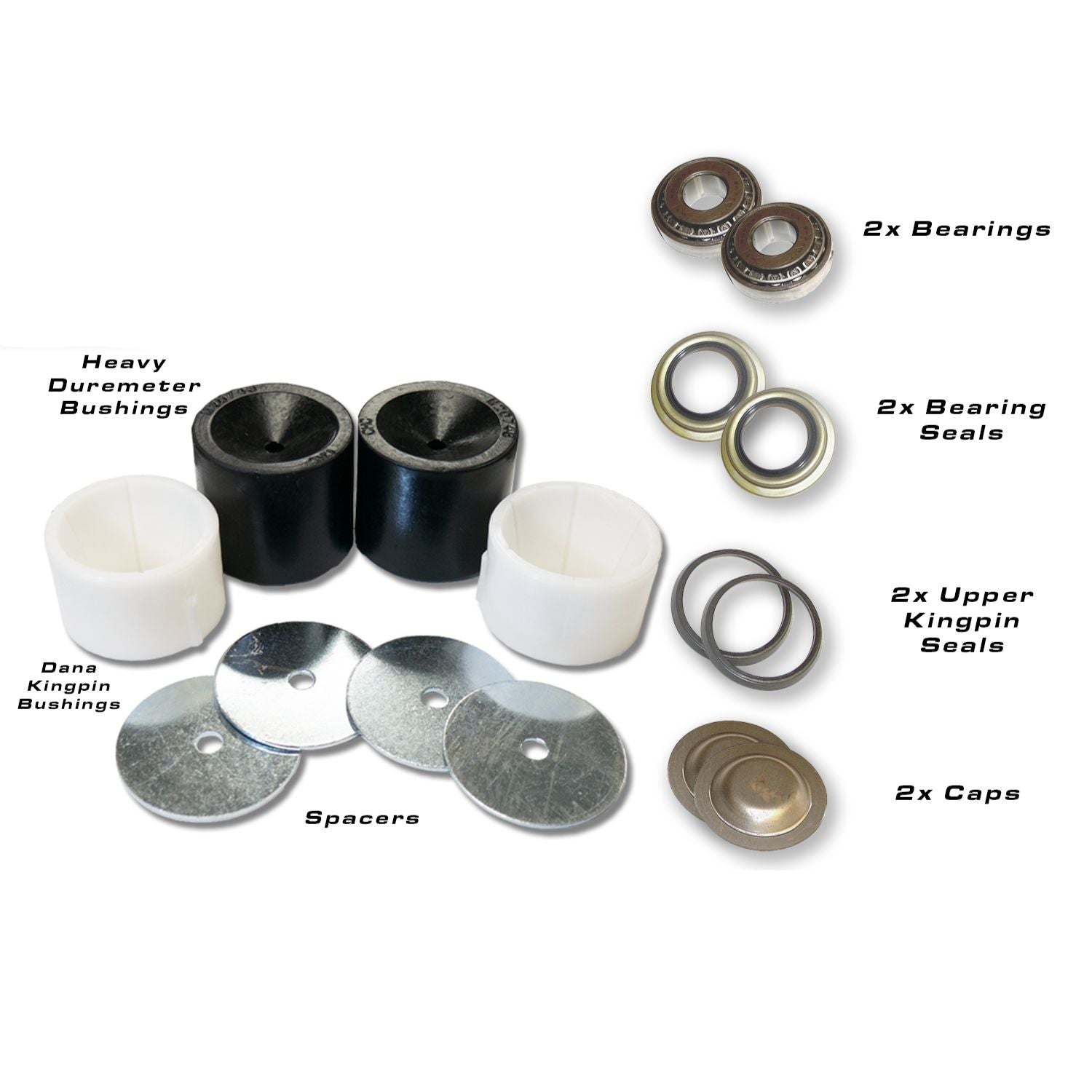

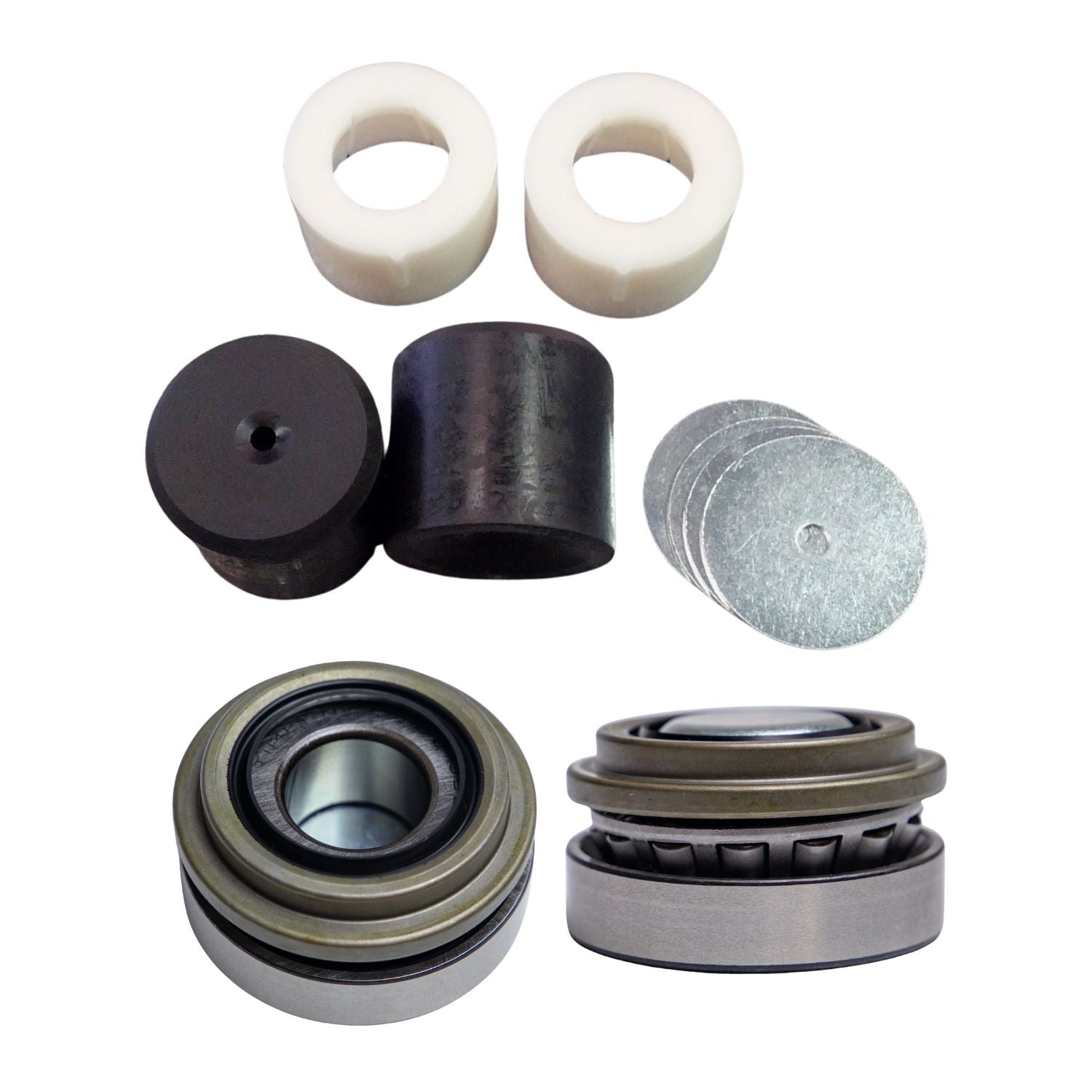

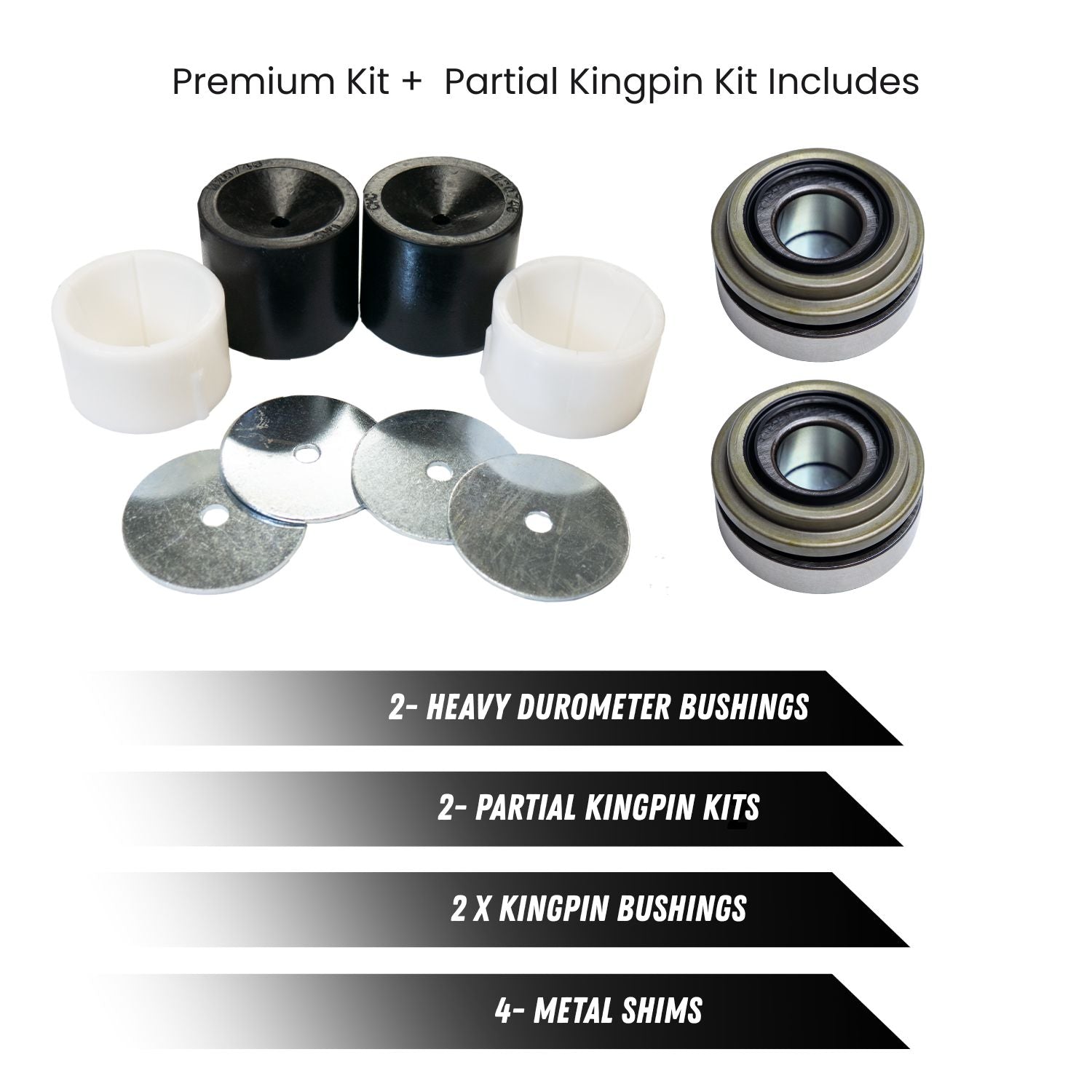

Kit Includes

  • 2 × Heavy Durometer Bushings
  • 4 × Shims
  • 2 × White Replacement Bushings
  • 2 x Caps
  • 2 x Lower Kingpin Bearing & Race
  • 2 x Lower Kingpin Seal
  • 2 x Upper Kingpin Seal
Key Features
  • Removes Weak Link: Eliminates the OEM Kingpin spring — a common failure point in upgraded Dana 60 setups.
  • Enhanced Strength: Handles larger tires, heavy wheels, and extreme steering loads without spring compression or damage.
  • Improved Ride Quality: Optional upgrade includes premium bearings and seals for a smoother, more precise steering feel.
  • Death Wobble Reduction: Heavy durometer bushings provide firmer engagement, minimizing steering slop and vibration from worn kingpin springs.
  • Universal Fitment: Compatible with most Dana 60 Kingpin axle, OEM or aftermarket knuckles, and high-steer arms.
  • Made in the USA: Precision engineered and manufactured for long-term reliability.
Installation Overview
  1. Disassemble the top cap or high-steer arm from your Kingpin knuckle.
  2. Remove the spring and retainer, then inspect and replace the white cone bushing if worn.
  3. Grease the new bushing using high-temp wheel bearing grease.
  4. Install the SE60 bushing (dished end down) over the white cone.
  5. Reassemble per OEM torque specs and test knuckle preload (20–25 in-lbs. resistance recommended).

Note: Should excessive or insufficient preload occur, adjust using provided shims or contact our technical team for assistance.

Download Kingpin Spring Eliminator Installation Instructions

Applications

  • Any Dana 60 Kingpin Axle — OEM or aftermarket
  • Compatible with high-steer arms and knuckle upgrades
  • Ideal for daily driving, off-road racing, trail rigs, street driving, and rock crawlers

Made in the USA • Proven by Crane Axle
