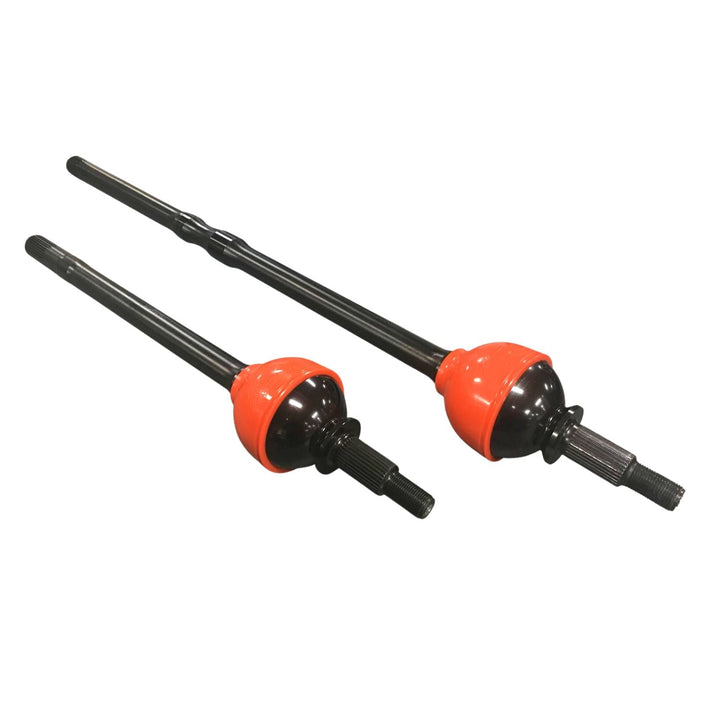

RCV Dana 44 300M CV Axle Set for Jeep Wrangler JL & JT Rubicon w/FAD
SKU: CVJ44-JL-FAD300M
The RCV Performance Ultimate 300M CV Axles for the Jeep JL & JT Rubicon Dana 44 deliver unmatched steering smoothness, strength, and reliability. Designed as a direct replacement for the OEM U-joint shafts, these CV axles eliminate oscillation, binding, and crow hop caused by uneven torque delivery in stock axles.
RCV’s Dana 44 CV design uses six fully engaged points of contact that maintain 100% strength at any angle, even up to 45° of steering lock. The JL/JT-specific CV is 18% larger than previous RCV Dana 44 versions and is engineered using RCV’s Dana 60 level architecture, but now offered with full 300M construction for maximum durability under big tires and high power.
The FAD-compatible version (CVJ44-JL-FAD) retains full factory Front Axle Disconnect operation with no warning lights, no calibration issues, and no modifications required. These axles are low maintenance, ultra smooth, and backed by RCV’s Lifetime Warranty up to 43" tires.
Includes:
- Left & right 300M CV axle shafts
- 300M outer stub shafts
- SST seals & installation tool
- Synthetic moly CV grease
- Installation hardware
- Black oxide coating (standard)
- Optional nickel plating available
Specifications
- Axle Model: Dana 44
- Unit Bearing: Yes
- OEM Inner Spline: 32
- OEM Outer Spline: 32
- RCV Inner Spline: 32
- RCV Outer Spline: 32
- Material: 300M alloy steel (shafts + CV internals)
- Boot Technology: RCV bootless, sealed joint design
- Steering Angle Strength: 100% strength up to 45°
- Warranty: Limited Lifetime (No Questions Asked)
- Warranty Note: Covers breakage up to 43" tires
Fitment
Direct OEM Replacement For:
- Jeep Wrangler JL Rubicon (all engines: 2.0L, 3.6L, Diesel, 392*)
- Jeep Gladiator JT Rubicon (all engines)
- Note: JL 392 uses the same Dana 44 Rubicon geometry.
- FAD Compatibility
- Fully retains Jeep’s Front Axle Disconnect
- No warning lights
- No tuning or coding required
- Coupler uses upgraded aircraft grade materials
- Features bronze bushing (replaces weak OEM plastic)
- Available Variants
- FAD 2-piece version (this listing)
- FAD Eliminator 1-piece version (optional)
Tech Insight
RCV’s 300M JL/JT CV axle set represents the strongest direct-fit Dana 44 option available for modern Jeep platforms:
- 18% larger CV engineered using Dana 60 architecture
- 300M construction for maximum torsional strength
- Stronger than OEM Dana 60 U-joint axles
- Outboards are gun drilled with end-of-shaft grease port
- Provides more strength than a Dana 60 swap while keeping factory wheels, better ground clearance, and lower weight
These axles are built for serious off-road use, such as rock crawling, high speed desert, or heavy overlanding, while maintaining perfect street manners.
