SKU: F021056

$8.99
/
Shipping calculated at checkout.

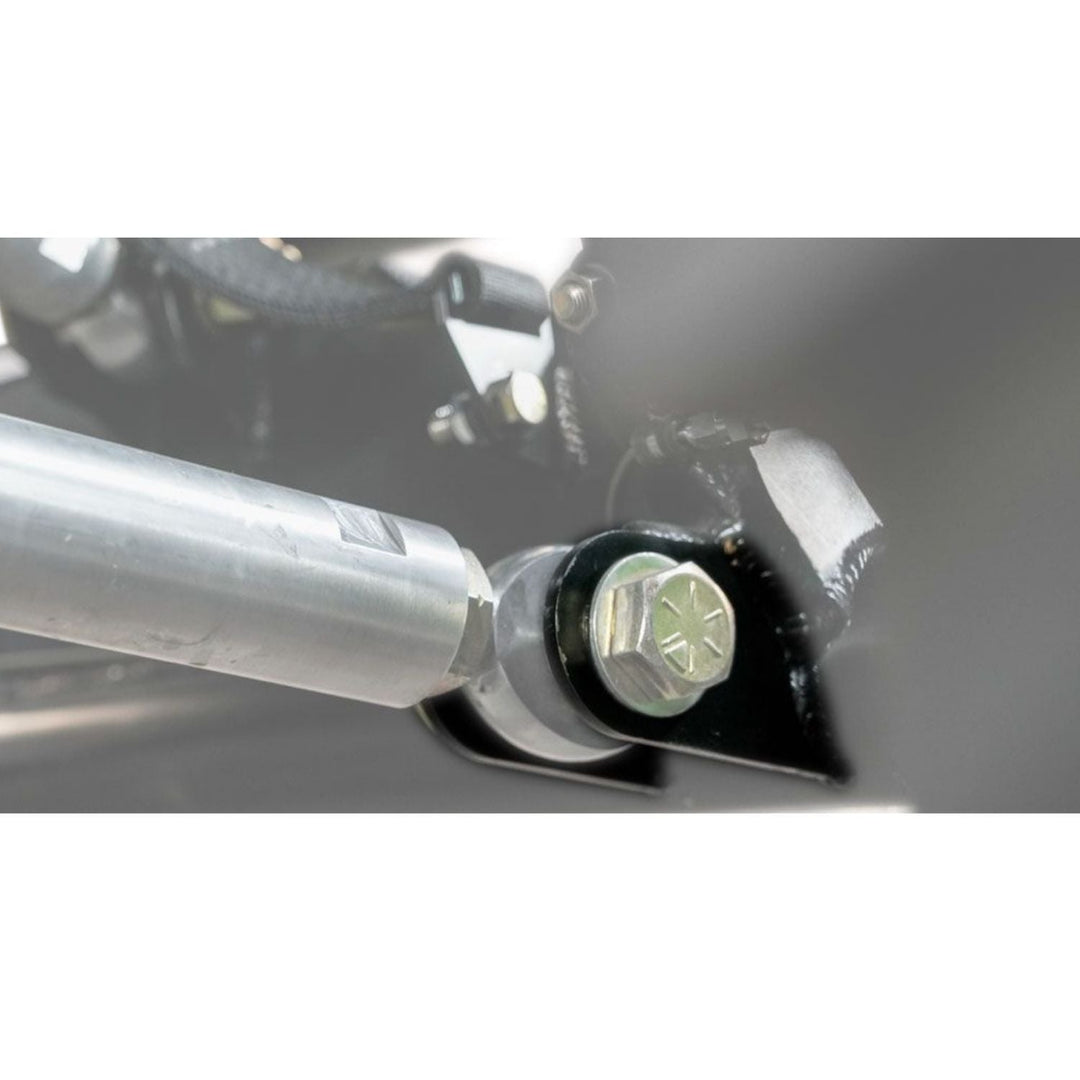

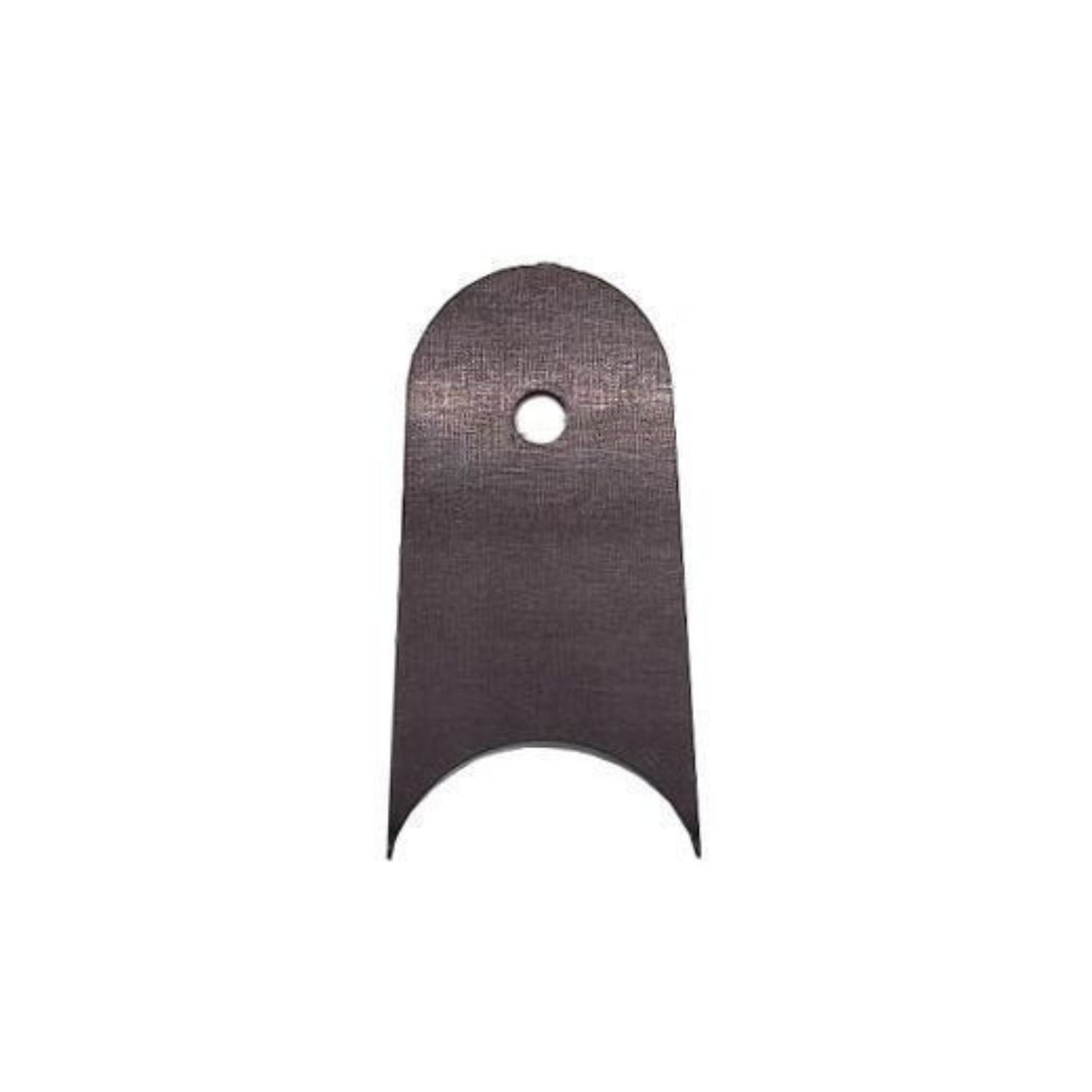

These Long Axle Link Tabs make mounting your suspension links easier and more accurate by providing a strong weld-on mounting point directly on your axle tube. Designed to work with short, medium, or long tabs, you can fine-tune your suspension link angles to match your build’s geometry needs.

Each tab is precision laser cut in the USA from 1/4" high strength plate steel, ensuring consistent sizing, clean edges, and a weld-ready finish.

Includes:

  • (1) Long Axle Link Tab (Note: You need 2 tabs to mount a single link arm.)

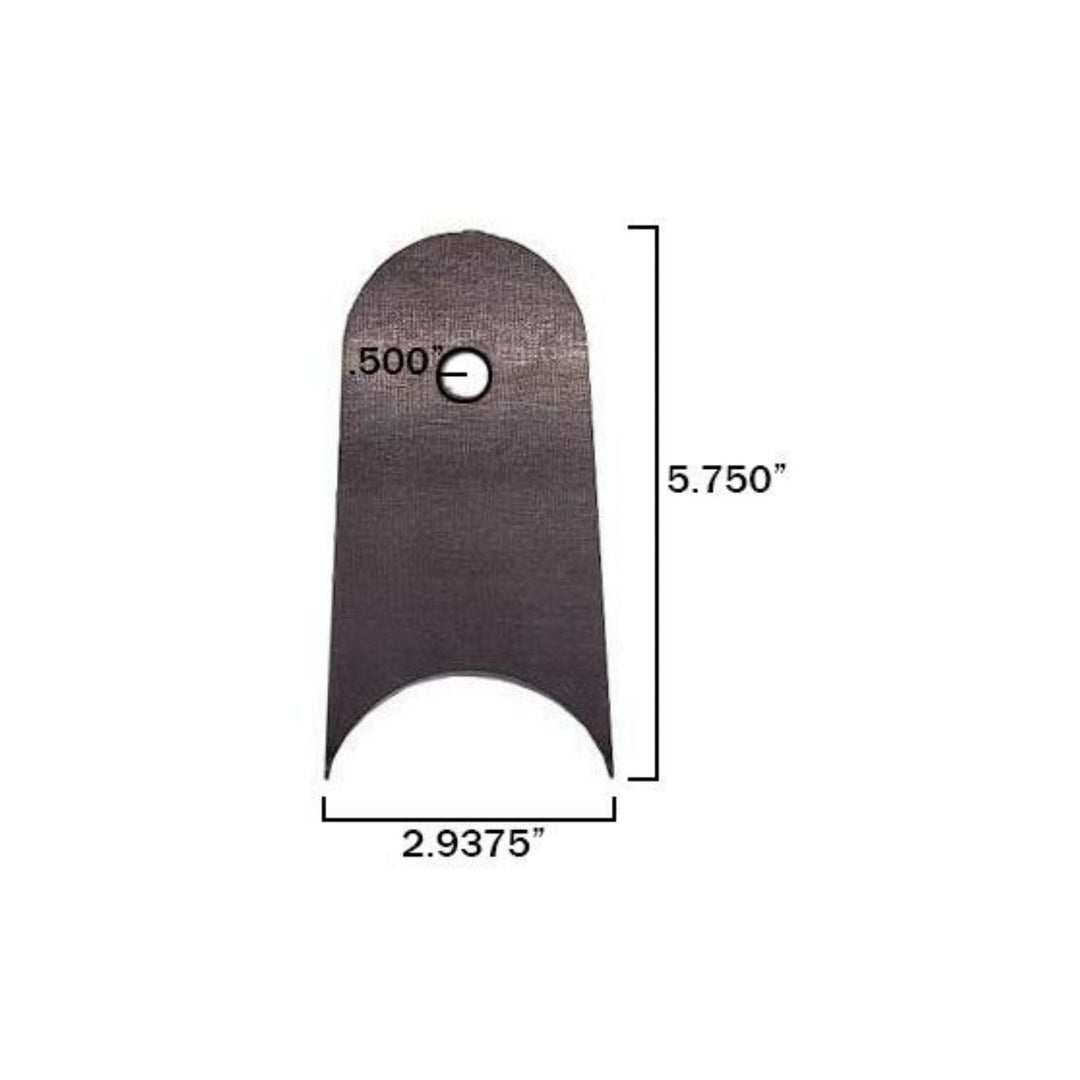

Specifications
  • Material: 1/4 High Strength Plate Steel
  • Overall Length: 5.75
  • Hole Diameter: 1/2
  • Cutting Method: Precision laser cut
  • Condition: Weld-ready
  • Pairing Options: Works with Short, Medium, or Long Axle Link Tabs
  • Country of Origin: Made in the USA
Fitment
  • Universal weld-on fitment for axle tubes used in custom off-road builds

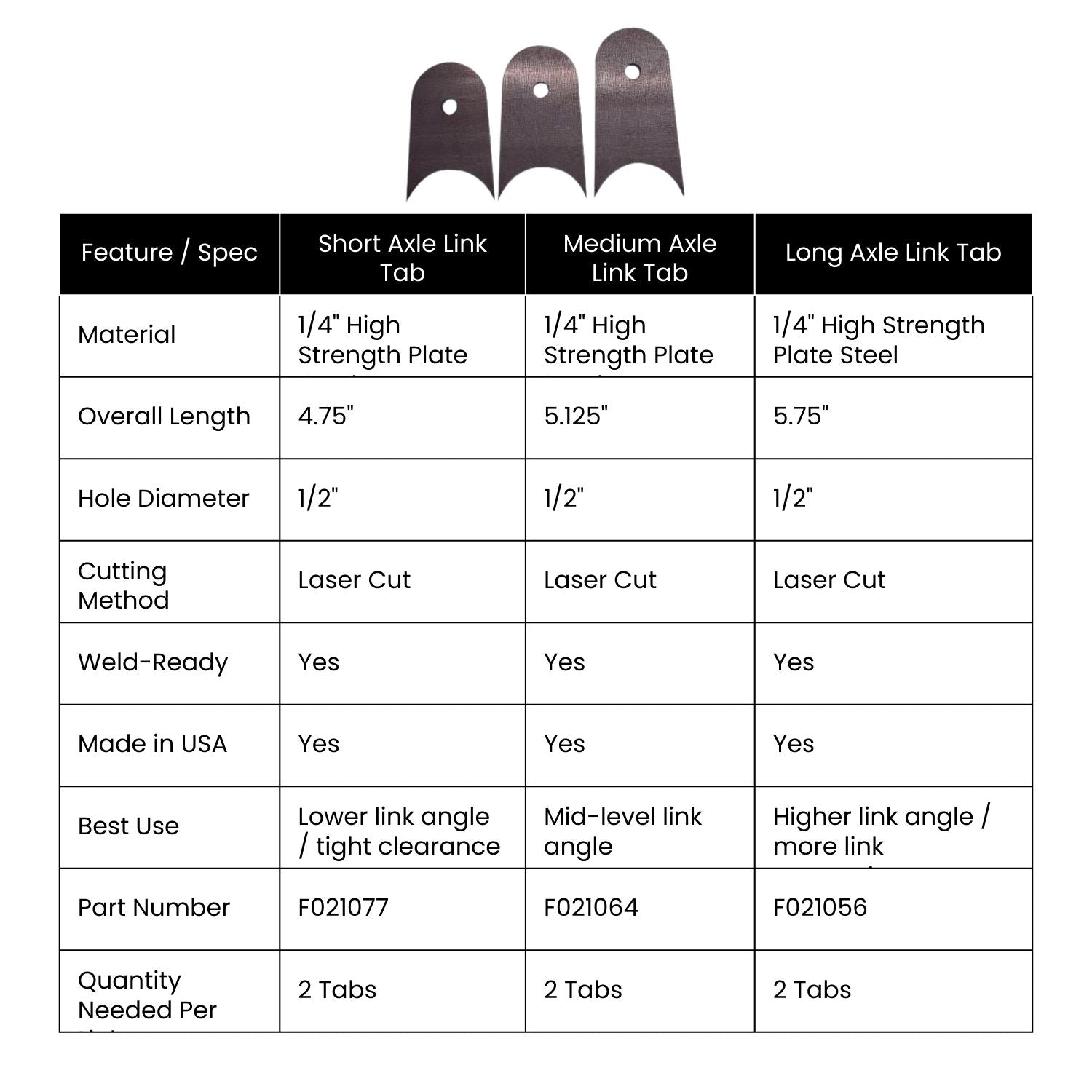

Feature / Spec Short Axle Link Tab Medium Axle Link Tab Long Axle Link Tab
Material 1/4 High Strength Plate Steel 1/4 High Strength Plate Steel 1/4 High Strength Plate Steel
Overall Length 4.75 5.125 5.75
Hole Diameter 1/2 1/2 1/2
Cutting Method Laser Cut Laser Cut Laser Cut
Weld-Ready Yes Yes Yes
Made in USA Yes Yes Yes
Best Use Lower link angle / tight clearance Mid-level link angle Higher link angle / more link separation
Part Number F021077 F021064 F021056
Quantity Needed Per Link 2 Tabs 2 Tabs 2 Tabs
Tech Insight

Long Axle Link Tabs are great for achieving higher link angles or adding separation at the axle when designing 3-link or 4-link setups. The added length allows builders to tune anti-squat, roll stability, and rear traction characteristics while maintaining a large weld contact patch for maximum strength.
