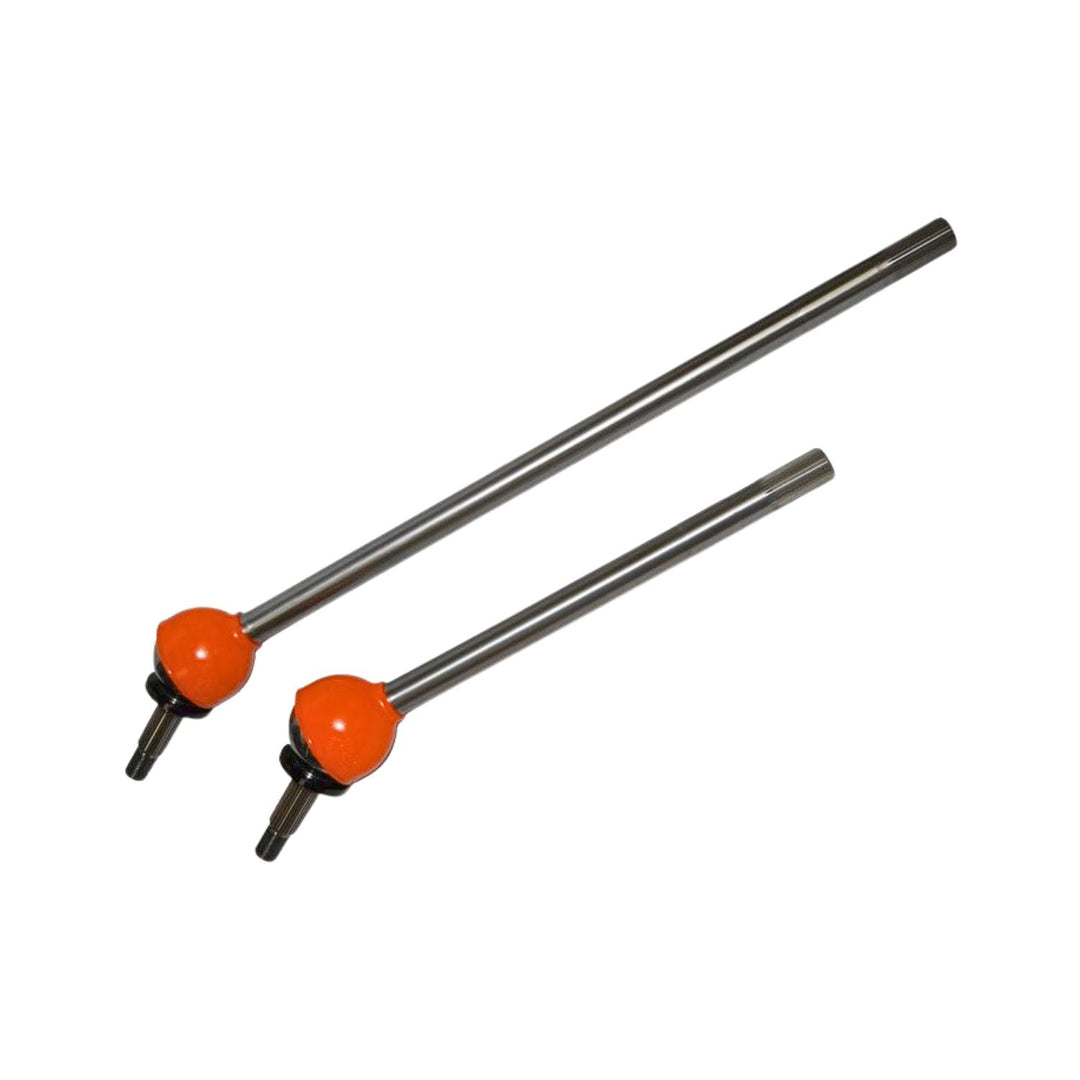

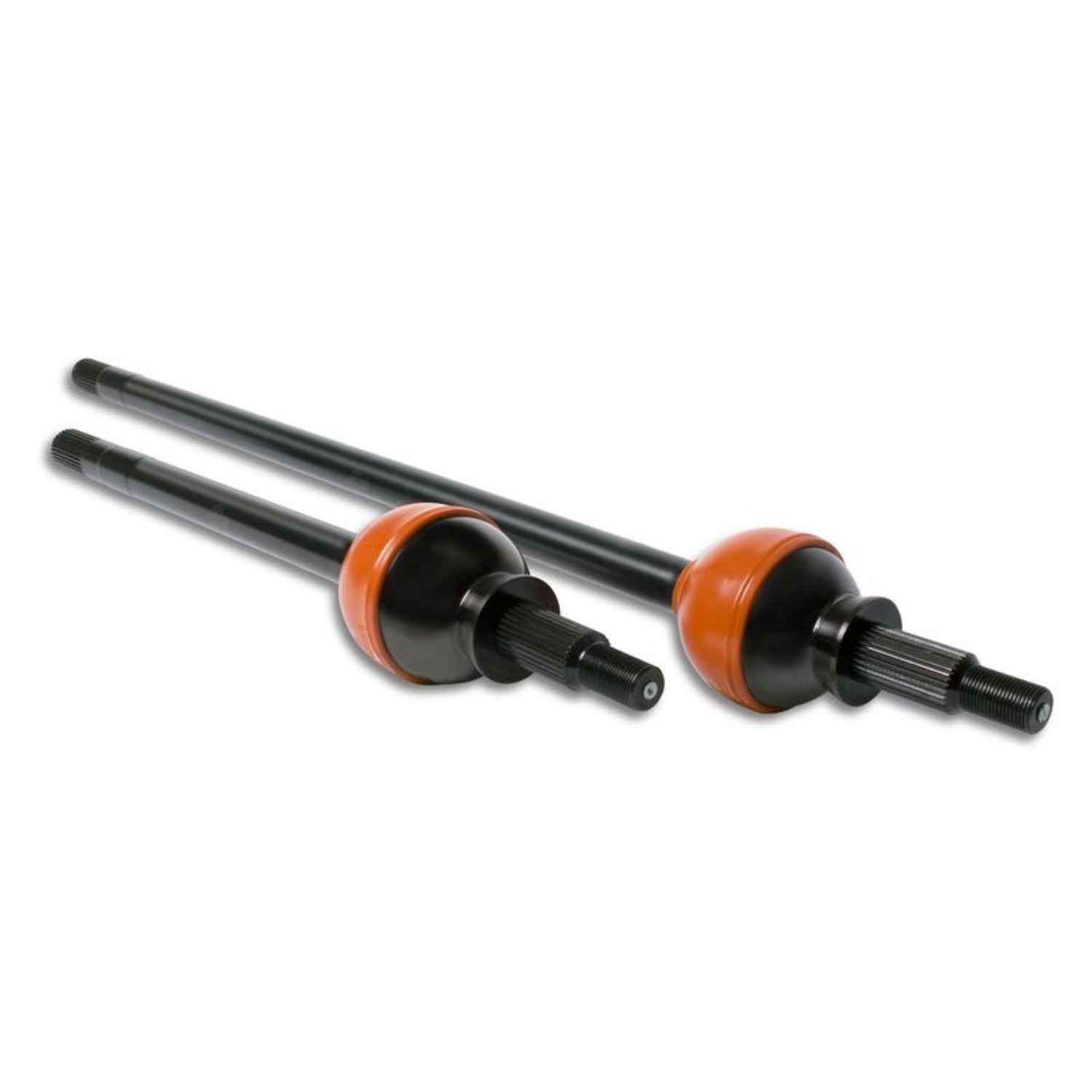

RCV Dana 44 CV Axle Set for Jeep JK w/Dynatrac ProRock 44 w/ Non Tru-Lok Diff
RCV Dana 44 CV Axle Set for Jeep JK w/Dynatrac ProRock 44 w/ Non Tru-Lok Diff
RCV Dana 44 CV Axle Set for Jeep JK w/Dynatrac ProRock 44 w/ Non Tru-Lok Diff
RCV Dana 44 CV Axle Set for Jeep JK w/Dynatrac ProRock 44 w/ Non Tru-Lok Diff
RCV Dana 44 CV Axle Set for Jeep JK w/Dynatrac ProRock 44 w/ Non Tru-Lok Diff
RCV Dana 44 CV Axle Set for Jeep JK w/Dynatrac ProRock 44 w/ Non Tru-Lok Diff

RCV Dana 44 CV Axle Set for Jeep JK w/Dynatrac ProRock 44 w/ Non Tru-Lok Diff

SKU: CVJ44-JK-PROK

$1,499.95
/
Shipping calculated at checkout.
Current lead time from the manufacturer is 6-8 weeks.

If your Jeep JK Rubicon is running a NON Tru-Lok differential—such as an ARB locker or other aftermarket 30-spline carrier—the factory length Rubicon axle shafts will not fit correctly. The RCV Ultimate Dana 44 CV Axle Set is engineered specifically for JK 44 front axles equipped with aftermarket carriers that change the shaft length requirements.

RCV replaces the OEM U-joint shafts with a constant velocity design that remains just as strong at full steering lock as at straight angles. This eliminates U-joint binding, increases articulation, and provides smooth, consistent power delivery whether you're crawling, trail riding, or running big tires with lockers.

With twice the strength of OEM Rubicon shafts, this is the ideal solution for JK Rubicon builds running non Tru-Lok diffs.

Includes:

  • Left & right CV axle shafts (lengths matched to non Tru-Lok carriers)
  • 32-spline outer stubs
  • SST seals & installation tool
  • Installation hardware
  • Synthetic moly grease
  • Installation instructions
  • Black oxide coating (standard)
  • Optional nickel plating available (contact us)
Specifications
  • Axle Model: Dana 44
  • Unit Bearing: Yes
  • Inner Spline (Non Tru-Lok / Aftermarket Locker): 30
  • OEM Outer Spline: 32
  • RCV Inner Spline: 30
  • RCV Outer Spline: 32
  • Left Inner Axle Length: 19.125
  • Right Inner Axle Length: 34.125
  • Outer Stub Axle Length: 6.25
  • Boot Technology: RCV bootless, sealed joint design
  • Warranty Note: Warranty is void over 40" tires
Fitment
  • Fits Jeep JK Rubicon models using a non Tru-Lok differential, including:
  • ARB Air Lockers (30 spline)
  • Aftermarket 30 spline carriers
  • Aftermarket housings requiring non-stock shaft lengths
  • Jeep Wrangler JK Rubicon (2007–2018)
  • Jeep Wrangler Unlimited JK Rubicon (2007–2018)
  • Not for factory Tru-Lok Rubicon carriers.
  • Not for Dana 30.
Tech Insight

Tru-Lok equipped JK Rubicon axles use a carrier with unique shaft lengths. When upgrading to an ARB or other aftermarket carrier, the shaft lengths must change to maintain correct fitment. This RCV kit provides the updated lengths while delivering the well known strength and smoothness of RCV CV technology.

The constant velocity joint maintains full torque transfer at all steering angles, reducing breakage on 37–40 tires, increasing articulation, and drastically improving drivability when locked in.
