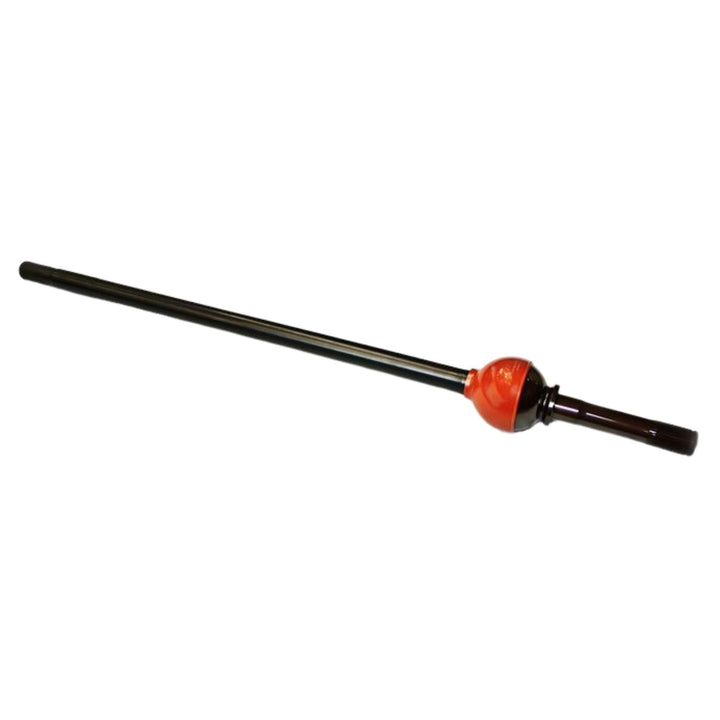

RCV 30-Spline Dana 44 CV Axle Set for Jeep Wagoneer ('74-'79)
SKU: CVJ44OS-WAG1
Give your classic Jeep Wagoneer the strength it deserves. The RCV Performance Ultimate Dana 44 CV Axle Set replaces the weak factory U-joint axle shafts with a high strength constant velocity design proven to be twice as strong as OEM Wagoneer shafts. Unlike U-joints, which lose strength and bind at steering angle, RCV CV joints maintain full strength and smooth rotation whether driving straight or turned full lock.
This upgrade eliminates U-joint binding, improves traction, increases durability, and provides a smoother driving feel both on-road and off-road. Even with big tires, V8 power, or lifted suspension, these axles are built to handle it all with minimal maintenance.
Includes:
- Left & right RCV 30 spline CV axle shafts
- Outer stubs
- SST seals & installation tool
- Installation hardware
- Synthetic moly grease
- Installation instructions
- Black oxide finish (standard)
- Optional nickel plating available
- IMPORTANT NOTE: All CVJ44OS axle kits require a 30 spline hub gear upgrade. RCV hub gears are compatible with Warn 20990 Premium Lockouts.
Specifications
- Axle Model: Dana 44
- Unit Bearing: No
- OEM Inner Spline: 30
- OEM Outer Spline: 19
- RCV Inner Spline: 30
- RCV Outer Spline: 30 (requires 30 spline hub gear upgrade)
- Left Inner Axle Length: 33.19
- Right Inner Axle Length: 14.69
- Outer Stub Axle Length: 9.94
- Boot Technology: RCV bootless, sealed-joint design
- Warranty Note: Warranty is void over 40 tires
Fitment
Designed for:
- Jeep Wagoneer — 1974–1979 equipped with Dana 44 front axle
- Requires upgrade to 30 spline hub gears
- Hub gears compatible with Warn 20990 Premium Lockouts
- Not compatible with factory 19 spline lockouts unless upgraded.
Tech Insight
The original Wagoneer Dana 44 shafts are limited by their 19 spline outer configuration and U-joint design. RCV eliminates both weaknesses by upgrading to a 30 spline constant velocity joint, providing enhanced torque capacity and smoother articulation.
This setup is ideal for vintage Jeep builds running: • Larger tires • Upgraded engines • Lockers • Off-road suspension systems
The CV design allows full steering angle without the sudden strength loss or binding common with U-joints while delivering massive gains in reliability and trail performance.
