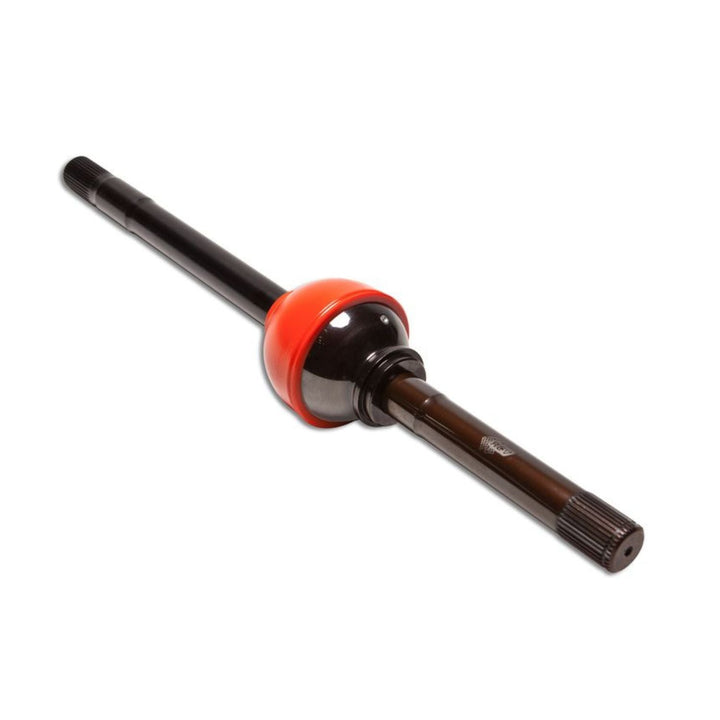

RCV 35-Spline Dana 60 CV Axle Set for '05+ Ford F-250/350
SKU: CVJ60-FORD4
The RCV Performance Ultimate CV Axle Set is the strongest front axle upgrade available for 2005+ Ford Super Duty trucks running a Dana 60 front axle. These axles eliminate the weaknesses of traditional U-joint shafts by using a high strength constant velocity design that maintains full power delivery at any steering angle. No binding, no shudder, no loss of strength at full lock.
RCV CV Axles are twice as strong as OEM, delivering smooth and consistent torque transfer whether you're towing, rock crawling, sled pulling, or hammering on big power with large tires. They remove steering wheel vibration associated with U-joints and dramatically increase front end durability.
These axles are low maintenance, run smoothly on the street, and perform in the harshest off-road environments.
Includes:
- Left & right heavy duty CV axle shafts
- SST seals & installation tool
- Synthetic moly CV grease
- Installation hardware
- Black oxide coating (standard)
- Optional nickel plating for extreme corrosion resistance
Specifications
- Axle Model: Dana 60
- Unit Bearing: Yes
- OEM Inner Spline: 35
- OEM Outer Spline: 35
- RCV Inner Spline: 35
- RCV Outer Spline: 35
- Long Inner Axle Length: 39.01
- Short Inner Axle Length: 16.78
- Outer Stub Axle Length: 7.03
- Boot Technology: RCV bootless, sealed joint design
- Warranty Note: Warranty void over 40 tires
Fitment
- Fits 2005+ Ford Super Duty Models with Dana 60 Front Axle
- Ford F-250 Super Duty (2005–present)
- Ford F-350 Super Duty (2005–present)
Notes
- Direct replacement for OEM U-joint axle shafts
- Compatible with factory unit bearings
- No modifications required
- Optional nickel plating recommended for winter/salt heavy climates
Tech Insight
Ford’s 2005+ Dana 60 front axle is strong, but its factory U-joint shafts aren’t built for the heavy loads, big tires, and high horsepower common in modern builds.
RCV solves every failure point:
- Full CV design = no loss of strength at steering lock
- Twice the strength of OEM Super Duty shafts
- Eliminates U-joint binding and steering vibration
- Ideal for towing, off-road use, wide-open throttle abuse
- Long lifespan with minimal maintenance
If you're pushing your Super Duty harder than stock components can handle, RCV’s Ultimate CV Axles deliver the reliability and strength today’s high output trucks demand.
