Name: Short Axle Link Tab
Brand: Loftis Steel & Aluminum
SKU: F021077
Price: 5.99 USD
Availability: InStock

$5.99

Shipping calculated at checkout.

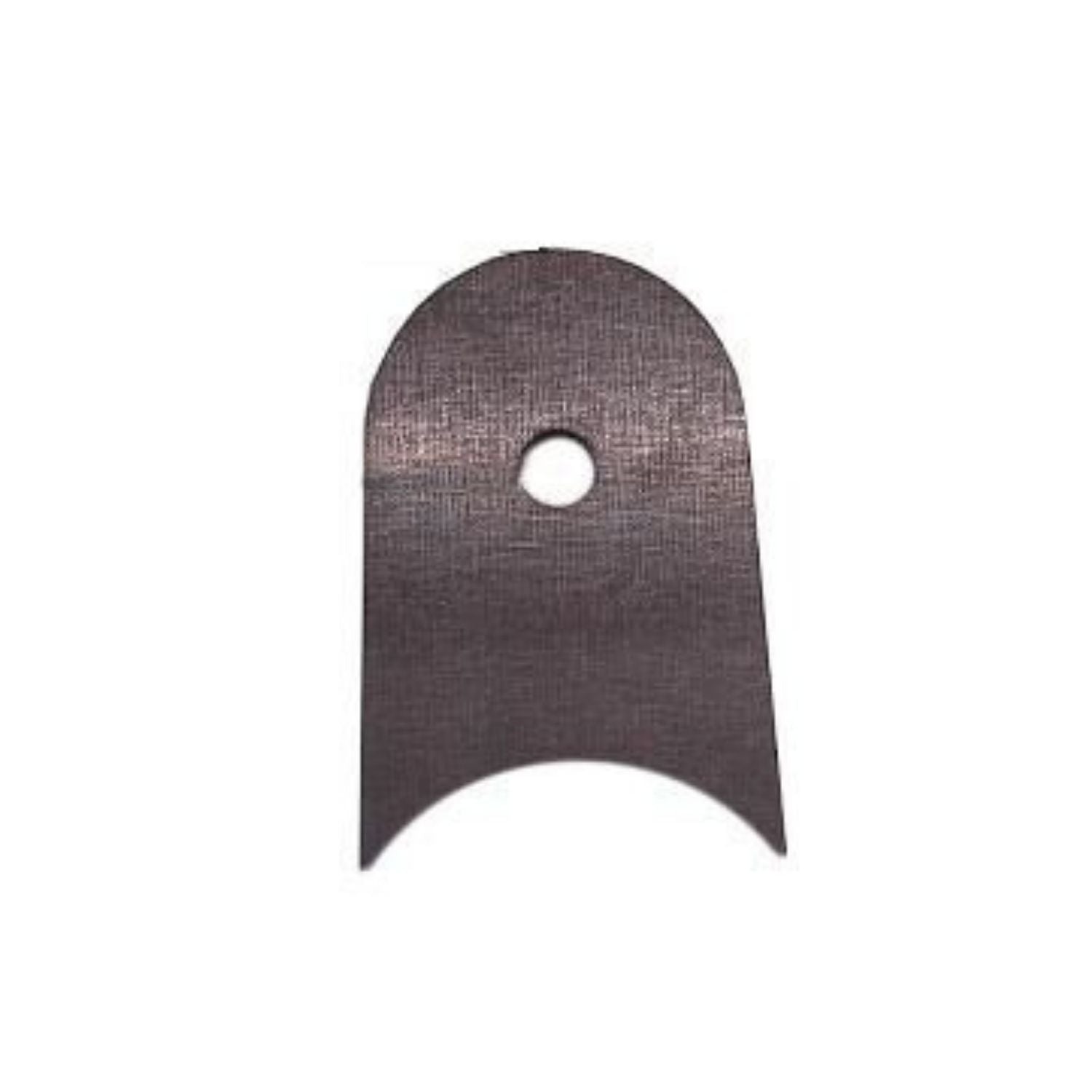

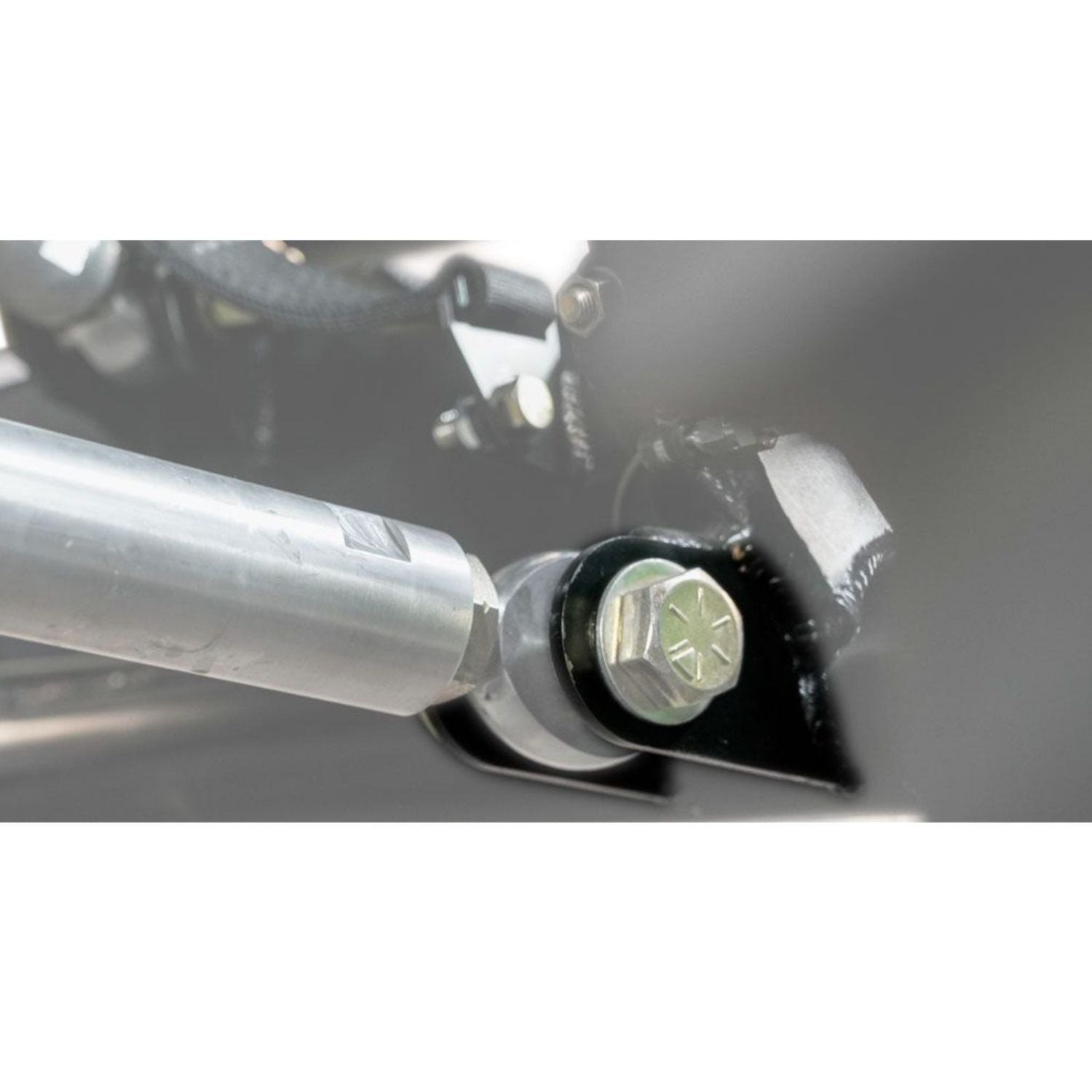

These Short Axle Link Tabs make mounting your suspension links simple, accurate, and strong by giving you a dependable weld-on mounting point directly on the axle tube. Pair them with Short, Medium, or Long Axle Link Tabs to fine tune your suspension link angles and geometry.

Each tab is precision laser cut from 1/4" high strength plate steel, ensuring consistent shape, clean edges, and a weld-ready finish—no more hand cutting or time wasted on DIY fabrication. 100% Made in the USA.

Includes:

(1) Short Axle Link Tab (Note: You need 2 tabs to mount a single link arm.)

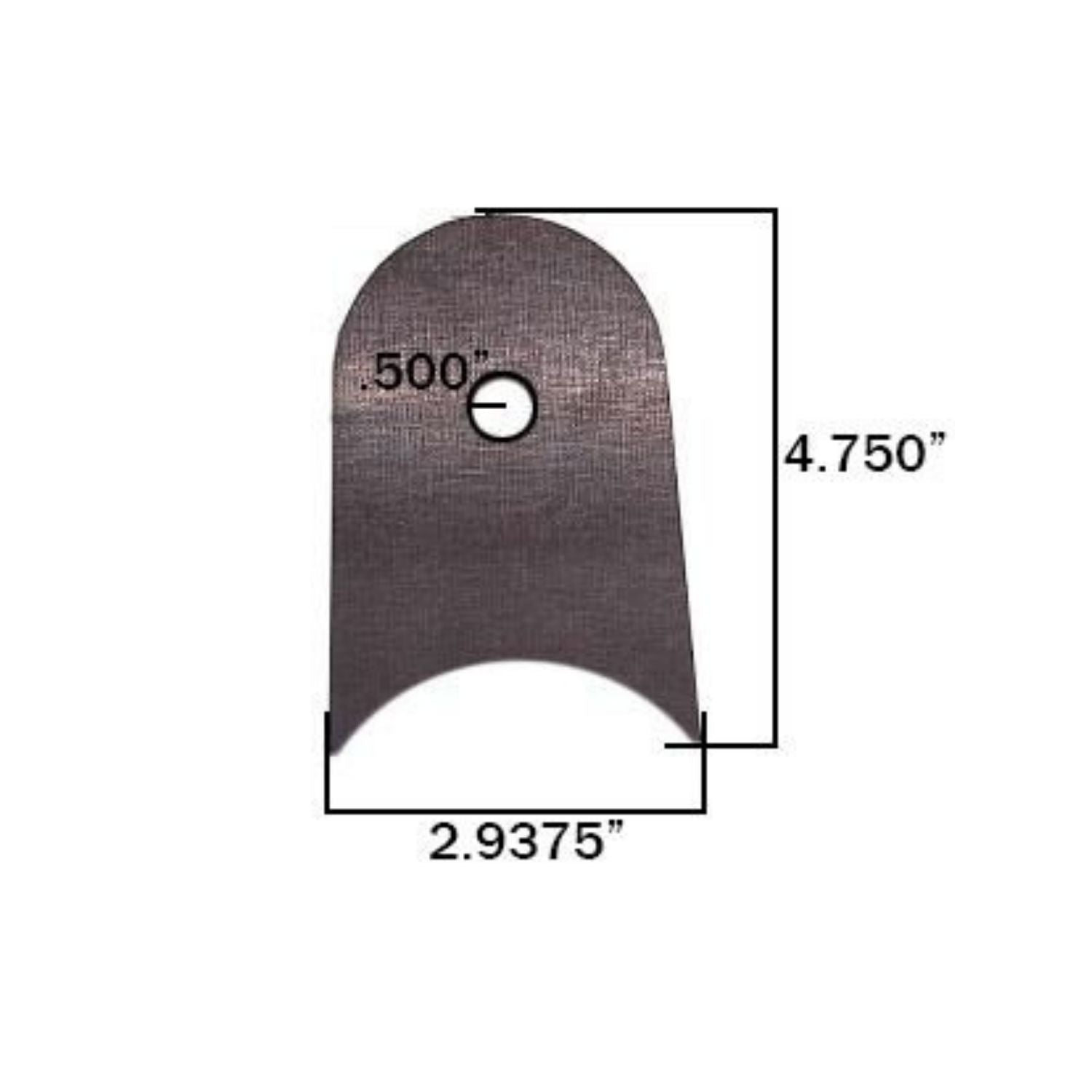

Specifications

Material: 1/4 High Strength Plate Steel
Overall Length: 4.75
Hole Diameter: 1/2
Cutting Method: Precision laser cut
Condition: Weld-ready
Pairing Options: Works with Short, Medium, or Long Axle Link Tabs
Made in the USA

Fitment

Universal weld-on fitment for axle tubes on custom off-road builds

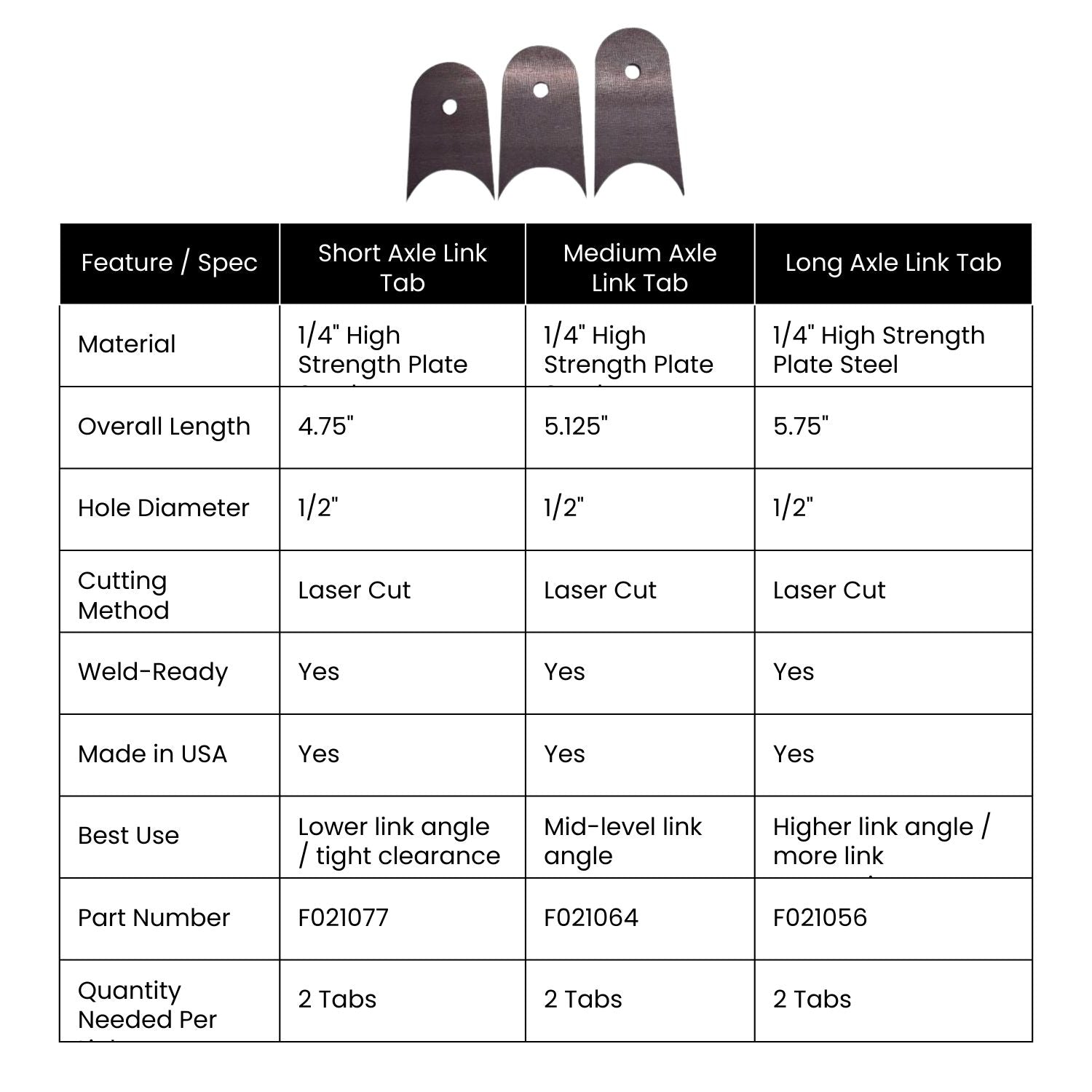

Feature / Spec	Short Axle Link Tab	Medium Axle Link Tab	Long Axle Link Tab
Material	1/4 High Strength Plate Steel	1/4 High Strength Plate Steel	1/4 High Strength Plate Steel
Overall Length	4.75	5.125	5.75
Hole Diameter	1/2	1/2	1/2
Cutting Method	Laser Cut	Laser Cut	Laser Cut
Weld-Ready	Yes	Yes	Yes
Made in USA	Yes	Yes	Yes
Best Use	Lower link angle / tight clearance	Mid-level link angle	Higher link angle / more link separation
Part Number	F021077	F021064	F021056
Quantity Needed Per Link	2 Tabs	2 Tabs	2 Tabs

Tech Insight

Short Axle Link Tabs offer compact geometry, making them ideal for lower link positions, tighter packaging, or situations where clearance is a concern. Builders often use Short Tabs on the lower link mounts while pairing with Medium or Long Tabs to achieve proper link separation for balanced anti-squat and suspension performance.
