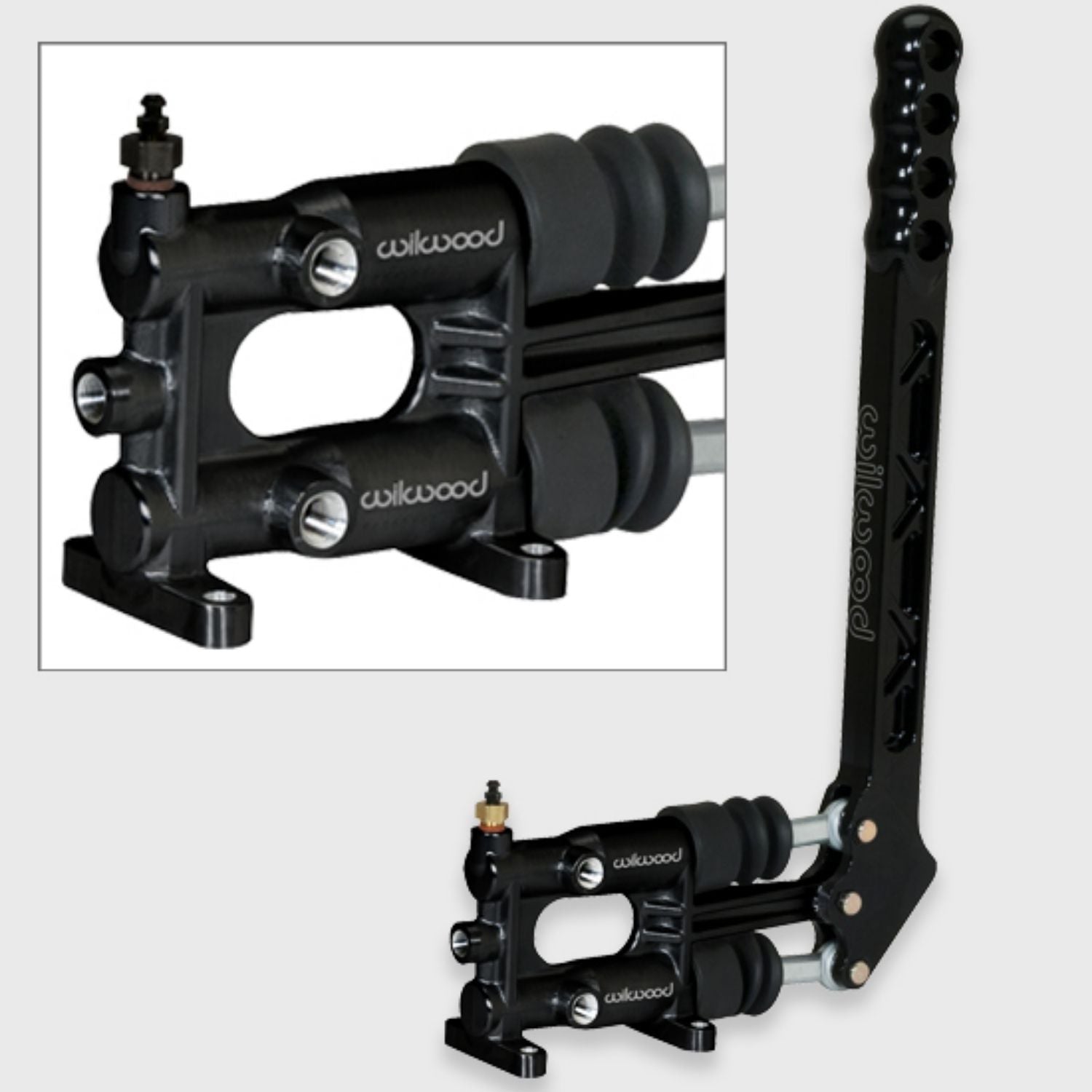

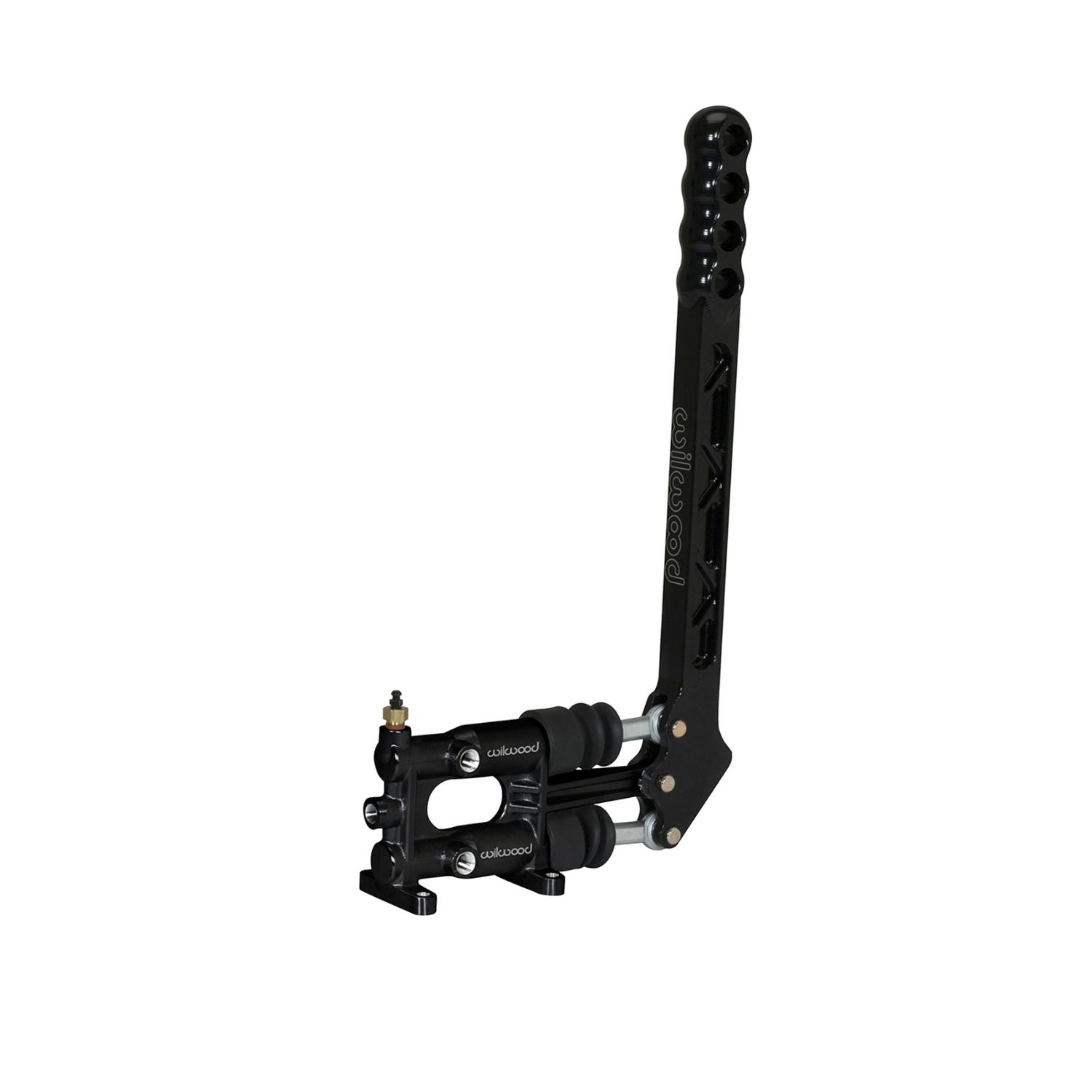

Wilwood Hand Cutting Brake Assembly (Floor Mount)

SKU: WIL340-14744

$381.08 $352.85 Save $28.23
/
Shipping calculated at checkout.

The Wilwood Hand Cutting Brake Assembly is engineered for precise steering-brake control in off-road competition vehicles, including rock crawlers, desert racers, and dirt-track builds. This dual-cylinder inline cutting brake uses a single inlet, twin outlet flow-through master cylinder to simplify plumbing while delivering fast, controllable braking to individual rear calipers.

Built with a weight-saving, all-aluminum construction, the assembly features a high-leverage forged lever arm and an ergonomic full-length hand grip for confident operation. Twin 3/4 bore cylinders, combined with an 11.0:1 leverage ratio, generate instant high pressure with minimal operator effort—ideal for quick corrections and controlled line selection.

Includes:

  • (1) Wilwood Dual Cylinder Inline Hand Cutting Brake Assembly
  • Integrated flow-through master cylinder (single inlet, twin outlets)
  • Forged lever arm with ergonomic hand grip
  • Integral mounting lugs
Specifications
  • Manufacturer: Wilwood
  • Assembly Type: Hand Cutting Brake (Inline, Dual Cylinder)
  • Material: Aluminum
  • Finish: Black E-Coat
  • Mount Location: Floor
  • Mount Facing: Vertical
  • Balance Bar: No

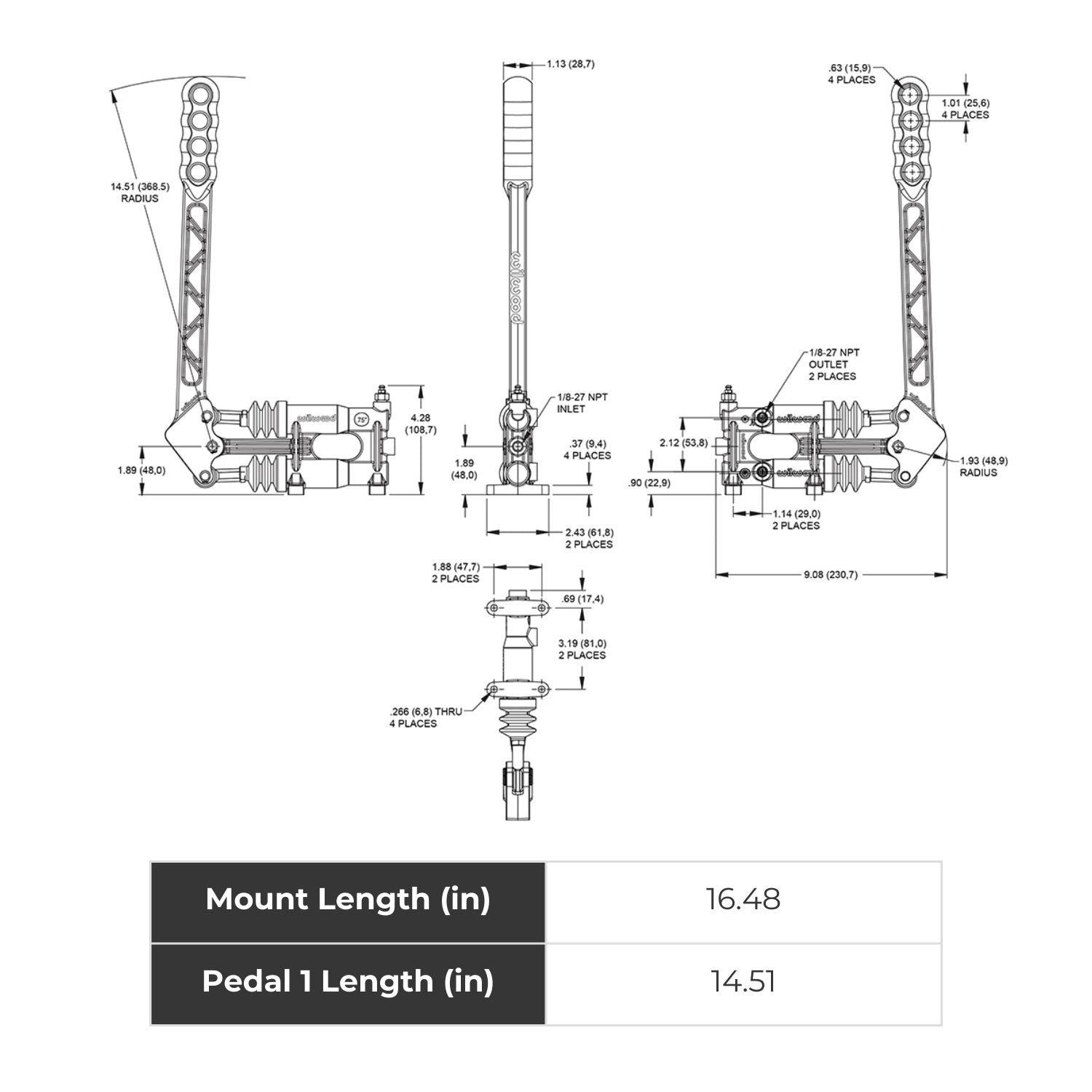

  • Lever Ratio: 11.0:1
  • Lever Length: 14.51 in
  • Mount Length: 16.48 in
  • Cylinder Bore Size: Twin 3/4 bores
  • Plumbing: Single inlet / Twin outlet (flow-through)
Fitment
  • Designed for off-road competition vehicles
  • Compatible with existing rear brake calipers via inline plumbing
  • Floor-mounted, vertical orientation
  • Ideal for rock crawling, desert racing, dirt track, and custom off-road builds
  • Verify brake line routing and mounting location prior to installation.
Tech Insight

Inline cutting brakes provide steering control without the complexity of dual independent levers. Wilwood’s dual 3/4 bore design and high 11.0:1 leverage ratio deliver rapid pressure rise with minimal hand effort—critical when traction changes instantly. The flow-through master simplifies plumbing while maintaining consistent feel, and the forged lever resists flex under repeated high-load use.
