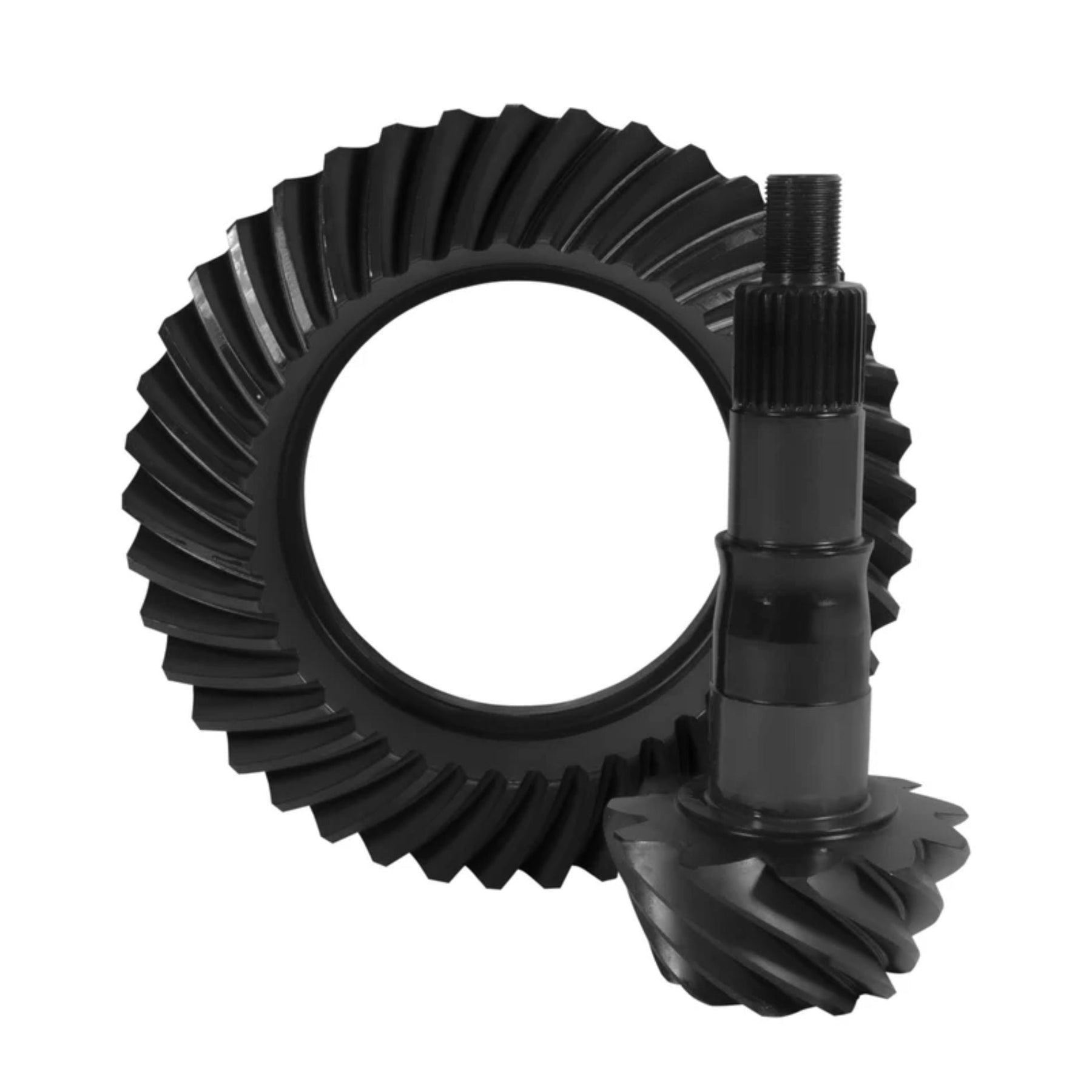

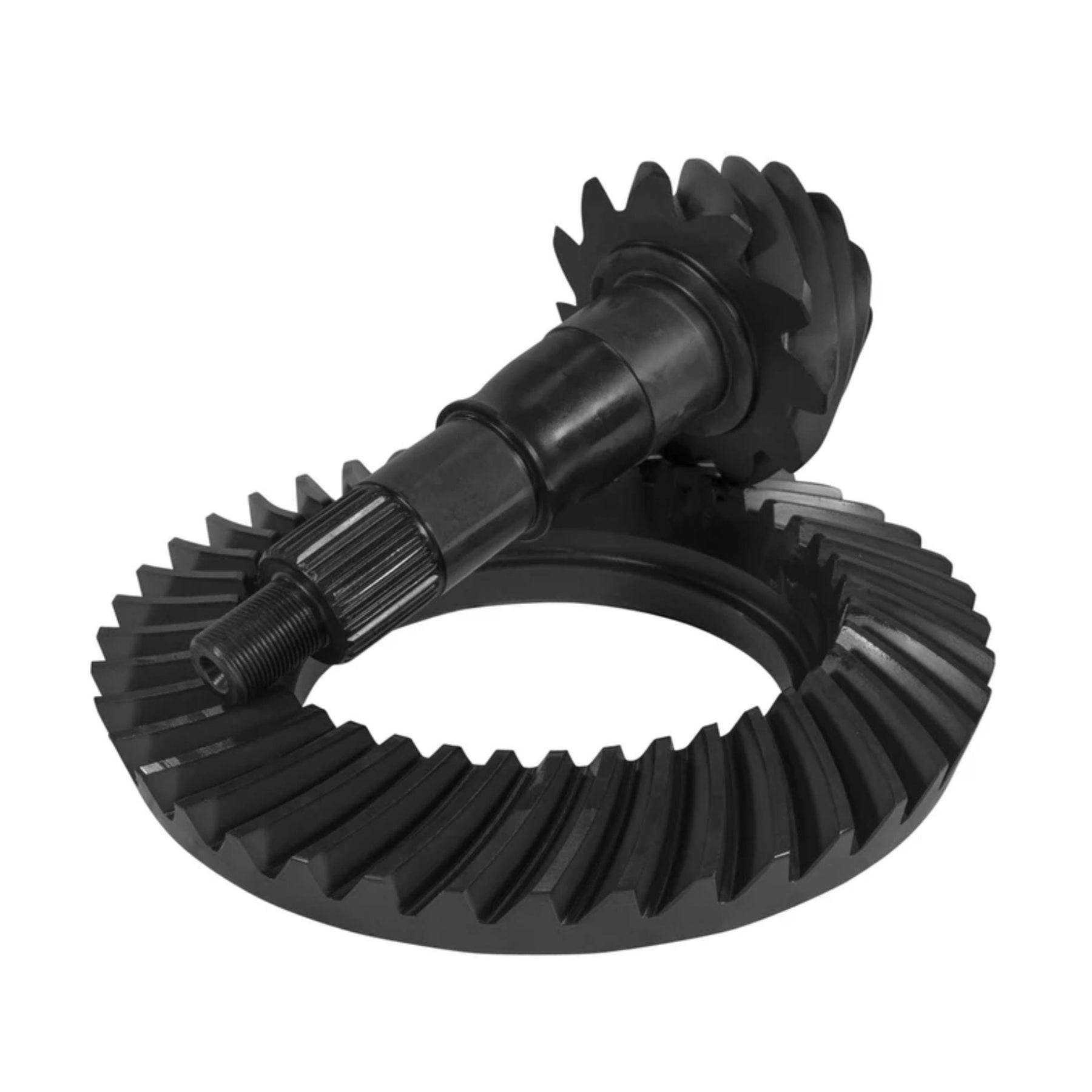

Yukon Ford 8.8" Reverse Rotation Ring & Pinion Gear Set
YG F8.8R-331R
The Yukon Ford 8.8" Reverse Rotation Ring & Pinion Gear Set is designed for compatible high-pinion Ford 8.8" axle applications that require reverse-cut gears. Whether you're replacing worn gears, changing axle ratios, or building a custom front axle, the correct ring and pinion set is critical for proper gear engagement and drivetrain reliability. Available in ratios from 3.31 through 5.13, these Yukon gears give builders options for highway driving, larger tires, towing, and off-road performance.
The Ford 8.8" platform is popular for custom axle builds because of its compact size, strength, and aftermarket support. Reverse rotation gears use a different tooth geometry than standard rotation gears and must be installed in a housing designed for that configuration. Numerically higher ratios increase torque multiplication to help offset larger tires and improve low-speed control. Proper pinion depth, bearing preload, backlash, and gear contact pattern are essential for quiet operation and long-term gear life.
Includes:
- (1) Yukon Ford 8.8" Reverse Rotation Ring Gear
- (1) Matching Reverse Rotation Pinion Gear
Available Gear Ratios: 3.31, 3.55, 3.73, 4.11, 4.56, 4.88, 5.13
Important: These are reverse rotation gears for compatible high-pinion Ford 8.8" axle configurations. They are not interchangeable with standard rotation Ford 8.8" ring and pinion gears. Bearings, seals, shims, carrier components, and master installation kits are sold separately unless otherwise specified.
Specifications
| Manufacturer | Yukon Gear & Axle |
|---|---|
| Product Type | Ring & Pinion Gear Set |
| Axle Platform | Ford 8.8" |
| Ring Gear Diameter | 8.80" |
| Gear Rotation | Reverse Rotation / Reverse Cut |
| Pinion Spline Count | 30-Spline |
| Available Gear Ratios | 3.31 / 3.55 / 3.73 / 4.11 / 4.56 / 4.88 / 5.13 |
| Ring Gear Bolt Count | 10 |
| Differential Cover Bolt Count | 10 |
| Gear Configuration | Matched Reverse Rotation Ring & Pinion Set |
| Axle Position | Compatible High-Pinion / Custom Axle Applications |
| Installation Type | Internal Differential Gear Replacement |
| Primary Application | Reverse Rotation Ford 8.8" Axle Regearing & Gear Replacement |
| Quantity | One Matched Gear Set |
Available Gear Ratios & Part Numbers:
| Gear Ratio | Yukon Part Number |
|---|---|
| 3.31 | YG F8.8R-331R |
| 3.55 | YG F8.8R-355R |
| 3.73 | YG F8.8R-373R |
| 4.11 | YG F8.8R-411R |
| 4.56 | YG F8.8R-456R |
| 4.88 | YG F8.8R-488R |
| 5.13 | YG F8.8R-513R |
Fitment
Designed for compatible Ford 8.8" high-pinion axle housings requiring reverse rotation ring and pinion gears with a 30-spline pinion. The vehicle applications below are reference platforms and do not establish direct fitment with factory standard rotation rear axles.
| Make | Model | Year Range | Axle Application |
|---|---|---|---|
| Ford | Expedition | 1997–2024 | Ford 8.8" - Verify Reverse Rotation Axle |
| Ford | F-150 | 1997–2024 | Ford 8.8" - Verify Reverse Rotation Axle |
| Ford | F-250 | 1997–1999 | Ford 8.8" - Verify Reverse Rotation Axle |
| Lincoln | Mark LT | 2006–2008 | Ford 8.8" - Verify Reverse Rotation Axle |
| Lincoln | Navigator | 1998–2014 | Ford 8.8" - Verify Reverse Rotation Axle |
Fitment Notes:
- Requires a compatible Ford 8.8" reverse rotation axle configuration
- Designed for 30-spline pinion applications
- Not interchangeable with standard rotation Ford 8.8" ring and pinion gears
- Verify ring gear diameter, axle housing, pinion spline count, and selected gear ratio before ordering
- Confirm differential carrier compatibility when changing gear ratios
- When regearing a four-wheel-drive vehicle, front and rear axle ratios must match
- Vehicle applications are reference platforms only; most factory Ford 8.8" rear axles use standard rotation gears
FAQ
What does reverse rotation mean on a Ford 8.8" axle?
Reverse rotation gears use a different ring and pinion tooth geometry than standard rotation gears. They are designed for compatible high-pinion axle configurations and cannot be substituted into a standard rotation Ford 8.8" housing.
Will these gears fit my factory Ford F-150 or Expedition rear axle?
Not if the vehicle has a standard rotation rear differential. Most factory Ford 8.8" rear axles use standard rotation gears. These reverse rotation gear sets require a compatible axle housing designed for reverse-cut gears, so verify the installed differential before ordering.
What gear ratio should I choose for my Ford 8.8" axle?
The right ratio depends on tire size, engine, transmission, vehicle weight, and intended use. Numerically lower ratios favor highway driving, while deeper ratios increase torque multiplication for larger tires, towing, and off-road use.
| Gear Ratio | Common Applications |
|---|---|
| 3.31 | Highway driving and stock-size tires |
| 3.55 | Daily driving and light towing |
| 3.73 | Mixed driving, towing, and mild tire upgrades |
| 4.11 | Larger tires and additional pulling power |
| 4.56 | Off-road builds and moderate tire upgrades |
| 4.88 | Larger tires and low-speed off-road use |
| 5.13 | Builds prioritizing crawl performance and torque multiplication |
Builder Note: These are general starting points, not fixed tire-size recommendations. The correct ratio depends on the complete drivetrain and intended use.
Can I install reverse rotation gears in a standard Ford 8.8" axle?
No. Reverse rotation and standard rotation gear sets use different tooth geometry and are not interchangeable. The axle housing must be designed for the selected gear configuration.
Does this ring and pinion set include an installation kit?
No. This listing includes the matched ring and pinion gears only. We recommend using a compatible Ford 8.8" master overhaul kit with bearings, races, seals, shims, and setup hardware during installation.
Will these gears work with my existing differential carrier or locker?
That depends on the carrier design and selected gear ratio. Verify ring gear mounting compatibility, carrier specifications, and the axle configuration before ordering. Open differentials, limited-slip carriers, lockers, and spools must all be matched to the correct gear set.
Do I need to change both axle gear ratios on a 4WD vehicle?
Yes. Front and rear axle ratios must match before operating a four-wheel-drive vehicle in four-wheel drive. If you're changing one axle ratio, plan to match the other axle.
What is required for proper ring and pinion installation?
Correct pinion depth, bearing preload, ring gear backlash, and tooth contact pattern are essential. A properly matched installation kit and correct differential setup help prevent gear noise, premature wear, and gear failure.
