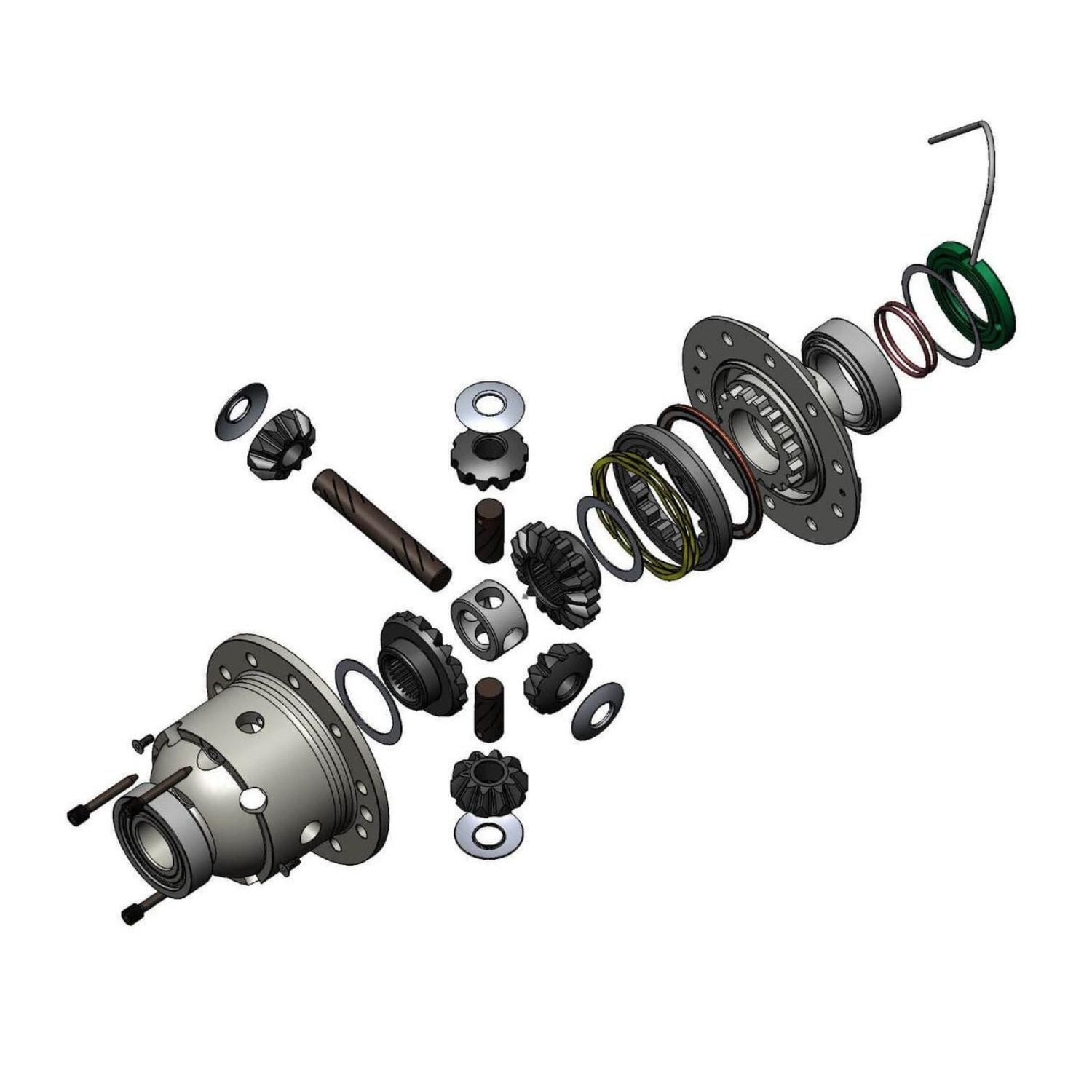

Exploded diagram of Toyota 8” selectable locking differential on a white background
Mechanical parts and wiring kit for ARB Air Locker 30 spline Toyota axle on a white background

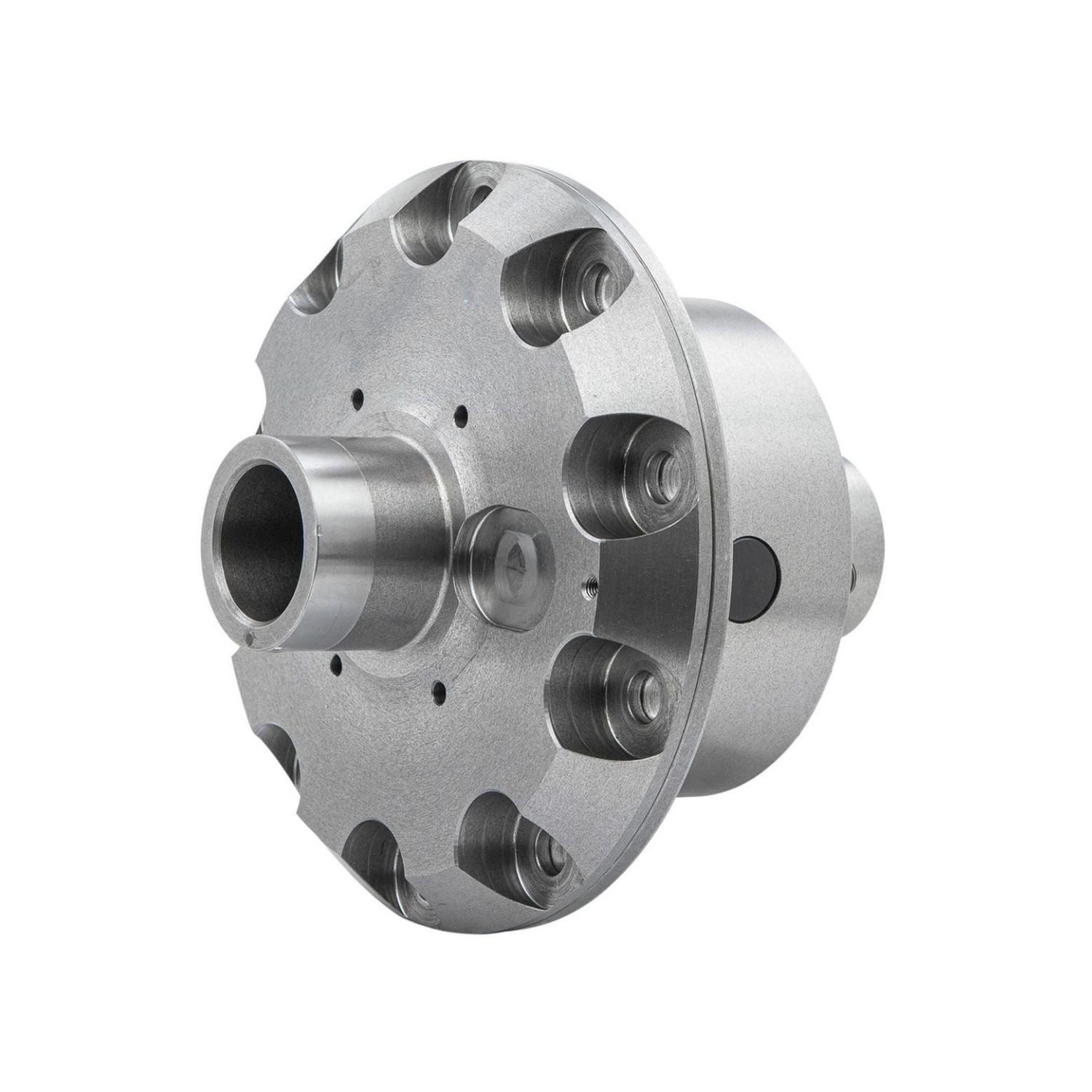

ARB air locker for Toyota off-road on a white background
Table listing fit ment for 8 inch selectable air locker for Toyota and Lexus vehicle models and their respective year ranges.
ARB Air Locker Toyota 8 inch differential kit on a white background
Exploded diagram of Toyota 8” selectable locking differential on a white background
Mechanical parts and wiring kit for ARB Air Locker 30 spline Toyota axle on a white background
ARB air locker for Toyota off-road on a white background
Table listing fit ment for 8 inch selectable air locker for Toyota and Lexus vehicle models and their respective year ranges.

ARB Toyota 8” Air Locker Differential - 30 Spline

ARBRD132

$1,299.95
/
Shipping calculated at checkout.

Unlike automatic lockers, the ARB Air Locker remains completely open during normal driving, eliminating unwanted driveline wear, noise, or handling issues. When activated, the pneumatically operated locking system prevents the internal differential gears from rotating independently, tying both wheels directly to the ring gear for maximum control and forward motion.

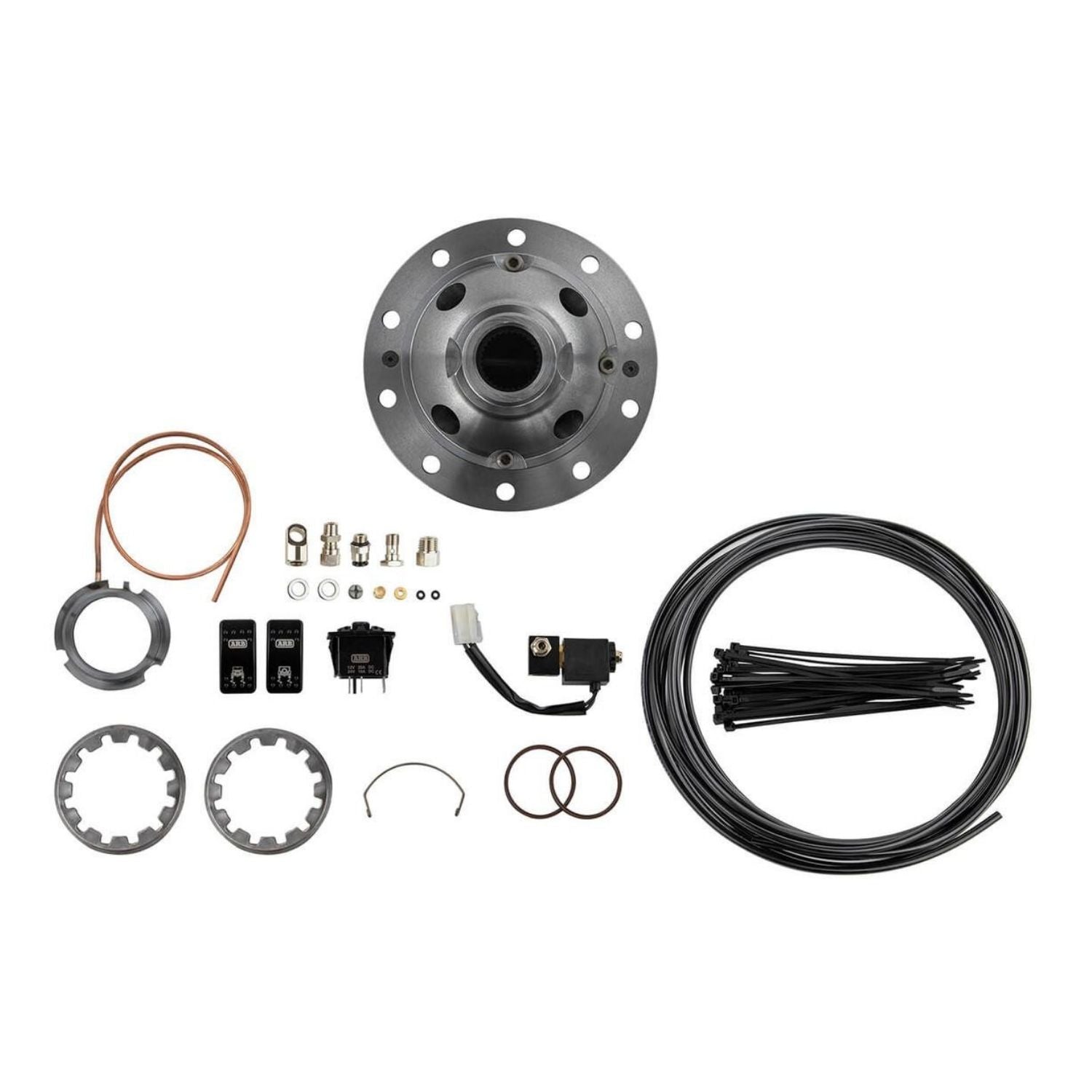

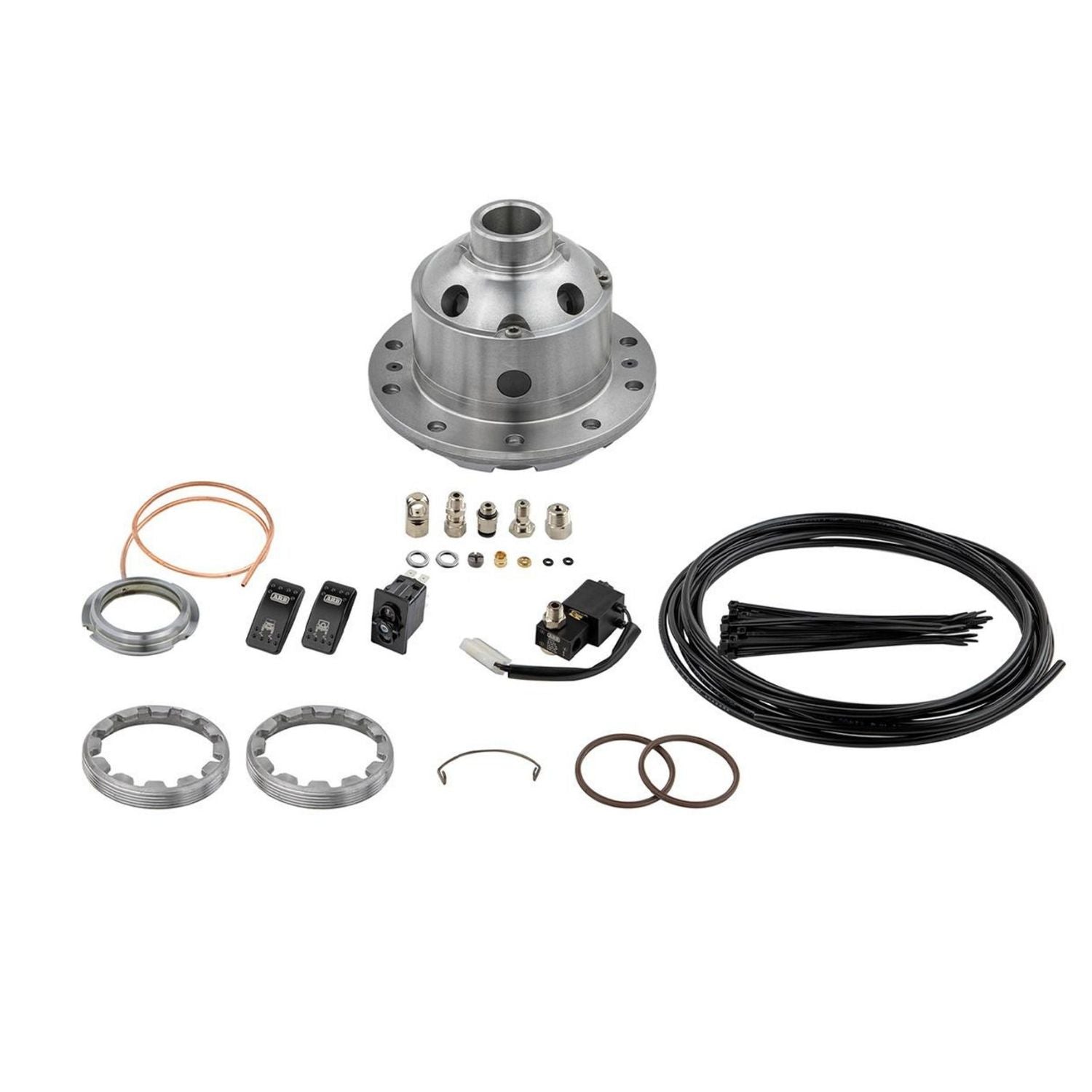

Kit Includes

  • ARB Toyota 8" Air Locker Differential
  • Dash Activation Switch
  • Solenoid Valve
  • Air Line
  • Bulkhead Fitting

Note: Air compressor required for operation (sold separately).

Specifications
  • Axle Compatibility: Toyota 8 Live Axle
  • Bearing Size: 50mm
  • Spline Count: 30 Spline
  • Shaft Diameter: 1.31 in
  • Gear Ratio Compatibility: All Ratios
  • Differential Case Material: One-Piece Nodular Iron
  • Internal Gears: Forged Nickel Alloy Steel
  • Operation: Pneumatic (Selectable Locking)
  • Color: Silver
  • Material: Steel
  • California Prop 65: No
  • Warranty: 5-Year Manufacturer Warranty
Fitment
  • Front Axle: Toyota 8" Live Axle
  • Rear Axle: Toyota 8"
  • Fits Toyota 8" axles with 30-spline shafts and 1.31" shaft diameter. Toyota Pickup covers all Base / DLX / SR5 / Turbo / Diesel

Bearing Requirements:

  • 80mm Bearing OD: Timken 32010X
  • 83mm Bearing OD: Koyo or SKF TR100802-2

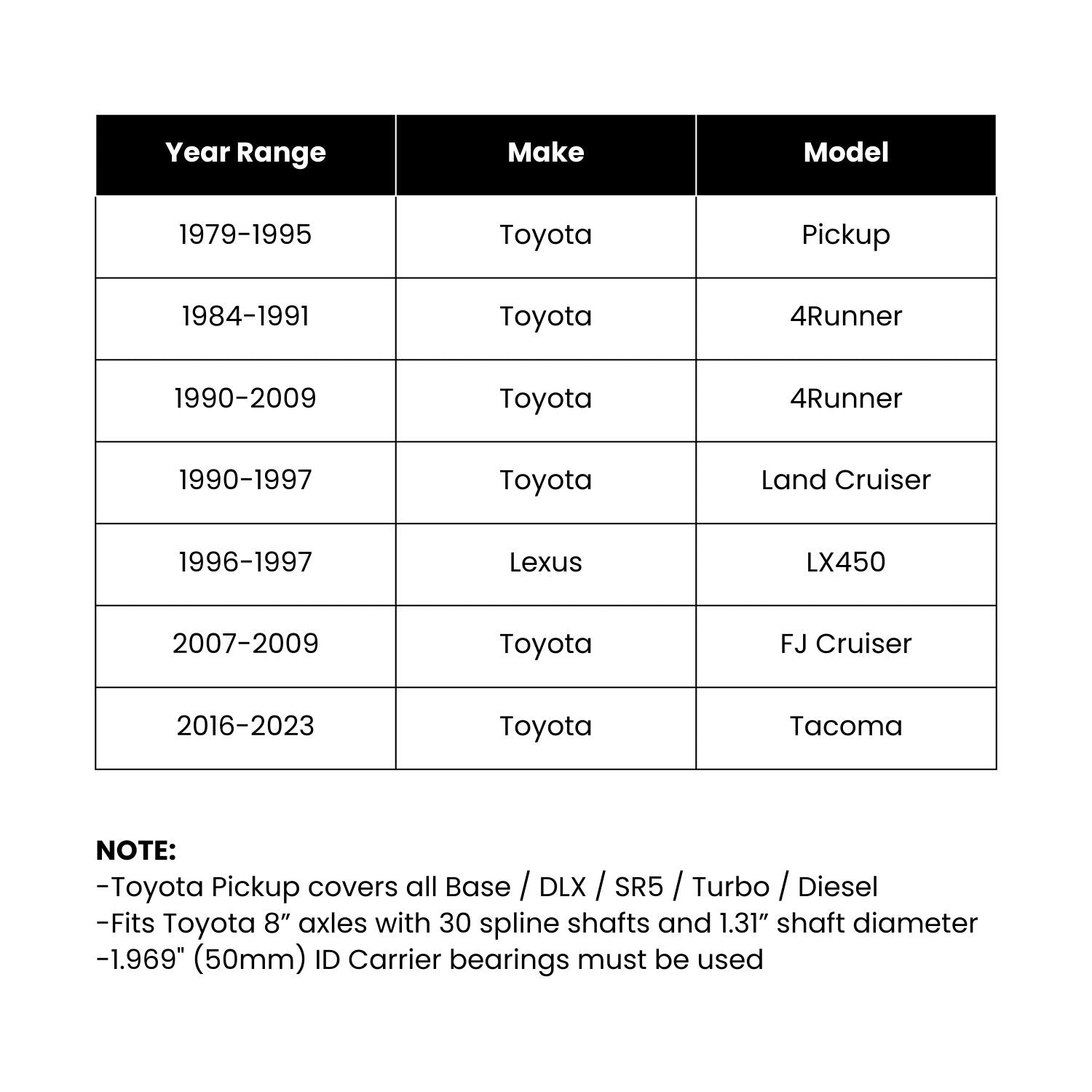

Year Range Make Model
1979-1995 Toyota Pickup
1984-1991 Toyota 4Runner
1990-2009 Toyota 4Runner
1990-1997 Toyota Land Cruiser
1996-1997 Lexus LX450
2007-2009 Toyota FJ Cruiser
2016-2023 Toyota Tacoma



Tech Insight

Features & Benefits

100% traction on demand

Fully open differential when unlocked for normal street driving

Selectable locking via dash-mounted switch

Ultra-durable two-piece internal design with minimal moving parts

Patented timed locking system for strength and fast disengagement

Steel-reinforced bonded annular seal for extreme temperature durability

Forged, high-strength internal gears

One-piece nodular iron differential case for maximum rigidity

Suitable for front or rear Toyota 8 axle applications
