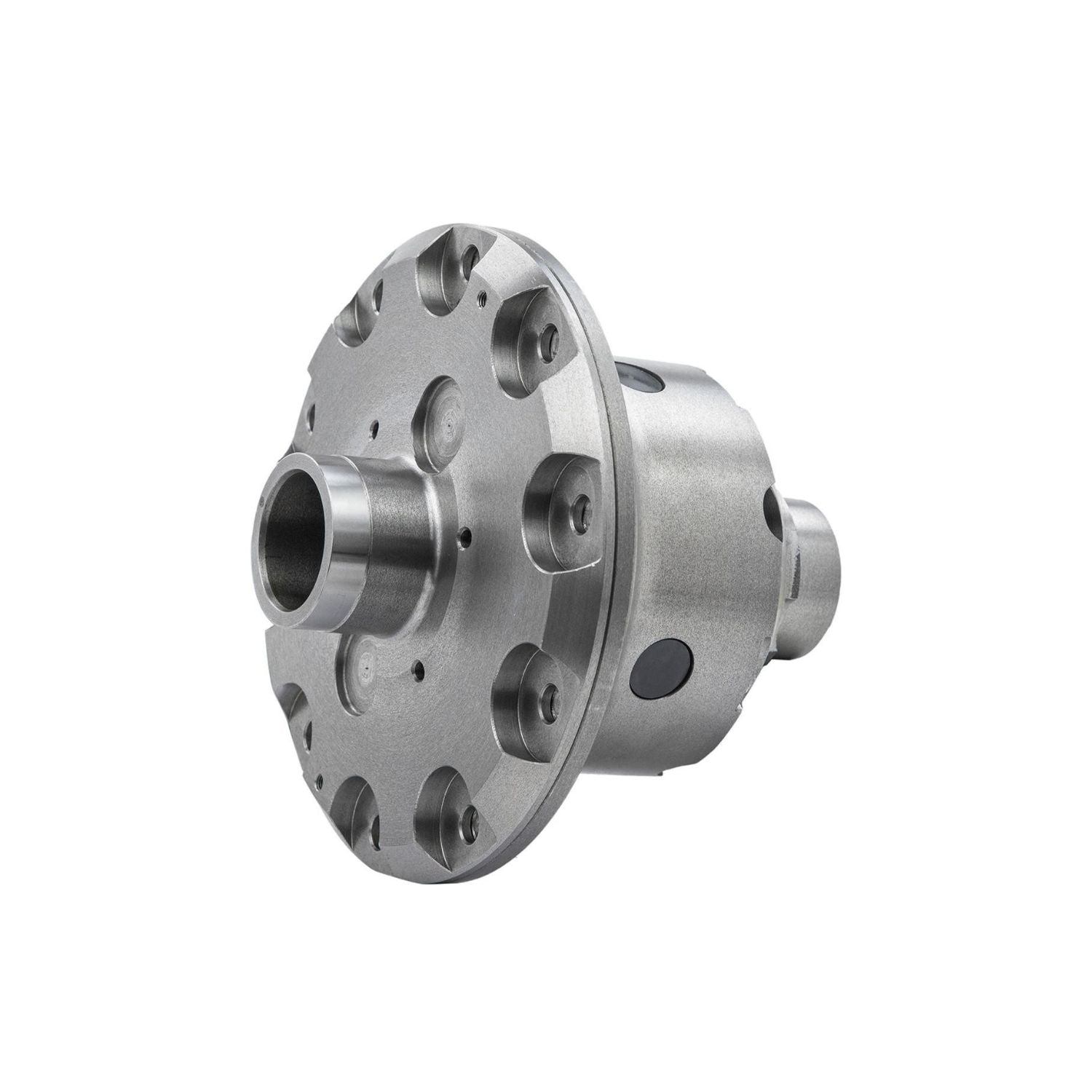

ARB Air Locker Dana 44 35 spline and components arranged on a white background

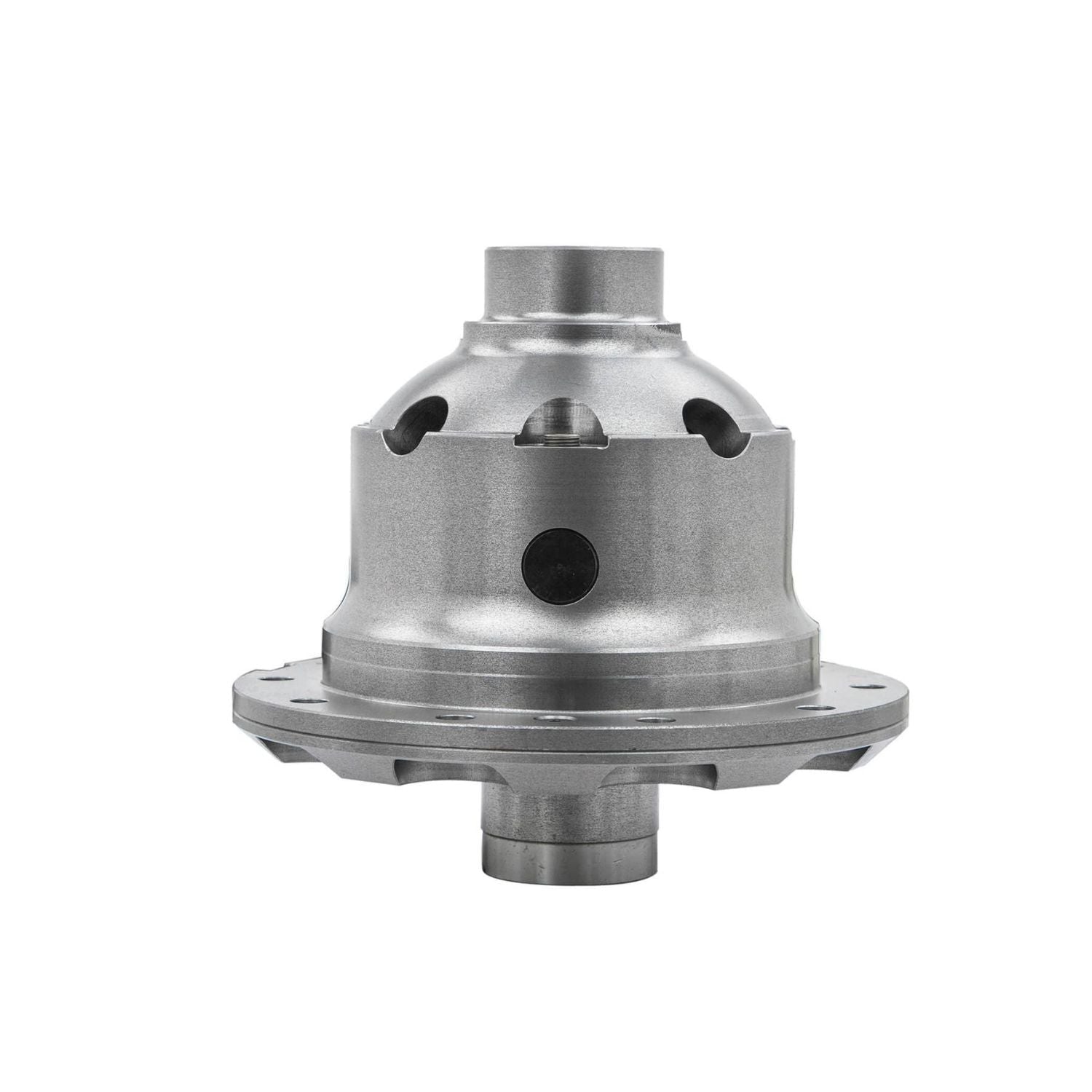

Dana 44 selectable air locker on a white background
35 spline Dana 44 locker parts including bearings and wiring on a white background

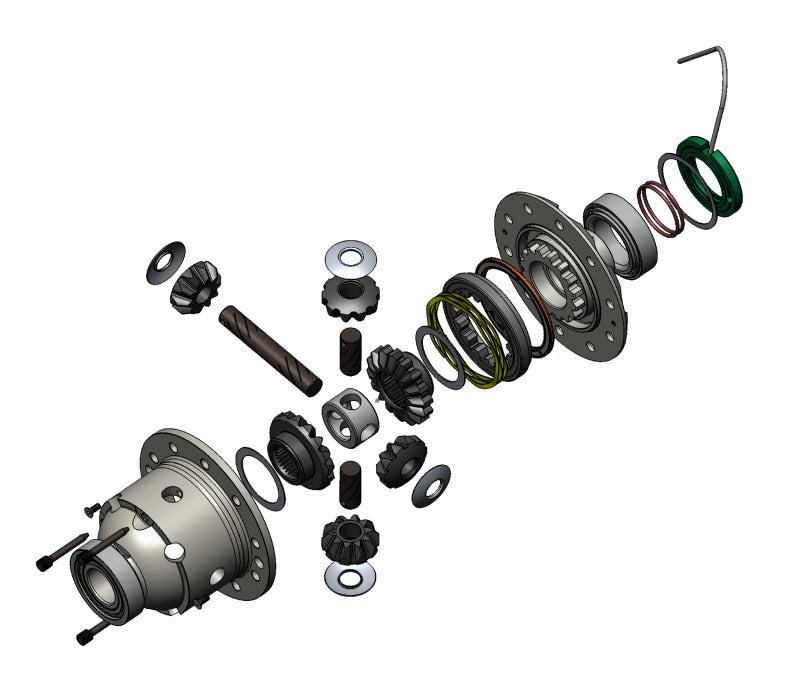

Photo - Primary Performance Dana 44 air locker exploded diagram
Off-road Dana 44 traction locker on a white background
ARB Air Locker Dana 44 35 spline and components arranged on a white background
Dana 44 selectable air locker on a white background
35 spline Dana 44 locker parts including bearings and wiring on a white background
Photo - Primary Performance Dana 44 air locker exploded diagram
Off-road Dana 44 traction locker on a white background

ARB Dana 44 Selectable Air Locker - 3.73 & Down, Rear Axle, 35 Spline

ARBRD147

$1,299.95
/
Shipping calculated at checkout.

The ARB Air Locker Differential for Dana 44 rear axles allows drivers to move slower, safer, and with greater control, reducing drivetrain shock, vehicle damage, and environmental impact. The Air Locker uses a pneumatically operated locking system inside the differential. When activated, the internal gears are fully locked, preventing independent axle shaft rotation and forcing both wheels to turn together. When disengaged, it operates like a conventional open differential for normal street use.

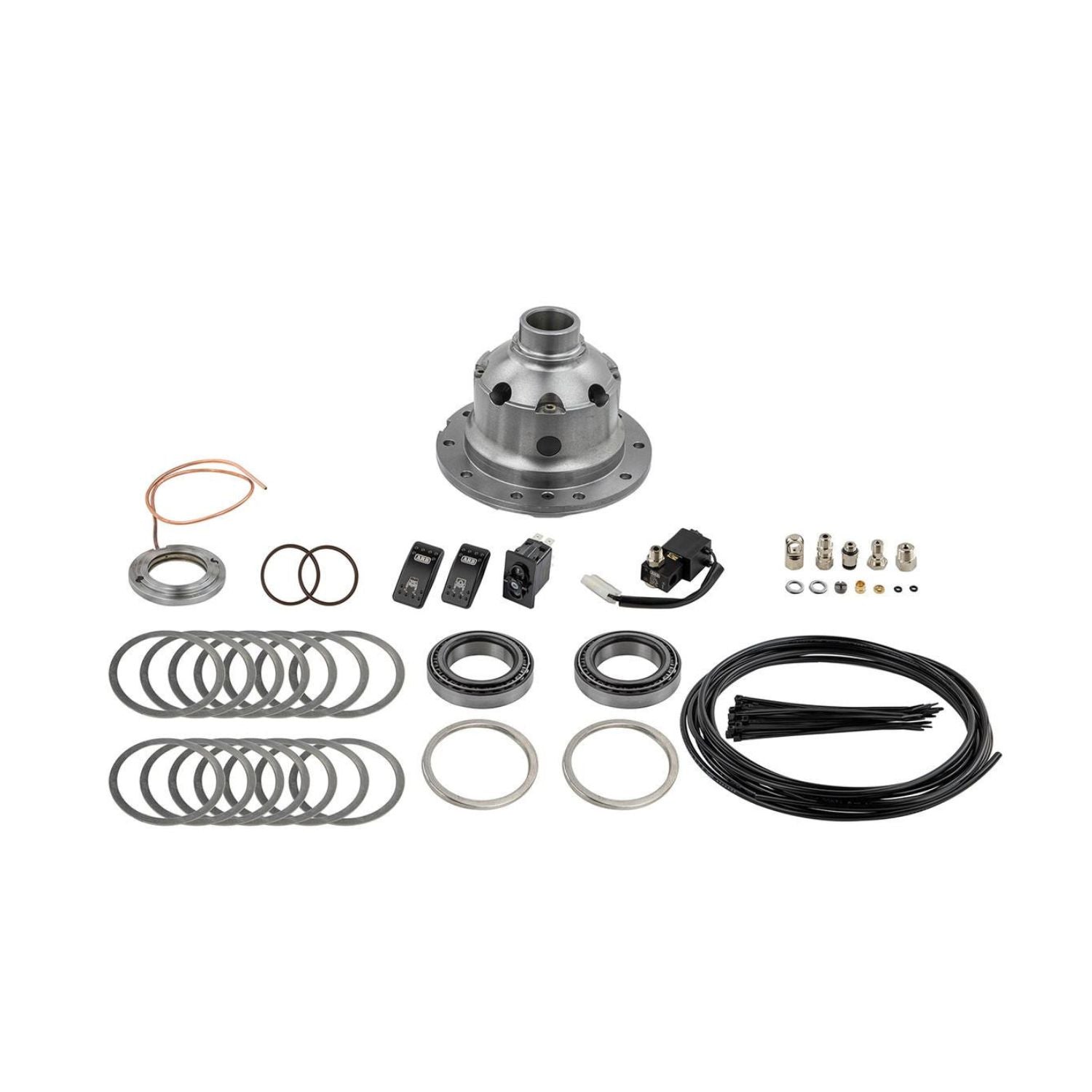

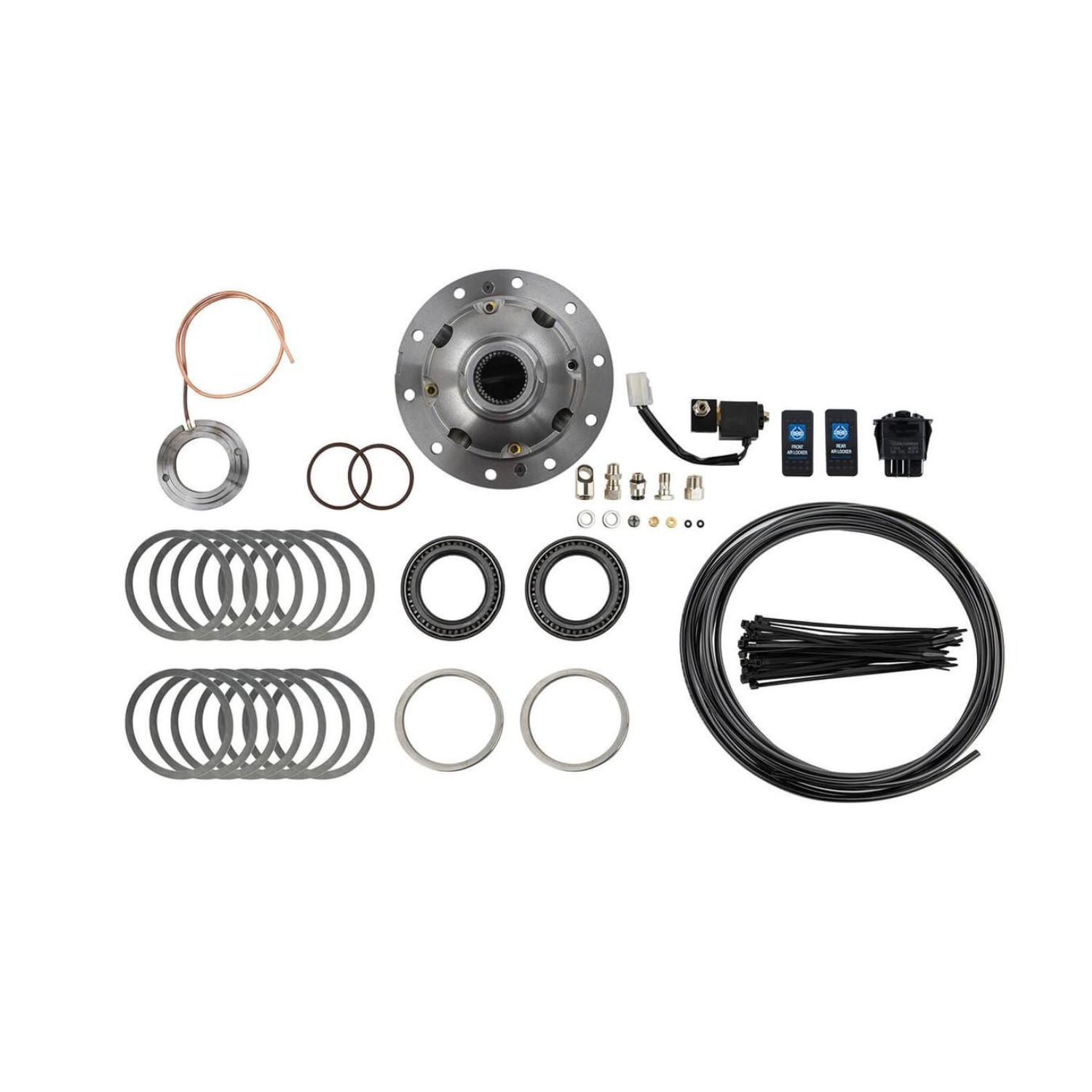

Kit Includes:

  • ARB Dana 44 Air Locker Differential
  • Dash activation switch
  • Solenoid valve
  • Air line
  • Bulkhead fitting

Notes:

  • Air compressor required for operation (sold separately).
  • This locker is intended for aftermarket housings, custom axle builds, and performance applications, not stock replacement installs.
Specifications
  • Differential Type: Selectable Air Locker
  • Axle Type: Dana 44
  • Position: Rear
  • Spline Count: 35
  • Shaft Diameter: 1.50 in
  • Carrier Break: 3.73 & Down
  • Material: Steel
  • Color: Silver
  • Design: Two-piece carrier
  • Activation: Pneumatic (air-operated)
Fitment
Make Model Year Range
Jeep Wrangler 1997–2017
Jeep Wrangler JK 2018

Important Fitment Notes:

  • Some late-model Dana 44 axles support all gear ratios — verify housing and carrier style before ordering
  • Performance application models DO NOT accept OE axle shafts
  • Custom axle shafts are required to match your housing and spline configuration
  • Gear ratio compatibility varies by housing and carrier design — verification required prior to purchase
  • This locker is intended for aftermarket housings, custom axle builds, and performance applications, not stock replacement installs.
Tech Insight

ARB’s patented timed locking mechanism allows ultra-fast disengagement under load, reducing driveline stress while maintaining exceptional strength. The two-piece carrier design minimizes internal moving parts for maximum reliability under high torque and shock loads. A steel reinforced, elastomer bonded annular seal ensures consistent operation across extreme temperature ranges and harsh environments.

Selectable control means traction only when you need it with no compromise on-road, maximum confidence off-road.
