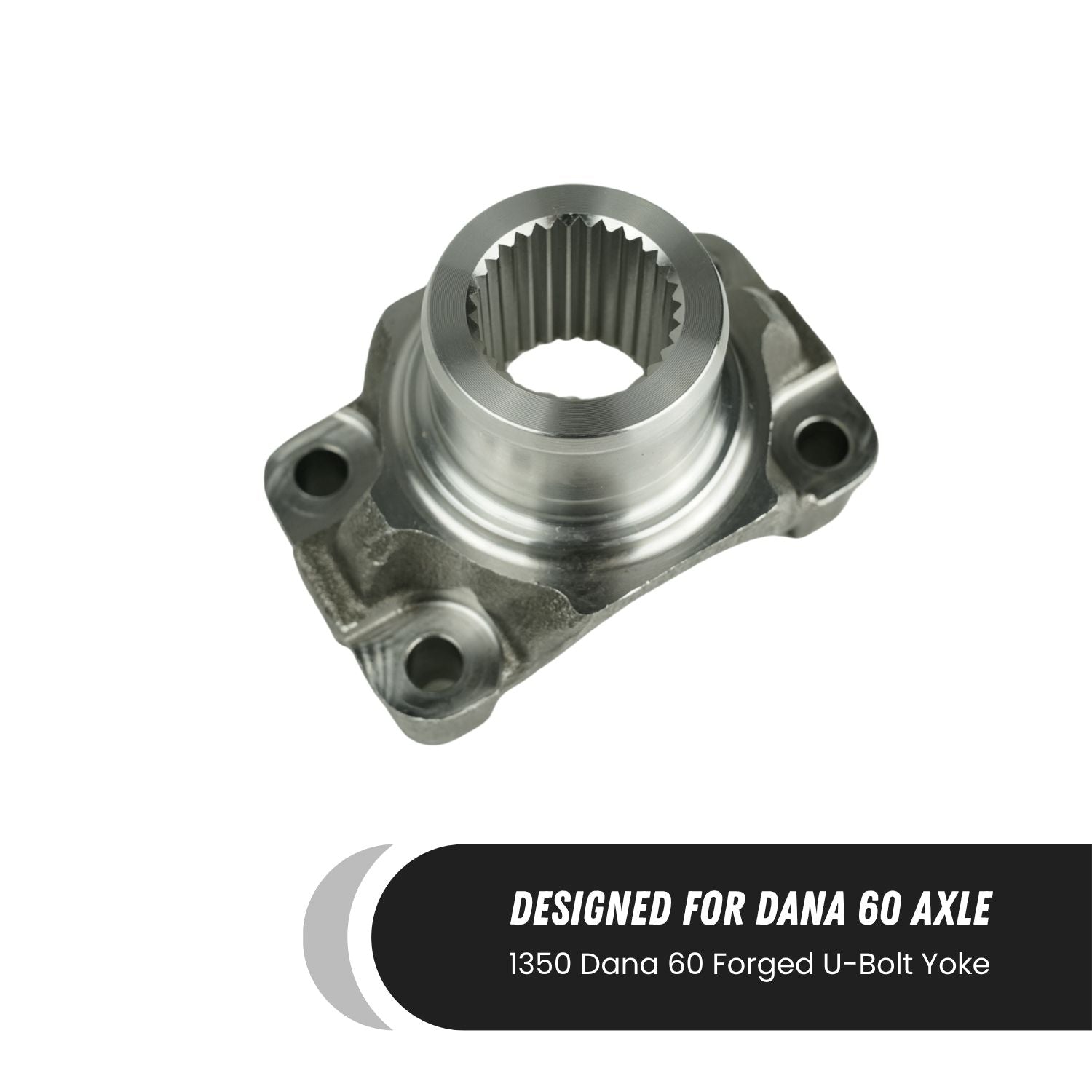

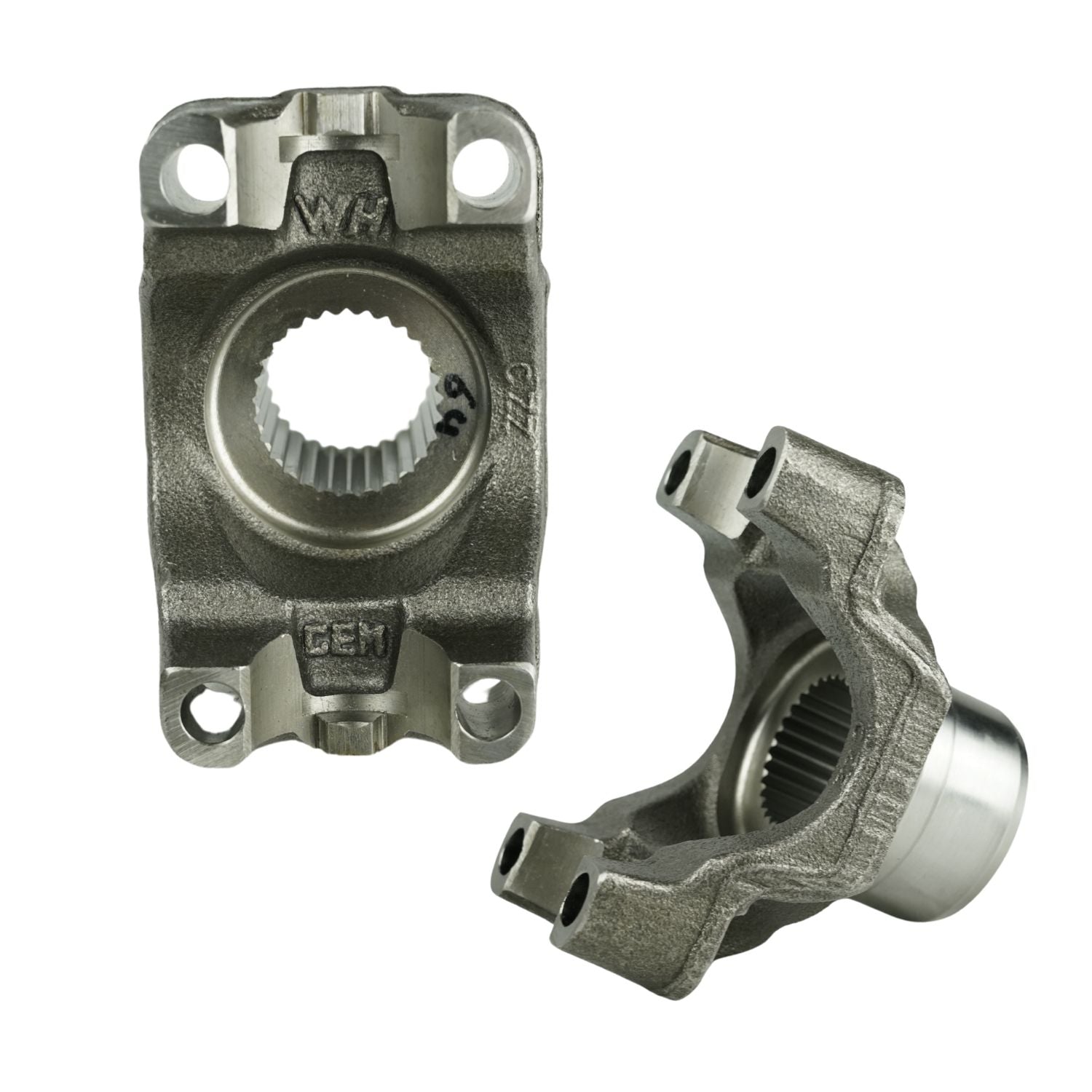

1350 Dana 60 Forged U-Bolt Yoke
3-4-5731
Designed for the Dana 60 axle, this 1350 Series Forged U-Bolt Yoke delivers superior strength, reliability, and serviceability. Forged from high-quality steel for a dense internal grain structure, this yoke is built to handle serious torque loads common in off-road, rock crawling, and performance applications.
Unlike strap-style yokes that can shear bolts or seize threads, this yoke is designed to utilize U-Bolts — making trail repairs simple and dependable. If you ever snap a U-joint, just replace the U-bolts and get back in action without hassle.

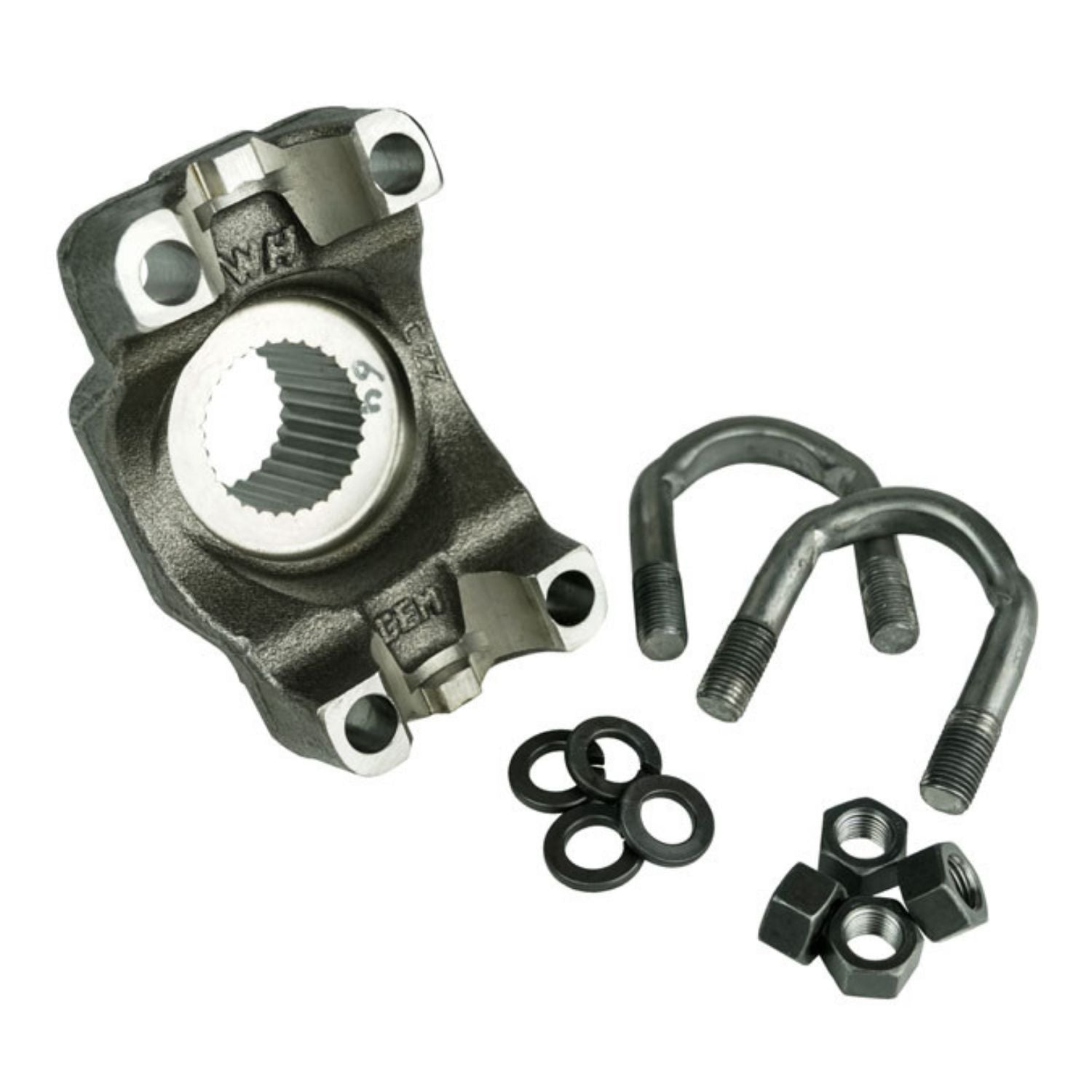

Includes:
- (1) 1350 Dana 60 Forged U-Bolt Yoke
- (2) U-Bolts with Nuts and Lock Washers

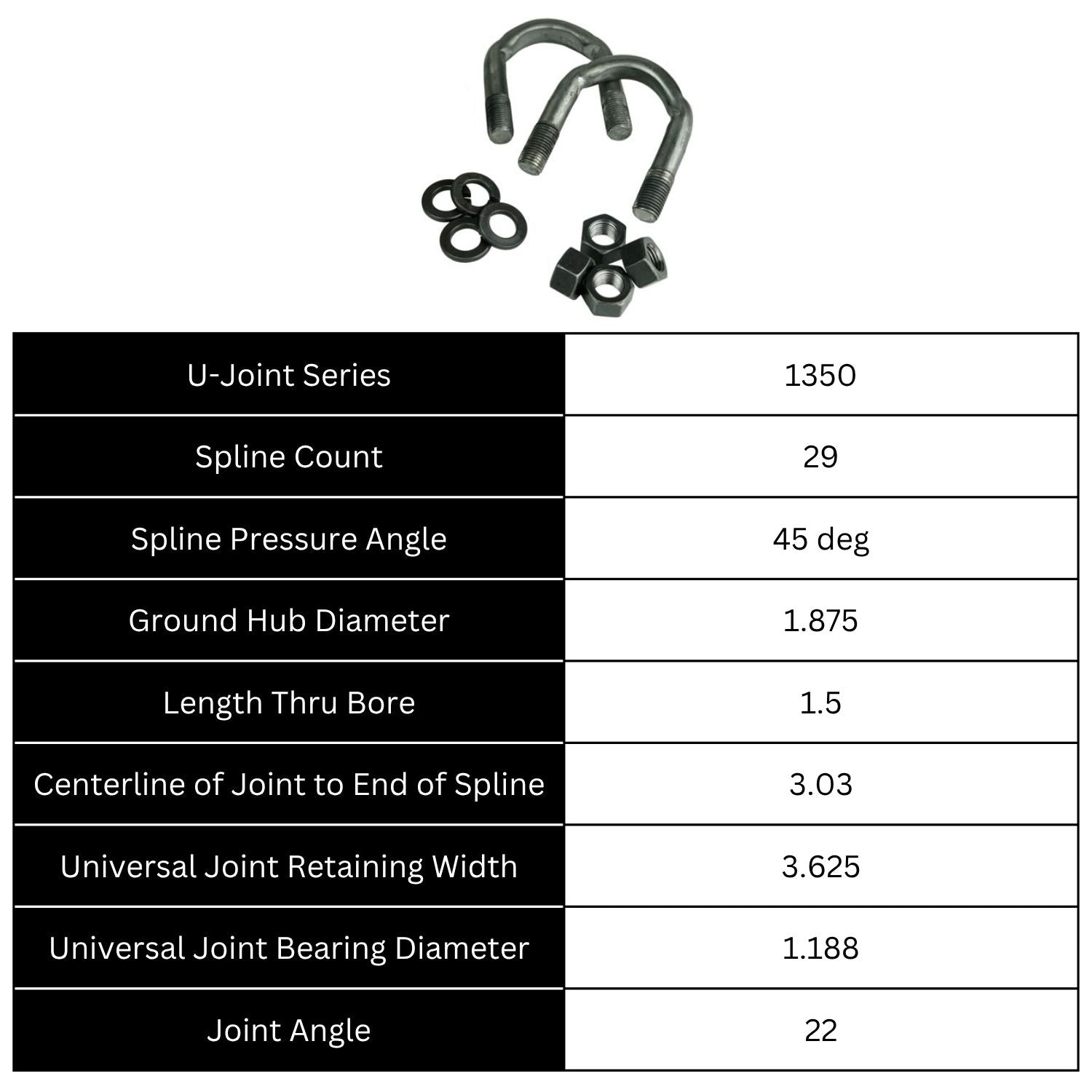

Specifications
| Specification | Detail |
|---|---|
| U-Joint Series | 1350 |
| Axle Type | Dana 60 |
| Spline Count | 29 |
| Spline Pressure Angle | 45° |
| Ground Hub Diameter | 1.875 |
| Length Thru Bore | 1.500 |
| Centerline of Joint to End of Spline | 3.030 |
| Universal Joint Retaining Width | 3.625 |
| Universal Joint Bearing Diameter | 1.188 |
| Joint Angle | 22° |
Fitment
- Fits Dana 60 axles with 29-spline pinion shafts.
- Compatible with 1350 U-joint series driveshafts.
Tech Insight
Forged yokes outperform cast or machined-from-bar-stock options due to their superior internal grain alignment achieved through the forging process. This makes them ideal for high-stress applications like off-road rock crawlers, race rigs, or heavy-duty work vehicles. The U-bolt design also prevents the common issue of stripped or broken strap bolts, ensuring faster field serviceability and stronger overall retention of the U-joint caps.
