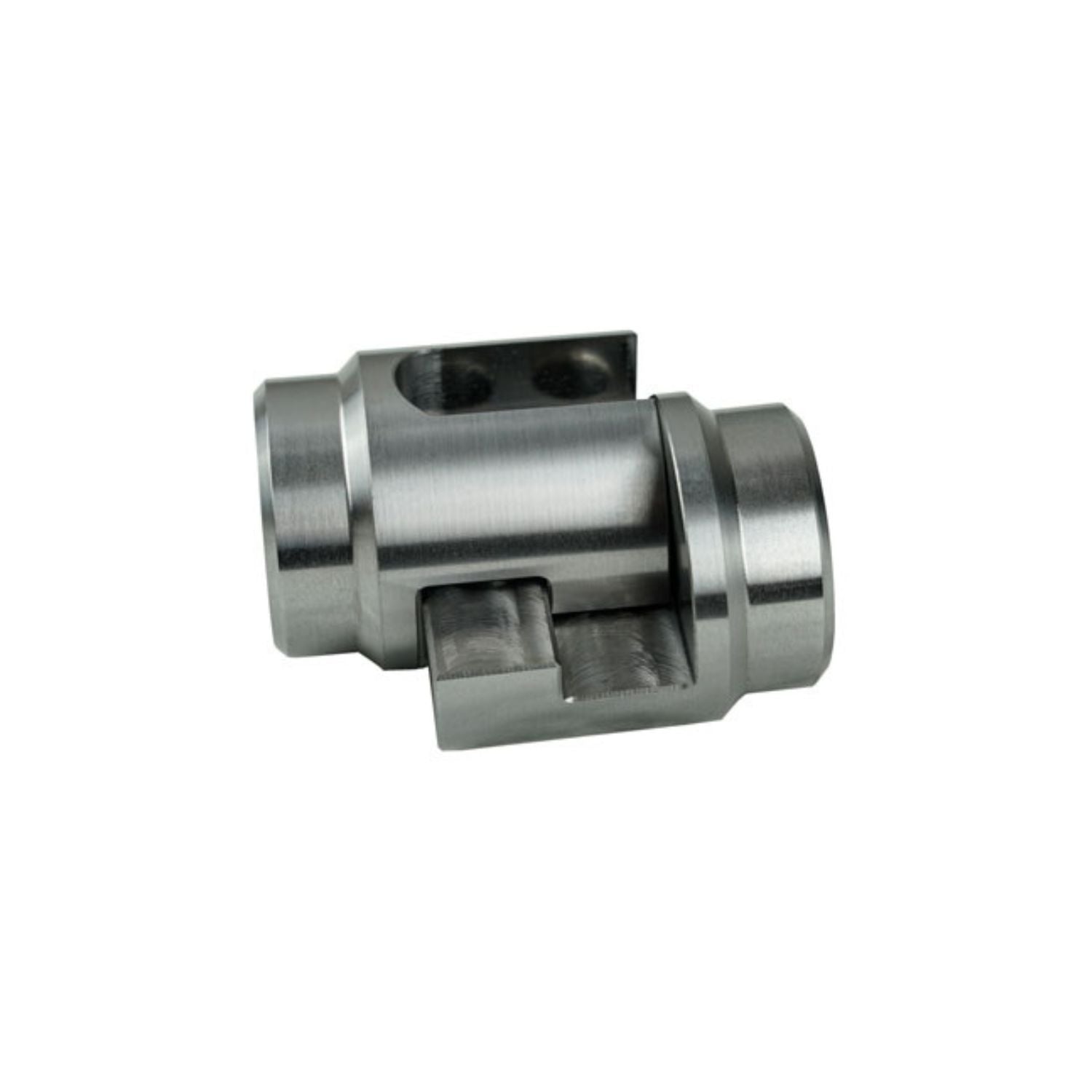

1.75 chromoly tube clamp on a white background

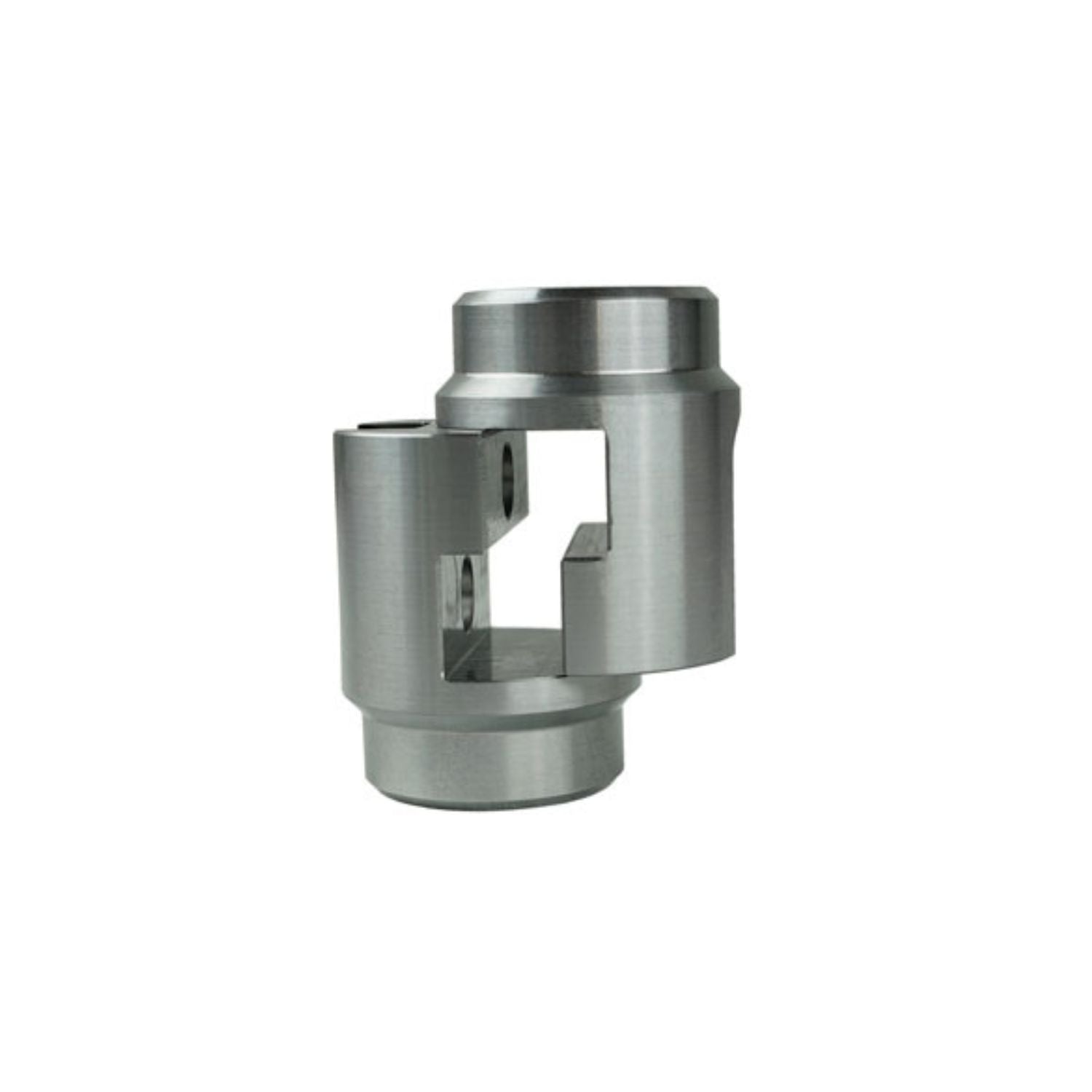

interlocking tube disconnect on a white background

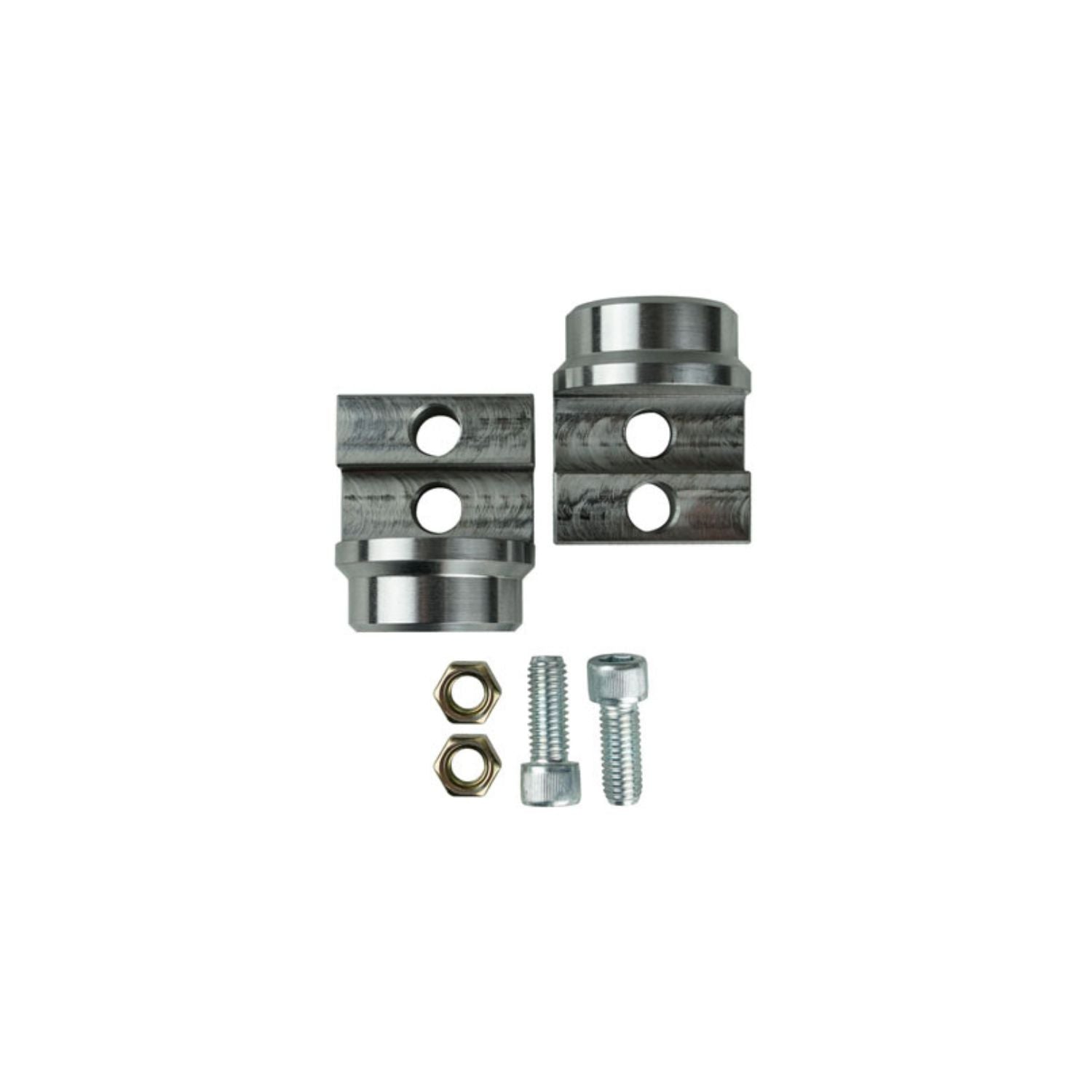

removable roll cage tube clamp with bolts on a white background

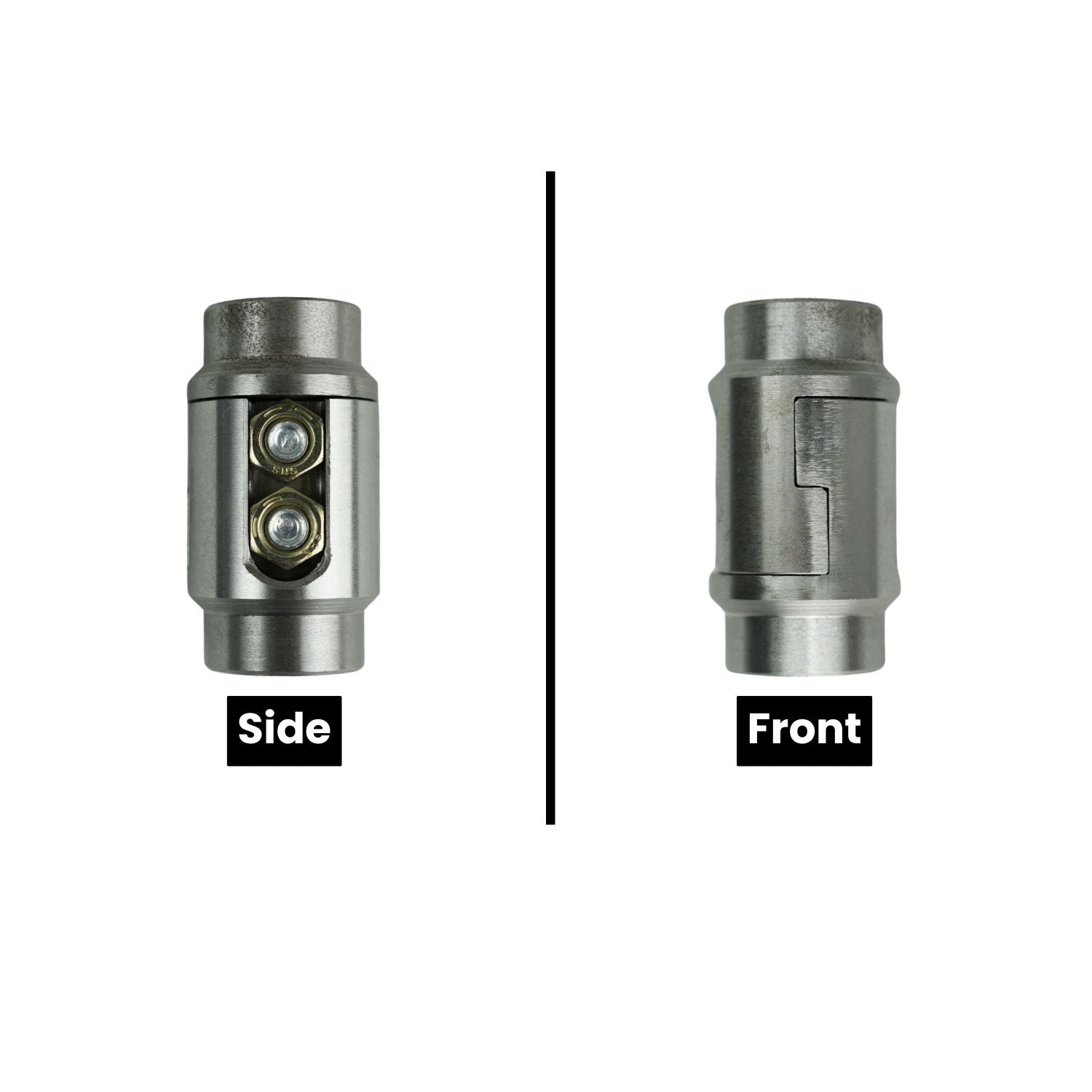

4140 chromoly clamp connector shown from side and front views on a white background

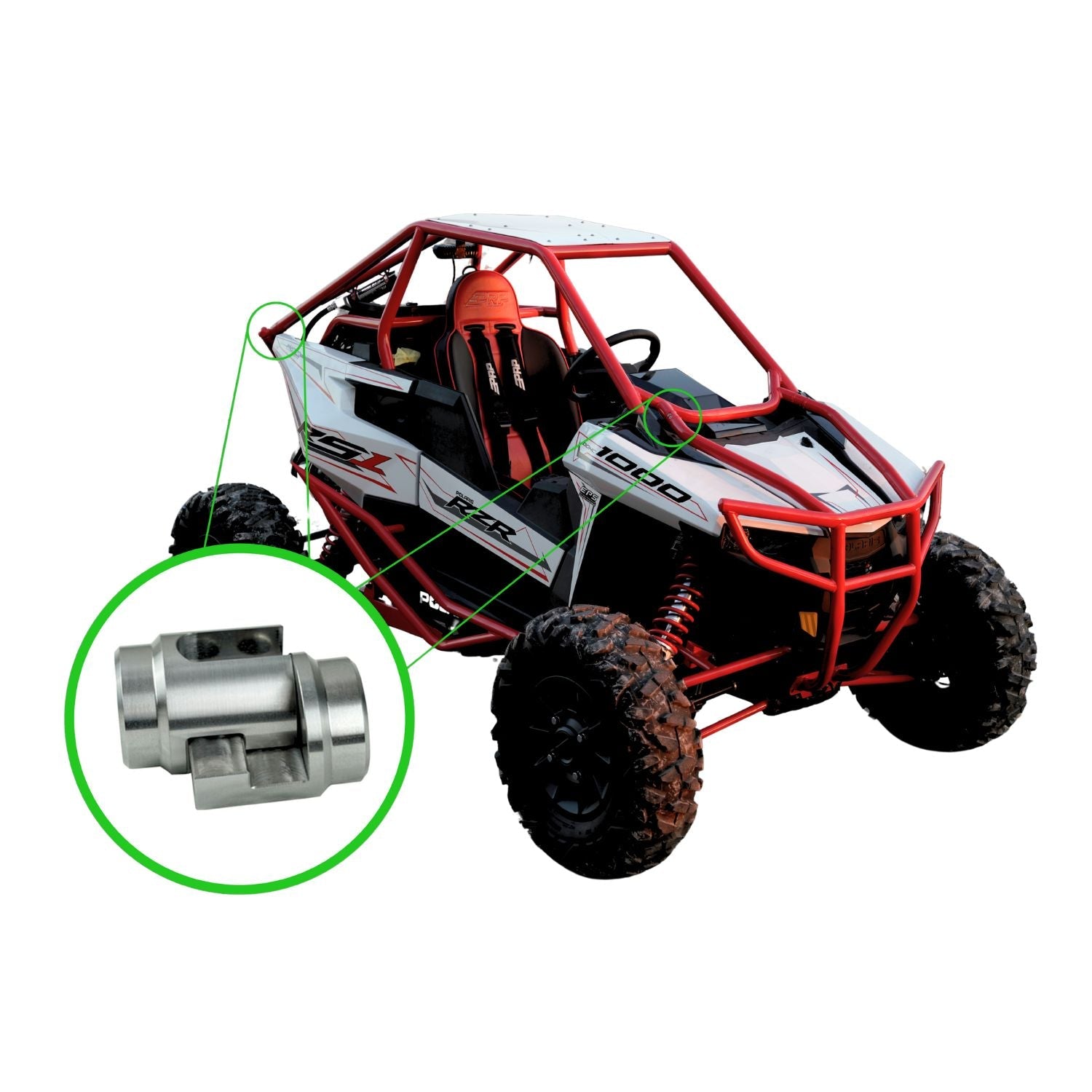

Red and white off-road vehicle with a close-up of a off road chassis tube disconnect on a white background

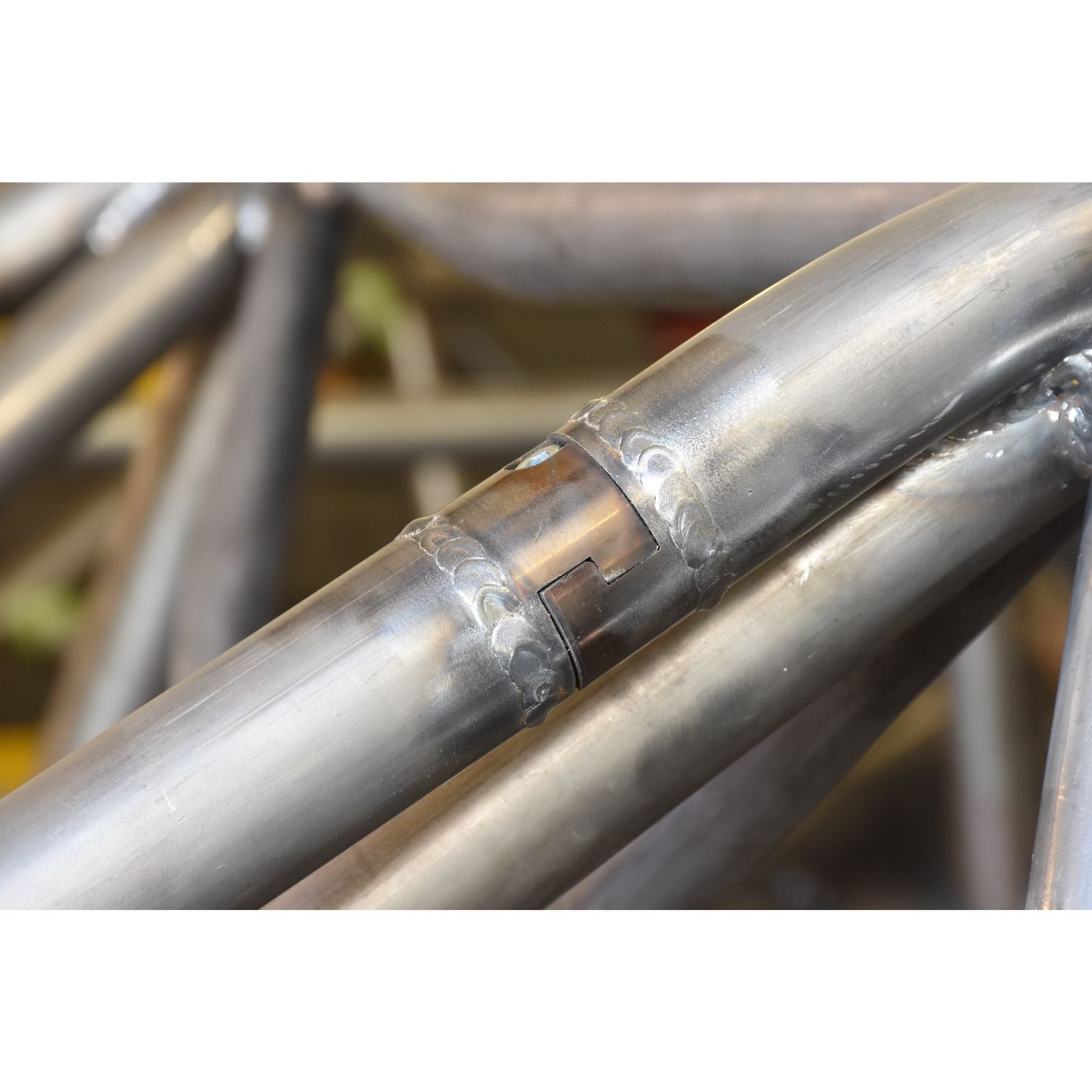

Close-up of a chassis frame with a chromoly 1.75 tube disconnect welded on a blurred background
1.75 chromoly tube clamp on a white background
interlocking tube disconnect on a white background
removable roll cage tube clamp with bolts on a white background
4140 chromoly clamp connector shown from side and front views on a white background
Red and white off-road vehicle with a close-up of a off road chassis tube disconnect on a white background
Close-up of a chassis frame with a chromoly 1.75 tube disconnect welded on a blurred background

Chromoly Interlocking Tube Disconnect – 1.75" OD x .095 Wall

WA01046

$34.99
/
Shipping calculated at checkout.

These Chromoly Interlocking Tube Disconnects are the perfect solution when you need a structural tube to be removable for engine access, transmission service, seat removal, or modular chassis design. Machined from 100% 4140 Chromoly, these clamps provide an extremely tight, precision fit with zero slop.

The interlocking design ensures strength and alignment while the countersunk Allen bolts keep the assembly clean, compact, and service friendly. Ideal for serious off-road builds, race chassis, and high load tubular structures.

Includes:

  • (1) Chromoly Interlocking Tube Clamp
  • (2) Countersunk Allen Head Bolts
Specifications
  • Tube Size: Fits 1.75" OD x .095 wall tubing
  • Material: 4140 Chromoly Steel
  • Design: Precision interlocking disconnect
  • Fasteners: Countersunk Allen bolts (included)
  • Fitment: Tight, zero slop interface
  • Condition: Weld-ready
Fitment

Perfect for removable sections in:

  • Engine cages
  • Transmission cross tubes
  • Removable seat bars
  • Shock tower bracing
  • Cooler racks
  • Rear chassis sections
  • High access maintenance areas
Tech Insight

Removable sections of tube are a huge advantage for high performance off-road vehicles. These clamps maintain structural integrity while allowing full disassembly when needed. The precision machined Chromoly provides exceptional durability and repeatable connections, unlike cheaper mild steel or slip-fit options.

Feature / Spec 1.5 Tube Disconnect 1.75 Tube Disconnect
Tube Size Compatibility 1.50" OD x .095 wall 1.75" OD x .095 wall
Material 4140 Chromoly Steel 4140 Chromoly Steel
Fit Precision Zero-slop interlocking fit Zero-slop interlocking fit
Fasteners Countersunk Allen bolts Countersunk Allen bolts
Best Use Engine cages, removable small-diameter tubes Main chassis tubes, high-load removable structures
Overall Strength Strong Stronger (larger tube footprint)
Ideal Applications Interior bracing, seat bars, small hoops Engine cages, upper shock bars, rear chassis sections
Part Number WA01048 WA01046
Includes 1 clamp + hardware 1 clamp + hardware
Made in USA Yes Yes
