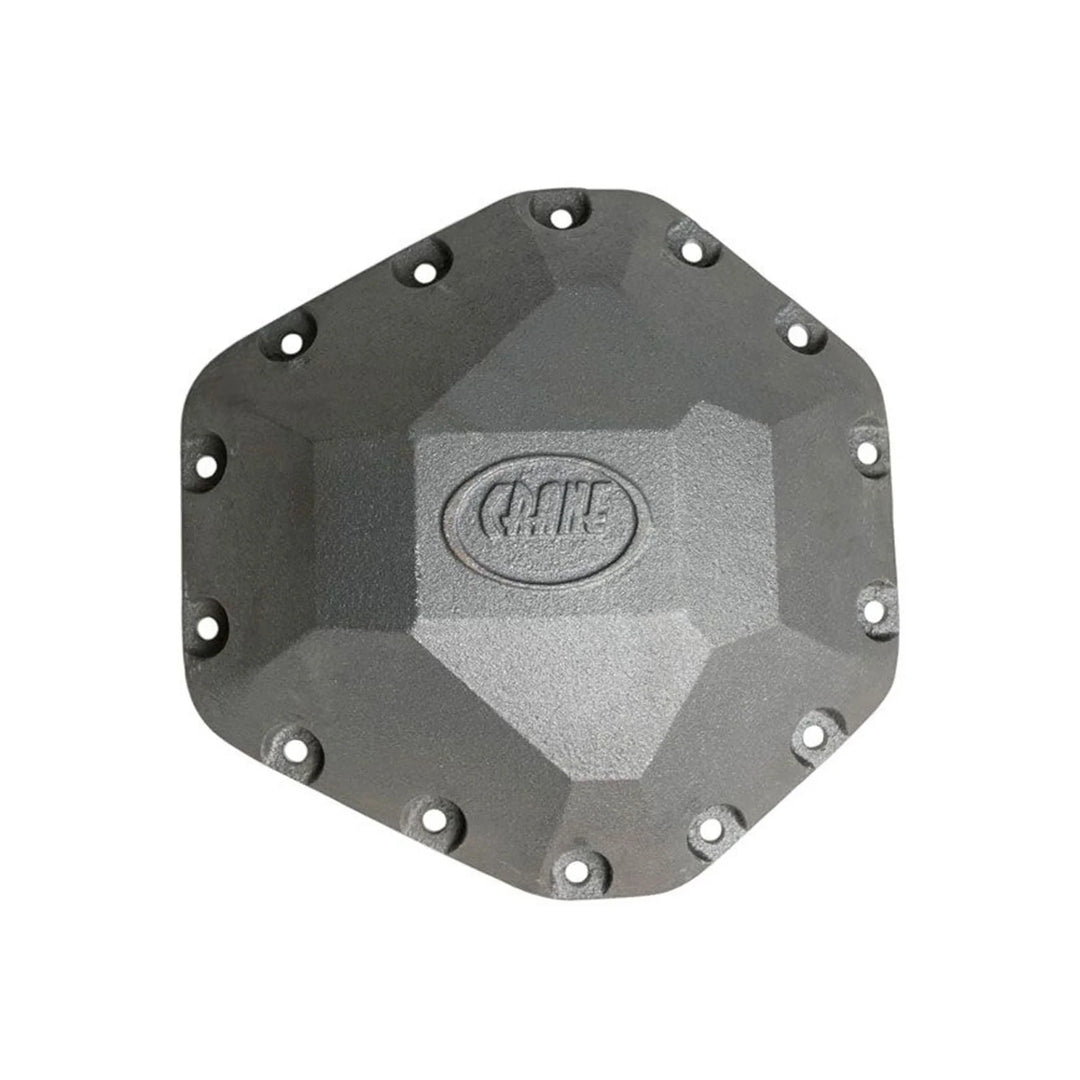

Crane GM 14-Bolt Chromoly Diff Cover
CA14BC
The Crane Axle GM 14-Bolt Chromoly Differential Cover is a heavy-duty axle upgrade built to protect your differential in extreme off-road conditions. Manufactured from heat-treated 8620 chromoly steel with a protective coating, this cover delivers exceptional strength and impact resistance for rock crawlers, rock bouncers, trail buggies, and heavy-duty off-road trucks. Its one-piece cast construction eliminates welded seams that can crack or leak, while precision CNC machining ensures proper fitment against the factory GM 14-bolt differential housing.
Designed with durability and serviceability in mind, the Wide Open Design 14-bolt diff cover features recessed bolt heads to help protect the mounting hardware from rocks and trail obstacles. The cover includes both metric and standard mounting hardware, allowing direct installation on compatible factory GM 14-bolt axle housings without cutting, welding, or other modifications. Whether you're building a competition buggy or upgrading a trail-driven truck, this chromoly differential cover provides serious protection for one of the most exposed components on your axle.
Includes:
- (1) Crane GM 14-Bolt Chromoly Differential Cover
- (14) Standard Mounting Bolts
- (14) Metric Mounting Bolts
Important: Direct bolt-on replacement for compatible factory GM 14-bolt differential housings. No axle housing modifications required. Use the appropriate mounting hardware for your axle application.
Specifications
| Manufacturer | Crane Axle |
|---|---|
| Product Type | Heavy-Duty Differential Cover |
| Axle Platform | GM 14-Bolt |
| Material | 8620 Chromoly Steel |
| Manufacturing Process | One-Piece Cast Construction |
| Heat Treatment | Heat-Treated for Strength & Durability |
| Surface Finish | Protective Coating |
| Machining | Precision CNC-Machined |
| Construction | Seamless One-Piece Design / No Welded Seams |
| Differential Cover Bolt Count | 14 |
| Mounting Hardware | Metric & Standard Bolts Included |
| Bolt Head Protection | Recessed Mounting Bolt Design |
| Installation Type | Direct Bolt-On / No Modifications Required |
| Axle Position | Front or Rear, Depending on Axle Configuration |
| Primary Application | GM 14-Bolt Axle Protection for Rock Crawling, Rock Bouncing & Heavy-Duty Off-Road Builds |
| Quantity | (1) Differential Cover with Mounting Hardware |
Design Features:
- Heat-treated 8620 chromoly steel for strength and impact resistance.
- One-piece cast construction eliminates welded seams and potential weld-related leak points.
- CNC-machined mounting surfaces for precision fitment.
- Recessed mounting bolt heads help protect hardware from rocks and trail damage.
- Includes both metric and standard mounting bolts.
- Direct bolt-on installation with no cutting, welding, or axle housing modifications required.
- Protective coating helps resist corrosion and environmental exposure.
Fitment
Designed as a direct bolt-on differential cover for compatible factory GM 14-bolt axle housings using the standard 14-bolt cover mounting pattern.
Common Applications:
- GM 14-Bolt Axle Builds
- Chevrolet & GMC Heavy-Duty Trucks Equipped with Compatible 14-Bolt Axles
- Rock Crawlers & Rock Bouncers
- Custom Tube-Chassis Off-Road Buggies
- Heavy-Duty Trail Trucks
- Custom Axle Conversions Using Compatible GM 14-Bolt Housings
Fitment Notes:
- Requires a compatible factory GM 14-bolt differential cover mounting pattern.
- Uses 14 differential cover mounting bolts.
- Both metric and standard mounting hardware are included.
- Direct bolt-on installation without housing modifications.
- Verify the axle housing and differential cover mounting pattern before ordering.
- Vehicle year, make, and model alone do not guarantee axle compatibility.
Builder Note: A differential cover takes direct abuse when an axle drags across rocks and ledges. The one-piece chromoly construction and recessed mounting hardware are designed to protect the differential while reducing exposed bolt heads that can become damaged during hard trail use.
FAQ
What is the Crane Axle 14-bolt differential cover made from?
This differential cover is manufactured from heat-treated 8620 chromoly steel with a protective coating. The one-piece cast design provides heavy-duty construction without welded seams.
Why use a chromoly differential cover instead of a factory cover?
Factory differential covers are generally designed for normal driving conditions rather than repeated contact with rocks and trail obstacles. The Crane chromoly cover provides a heavy-duty alternative with increased impact resistance, one-piece construction, and recessed mounting hardware.
What is the advantage of a one-piece cast differential cover?
One-piece cast construction eliminates welded seams that could become potential leak or failure points under repeated impact. Combined with CNC-machined mounting surfaces, the design provides a strong and precise-fitting differential cover.
Why are the mounting bolts recessed?
Recessed bolt heads help protect the mounting hardware from direct contact with rocks and other trail obstacles. This reduces the chance of damaging bolt heads during off-road use and helps maintain access to the hardware during future differential service.
Does the Crane 14-bolt cover include mounting bolts?
Yes. The cover includes 14 metric mounting bolts and 14 standard mounting bolts. Select the appropriate hardware for your axle housing during installation.
Does this differential cover require welding or modifications?
No. The Crane 14-bolt chromoly differential cover is designed for direct bolt-on installation on compatible factory GM 14-bolt axle housings. No cutting, welding, or housing modifications are required.
Will this cover fit my GM 14-bolt axle?
The cover is designed for compatible GM 14-bolt axle housings using the specified 14-bolt differential cover pattern. Because GM produced multiple 14-bolt axle configurations, verify your housing and mounting pattern before ordering.
Is this differential cover suitable for rock bouncing and rock crawling?
Yes. The heat-treated chromoly construction, one-piece cast design, and recessed bolt heads make it well suited for off-road vehicles that frequently encounter rocks, ledges, and other obstacles.
Do I need to use a gasket or sealant when installing this cover?
The cover must be properly sealed against the differential housing during installation. Use the appropriate gasket or manufacturer-approved differential sealant, prepare the mating surfaces, and tighten the mounting bolts according to the axle manufacturer's specifications.
