Crane Axle Dana 60 Kingpin Spring Eliminator Kit
CASE60

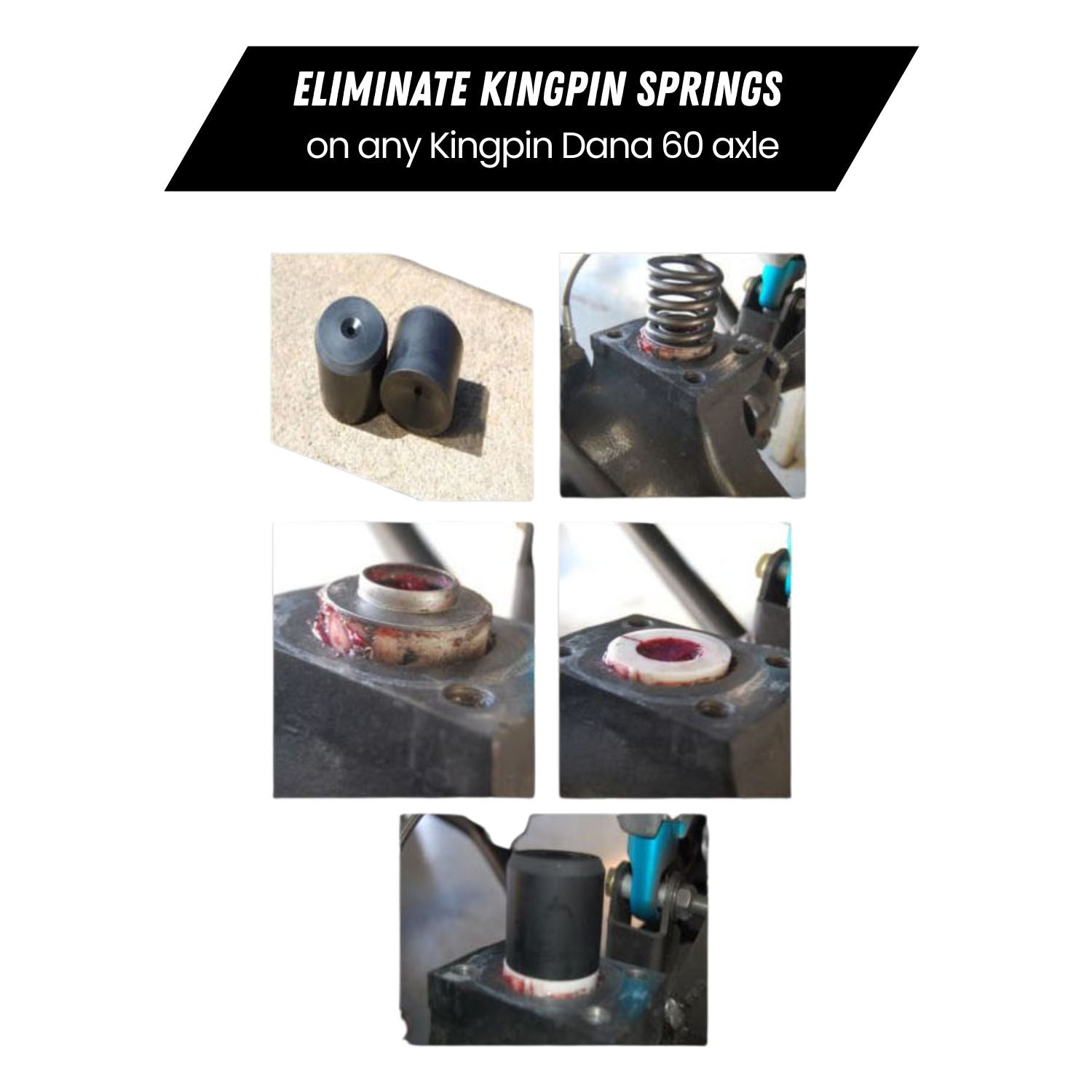

The Crane Axle Dana 60 King Pin Spring Eliminator Kit is designed to replace the factory kingpin spring preload system found in Dana 60 kingpin front axles. By replacing the OEM spring assembly with heavy durometer preload bushings, this system improves steering stability, reduces unwanted knuckle movement, and increases durability under high steering loads.
Factory kingpin springs are a common wear and failure point in lifted trucks, rock crawlers, and heavy-duty off-road vehicles running larger tires and high steer systems. Under repeated steering load and suspension articulation, the factory spring can compress and lose preload consistency, leading to steering looseness, vibration, and death wobble. The Crane Axle Spring Eliminator provides a more controlled preload system designed for improved steering precision in both street-driven and off-road applications.

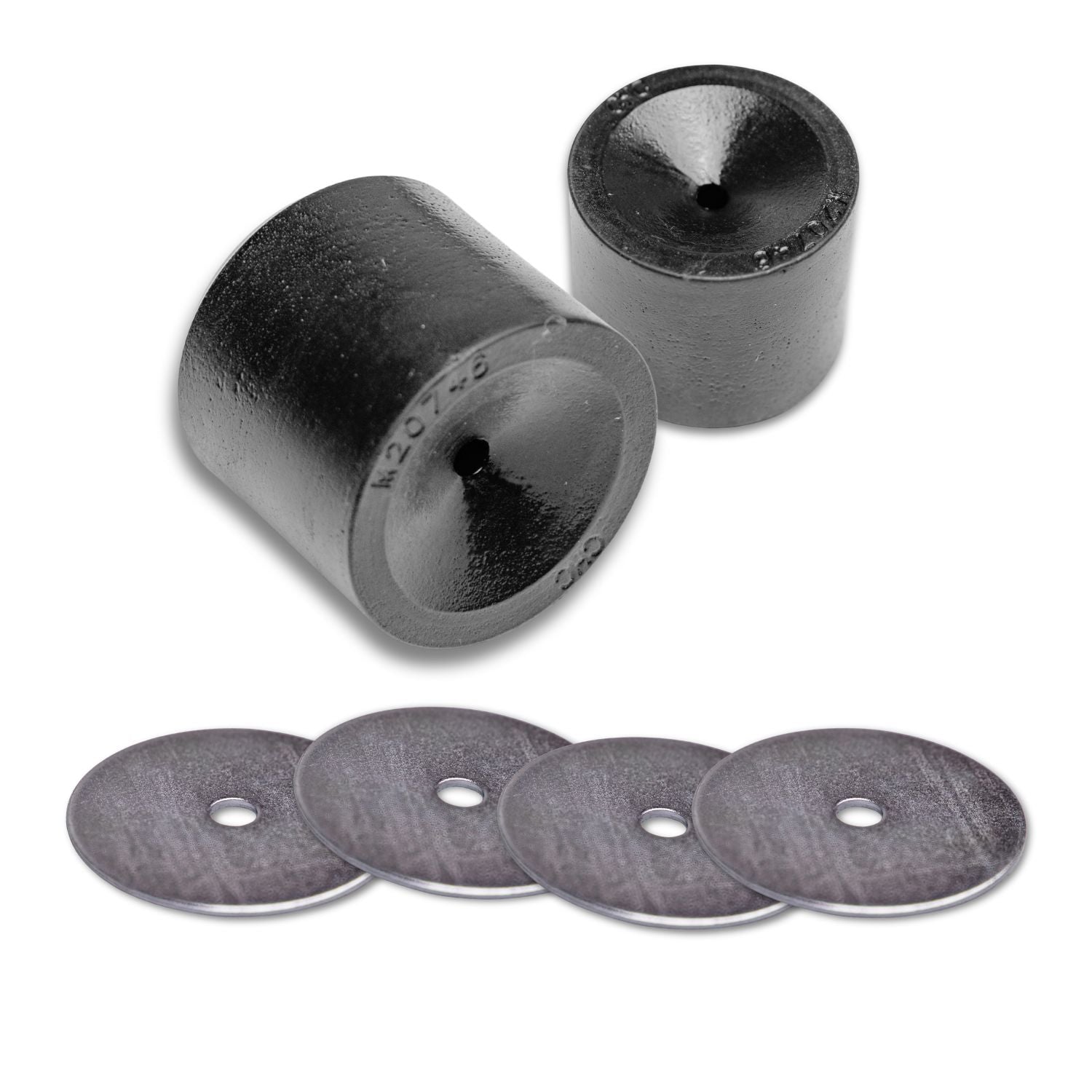

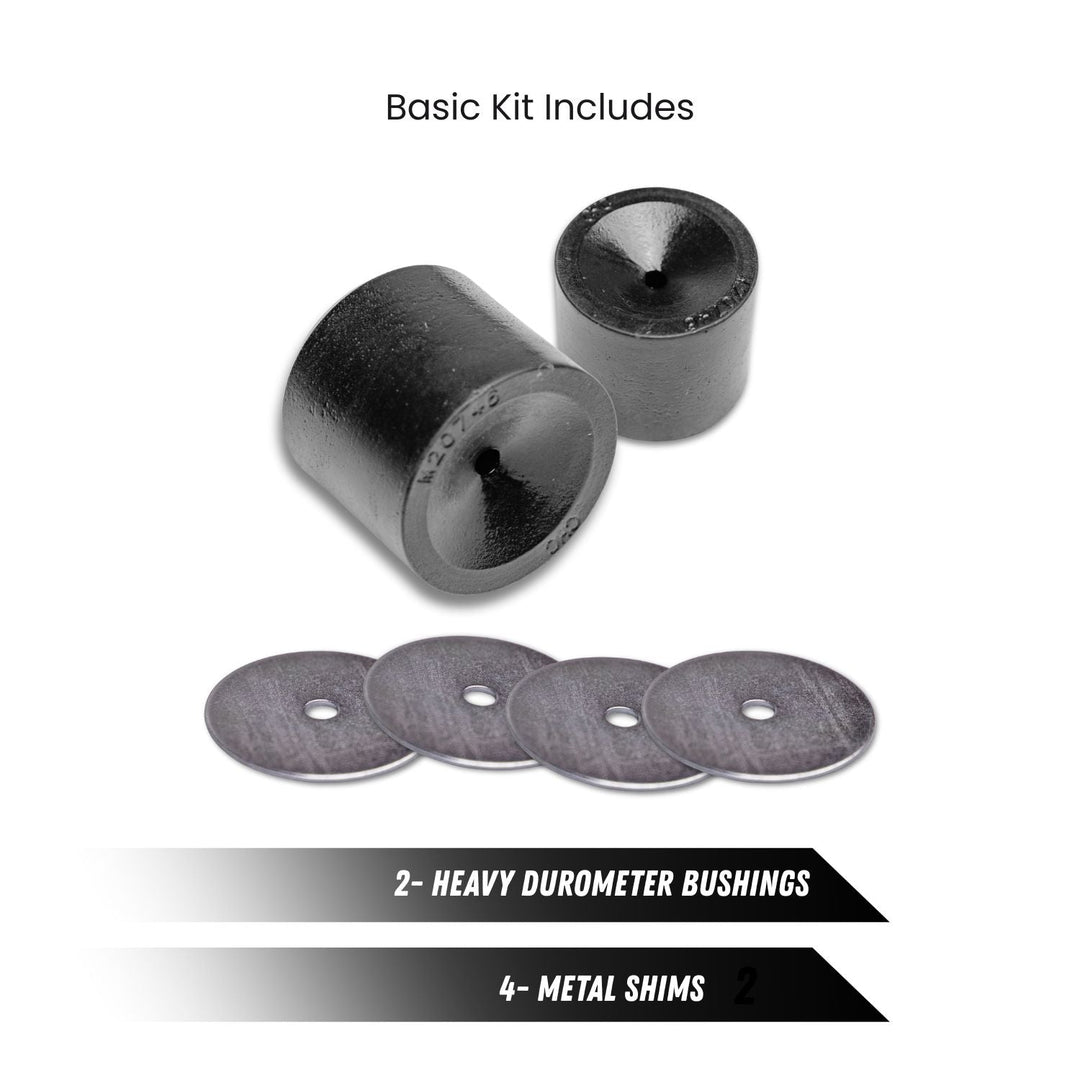

Includes:
- (2) Heavy Durometer Bushings
- (4) Shims
Specifications
- Fits Dana 60 kingpin front axles
- Replaces OEM kingpin spring preload system
- Heavy durometer preload bushings
- Includes preload adjustment shims
- Compatible with OEM and aftermarket kingpin knuckles
- Works with high steer and crossover steering systems
- Designed for heavy-duty steering applications
- Made in the USA
Fitment
| Make | Model | Year Range | Axle Application |
|---|---|---|---|
| Ford | F-250 / F-350 | 1978–1991 | Dana 60 Front Kingpin Axle |
| Chevrolet | K30 / V30 | 1977–1991 | Dana 60 Front Kingpin Axle |
| GMC | K3500 / V3500 | 1977–1991 | Dana 60 Front Kingpin Axle |
| Dodge | W250 / W350 / 3500 | 1975–1993 | Dana 60 Front Kingpin Axle |
| -- | Aftermarket Kingpin Dana 60 Applications | -- | Dana 60 Front Kingpin Axle |
Fitment Notes:
- Fits OEM and aftermarket Dana 60 kingpin axles
- Compatible with high steer steering systems
- Designed for kingpin-style Dana 60 front axles only
- Intended for front steering axle applications
Tech Insight
The factory Dana 60 kingpin spring system uses spring pressure to maintain preload within the steering knuckle assembly. As steering load increases from larger tires, beadlocks, hydraulic assist steering, and off-road use, the factory spring can compress and lose effectiveness over time.
The Crane Axle Spring Eliminator replaces the spring preload system with heavy durometer bushings that provide more consistent preload and reduce unwanted movement within the kingpin assembly. This helps improve steering stability, reduce steering wander and vibration, and minimize conditions that contribute to death wobble in high-load steering applications. Preload can be fine-tuned using the included shims to achieve the desired steering resistance.
