Crane Axle GM Dana 60 Front Steer Knuckle Kit

Build a Front Steering Axle with Crane Axle’s GM Dana 60 Front Steer Knuckle Kit which is engineered for demanding off-road conditions. Designed for strength, precision, and easy serviceability, this kit allows you to build a fully functional front steer Dana 60 Knuckles axle using top grade American made components.

Key Features & Benefits

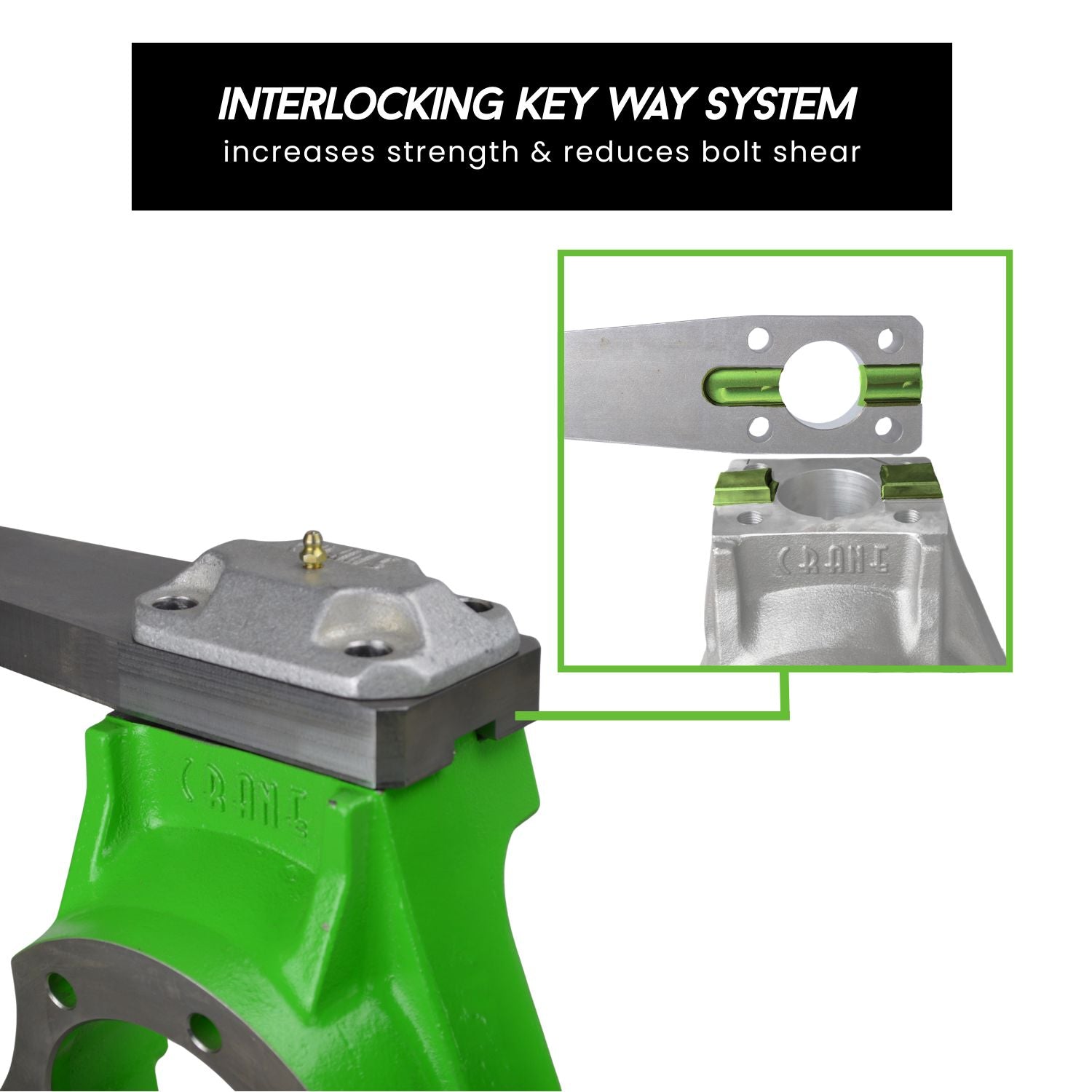

• Interlocking Keyed High-Steer Arms – No Bolt Shearing
  The keyed arm design transfers steering load into the knuckle body instead of relying solely on hardware. This eliminates bolt shear and ensures a stronger, longer lasting steering setup.
• Uses Off-the-Shelf GM Components
  Compatible with standard GM Dana 60 components, making trailside repairs simple and parts easy to source locally.
• Fits any axle tube with a outside diameter of 3.125" up to 3.5"
• 100% USA Cast and Machined
  Each knuckle is cast from domestic 8620 Chromoly steel and machined to exact tolerances. This ensures exceptional strength, fitment consistency, and quality.
• Lightest Aftermarket Cast Knuckle on the Market
  Crane Axle’s exclusive 8620 Chromoly process delivers the strength of a heavy duty casting with reduced weight compared to mild steel or cast iron alternatives.

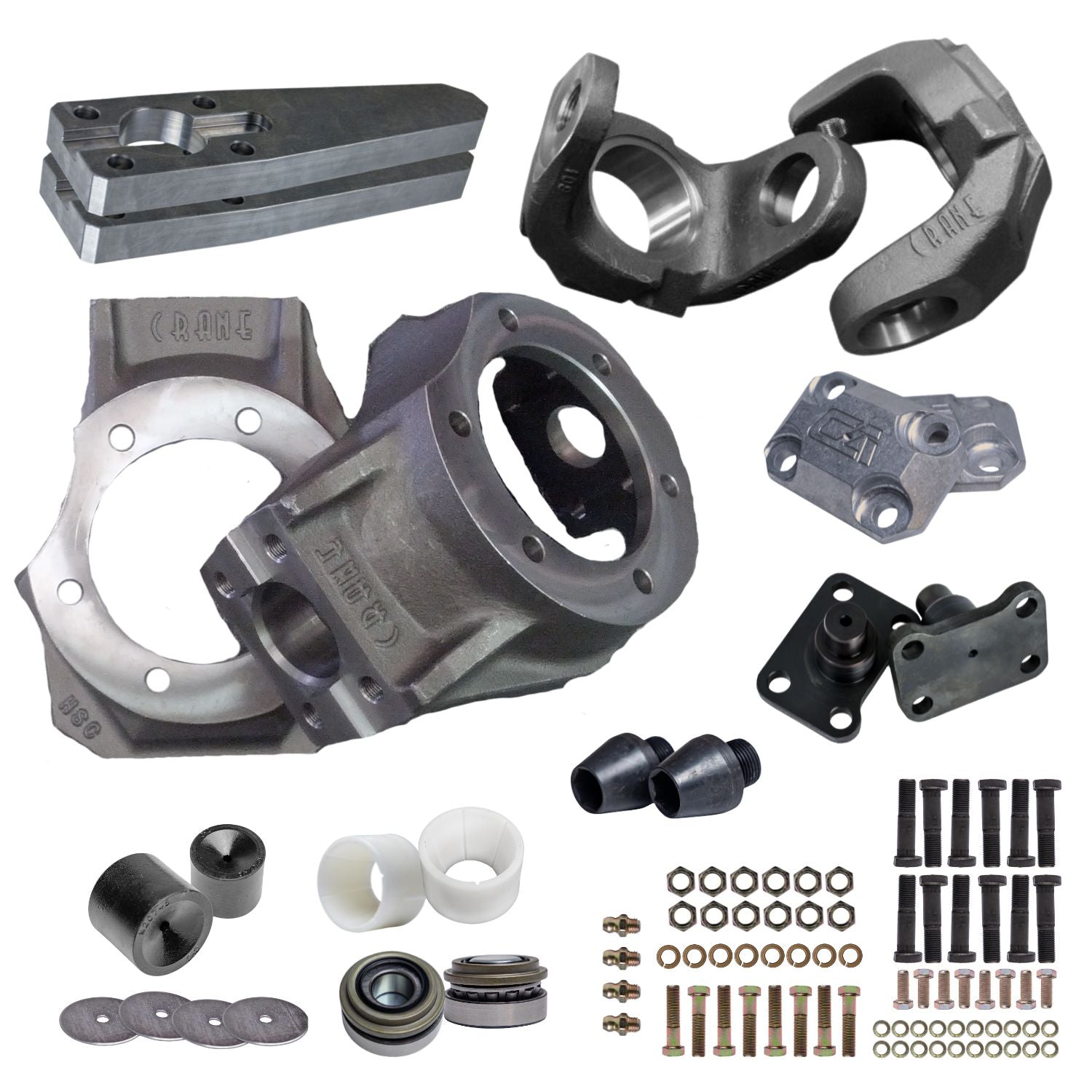

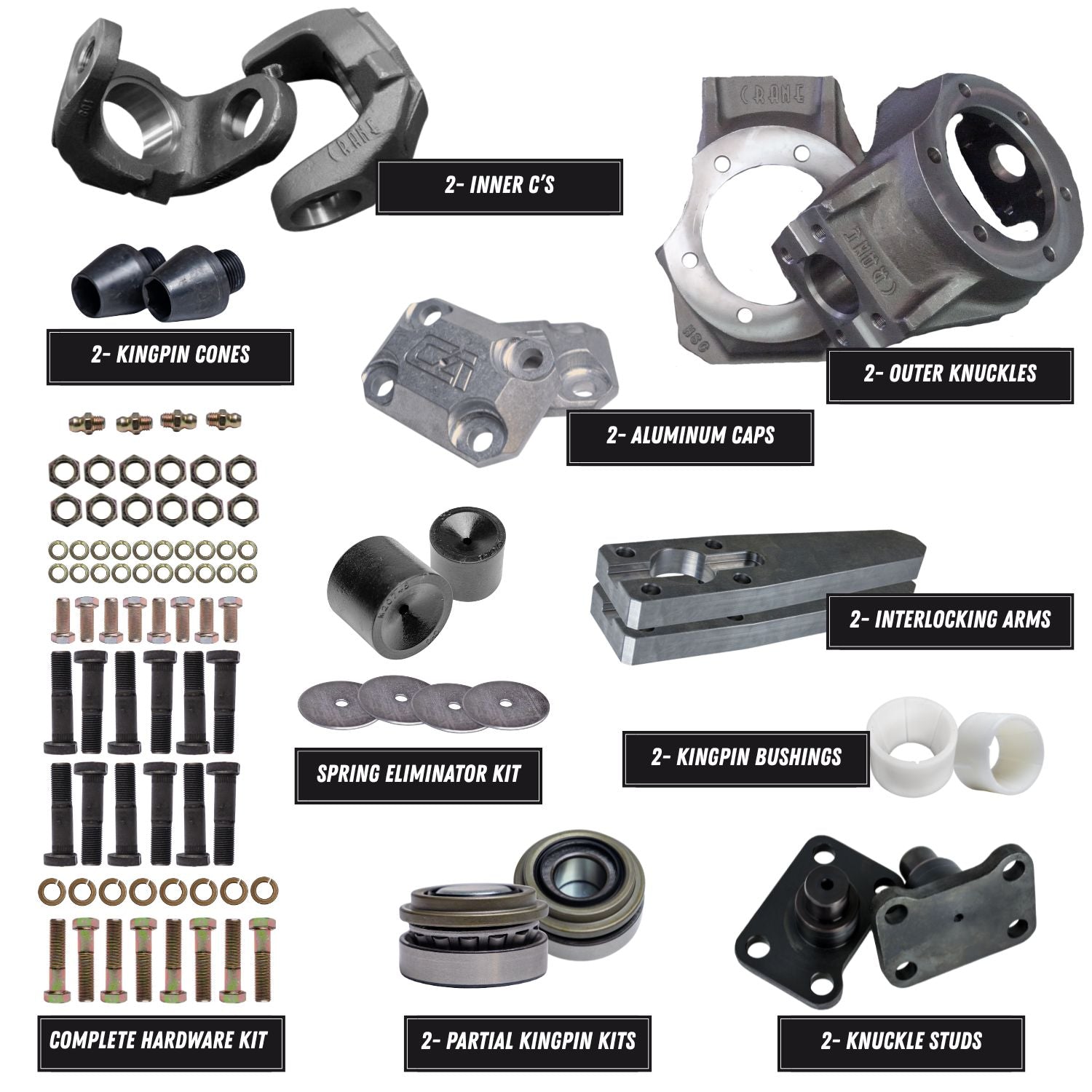

Includes

• (2) Dana 60 Inner C’s – 3.0" I.D. standard (Call to order 3.5" I.D.)
• (2) GM Dana 60 Knuckles
• (2) Dana 60 High-Steer Arms
• (1) Dana 60 Kingpin Component Kit
• All Necessary Hardware
